Ampire KV-NV200 - Rückfahrkamera Nissan NC200/Chevrolet City

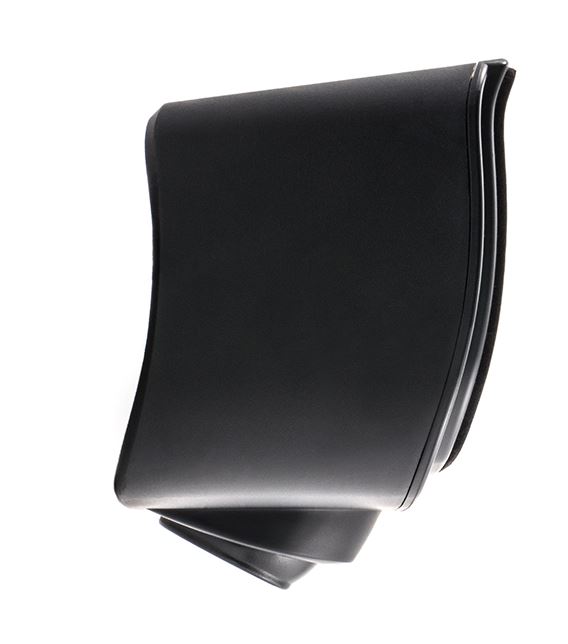

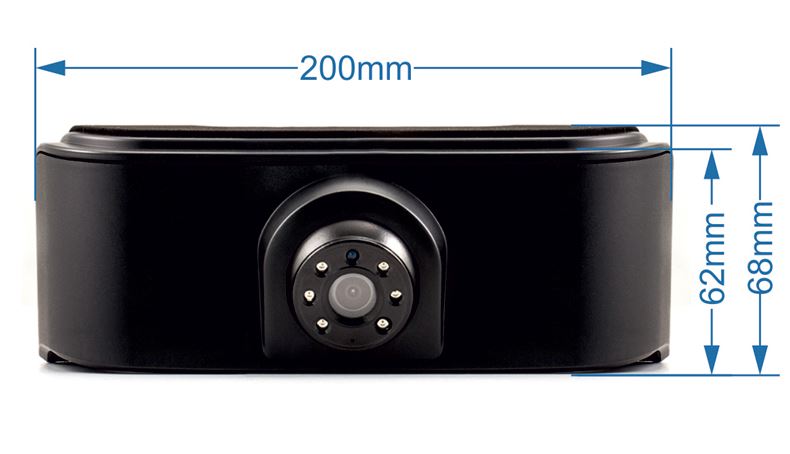

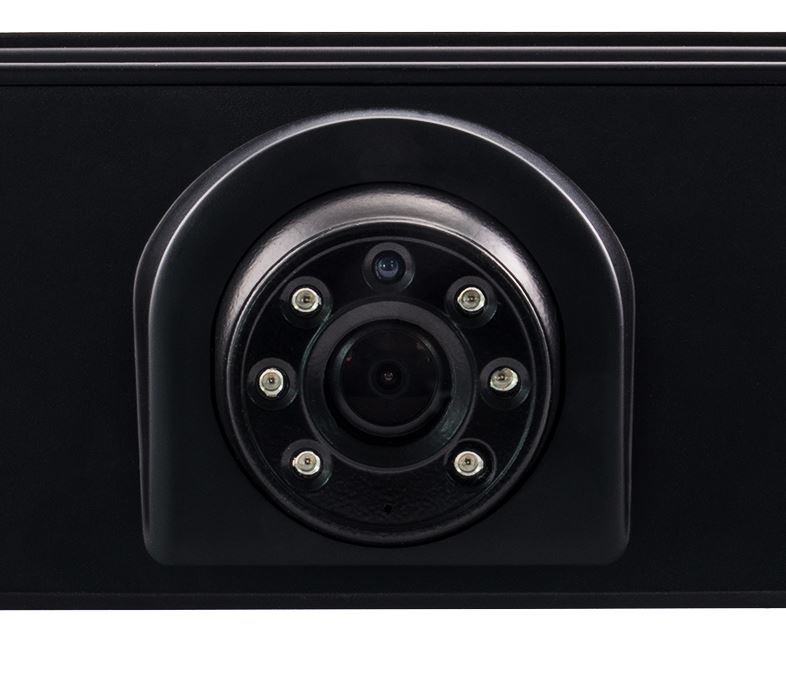

Vehicle-specific reversing camera for the NISSAN NV200 and Chevrolet City Express. The KV-NV200 is installed between the body and the brake light lens.

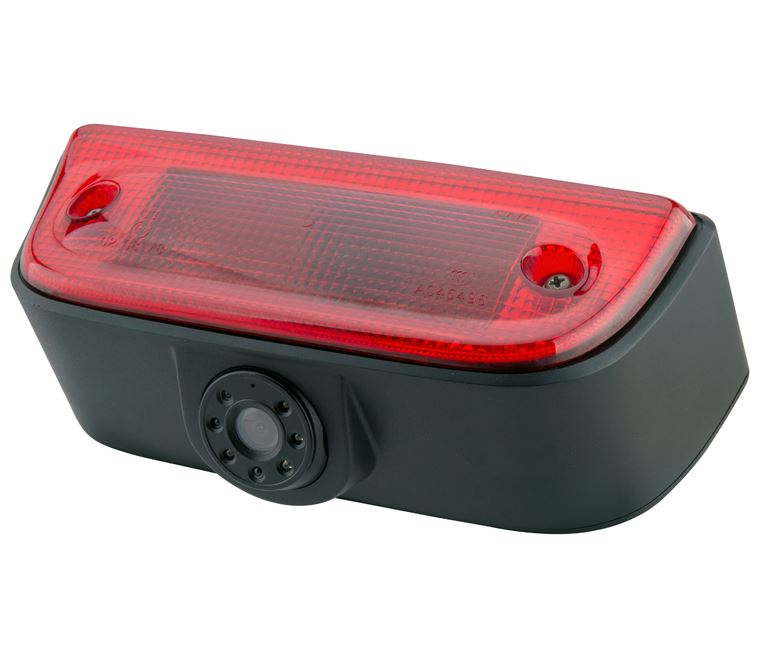

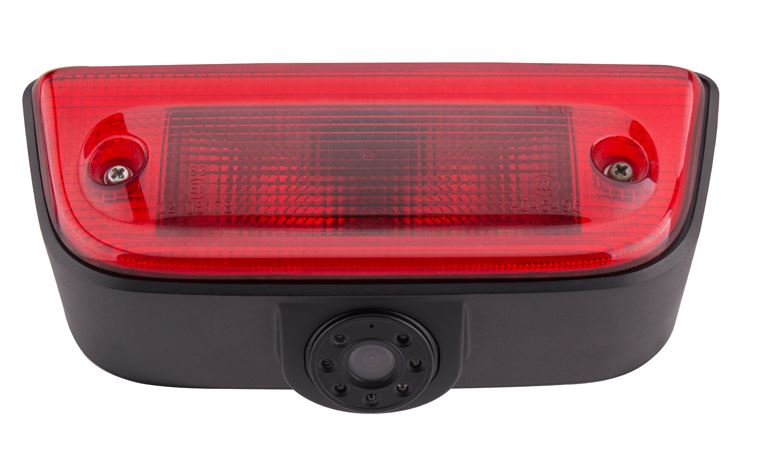

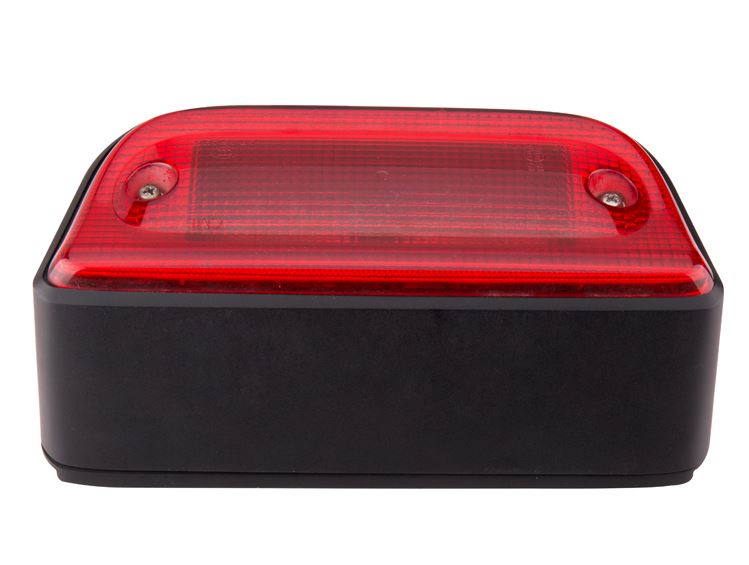

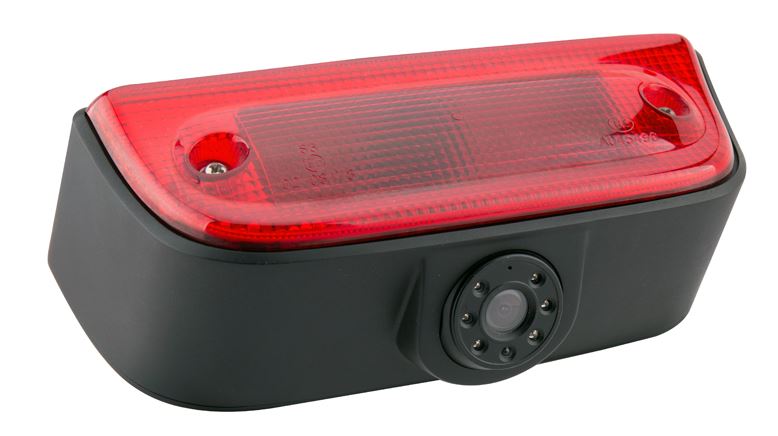

The red brake light glass in the pictures is for illustration and is not included in the scope of delivery!

Technical specifications

• Image reproduction mirrored
• Image sensor: 1/3 "CMOS high performance digital super clarity image sensor
• Resolution 756x504 pixels
• Viewing angle 140 °
• Image format: NTSC
• 480 lines resolution
• IP68 waterproof
• Integrated infrared lighting
• Operating voltage: 9 - 16 volts DC
• Power consumption: max. 200mA
• Operating temperature: -30 ° to 70 ° C
• Minimum lighting: 0 lux
• Color: Black

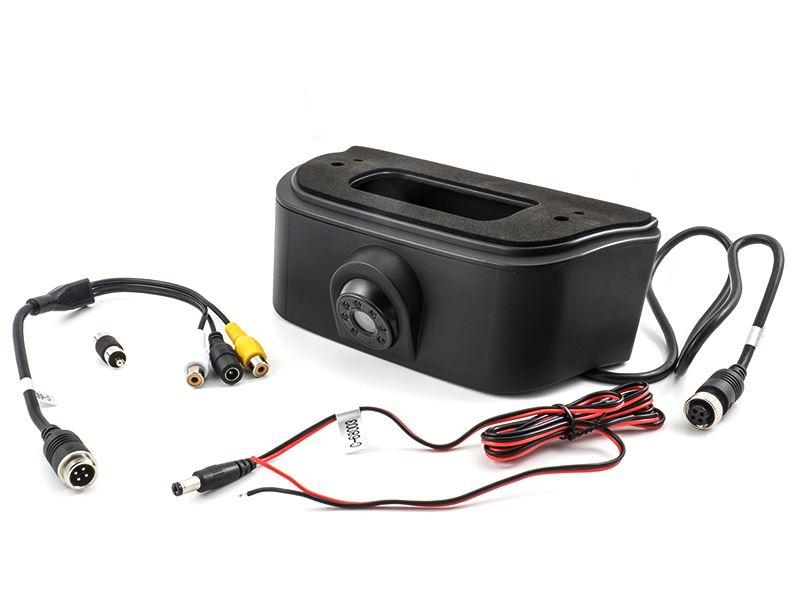

• Cable length: 10 meters
• E approval E9-10R-05.1652
• CE approval EN 55022: 2010; EN 61000-3-2: 2006 + A1: 2009 + A2: 2009; EN61000-3-3: 2008; EN 55024: 2010
• FCC approval ANSI C63.4-2003

Installation note

The camera is not suitable for continuous operation or monitoring. It must not be operated with an ignition (K15), as this could damage the camera through overheating.

Important NOTE

Depending on the roof structure and the trailer coupling installed on the vehicle, you may not be able to see the trailer coupling on the monitor.

Legal notice

An increase in vehicle dimensions, with the exception of cars and motorcycles, is subject to registration and must be assessed immediately by the technical test center or an officially recognized monitoring organization (DEKRA, GTÜ, KÜS, TÜV). Before installing or converting the vehicle, ask an officially recognized expert for motor vehicle traffic or a test engineer from a monitoring organization whether the operating license will be affected or whether the change can be approved at all. The return of a used camera for credit is excluded.
