rear view camera interface Nissan

Rear view camera interface Nissan

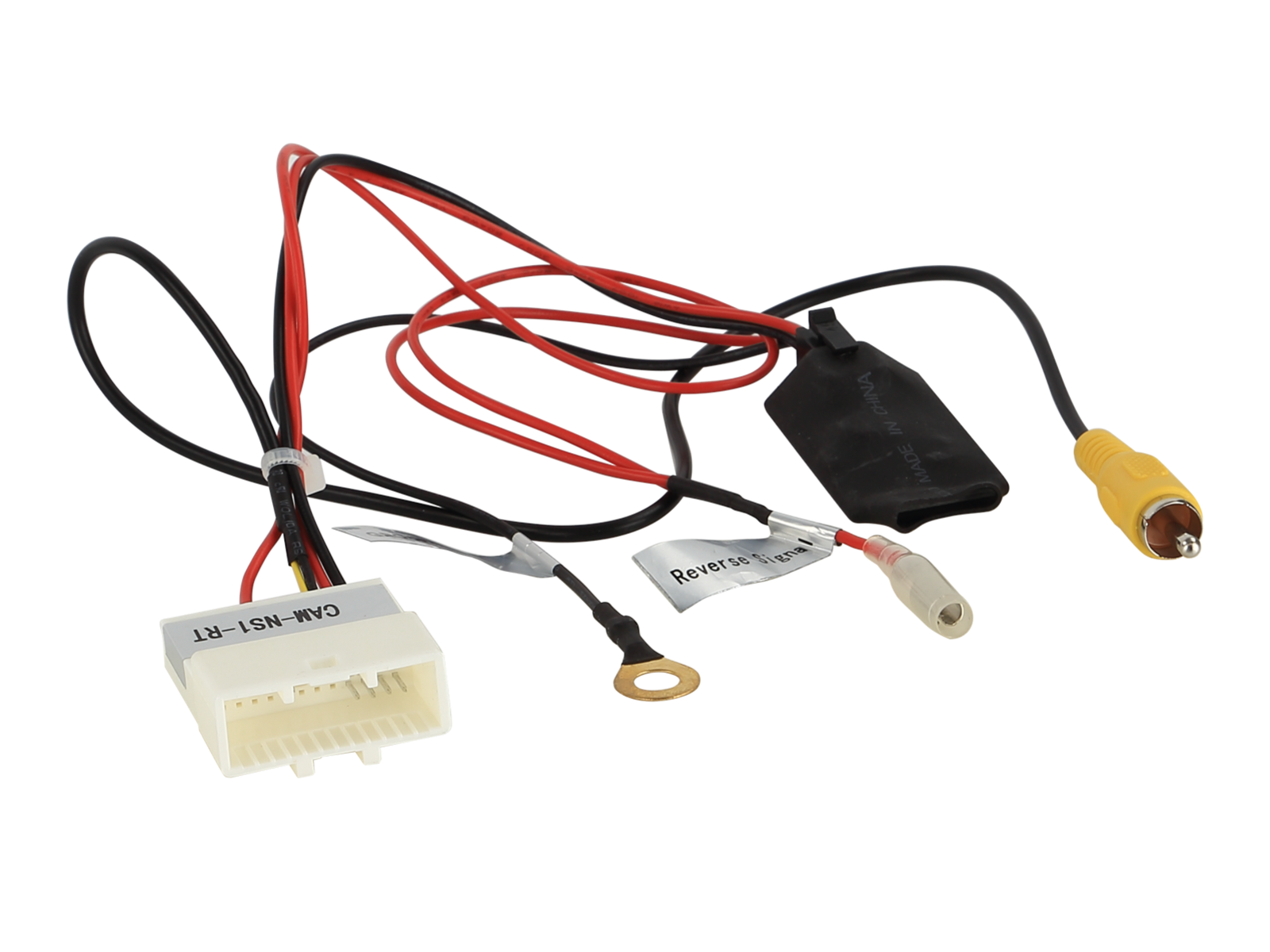

Rear view camera adapters are required to maintain the OEM rear view camera.

These enable a factory-fitted camera to be connected to a retrofit device with a camera input.

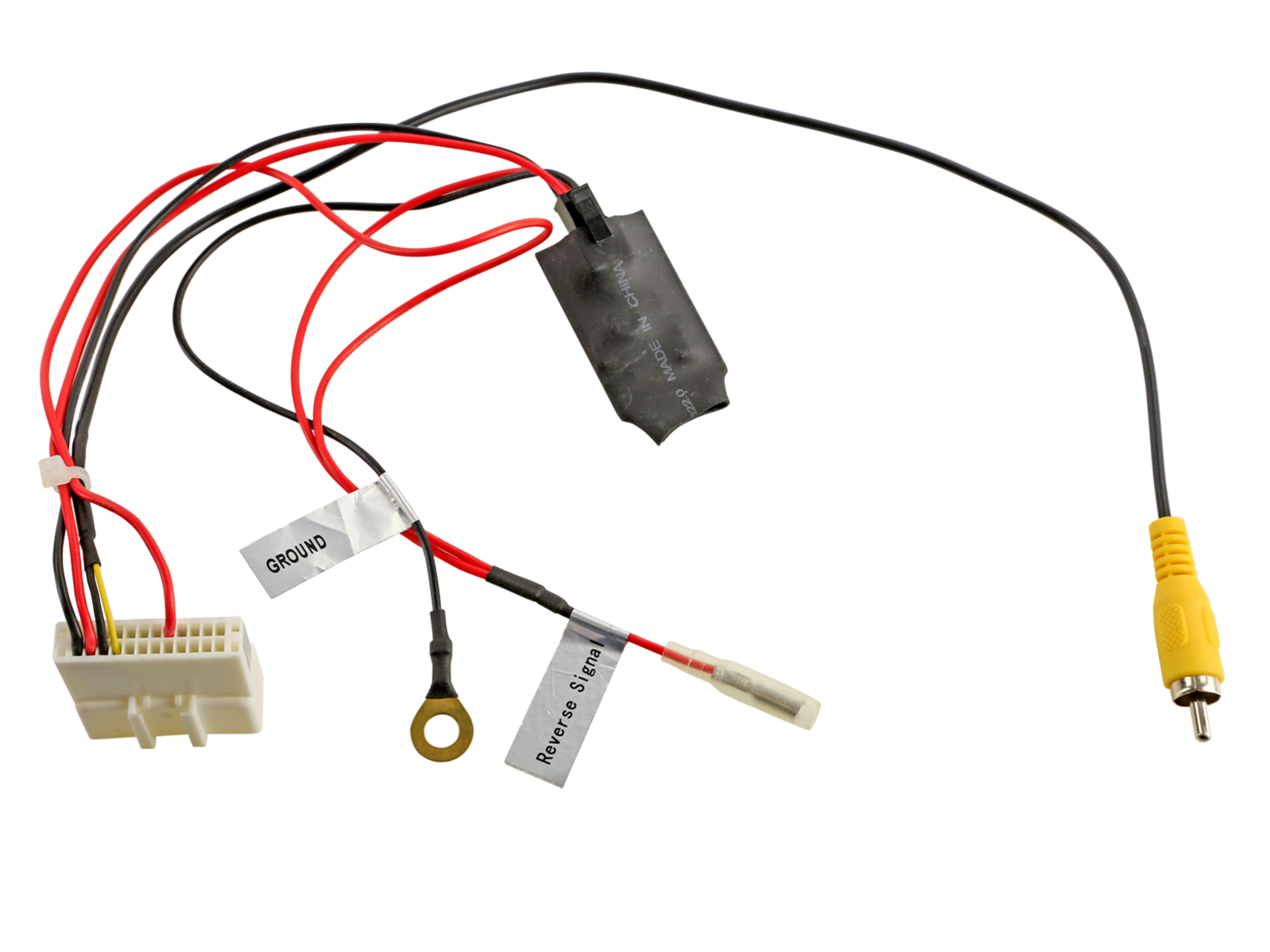

Depending on the vehicle and equipment, the adapter provides the cinch video signal, a +6V/ground power supply for the OEM camera and the +12V reversing signal, or this must be connected to a suitable location in the vehicle.

Vehicles with a 360° camera system or systems with moving guide lines may not be compatible.

Before installation, check that the adapter is correctly connected to the OEM connection.

Many retrofit devices must be set to the camera function in the menu.

Note:

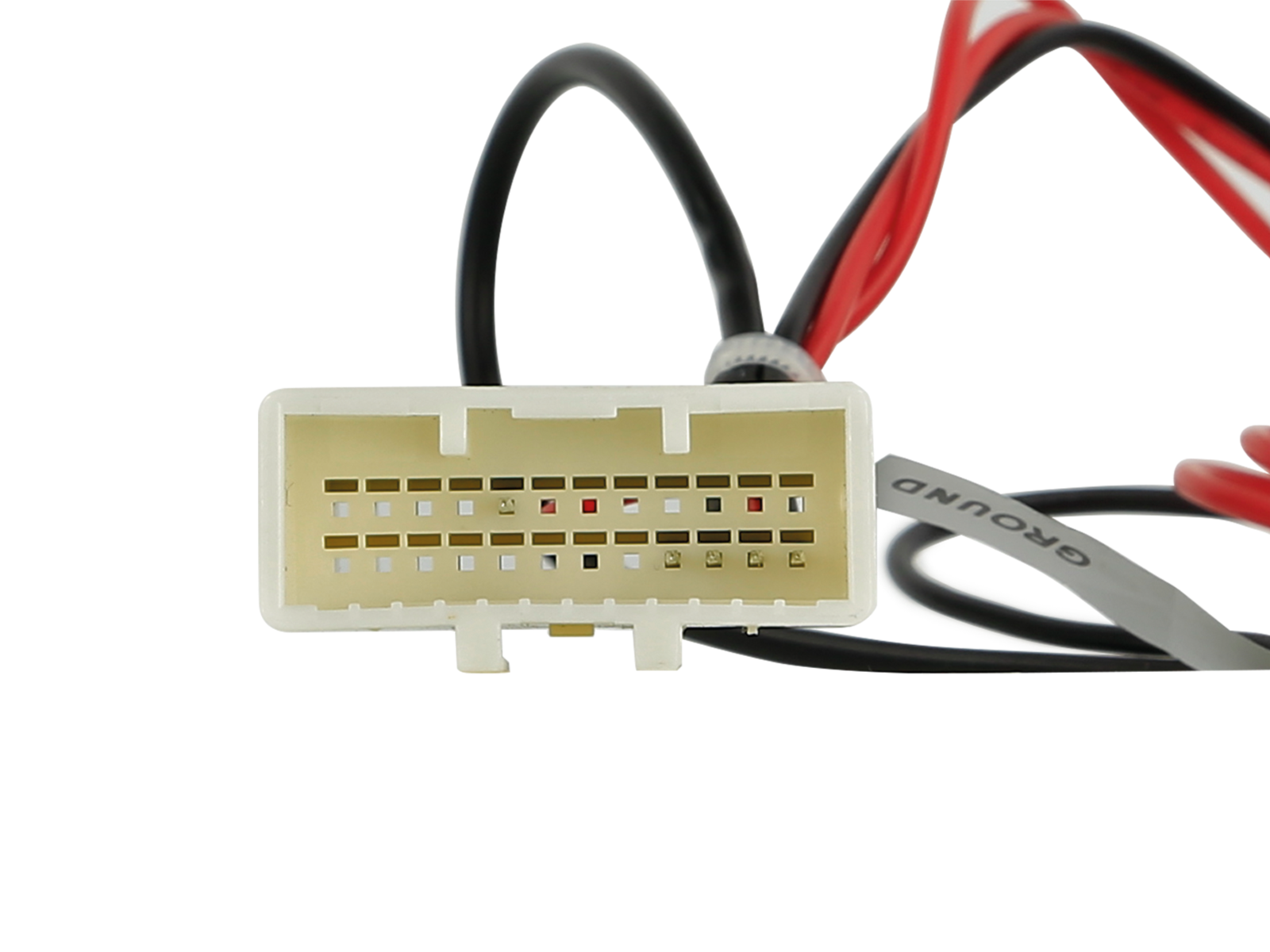

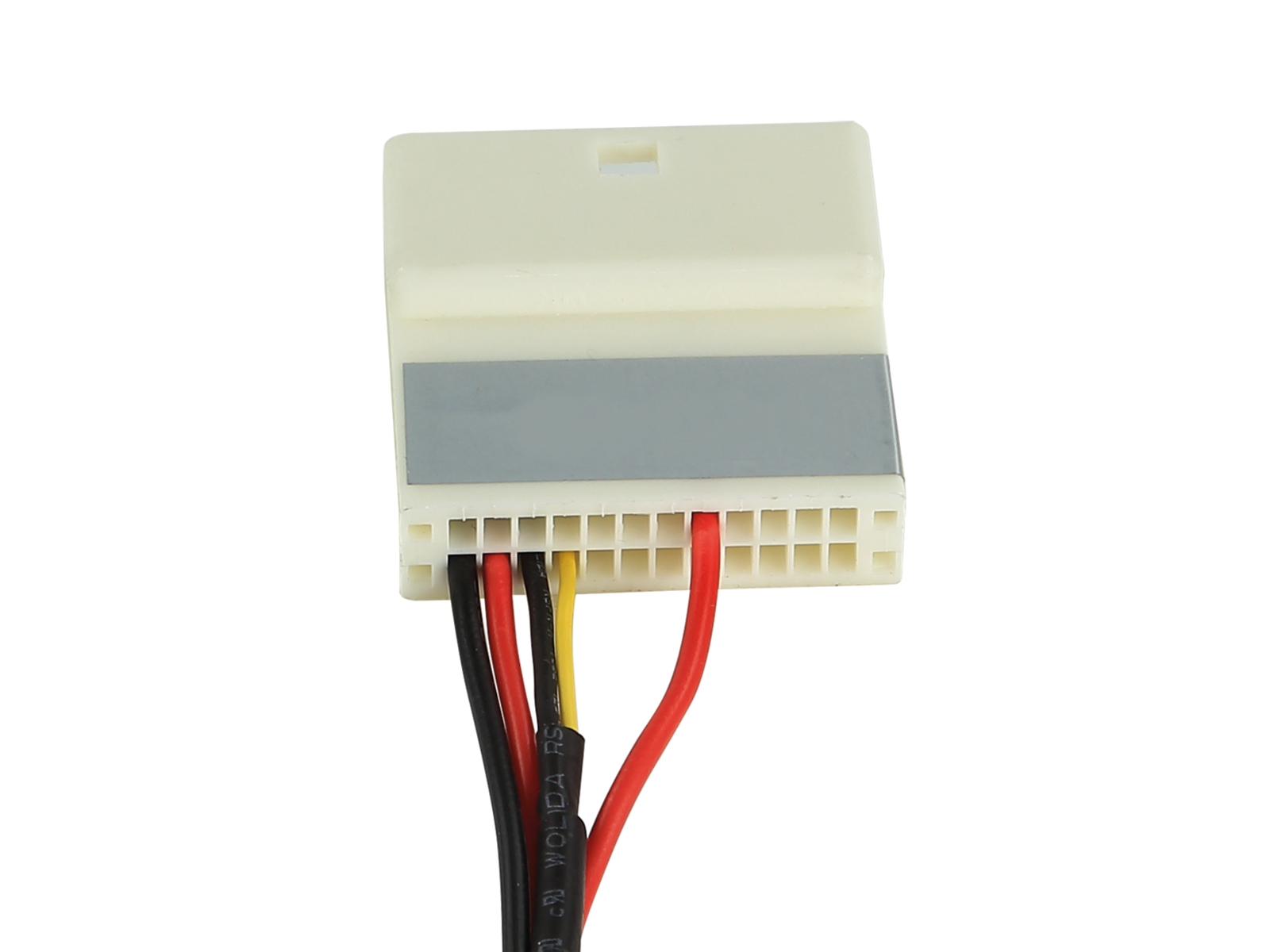

Connection: 24 pin Nissan connector

Connection +6V supply voltage > before installation with OEM device, check for correct pinning

Vehicles with rear view camera
Vehicles with 360° OEM camera system and separate camera switching*

Vehicles without 360° OEM camera system controlled via the OEM device

red: +12V reversing signal output
black: ground terminal 31

For the following application:

Retaining the OEM rear view camera

Suitable for the following vehicles:

• Nissan Navara (D40) 04/2010 - 08/2015
• Nissan Note (E11) 01/2009 - 08/2013
• Nissan Note (E12) 10/2013 - 12/2016
• Nissan Pathfinder (R51) 04/2010 - 08/2015
• Nissan Qashqai (J10) 03/2010 - 10/2014
• Nissan X-Trail (T31) 10/2010 - 06/2014

*Check changed assignment with OEM device:

Pin 21: Ground supply voltage
Pin 22: +6V Supply voltage
Pin 15: Video -
Pin 16: Video +

Reverse signal: yellow

Front camera switching not available
Camera control unit under driver's seat

General installation instructions:

Connections, connection changes, alternative connections, connections of loose cables or connection extensions of loose cables specified in the information text or the operating instructions are intended solely for orientation and information for trained specialist personnel.

Other connections, changes to the cable configuration of the wiring harness or use of alternative connections or connection extensions:
1: Connections and changes may only be carried out by trained specialist personnel
2: Before connection, connections and changes must be checked for any manufacturer approvals or manufacturer warranty conditions that may be affected by the changes
3: Before connection, connections and changes must be checked for function and correctness by measuring and comparing them with the vehicle's cable assignment plan
4: Connections and changes are made at your own risk without guarantee of functionality
5: Connections and changes are made at your own risk without guarantee of damage to the vehicle, the retrofit device or the interface
6: Changes to the pre-assembled wiring harness can void the product's warranty
