Ampire LDS-PCM31-CP - Smartphone-Integration Porsche

AMPIRE smartphone integration Porsche PCM  3.1 2010-2016

Plug & Play smartphone interface with full integration into your car's multimedia system. The image reproduction is displayed on the factory monitor and the audio reproduction via the audio AUX input. Of course, the interface is suitable for Apple CarPlay and Android Auto and is therefore an intelligent and safer way to use the smartphone in the car.
Everything is operated via the vehicle's own buttons and control systems. In Apple CarPlay mode, you can also use Siri voice control via the included microphone. Everything you want to do with your smartphone while driving can be done with Apple CarPlay and Android directly on the car's display. You can easily get directions, make calls, send and receive messages, or listen to music - and still concentrate on the road. Simply connect your smartphone to our system and off you go.

FEATURES

• Interface for retrofitting Apple CarPlay and for Android Auto
• Operation via OEM buttons / touchpad from the vehicle
• Wireless Apple CarPlay via WIFI antenna
• Wired Apple CarPlay via USB (switch off WiFi on the iPhone)
• Android Mirrorlink function (mirroring the smartphone display)
• USB input for multimedia playback
• Video playback on Apple iOS only via USB cable
• Up to 1080p HD resolution for multimedia playback
• Supports RMVB, MOV, MKV, MP4, AVI, RM
• Pairing via Bluetooth only necessary for the initial installation
• Integrated audio DSP with equalizer
• Analog audio output with 3 volt output voltage for sound reproduction (audio AUX)
• Supports left and right hand drive vehicles
• Software update possible via a micro USB input (adapter included)

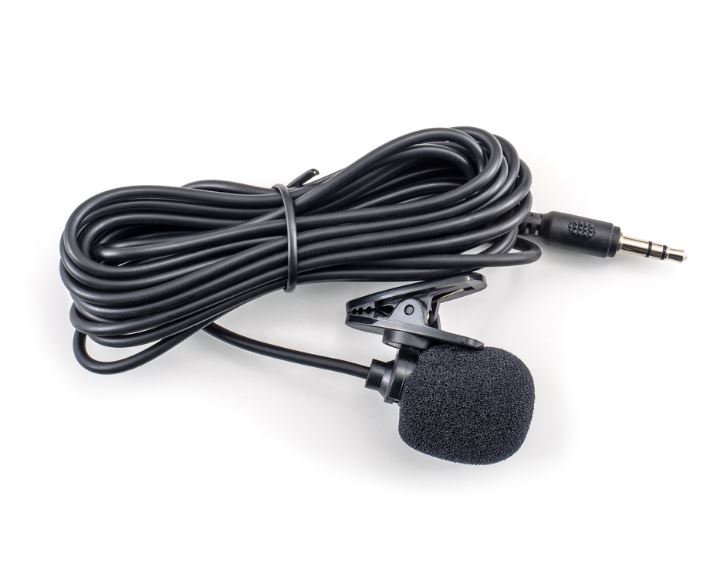

• Apple Siri voice control via the included microphone (no telephony via it)

APPS

• GPS navigation with Google Maps, Waze and Apple Maps and much more
• Music playback with Spotify, Apple Music, Amazon Prime and much more

CAMERA FUNCTIONS

• Input for front camera (composite video)
• Rear view camera input (composite video)
• Support of reversing alarms (PDC)
• Support of moving guide lines
• Supports 360 ° camera systems
• 12 volt output for powering the front camera
• 12 volt output for the power supply of the rear camera

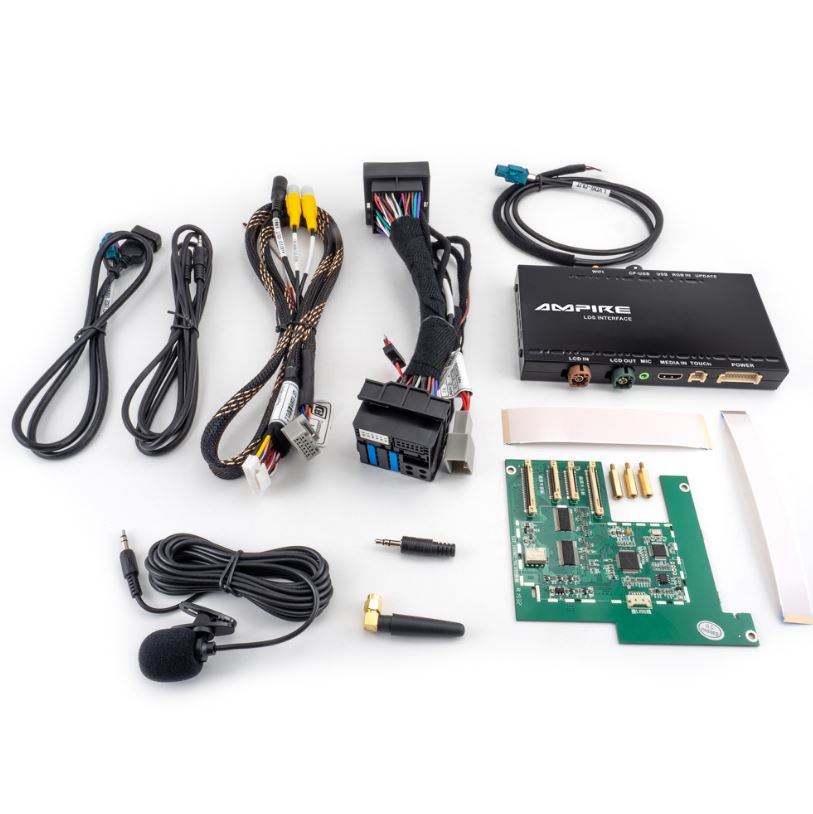

EQUIPMENT

In the scope of delivery we send you an adapter from MICRO-USB to USB for any software updates from the interface.

COMPATIBILITY VEHICLE

Before purchasing and installing, check that the product is compatible with your car type, year of manufacture and entertainment system. Your entertainment system must have an audio AUX input for sound reproduction. Incompatibility can lead to damage.

COMPATIBILITY SMARTPHONE

Before buying and installing, check whether the product is compatible with your smartphone.

• Apple iOS: iPhone 5 and higher
• Google Android: Android 5.0 (Lillipop) better Android 6.0 (Marshmallow) and higher.

TECHNICAL SPECIFICATIONS

• USB port charging current: 1100mA
• Interface dimensions: 166x89x27mm
• Dimensions packaging: 260x220x80mm

APPROVALS

• E-approval number E57 * 10R06 / 00 * 0081
• E-approval number E57 * COP * 0279

IMPORTANT PRODUCT NOTICE

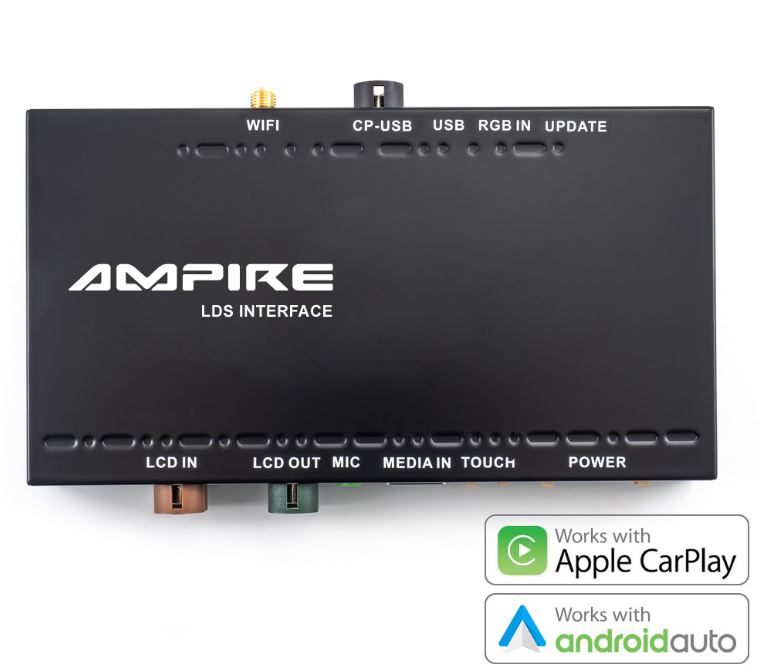

The MEDIA IN socket on the housing is not an HDMI input for playback of external HDMI sources. This socket is required for additional modules on some vehicle types.

INSTALLATION NOTE

This product is used in vehicles with a 12V battery. Please do not install in vehicles with a different voltage. Never extend the HSD signal lines. This product is made up of high-precision parts and should not be subjected to strong impacts. Never open the housing. To protect driving safety and to avoid traffic law violations, never operate the product while driving. The optional reversing cameras are only visible when maneuvering. Additionally, always pay attention to your surroundings and never just rely on the camera. All installation steps should only be carried out by a trained professional. During installation, the ignition must be switched off and the product must only be connected to power after the cabling is complete. NEVER plug or unplug the cables when the device is switched on, to avoid damaging the monitor or the product. Route the cables so that they do not come into contact with metal edges. This can damage the wiring, which can lead to fire. Avoid all contact with hot surfaces when wiring the main unit. High temperatures can damage cabling and cause short circuits, arcing and fires. Please DO NOT install the product in a humid environment to avoid electric shock, damage and fire caused by short circuit. When you receive the product, please check that all components are in the packaging. If something is missing, inform the supplier / manufacturer. Start the engine before loading, check the interface whether the function is displayed, check the key whether the vehicle interface is working correctly. Please give feedback to the supplier / manufacturer if you have any questions. Please ensure that you handle the disassembled vehicle parts carefully during installation and avoid scratches on the instrument panel. Unused connection plugs must be insulated to avoid a short circuit. The cable connections should be well plugged in. Avoid impairing the control components such as the steering wheel, accelerator and brake pedals.
