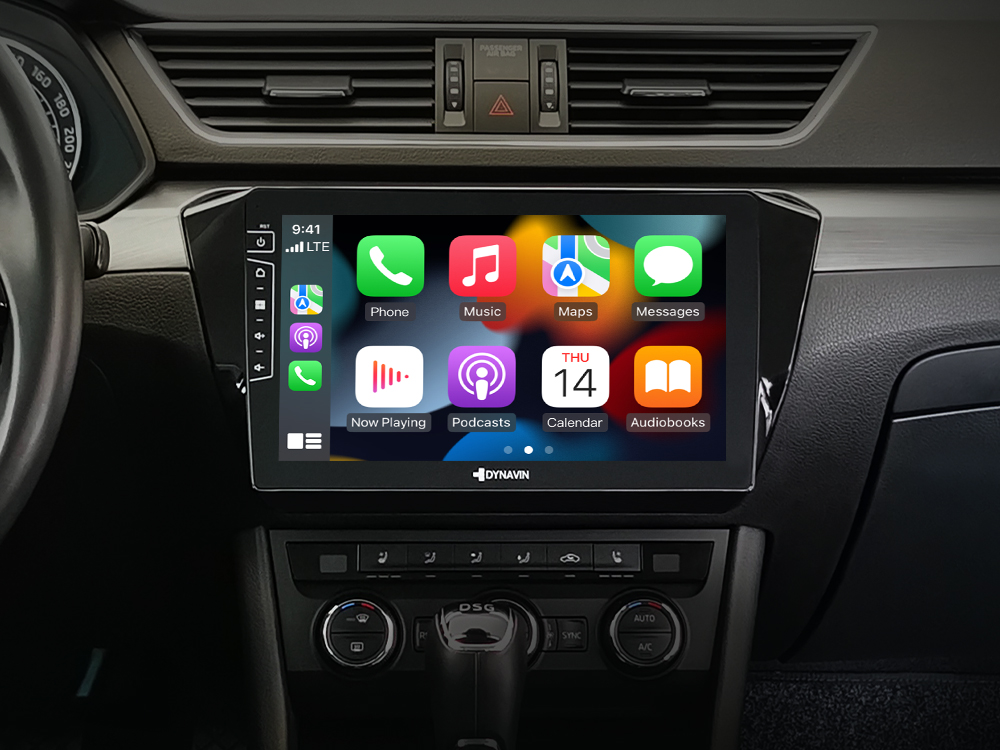

Dynavin D9-37 Premium Flex - Car radio for Skoda Superb

D9-37 Premium Flex

Android car radio for Skoda Superb with 4 x 100W Class-D amplifier, 10.1 inch display (high resolution), incl. head-up display, Apple CarPlay and Android Auto

• Integrated 4 x 60W RMS Class D-DSP amplifier: distortion (THD+N) < 1%, DSP resolution: 24 bit, sampling rate: 44.1 K. Vehicle-specific sound file available.
• High-quality 10.1″/16:9 LCD capacitive touchscreen display (resolution 1280 x 720).
• Includes head-up display that shows navigation information from Dynaway, Apple Map with Carplay and Google Map with Android Auto, as well as vehicle speed and Blitzer.de information.
• Compatible with Apple CarPlay, Wireless CarPlay, Android Auto, Wireless Android Auto* and SmartPhone Mirroring (activation code on flex.dynavin.com after 31 days free trial).
• Dynapp Pack (after the 31-day Test phase, available for purchase via  flex.dynavin.com ): The Dynapp Pack includes the use of the Dynaway navigation app, access to the Google Playstore, the installation and use of third-party apps, as well as the display of speed limits and Blitzer.de data on the Dynavin Head-Up Display.
• Integration of the CANBUS solution (for steering wheel control, vehicle settings, vehicle information, parking sensor and air conditioning information).
• BT for audio streaming and hands-free calls via any smartphone (Android, Apple, etc.). External compact dual digital microphones are included.
• FM RDS tuner with DSP noise masking and 15 preset stations, integrated DAB. Supports automatic switching between DAB and FM (Seamless Blending).
• Integrated sound DSP processor with 16-band EQ and time correction. Supports VW Dynaudio Sound System when using the D8-MO150-V.
• Multimedia player via USB port.
• Rear view camera ready: Compatible with factory rear view cameras and aftermarket rear view cameras.
• Built-in GPS navigation (31-day trial period, included in Dynapp pack).
• Supports VW Lane Keeping Assist and Traffic Sign Recognition with D8-CANMIB-H

* The Wireless Android Auto feature included in Z-Link does not guarantee compatibility with all Android phones.

Suitable for

Skoda Superb 2015-2018

Specifications

General

• Android 11 OS with 4GB RAM and 32GB or 160GB ROM
• 5 PreOuts (3V, Front / Rear / Subwoofer)
• CANBUS integration
• Menu language: English / German / French / Spanish / Portuguese / Dutch / Italian / Polish / Danish / Czech / Finnish
• Compatible with AHD / NTSC / PAL camera inputs
• Camera guide line setting
• Rear camera display Auto / Fast boot
• 16 Band EQ
• Auto dimmer
• Firmware updatable
• Compatible with start-stop system

Display

• Display: 10.1-inch
• Resolution 1280 x 720 pixels (RGB)
• Capacitive touchscreen
• Anti-reflective display
• Working system: TFT active matrix
• Active area: 222.72 (H) x 125.28 (V) mm

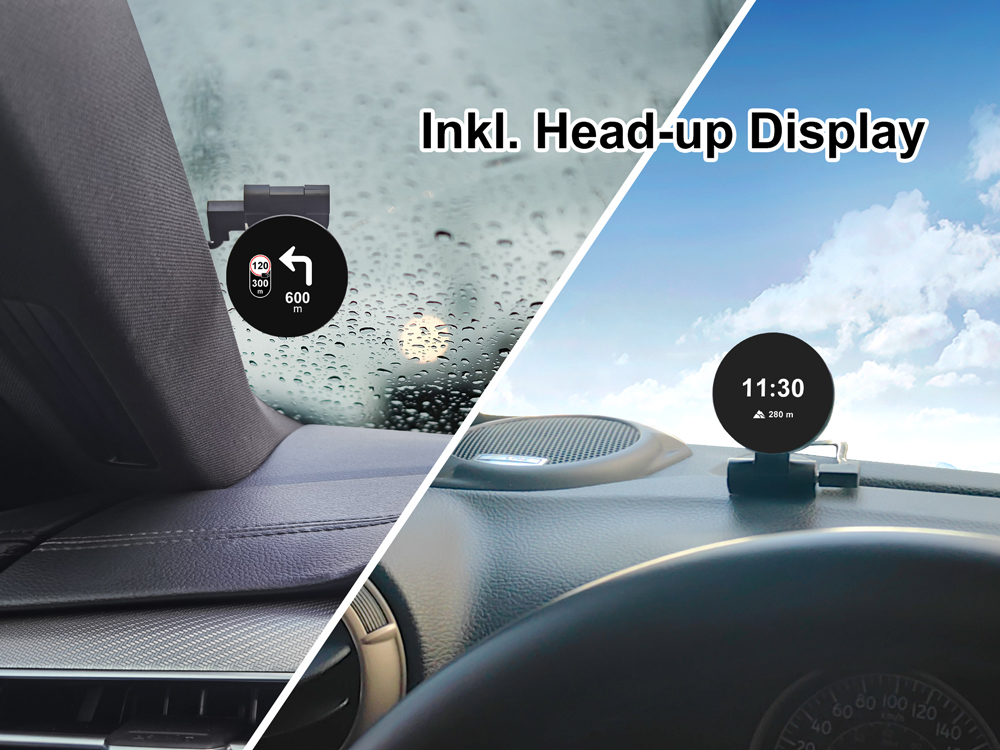

Head-up display

• Display: 1.4-inch LCD
• Supports display of time, date, altitude, navigation information from Dynaway, Apple map with Carplay and Google map with Android Auto also the vehicle speed and Blitzer.de information

Z-Link

• Compatible with Apple Carplay, Wireless Carplay, Android Auto and Wireless Android Auto
• Compatible with SmartPhone Mirroring

* The Wireless Android Auto feature included in Z-Link does not guarantee compatibility with all Android phones.

DAB+

• Integrated DAB/DAB+
• DAB + to DAB + Service Following
• Seamless Blending (automatic switching between DAB + and FM)
• SLS (Slideshow Service)
• DLS (Dynamic Labeling Service)
• Radio VIS (station coverage on your Radio display)
• Station memory: 15 program memory locations

Integrated BT

• Integrated BT module
• Specification standard: 3.0 and 2.1 + EDR
• -95dBm sensitivity, excellent anti-interference performance
• Supports low-power scan function
• PBAP phone book synchronization with 1000 entries
• Hands-free function with HFP
• Music streaming: A2DP (Advanced Audio Distribution Profile) compatible
• Individual profile connection: hands-free function and music streaming
• Phone book: Automatic transfer of the phone book
• Supports dashboard display for Caller alerts
• Support for storing connection history of multiple mobile phones
• Device name display
• Call history: dialed number / received calls / missed calls
• Voice volume adjustment: adjustable for incoming and outgoing calls
• Microphone gain adjustable
• GSM signal strength display
• Battery level display

USB

• USB specification: USB 2.0, support for fast charging
• Audio playback (supported formats: APE/FLAC/M4A/MP3/WMA/WAV)
• Video playback (supported formats: MPEG-4/AVI/FLV/MPEG/MPG/DAT/VOB/MKV)
• Picture browsing (supported formats: JPG/BMP/PNG/JPEG)
• Playback mode: Random play / Single song loop / All loop / Folder loop
• Picture can be set as home screen
• Synchronize song album pictures
• Video playback speed x2/ x4
• Storage playback progress
• Support dashboard display of songs/composers
• Support steering wheel to control song/volume level up/down
• Search by file/folder name
• Support up to 256GB USB storage device

Sound tuning

• Maximum output power: 4 X 100W Class D (built-in 4 x 60W RMS Class D DSP amplifier)
• Adjustable subwoofer level, high pass filter, low pass filter and phase
• Equalizer: Parametric 16 band equalizer
• Fader and balance
• Digital time correction
• Adjustable crossover and gain on the front and rear channels
• Vehicle-specific sound file can be downloaded from flex.dynavin.com
• Distortion (THD+N) < 1 %
• DSP resolution: 24 bit
• Sampling rate 44.1 K

Radio

• FM frequency range: 87.5 – 108.0 MHz
• AM frequency range: 530 – 1710 KHZ
• FM utility sensitivity: 5-6 db
• FM stop sensitivity: 22 db
• AM stop sensitivity: 21 db
• With left and right stereo channels
• Signal to noise ratio: 56 db
• Manual station storage for 15 Station
• RDS functions: AF, TA, station text
• Automatic station search function
• High-cut high frequency attenuation function
• Support for changing FM/AM memory images
• Optional switching of the radio antenna on and off

GPS

• GPS antenna included
• GPS reception frequency 1,575.42 ± 1 MHz
• GPS reception sensitivity -165 dB max
• Positioning accuracy: 10 m, 2D RMS
• Data update rate: 1 HZ
• Reacquisition time: 0.1 s in Average

A2DP

• Synchronize BT music with mobile phone
• Display song title/lyrics/composer/singer
• Steering wheel can control song/volume up/down
• Song title/lyrics can be displayed on dashboard

Scope of delivery

• Display screen
• Main unit
• Head-up display
• Connection cable
• GPS antenna
• DAB antenna
• BT Wi-Fi ANT
• OEM USB socket with USB Extension cable
• Dual digital microphones
• Rear view camera cable
• Radio antenna extension cable
• Recessed panel
• Connection cable
• Metal bracket
• Release key
• Reset pin
• Tool for removing the panel and pulling the cable through
