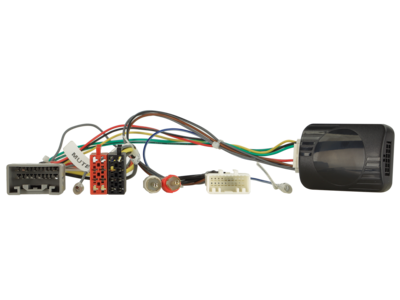

ACV 42sty016 - LFB for Toyota to 20Pin/20Pin Amp

Steering wheel remote control adapter Toyota Amp

Keep the original steering wheel remote control functions when replacing the factory radio with an aftermarket radio.
Depending on the vehicle equipment and the range of functions and software of the aftermarket device, individual operating functions may be omitted or replaced by other functions.

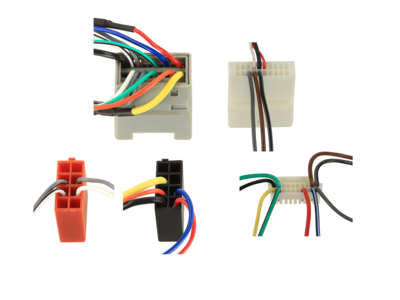

Compare the adapter plugs shown with those in your vehicle and make sure that they fit visually and technically.
Please also check whether one of the specified original factory radios was installed in your vehicle.
Before final assembly, check vehicle functions, vehicle settings and steering wheel remote control for functionality.

Suitable for the following vehicles:

• Toyota 4Runner 2003 - 2013
• yota Corolla (E120) 01/2002 - 07/2004
• Toyota Corolla (E120) 07/2004 - 02/2007
• Toyota Corolla 2007 - 2011
• Toyota FJ-Cruiser 2007 - 2014
• Toyota Highlander 2008 - 2012
• Toyota RAV4 2006 - 2013
• Toyota Sequoia 2005 - 2011
• Toyota Sienna 2004 - 2014
• Toyota Tacoma 2005-  2011
• Toyota Tundra 2005-  2013
• Toyota Venza 2009-  2012

The following signals are provided:

• Steering wheel remote control
• OEM sound system supported

General installation instructions:
Check:

1: Check all operating functions and vehicle setting functions of the OEM device
2: Dismantle the OEM device without power
3: Check all interface connections for correctness and continuity without power make

Connection and connection sequence:

1: Make the settings and hardware configuration of the interface without power
2: Check the configuration of the radio connection cable
3: Connect the radio connection cable according to the operating instructions for the retrofit device
4: Connect all other connections according to the operating instructions for the retrofit device
5: Connect the entire installation to the vehicle with the live connection last
6: Software configuration of the interface according to the instructions in the article text and in the BDA
7: Configuration of the retrofit device according to the operating instructions for the retrofit device steering wheel remote control/camera/FSE/antenna phantom power and others
8: Function test of the steering wheel remote control and vehicle

Changes to the hardware configuration of the interface and the Radio connection cable:

1: Make changes without power supply
2: Connection after change see above 5 to 8

If the interface or the Vehicle:

1: Revert to the OEM device
2: Operate the OEM device
3: Establish CAN bus rest
4: Check the hardware configuration of the interface
pan>Connection to CAN Bus-Rest see above 5 to 8
Connections, connection changes specified in the information text or operating instructions, Alternative connections, connections of loose cables or connection extensions of loose cables are intended solely for orientation and information purposes for trained specialist personnel.

Further connections, changes to the cable configuration of the wiring harness or use of alternative connections or Connection extensions:

1: Connections and modifications may only be carried out by trained specialist personnel
2: Before connection, check for any manufacturer approvals or manufacturer warranty conditions that may be affected by the changes. check
3: Connections and changes must be checked for functionality and correctness before connection by measuring and comparing against the vehicle's cable assignment plan
4: Connections and changes are made at your own risk and without a guarantee of functionality
5: Connections and changes are made at your own risk and without a guarantee of damage to the vehicle, the retrofit device or the interface
6: Changes to the pre-assembled wiring harness can void the product's warranty
