Ampire KV-T6H - Rückfahrkamera für VW T6 mit Heckklappe

Hichweise for handling
When cleaning the vehicle, avoid direct contact with high-pressure cleaners. Only hand tighten the fixing nut. The camera is not suitable for continuous operation or monitoring. Connection to the ignition (K15) leads to overheating. Avoid overstretching the connection cable during installation.

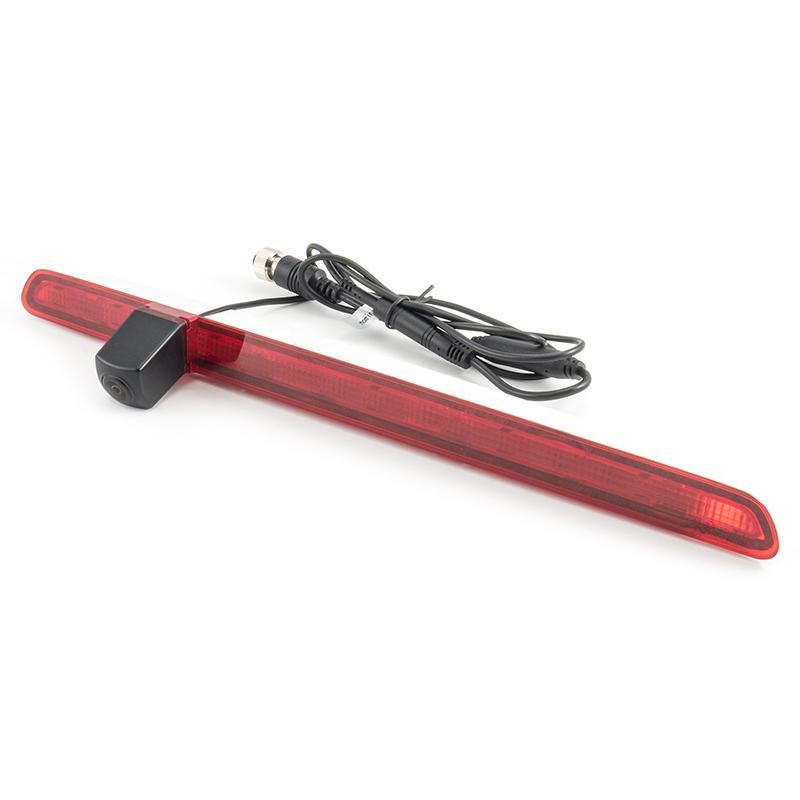

Vehicle-specific reversing camera for the VW Transporter T5 and T6 with tailgate. The KV-T5H is easily replaced with the factory third brake light lens.

Technical specifications

• Image playback mirrored
• Image sensor: 1/3 "CMOS High performance Digital Super Clarity Image Sensor
• Resolution 756x504 pixels
• Viewing angle 150 °
• Picture format: NTSC
• 480 lines resolution
• IP68 waterproof
• Operating voltage: 12 volts DC
• Power consumption: max. 200mA
• Operating temperature: -20 ° to 70 ° C
• Minimum illumination: 0.2 lux
• Color: Black
• Cable length: 10 meters
• E Approval E9-10R-05.1652
• CE approval EN 55022: 2010; EN 61000-3-2: 2006 + A1: 2009 + A2: 2009; EN61000-3-3: 2008; EN 55024: 2010
• FCC approval ANSI C63.4-2003

Legal notice
Not allowed within the scope of StVZO and ECE. The commissioning of these articles is not permitted in the area of ​​the StVZO. Illustrated and listed articles are for show purposes only and for motorsport!
An increase in vehicle dimensions, except for passenger cars and motorcycles, is subject to registration and must be assessed immediately by the Technical Testing Center or an officially recognized monitoring organization (DEKRA, GTÜ, KÜS, TÜV). Before installing or retrofitting, ask an officially recognized expert for motor vehicle traffic or a test engineer of a monitoring organization whether the operating permit is impaired or whether the change is even capable of being approved.
