Radical Audio R-C10VW1 - 2-DIN Moniceiver

Vehicle-specific infotainer for VW Golf 5 + 6
Innovative, vehicle-specific Android OS infotainer with capacitive 22.9 cm / 9 "touchscreen display.
The R-C10VW1 is designed for VW Golf 5 and 6 vehicles and has 2GB of RAM and 32GB of flash memory.
The RADICAL infotainer allows the installation of Android apps (Open System) and has a very powerful CPU equipped with the typical functional features of this device category: e.g. FM RDS radio with 36 station presets (FM1 and FM2 bands each with 18 station presets), Bluetooth hands-free module with A2DP music streaming, EasyConnect integration for Android and iOS smartphones.
The DAB + tuner function can be retrofitted via an external module. Networked with the vehicle electronics via CAN bus, brand and model-dependent comfort functions such as multifunction steering wheel connection, OPS display or climate status display are supported.
The operation is completely intuitive.

Innovative multimedia

The R-C10VW1 is a vehicle-specific infotainer for VW Golf 5 + 6 vehicles with 2GB RAM and 32GB flash memory as well as EasyConnect integration for Android smartphones.

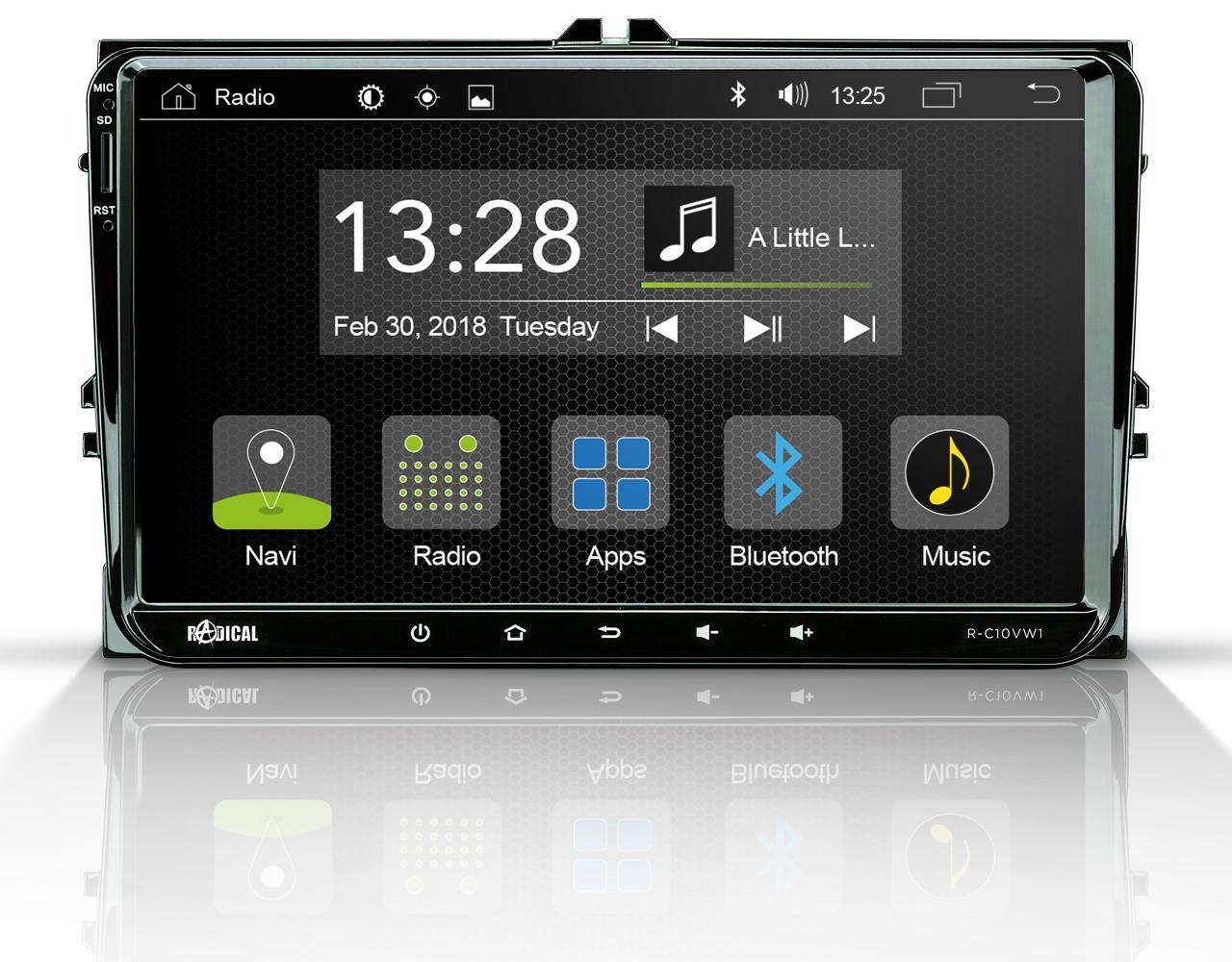

With its front, the R-C10VW1 integrates perfectly into the compatible VW Golf 5 + 6 models.
Networked with the vehicle electronics via the CAN bus, comfort functions such as the multifunction steering wheel are supported.
The R-C10VW1 convinces with its large capacitive, touch-sensitive 22.9 cm / 9 "TFT screen, which can be operated completely intuitively.

Key Features

• Vehicle-specific infotainer for VW Golf 5 + 6
• Allwinner T8 CPU with 2GB RAM and 32GB flash memory
• Navigation function with NDrive Karta upgradeable * 1
• Open Android 7.1 operating system. Offline installation of Android apps * 2
• Capacitive 22.9 cm / 9 "16: 9 TFT touch screen screen with 1024 x 600p resolution
• OSD menu in various EU languages ​​(German, English, Italian, French, Spanish etc.)
• DAB + tuner preparation - separately available DAB module R-C10-DAB

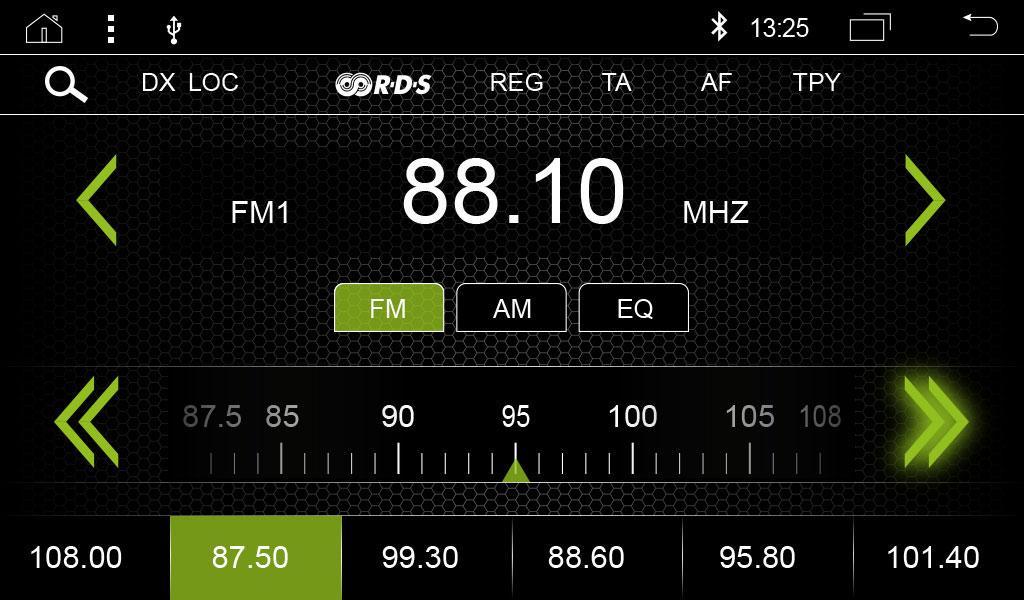

• FM RDS radio with 36 station presets (FM1 and FM2 bands with 18 station presets each)
• Bluetooth handsfree module with A2DP music streaming
• Connection and control of a reversing camera
• Connection to the multifunction steering wheel via CAN
• EasyConnect integration for Android and iOS smartphones
• Preparing to connect a DVR camera * 4
• RGB multicolor key illumination
• Integrated 4 x 45 Watt power amplifier
• Integrated Wifi module (WLAN IEEE 802.11 b / g / n)

* 1 The navigation bundle R-MAPC10 is not part of the scope of delivery
* 2 Google Playstore direct access is not supported for licensing reasons
* 3 The OBD2 dongle R-C10-OBD2 is not included in the scope of delivery of the device
* 4 interface for universal USB port based DVR cameras

Bluetooth

• iVT BC8 Bluetooth handsfree module
• Synchronization of 1000 telephone book contacts with 3 telephone numbers each
• Search function for phonebook contacts

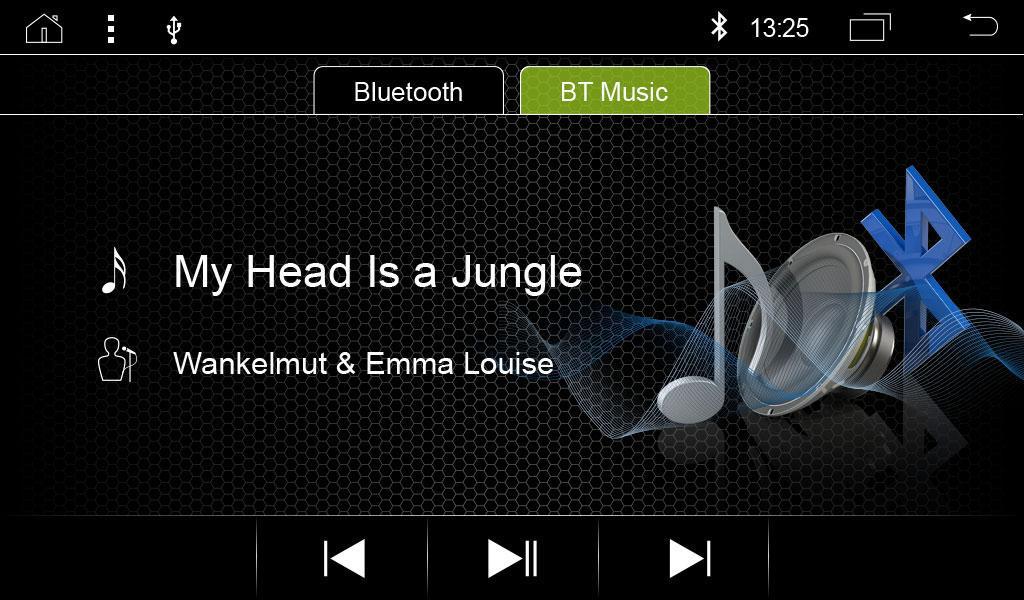

• A2DP BT-Music Streaming with display of iD3-Tag and AVRCP 1.3

Multimedia + Audio

• 2x USB 2.0 port for playing A / V files and connecting Android smartphones
• A2DP BT music streaming with AVRCP 1.3
• 12-band graphic equalizer with 8 sound presets

connections

• 4.2 RCA preamp outputs (2V)
• 1x RCA A / V input for audio and video signal (CVBS)
• 1x RCA input for reversing camera with automatic switching (CVBS)
• 2x USB 2.0 Port for Android Smartphones with 1A charging current

Accessories (optional)

• R-C10-DAB, DAB + Tuner Set with film antenna for windshield mounting
• R-MAPC10, GPS Navigation Software Package

vehicle integration

• Connection to the steering wheel remote control via CAN
• Connection to the multifunction display via CAN
• Connection of the Optical Park System (OPS) via CAN

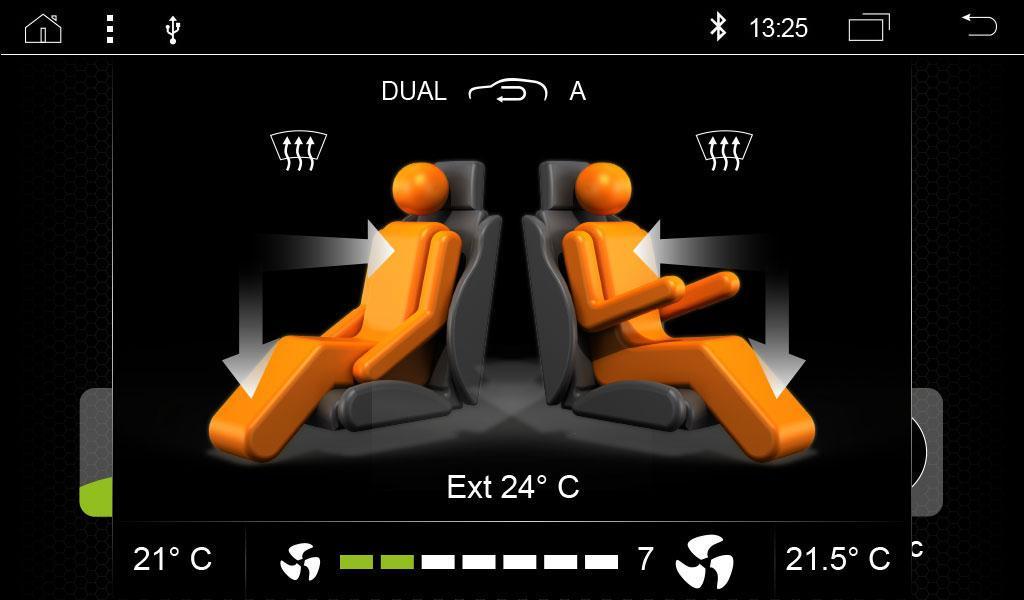

• Connection of automatic air conditioning Status display via CAN
• Active system integration

Compatibility - Brand, Type, Year of Construction:

VW Amarok 2H from 2010
VW Beetle Convertible 5C 2011 - 2015
VW Beetle Coupe 5C 2011- 2015
VW Caddy 2K / 2C 2003 - 2013
VW CC 35 2008 - 2014
VW EOS 1F 2006 - 2013
VW Golf V 1K 2003 - 2008
VW Golf V Variant 1K 2007 - 2009
VW Golf VI 5K 2008 - 2012
VW Golf VI Estate AJ 2009 - 2013
VW Golf Convertible 51 2011 - 2013
VW Golf Plus 5M / 52 2005 - 2013
VW Jetta VI 16 2005 - 2015
VW Jetta V / Bora 1K2 2005 - 2010
VW Passat 3C / 36 2005 - 2014
VW Passat Alltrack 36 2012 - 2014
VW Passat CC 35 2008 - 2012
VW Passat Estate 3C / 36 2005 - 2014
VW Polo 6R 2010 - 2014
VW Scirocco III 13 2008 - 2014
VW Sharan 7N 2010 - 2013
VW Tiguan 5N 2007 - 2013
VW Touran 1T 2003 - 2013
VW T5 7E / 7J 2010 - 2015

SEAT Alhambra 71 2010 - 2013
SEAT Altea 5P 2004 - 2014
SEAT Altea Freetrack 5P 2007 - 2009
SEAT Altea XL 5P 2004 - 2014
SEAT Leon 1P 2005 - 2012
SEAT Toledo 5P 2004 - 2009
SEAT Toledo KG 2012 - 2013

SKODA Octavia II 1Z 2009 - 2013
SKODA Octavia II Combi 1Z 2009 - 2013
SKODA Octavia II Scout 1Z 2009 - 2013
SKODA Rapid NH 2013 - 2015
SKODA Rapid Spaceback NH 2013 - 2015
SKODA Superb II 3T 2008 - 2014
SKODA Superb II Combi 3T 2008 - 2014
SKODA Yeti 5L 2009 - 2014
