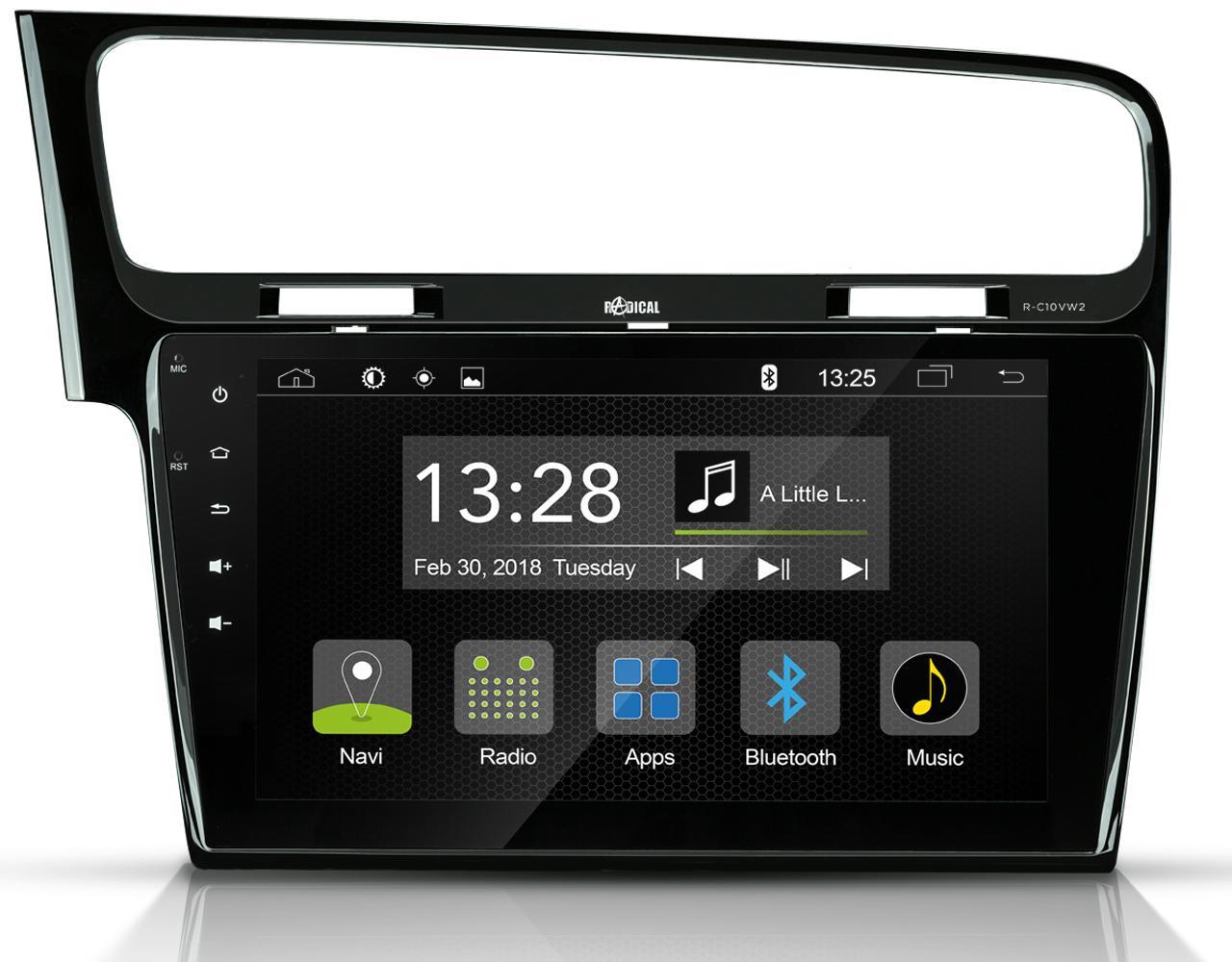

Radical Audio R-C10VW2 - 2-DIN Moniceiver

Vehicle specific infotainer for VW Golf 7
Innovative, vehicle-specific Android OS infotainer with capacitive 25.7 cm / 10.1 "touchscreen display.
The R-C10VW2 is designed for VW Golf 7 vehicles and has 2GB of RAM and 32GB of flash memory.
The Radical Infotainer allows the installation of Android apps (Open System) and has a very powerful CPU, equipped with the typical features of this device category:
e.g. FM RDS radio with 36 station presets (FM1 and FM2 bands with 18 station presets each), Bluetooth handsfree module with A2DP music streaming, EasyConnect integration for Android and iOS smartphones.
The DAB + tuner function can be retrofitted via an external module.

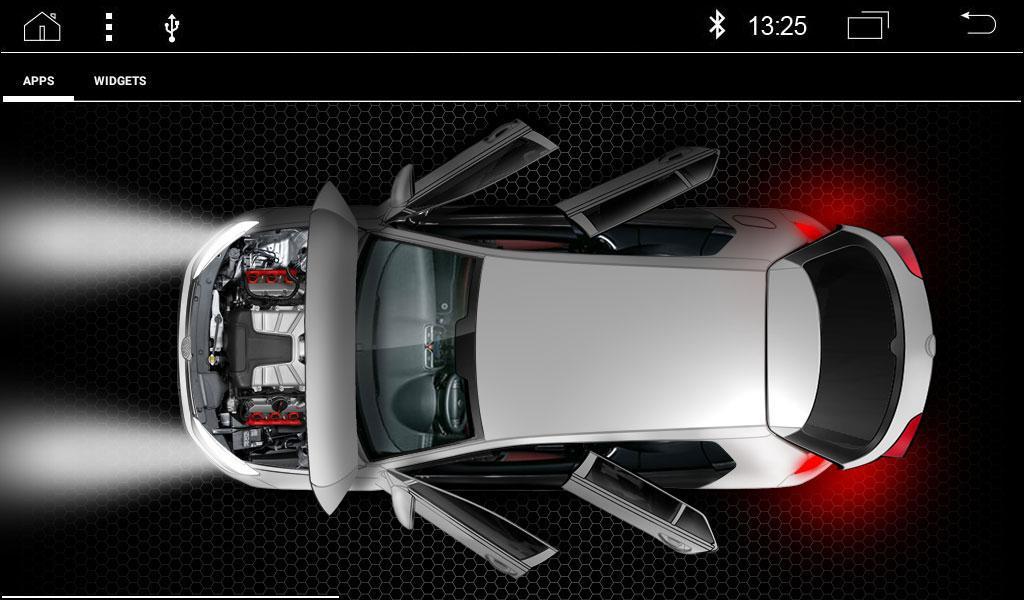

Networked with the vehicle electronics via CAN bus, brand and model-dependent comfort functions such as multifunction steering wheel connection, OPS display or climate status display are supported. The operation is completely intuitive.

Innovative multimedia - the R-C10VW2 is a vehicle-specific infotainer for VW vehicles with 2GB RAM and 32GB flash memory as well as EasyConnect integration for Android smartphones.

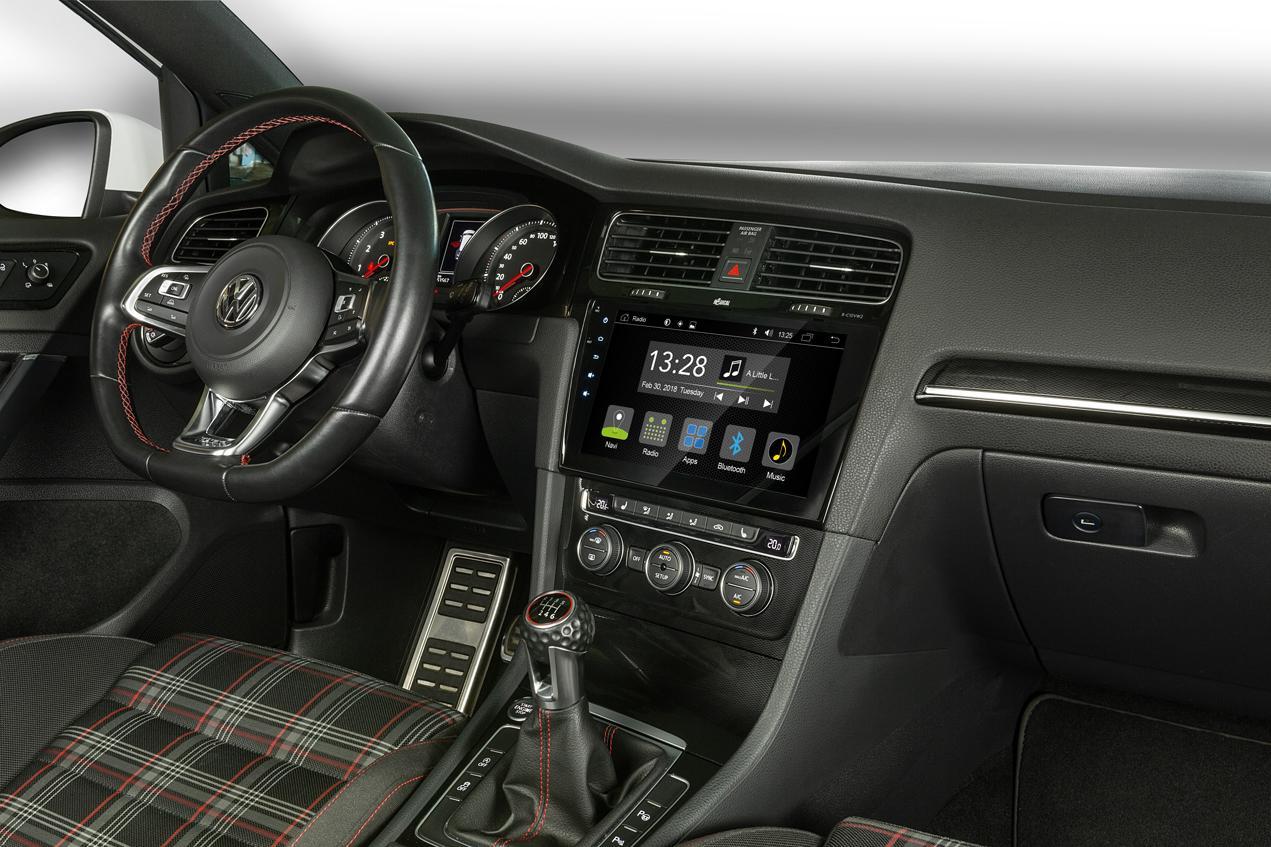

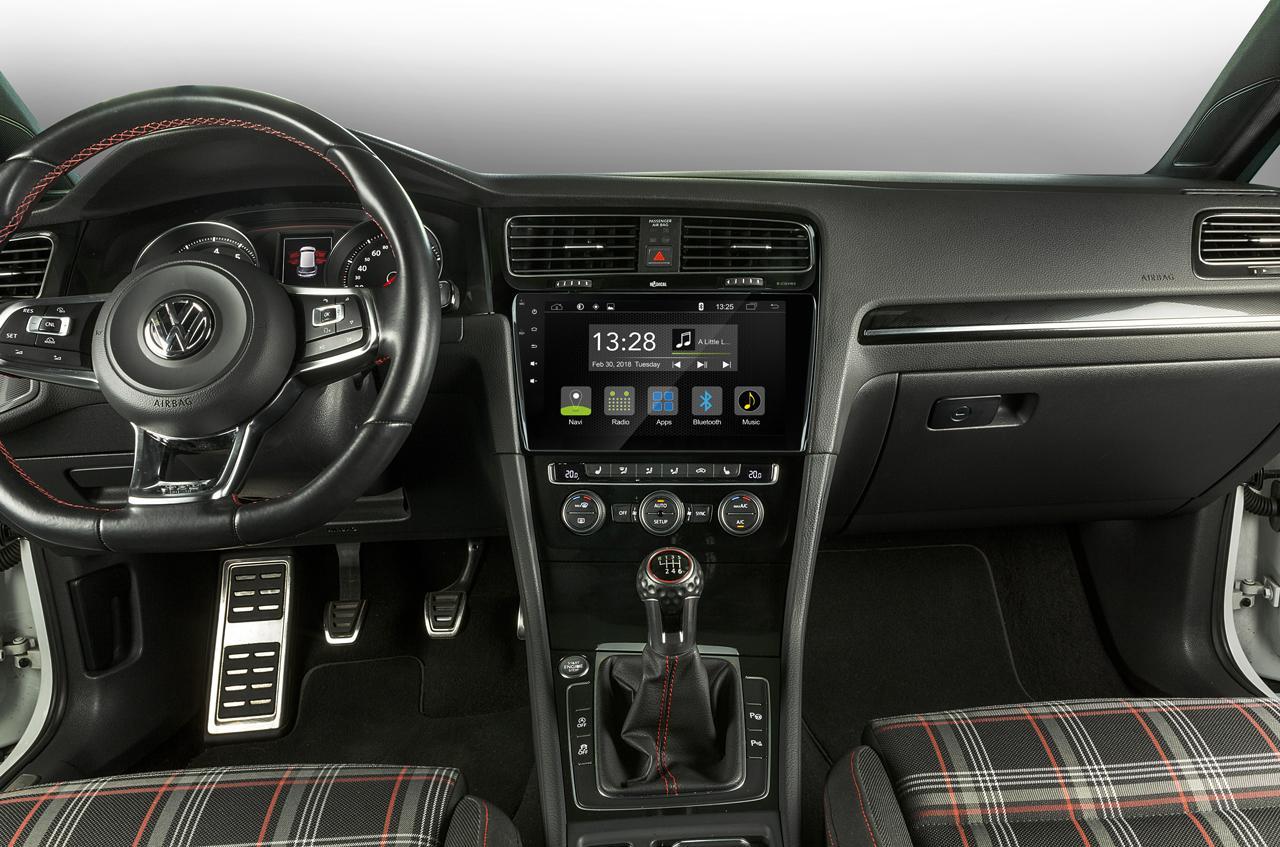

With its front, the R-C10VW2 integrates perfectly into the compatible VW models.
Networked with the vehicle electronics via the CAN bus, comfort functions such as the multifunction steering wheel are supported.

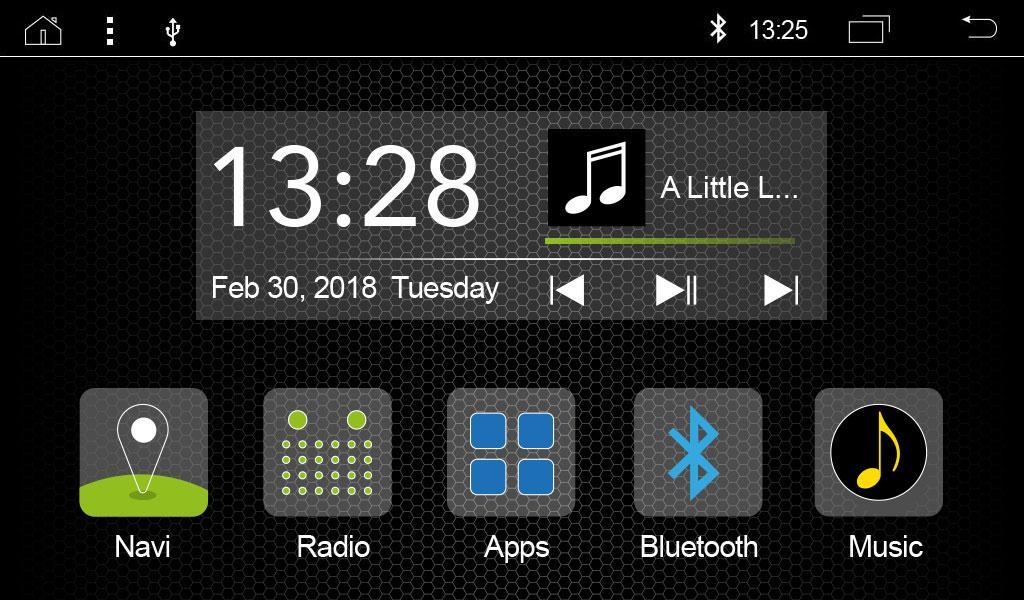

The R-C10VW2 convinces with its large capacitive, touch-sensitive 25.7 cm / 10.1 "TFT screen, which can be operated completely intuitively.

Key Features

• Vehicle specific infotainer for VW Golf 7
• Allwinner T8 CPU with 2GB RAM and 32GB flash memory
• Navigation function with NDrive Karta upgradeable * 1

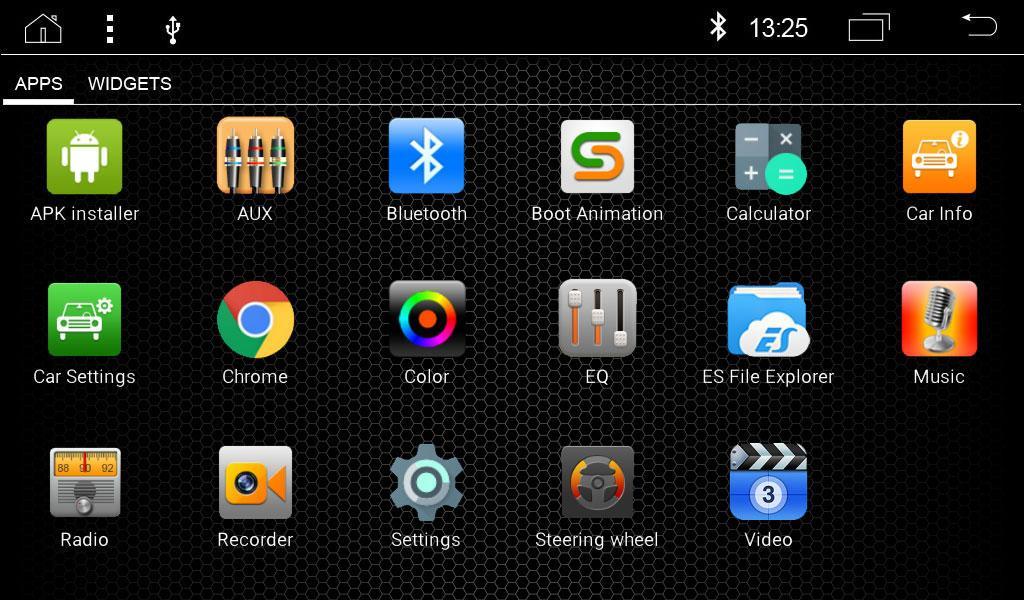

• Open Android 7.1 operating system. Offline installation of Android apps * 2
• Capacitive 25.7 cm / 10.1 "16: 9 TFT touchscreen screen with 1024 x 600p resolution
• OSD menu in various EU languages ​​(German, English, Italian, French, Spanish etc.)
• DAB + tuner preparation - separately available DAB module R-C10-DAB

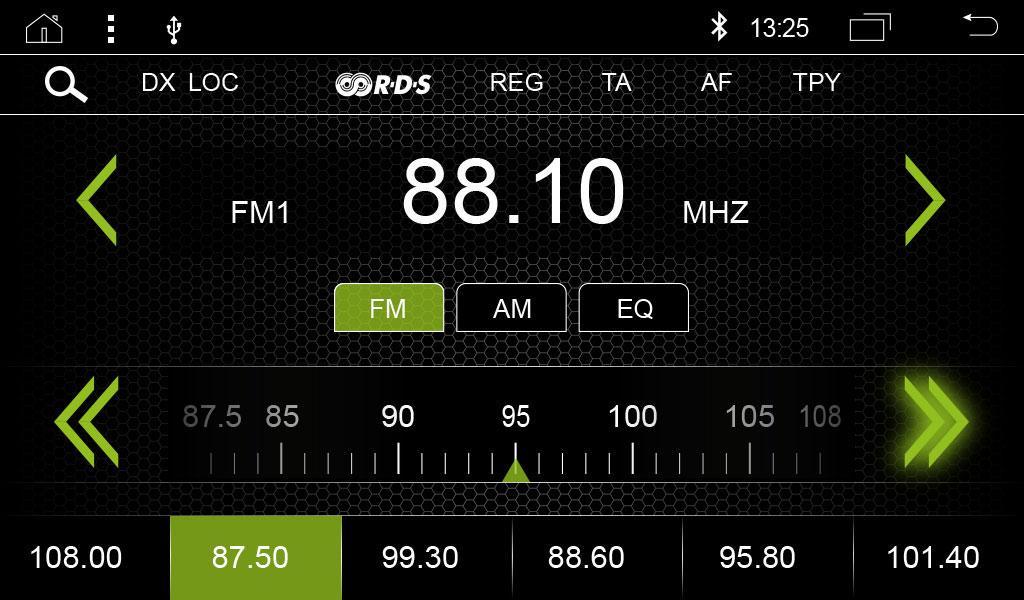

• FM RDS radio with 36 station presets (FM1 and FM2 bands with 18 station presets each)
• Bluetooth handsfree module with A2DP music streaming

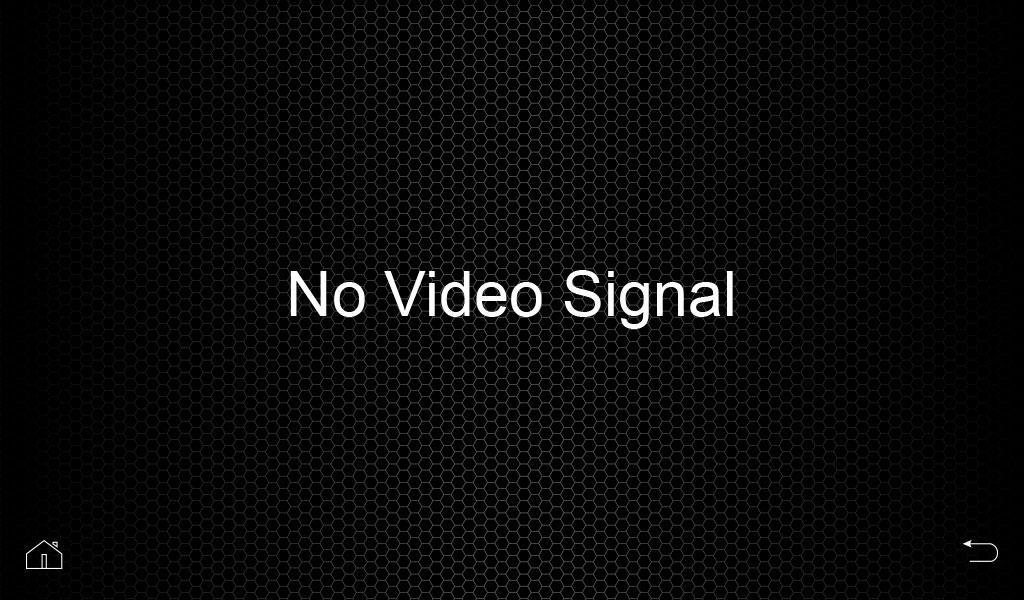

• Connection and control of a reversing camera
• Connection to the multifunction steering wheel via CAN
• EasyConnect integration for Android and iOS smartphones
• Preparing to connect a DVR camera * 4
• RGB multicolor key illumination
• Integrated 4 x 45 Watt power amplifier
• Integrated Wifi module (WLAN IEEE 802.11 b / g / n)

* 1 The navigation bundle R-MAPC10 is not part of the scope of delivery
* 2 Google Playstore direct access is not supported for licensing reasons
* 3 The OBD2 dongle R-C10-OBD2 is not included in the scope of delivery of the device
* 4 interface for universal USB port based DVR cameras

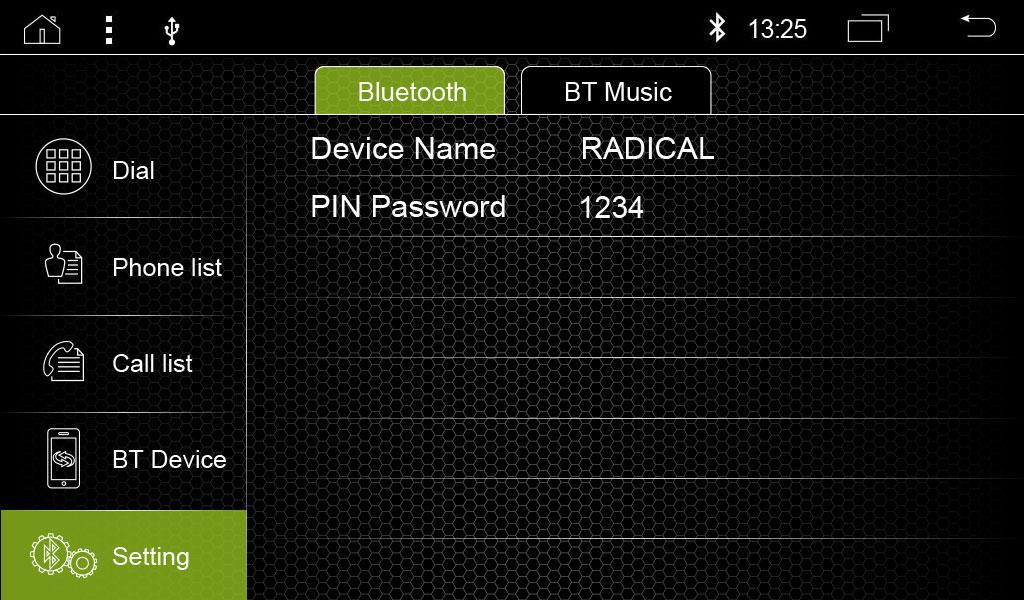

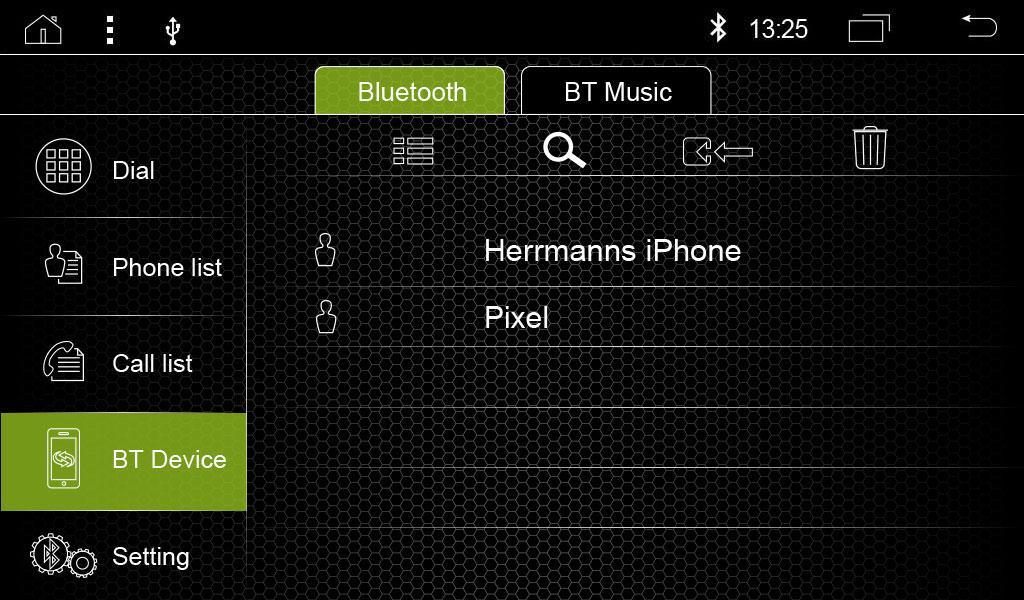

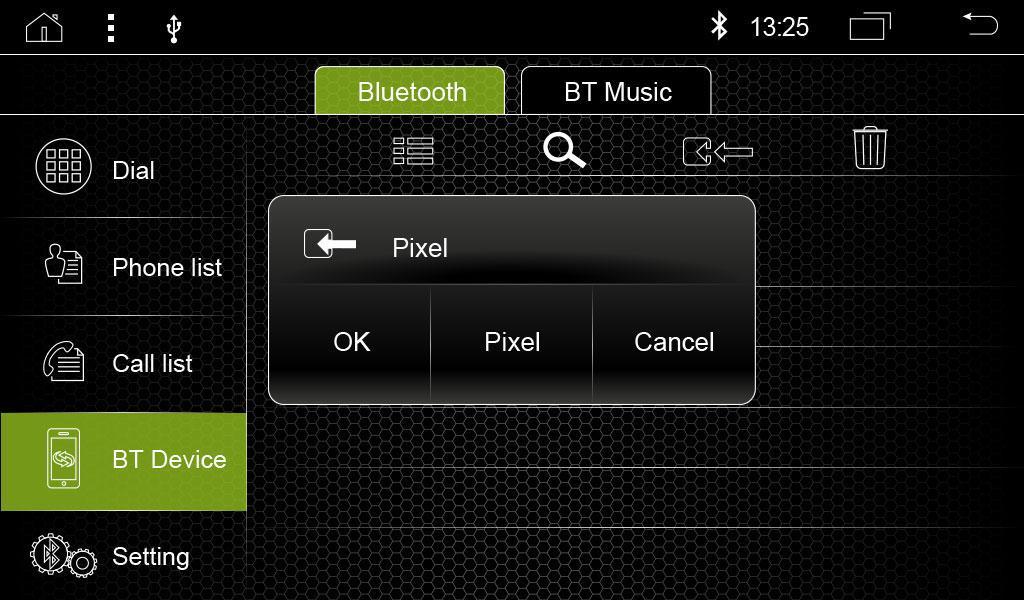

Bluetooth

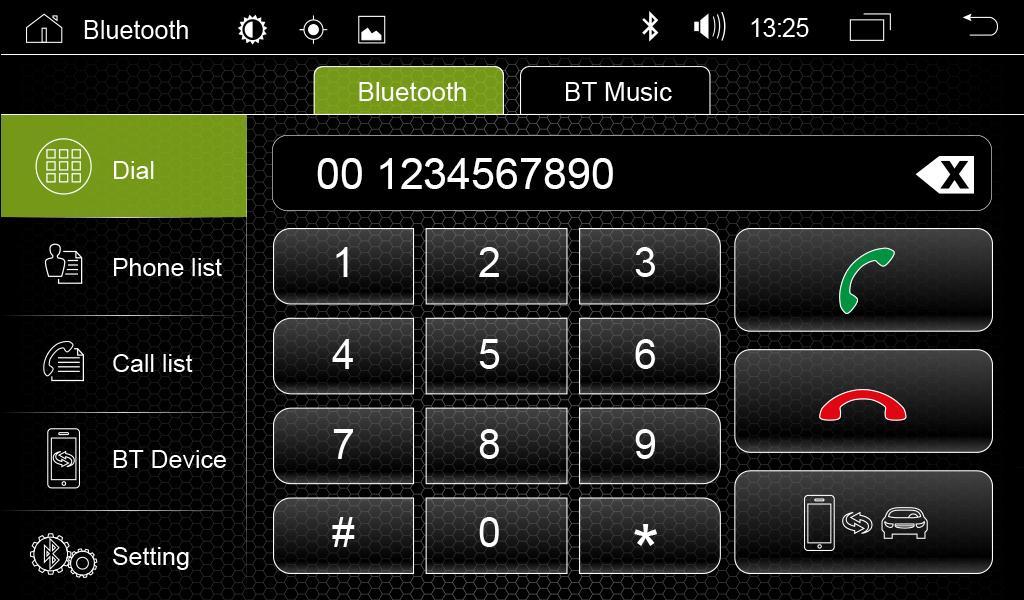

• iVT BC8 Bluetooth handsfree module

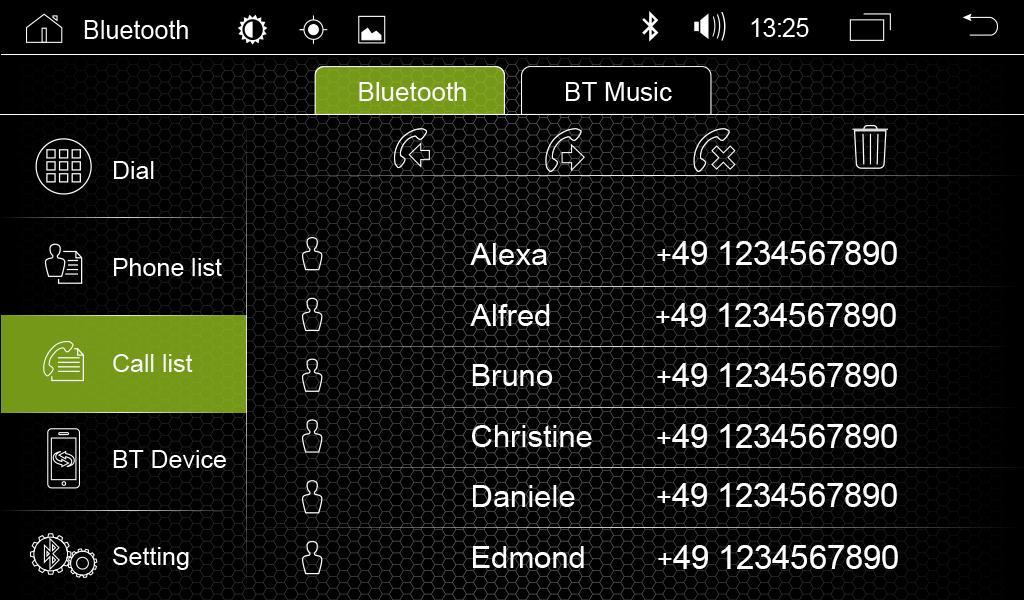

• Synchronization of 1000 telephone book contacts with 3 telephone numbers each
• Search function for phonebook contacts

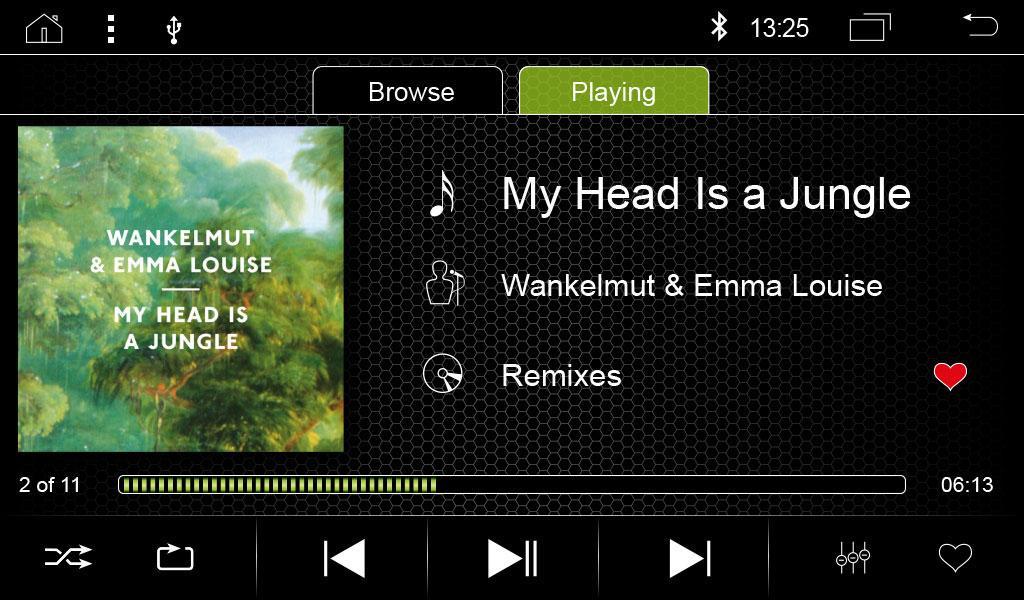

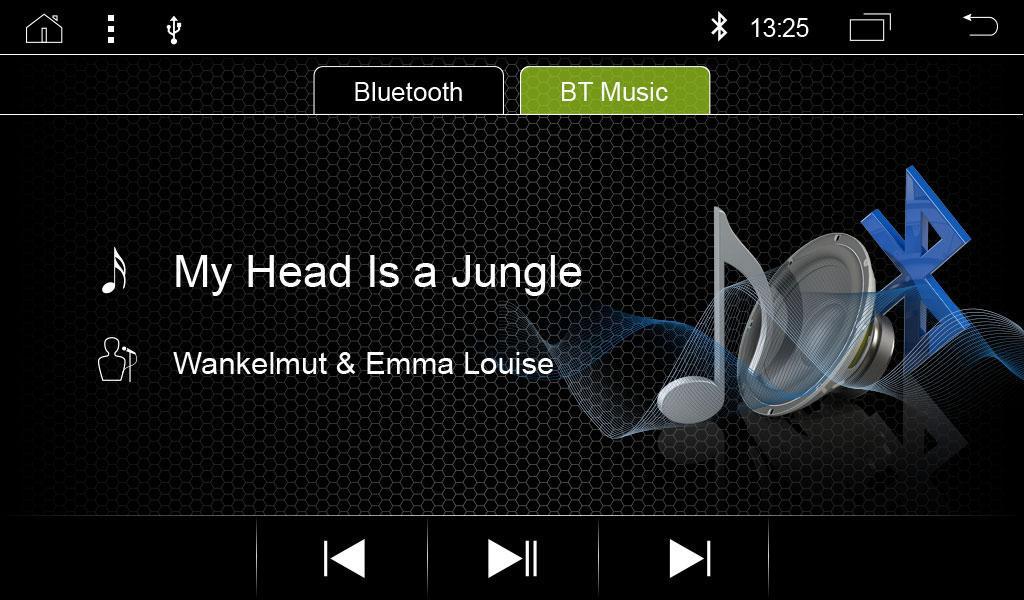

• A2DP BT-Music Streaming with display of iD3-Tag and AVRCP 1.3

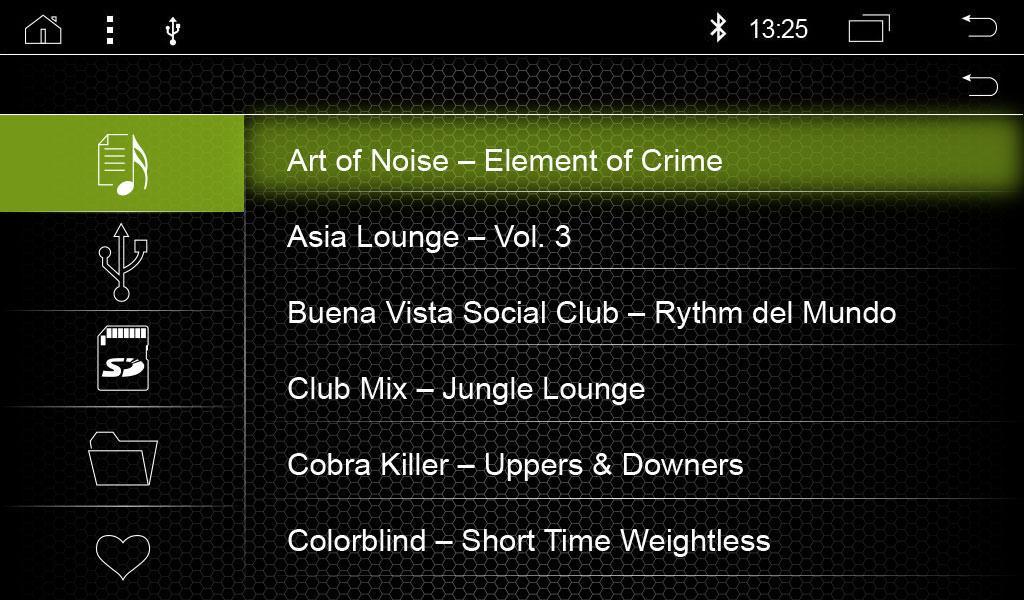

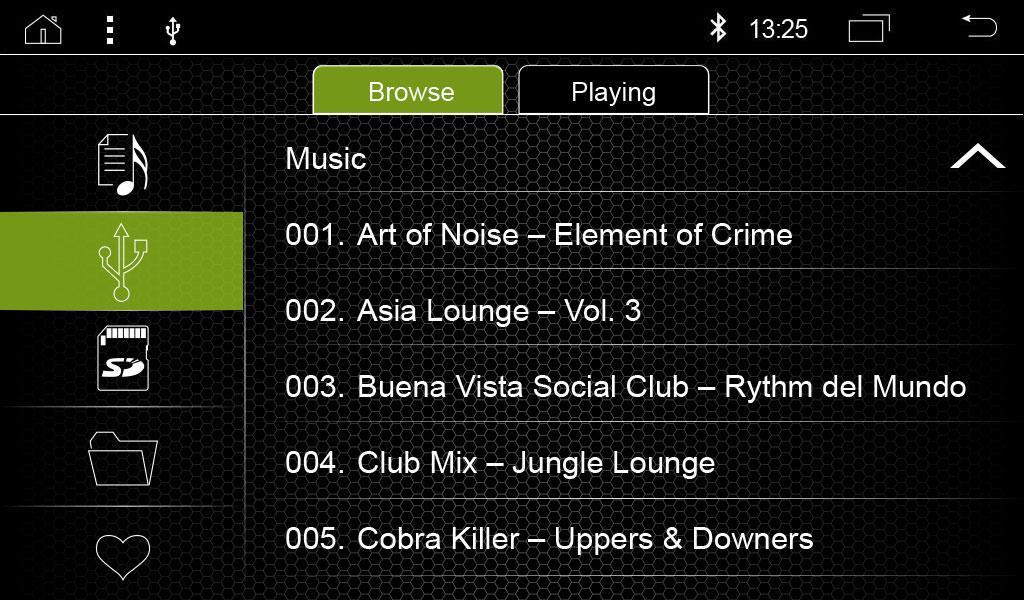

Multimedia + Audio

• 2x USB 2.0 port for playing A / V files and connecting Android smartphones
• A2DP BT music streaming with AVRCP 1.3

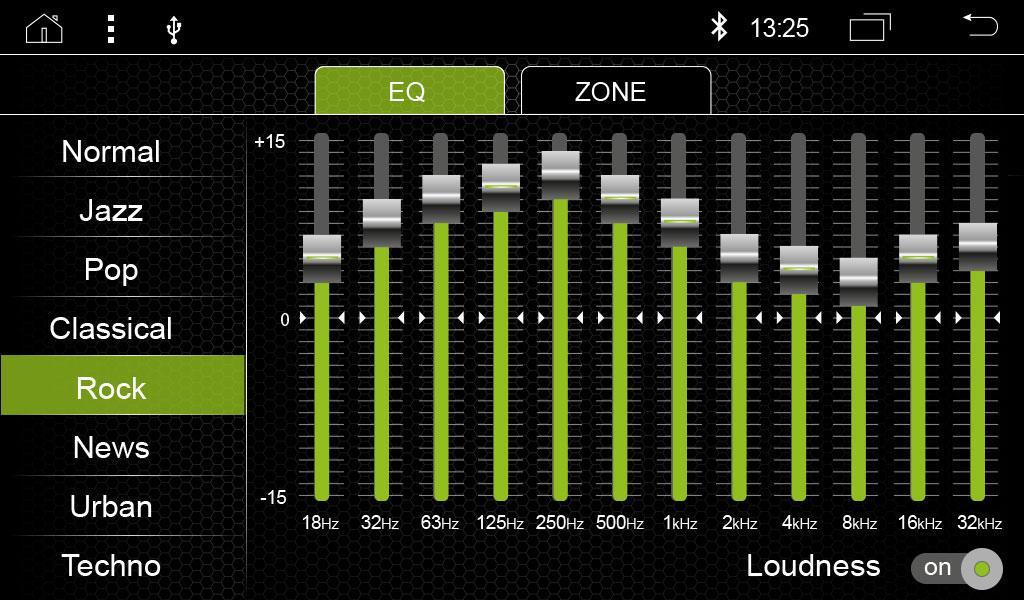

• 12-band graphic equalizer with 8 sound presets

vehicle integration

• Connection to the steering wheel remote control via CAN
• Connection to the multifunction display via CAN

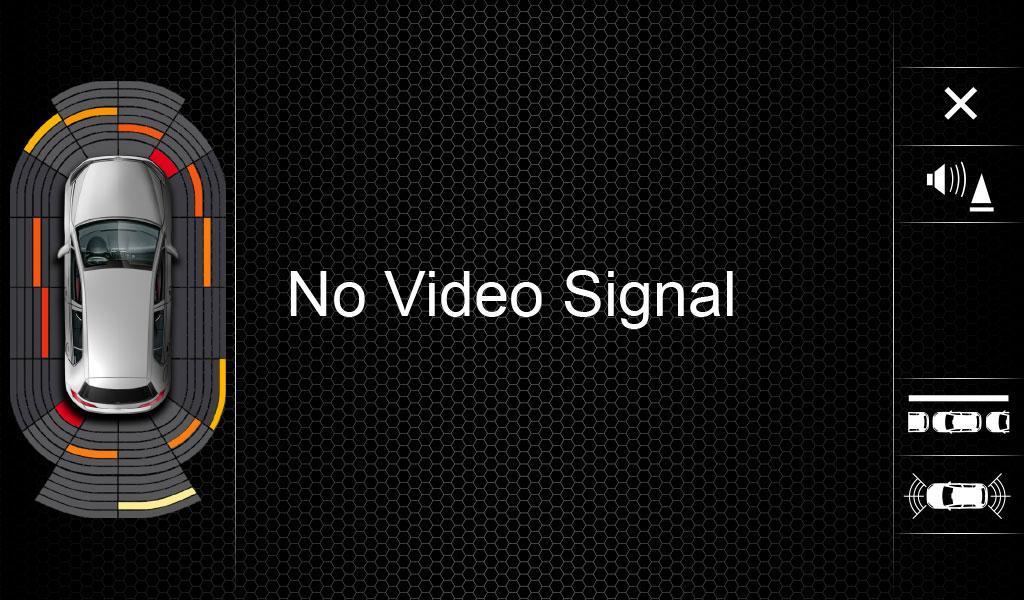

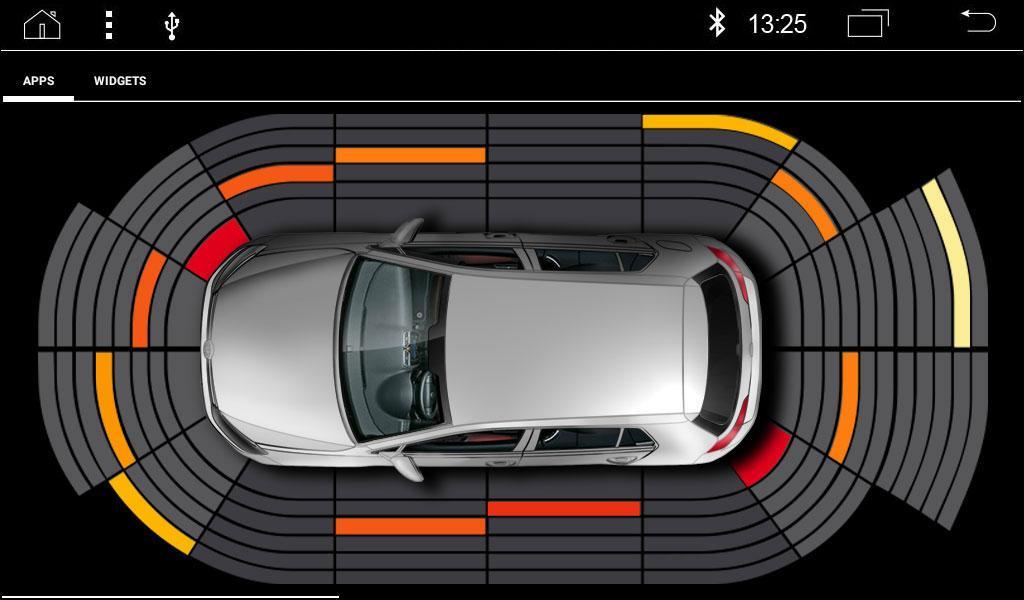

• Connection of the Optical Park System (OPS) via CAN

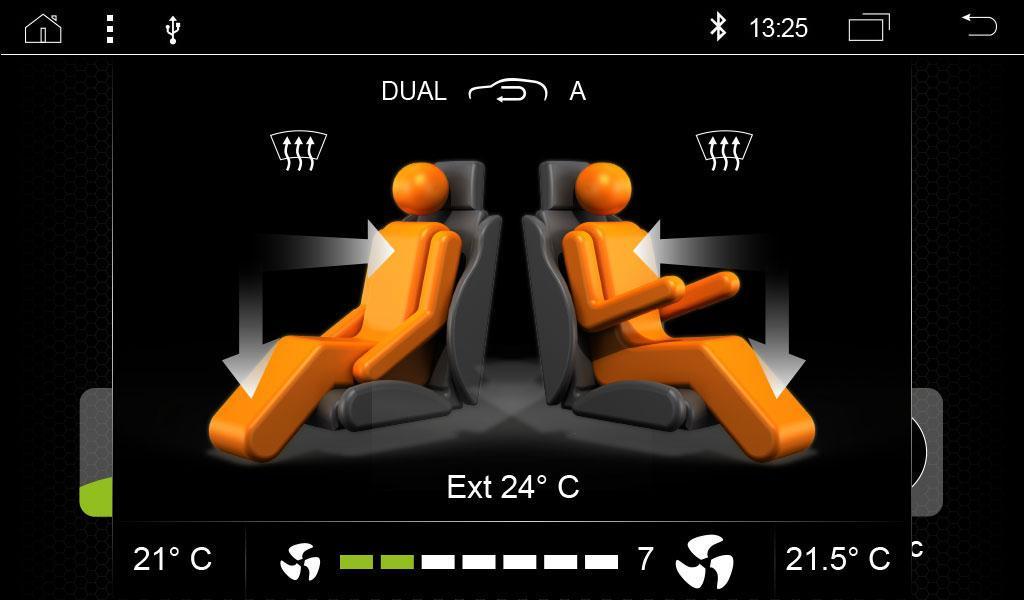

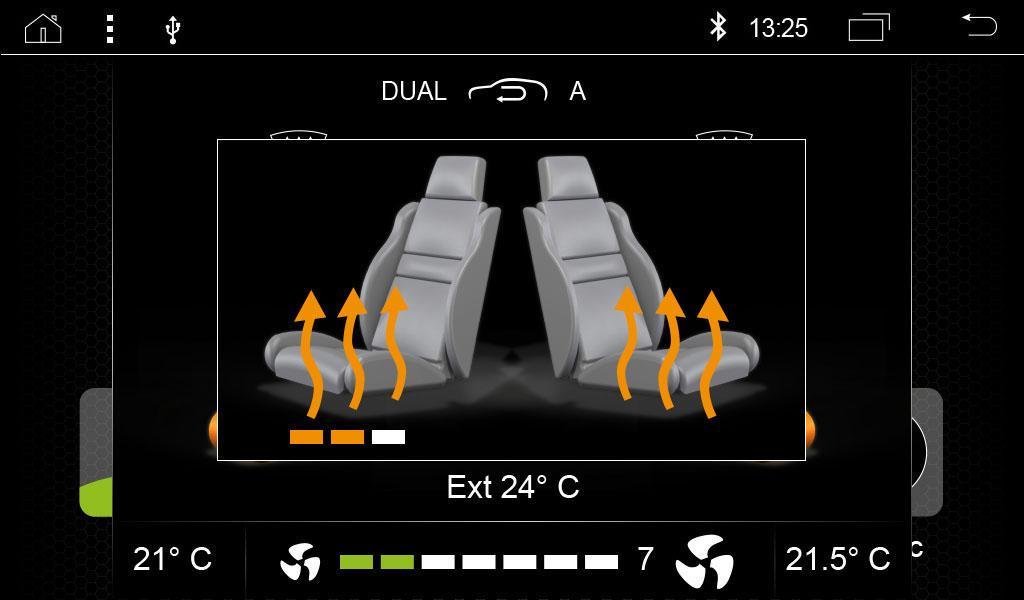

• Connection of automatic air conditioning Status display via CAN
• Active system integration

connections

• 4.2 RCA preamp outputs (2V)
• 1x RCA A / V input for audio and video signal (CVBS)
• 1x RCA input for reversing camera with automatic switching (CVBS)
• 2x USB 2.0 Port for Android Smartphones with 1A charging current

Accessories (optional):

• R-C10-DAB, DAB Tuner Set with film antenna for windshield mounting
• R-MAPC10, GPS Navigation Software Package

Compatibility - Brand Model Type Year of construction:
VW Golf VII (MkI) AU 2012> 2017
