Alpine X903D-G7 - 2DIN Navigation für VW Golf 7

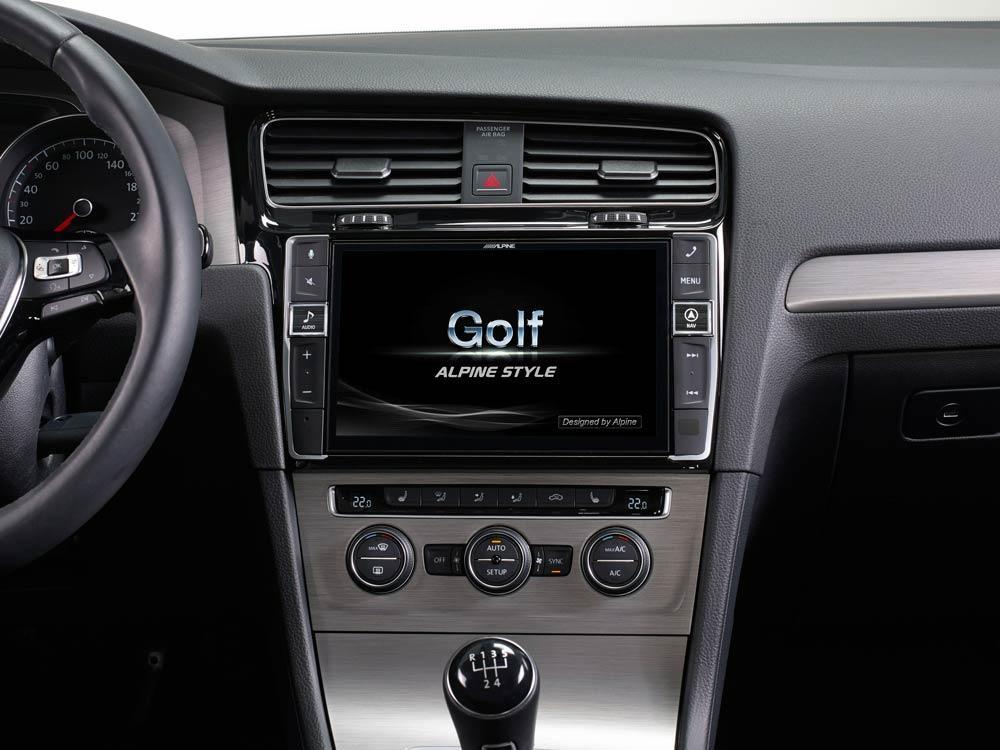

Alpine presents the 3rd generation navigation system X903D-G7 for the VW Golf 7. The X903D-G7 has a huge 9-inch screen that can be optimally operated from the driver and front passenger seats.

So the operation and view of all functions, such as. B. the navigation very easily and clearly.

A new quad-core processor, with a particularly large working memory, offers even better performance for fast route calculation and optimal navigation display. The map view can be zoomed in or out as usual with a smartphone, with a finger zoom .

The system has the most modern iGo nextgen navigation system ever. You will also receive free map updates for your TomTom map data for 3 years . Additional camper databases can be installed for your travels. This provides you with a perfect POI database. The X903D-G7 also offers Apple CarPlay and Android Auto compatibility.

Perfect vehicle integration with premium components.
Performance without compromise!

tuner

• Station memory: FM: 24 / MW: 6 / LW: 6
• Station memory: Automatic station memory
• Search function: Manual / Local / DX selection
• RDS function: AF, TA, TP, PTY, PI, NEWS, RADIO TEXT

DAB ⁺ tuner

• Integrated DAB ⁺ tuner
• DAB ⁺ / DMB support
• SLS (Slideshow Service)
• DLS (Dynamic Label Service)
• DAB ⁺ to DAB ⁺ Service Following
• FM linking (automatic DAB ⁺ / FM switching (if signal available))
• Station memory: 18 program memory locations
• Automatic ensemble / service storage
• Alphabetical station search function
• Service search function
• PTY search function
• Phantom power selectable for DAB antenna (on / off)

BLUETOOTH

• Integrated BLUETOOTH module
• Wide band speech technology
• Hands-free function: HFP (Hands Free Profile) compatible
• Music Streaming: A2DP (Advanced Audio Distribution Profile) compatible
• Music streaming control: AVRCP (Audio / Video Remote Control Profile) version 1.5 compatible
• Advanced BLUETOOTH technology
• Connection: SSP (Secure Simple Pairing) support
• Individual profile connection: hands-free function and music streaming
• Phonebook: Automatic phonebook transfer
• Direct selection buttons: 4 memory locations per phone
• Registration of different phones: 5 different phones can be registered
• Multiple numbers: up to 5 phone numbers per contact can be displayed
• Device name display
• Automatic call acceptance
• Call list: dialed number / answered calls / missed calls
• Reelection function
• Speech volume setting: Adjustable for incoming and outgoing calls
• DTMF tone function
• Display of the GSM signal strength
• Display of the battery charge status
• Menu language selection: 24 menu languages
• Firmware updatable

Made for iPod & iPhone

• Compatible with iPod / iPhone / iTouch: Made for iPod touch 6th / 5th Gen., iPod nano 7th Gen., iPhone 6 and 6 Plus, iPhone SE, iPhone 5S, iPhone 5C, iPhone 5, iPhone 4s
• Connection: KCU-471i required (optionally available)
• Possible selection: playlist, artist, album, song, podcast, genre, composer, audiobook
• Alphabetical search
• Album art display
• Direct Up / Down: Playlist / Artist / Album / Genre / Composer
• MIX (shuffle) play: song, album, all
• Repeat function
• Charging function

Connectivity

• Works with Apple CarPlay (CarPlay compatible smartphone required)
• Works with Android Auto (Android Auto compatible smartphone required)

Navigation functions

• Map material: 48 countries (Western and Eastern Europe)
• Menu languages: 29 languages
• Voice guidance in 29 languages, 15 languages for text-to-speech (TTS)
• Advanced address search
• Postcode search
• Free Search
• Search with word pieces
• Extended POI functions
• Smart routes: use of historical traffic data
• Fast route calculation
• Expand route planning
• ECO route guidance
• 7 alternative routes to choose from
• Extended TMC mode
• Map display: 2D top view, 2D north orientation, 3D
• 3D city maps: 3D building views
• Display of height profiles
• 3D motorway junctions: 3D display of motorway junctions
• Lane information
• Tunnel mode
• Autobahn mode
• Navi Mix mode
• Text-to-speech
• Direct dialing by phone from POI data
• Hybrid sensor: GPS, GLONASS, gyro sensor, vehicle speed pulse

USB connection

• USB connection on the back (USB connection adapter for original USB / AUX connection included)
• Music and video playback
• Formats: FLAC / MP3 / WMA / AAC / AVI / MP4 / MKV playback
• File / Folder Name Search
• Tag info search
• Folder Up / Down
• MIX random play
• Repeat function

Sound tuning

• BASS ENGINE Pro
• BASS ENGINE SQ
• Subwoofer level adjustable
• Subwoofer phase selectable
• 2 V preamp output (connection cable KTX-PRE1 optional)
• Equalizer: Flat, Pops, Rock, News, Jazz, Electrical Dance, Hip Hop, Easy Listening, Country, Classical
• Dual HD EQ (9-band parametric equalizer (front / rear separated))
• 6-channel runtime correction
• Digital crossover
• Customizable sound settings by vehicle type
• MediaXpander HD
• Source volume adjustable
• Download online sound settings
• Easy, step-by-step sound adjustment
• "Alpine TuneIt App" ready

Generally

• Output power: Max. Power 4x 50 W high power amplifier
• Integrated premium quality amplifier for excellent sound
• Display: 23 cm (9-inch) capacitive WVGA high resolution display
• White LED backlight
• 50/50 split screen: left / right position changeable
• Touchscreen with slide function / pull and scroll function
• Customizable favorites screen
• 2 user profiles can be created
• High quality audiophile design
• Preamplifier: 3 PreOuts (2 V, front / rear / subwoofer) (connection cable KTX-PRE1 optional)
• AUX-In: 1x A / V input (3.5 mm jack connection)
• Preparation for infrared remote control
• Navigation mix announcement
• Camera connection prepared for original Golf 7 camera
• Reversing camera with immediate start function (immediate display of the reversing camera when the system starts)
• Simple Mode & Info Mode display
• Visual EQ
• Live contrast setting
• Menu language: 24 languages (for AV & Bluetooth), 29 languages (navigation menu and voice prompts)
• Time
• Automatic dimmer
• Anti-theft device with number code
• Firmware update bar
• Connection for original Golf 7 hands-free microphone
• Remote turn-on
• HDMI input & output (special Alpine HDMI connection cable required)
• HDMI expansion box KCX-630HD Ready
• Start-stop ready
• CAN-BUS connection port (UART - for SWRC, sub-display & comfort display)
• Compatible with optional DVD player: DVE-5300G

Map update

• Online map updates via alpine.naviextras.com
• TomTom map data
• 3 years free map update

Paving material

• Including mounting bracket, wiring harness and CAN bus interface for complete installation.

screen

• Screen size: 23 cm (9-inch) capacitive WVGA display
• LCD type: Transparent Type TN LCD
• Work system: TFT Active Matrix
• Number of pixels: 1,152,000 pixels (800 x 3 x 480)
• Lighting system: White LED backlight
• Effective number of picture elements: 99.99% or more
• Color system: NTSC, PAL

Maximum output power

• Max. Power 4x 50 W

FM tuner

• Frequency range: 87.5 - 108.0 MHz
• Mono usage sensitivity: 8.1 dBf (0.7 µV / 75 Ohm)
• 50 dB sensitivity: 12 dBf (1.1 µV / 75 Ohm)
• Alternative channel selectivity: 80 dB
• Signal-to-noise ratio (S / N): 65 dB
• Stereo channel separation: 35 dB
• Single-wave fluctuation: 2 dB

MW tuner

• Frequency range: 531 - 1.602 kHz
• Sensitivity (IEC standard): 25.1 µV / 28 dBf

LW tuner

• Frequency range: 153 - 281 kHz
• Sensitivity (IEC standard): 31.6 µV / 30 dBf

USB

• USB requirements: USB 2.0
• Max. Current consumption: 1,500 mA (CDP support)
• USB class: playback from device / mass storage
• File system: FAT 16/32
• MP3 decoding: MPEG-1/2 AUDIO Layer-3
• WMA decoding: Windows Media ™ Audio
• AAC decoding: ACC-LC format ′ ′ .m4a ′ ′ file
• Flac decoding: Free Lossless Audio Codec flac / fla
• H.264 decoding: AVI / MP4 / MKV file with H.264 video codec and MP3 / AAC audio codec
• Number of channels: 2-channel (stereo)
• Frequency response: 5 - 20 kHz ± 1 dB * Depending on the encoding software and bit rate
• Total Harmonic Distortion - THD (at 1 kHz): 0.008%
• Dynamic range (at 1 kHz): 95 dB
• Signal-to-noise ratio: 100 dB
• Channel separation (at 1 kHz): 85 dB

GPS / Glonass

• GPS / Glonass compatible antenna included
• GPS reception frequency 1,575.42 ± 1 MHz
• GPS reception sensitivity -130 dB max.

BLUETOOTH

• BLUETOOTH ^® version: Bluetooth V2.1 + EDR
• Output power: +4 dBm max. (Performance class 2)
• HFP (Hands Free Profile)
• OPP (Object Push Profile)
• PBAP (Phone Book Access Profile)
• A2DP: (Advanced Audio Distribution Profile)
• AVRCP: (Audio / Video Remote Control Profile)
• SPP (Serial Port Profile)

Sound tuning

• Subwoofer level adjustable: 0 to +15
• Subwoofer phase: 0 ° or 180 °
• BASS ENGINE SQ: 5 modes, level 0 to +6
• High pass filter (frequency): 20/25 / 31.5 / 40/50/63/80/100/125/160/200 Hz
• High pass filter (slope): Off / -6 / -12 / -18 / -24 dB / oct.
• High pass filter (gain): -12 to 0 dB
• Low pass filter (frequency): 20/25 / 31.5 / 40/50/63/80/100/125/160/200 Hz
• Low pass filter (slope): Off / -6 / -12 / -18 / -24 dB / oct.
• Low pass filter (gain): -12 to 0 dB
• Runtime correction: 0.0 to 336.6 cm (3.4 cm steps) or 0.0 - 9.9 ms (0.1 ms steps)
• Dual HD EQ - 9 band parametric equalizer for front + rear
• Parametric equalizer (band 1): 20 - 100 Hz
• Parametric equalizer (band 2): 63 - 315 Hz
• Parametric equalizer (band 3): 125 - 500 Hz
• Parametric equalizer (band 4): 250 - 1k Hz
• Parametric equalizer (band 5): 500 - 2k Hz
• Parametric equalizer (band 6): 1k - 4k Hz
• Parametric equalizer (band 7): 2k - 7.2k Hz
• Parametric equalizer (band 8): 5.8k - 12k Hz
• Parametric equalizer (band 9): 9k - 20k Hz
• Parametric Equalizer (Gain): ± 14
• Parametric equalizer (bandwidth): 1, 2, 3
• Source volume: ± 14

HDMI

• Input format 720p / 480p / 480i / VGA
• Output format 480p

Generally

• Power supply: 14.4 V.DC (11-16 V permissible)
• Preamp output (without clipping): 2 V / 10 kOhm
• Maximum installation angle: 30 ° to the horizontal

Dimensions

• i902D-G7 / X903D-G7: Suitable for Volkswagen Golf 7
• Housing dimensions (W x H x D) mm: 178 x 50 x 164 mm

Compatible vehicles

* not suitable for e-Golf, Golf Sportvan, Golf GTE and Active Info Display (AID). Please note that some vehicle menus can be lost (e.g. traffic sign recognition). Not for Golf 7 facelift.
