Zenec Z-E2055 - 9 Zoll Infotainer

Innovative infotainer for VW - the Z-E2055 is an E> GO of the latest generation

Vehicle-specific infotainer for VW, SEAT AND ŠKODA

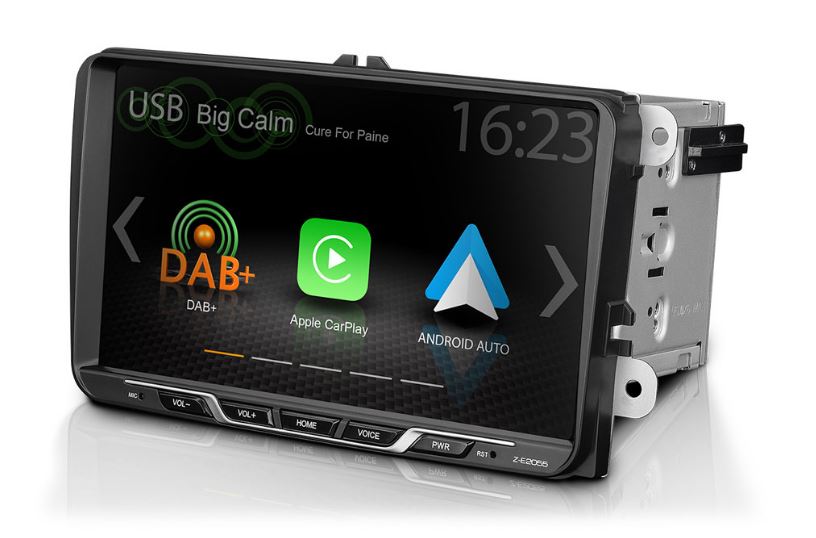

With its vehicle-specific front, the Z-E2055 integrates perfectly into the compatible Volkswagen models. Networked with the vehicle electronics via CAN bus, convenience functions such as MFA / MFA +, multifunction steering wheel or the displays of OPS and Climatronic are supported.

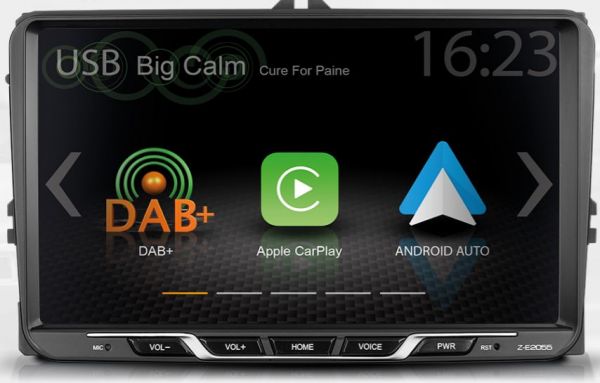

The E> GO impresses with its large, capacitive, touch-sensitive 9 "/ 22.9 cm TFT screen made of real glass and, last but not least, with its row of hard keys on the front of the device, with which the Z-E2055 can be operated completely intuitively while driving.

main features

• Vehicle-specific DAB + infotainer with Apple CarPlay and Google Android Auto
• Touch-sensitive, capacitive 9 “/ 22.9 cm LCD-TFT screen (1024 x 600 pixels) with real glass surface
• OSD menu in 10 different EU languages
• DAB + tuner with DAB <> DAB service following, MOT slideshow, DLS text and Comfort Scan
• FM RDS radio with 18 station presets
• Google Android Auto
• Apple CarPlay
• Bluetooth 4.2 with hands-free module and A2DP music streaming
• Input for camera system with automatic switching function
• Selectable lighting color (white / red) for the device control buttons
• Connection of the buttons on the multifunction steering wheel
• MFA + connection for audio sources with display of iD3 tags and radio station information
• Optical parking distance system (OPS) connection via CAN
• Connection of Dynaudio active systems via CAN
• Integration and display of the Climatronic status via CAN
• 4 x 50 W power amplifier

Bluetooth

• Bluetooth 4.2 module with hands-free function
• Import of 1000 phone book contacts with 3 phone numbers each
• Quick dial function for 6 favorite contacts
• Contact search function by first and last name
• iD3 tag display in A2DP mode (artist, title, album)
• Internal and external Bluetooth hands-free microphone (external microphone included)

Notes on the Bluetooth hands-free function

The Z-E2055 uses a modern Bluetooth solution from Sunplus, which was developed for automotive use. The module supports the Bluetooth 4.2 profile, which ensures a high level of compatibility of the ZENEC Z-E2055 with the Bluetooth functions relevant to the use of the device with current smartphone brands and models.
Exceptions to Bluetooth function or profile components that do not want to run correctly usually come from a provider-specific smartphone firmware (third-party provider).
In order to be absolutely sure that a given smartphone understands the relevant BT functions of the target device, it is advisable to check the device combination in an authorized specialist retailer before buying it.
Additional information:
Some smartphones require a confirmation to enable access to the phonebook contact list. Release is done manually by the user where necessary.
If you encounter connection problems, always check whether a newer firmware version is available for your smartphone and install it. After a smartphone update, you should delete the previous device pairing on the device, restart the smartphone and pair it again.

Multimedia and audio

• Made for iPod / iPhone
• USB (2) 2.0 port on the back of the device for A / V file playback from USB data carriers (including supported A / V file formats: MP3, FLAC, AAC, WAV, AVI, MPEG-1/2, MPEG4, M4V (H.264 ), MKV 1080p, XviD)
• Time correction with audio DSP (5CH with 0 to 20 mS delay for each channel)
• Graphic 8-band equalizer with 7 EQ presets
• Active crossover with selectable slope (12 dB / 24 dB per oct.) And selectable high-pass and low-pass crossover frequencies
• 1 x HDMI input for accessories and compatible mobile devices
• 24 bit D / A converter

connections

• External Bluetooth microphone included
• Single fakra to double fakra adapter included
• SMB to Fakra A adapter included

Vehicle compatibility

• For vehicles with Quadlock II system or also for Quadlock III vehicles (see below) with the separately available Quadlock III cable set N-ZE2055-QL3.
• The Z-E2055 replaces the following device models ex works: VW RNS 210/310/315/510 and RCD 310/315/510.
• Functionality is based on the availability of function-specific CAN data.
• Webasto parking heaters are not supported.

Vehicle models (Quadlock II)

• VW Amarok 2H from 2010
• VW Beetle Cabrio 5C 2011 - 2015
• VW Beetle Coupé 5C 2011– 2015
• VW Caddy 2K / 2C 2003-2013
• VW CC 35 2008-2014
• VW EOS 1F 2006 - 2013
• VW Golf V 1K 2003-2008
• VW Golf V Variant 1K 2007 - 2009
• VW Golf VI 5K 2008 - 2012
• VW Golf VI Variant AJ 2009 - 2013
• VW Golf Cabrio 51 2011 - 2013
• VW Golf Plus 5M / 52 2005 - 2013
• VW Jetta VI 16 2005-2015
• VW Jetta V / Bora 1K2 2005-2010
• VW Passat 3C / 36 2005 - 2014
• VW Passat Alltrack 36 2012-2014
• VW Passat CC 35 2008 - 2012
• VW Passat Variant 3C / 36 2005 - 2014
• VW Polo 6R 2010-2014
• VW Scirocco III 13 2008-2014
• VW Sharan 7N 2010 - 2013
• VW Tiguan 5N 2007 - 2013
• VW Touran 1T 2003 - 2013
• VW T5 7E / 7J 2010-2015
• SEAT Alhambra 71 2010 - 2013
• SEAT Altea 5P 2004-2014
• SEAT Altea Freetrack 5P 2007 - 2009
• SEAT Altea XL 5P 2004-2014
• SEAT Leon 1P 2005 - 2012
• SEAT Toledo 5P 2004-2009
• SEAT Toledo KG 2012 - 2013
• ŠKODA Octavia II 1Z 2009 - 2013
• ŠKODA Octavia II Combi 1Z 2009 - 2013
• ŠKODA Octavia II Scout 1Z 2009 - 2013
• ŠKODA Rapid NH 2013 - 2015
• ŠKODA Rapid Spaceback NH 2013 - 2015
• ŠKODA Superb II 3T 2008 - 2014
• ŠKODA Superb II Combi 3T 2008 - 2014
• ŠKODA Yeti 5L 2009 - 2014

Vehicle models (Quadlock III)

• VW Beetle A5 (2nd Gen) 2015 - 2018
• VW Caddy 2K (2nd Facelift) 2015>
• VW Jetta VI 5C6 (3rd Gen) 2015 - 2018
• VW Sharan II 7N 2015 - 2016
• VW T6 7H / 7J (2nd Facelift) 2015 - 2019
• VW Tiguan I 5N 2015 - 2016
• SEAT Alhambra II 7N 2015>
• ŠKODA Yeti 5L (1st Facelift) 2015 - 2017
