5% discount
If you buy 1 of the products of this action, you will receive a discount of 5% .
€649.00 *
Prices incl. VAT plus shipping costs
available,
Delivery time appr. 1-2 working days
- Order number: 02058D8DF16PRO

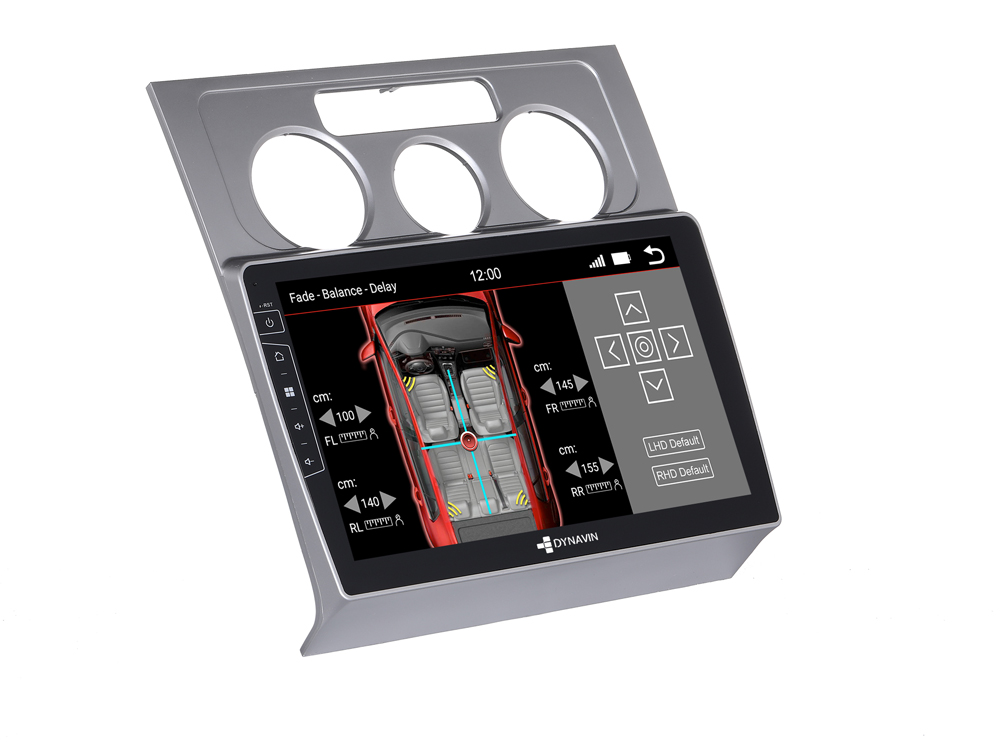

Dynavin D8-DF16Premium Android car radio for VW Touran with 4 x 100W Class-D amplifier,... more
Product information "Dynavin D8-DF16 Premium - navigation system for VW Touran"
Dynavin D8-DF16Premium
Android car radio for VW Touran with 4 x 100W Class-D amplifier, 10.1 inch display (high resolution), integrated DAB, Apple CarPlay and Android Auto
- Integrated 4 x 60W RMS Class D-DSP amplifier: Distortion (THD+N) < 1%, DSP resolution: 24 bit, sampling rate: 44.1 K. Vehicle-specific sound file available.
- High-quality 10.1″/16:9 LCD capacitive touchscreen display (resolution 1280 x 720).
- Compatible with Apple CarPlay, Wireless CarPlay, Android Auto and SmartPhone Mirroring.
- Google Play Store: Connection to the Internet via integrated WLAN module.
- Integration of the CANBUS solution (for steering wheel controls, parking sensor and air conditioning information).
- BT for audio streaming and hands-free calls via any smartphone (Android, Apple, etc.). External microphone included.
- FM RDS tuner with DSP noise masking and 15 preset stations, integrated DAB. Supports automatic switching between DAB and FM (Seamless Blending).
- Integrated sound DSP processor with 16-band EQ and time correction.
- Multimedia player via USB port.
- Reversing camera ready: Compatible with all aftermarket reversing cameras (with RCA connection) and VW original cameras through optional adapter DVN-VCR-L (No steering angle lines from VW original cameras ) or DVN-VCR-H (with steering angle lines from VW original cameras).
- Integrated GPS navigation with 3D view, online TMC* and TTS.
- Compatible with VW traffic sign recognition and lane assistance system.
- Online traffic only available via WIFI if the latest map data is installed.
Suitable for
- VW Touran 2003-2011
Specifications
General
- Android 8.1 OS with 2GB RAM and 32GB or 160GB ROM
- 5 PreOuts (3 V, Front / Rear / Subwoofer)
- CANBUS integration
- Menu language: English / German / French / Spanish / Portuguese / Dutch / Greek / Italian / Polish / Danish
- Camera connection & Built-in controls for Dynavision multi-view cameras / compatible with original camera
- Camera Guide Line Setting
- Reversing camera display Automatic / Fast startup
- 16 band EQ
- Automatic dimmer
- Firmware upgradeable
- Compatible with start-stop system
- Display: 10.1-inch (LVDS)
- Resolution 1280 x 720 pixels (RGB)
- Capacitive touchscreen
- Anti-reflection display
- Working system: TFT active matrix
- Active area: 222.72 (H) x 125.28 (V) mm
- Compatible with Apple Carplay, Wireless Carplay and Android Auto
- Compatible with SmartPhone Mirroring
- Integrated DAB/DAB+
- DAB + to DAB + Service Following
- Seamless blending (automatic switching between DAB + and FM)
- SLS (Slideshow Service)
- DLS (Dynamic Labeling Service)
- Radio VIS (station coverage on your radio display)
- Station memory: 15 program memory locations
- Integrated BT module
- Specification standard: 3.0 and 2.1 + EDR
- -95dBm sensitivity, excellent anti-interference performance
- Supports low power scanning function
- PBAP phone book synchronization with 1000 entries
- Hands-free function with HFP
- Music streaming: A2DP (Advanced Audio Distribution Profile) compatible
- Individual profile connection: hands-free function and music streaming
- Phonebook: Automatic transfer of the phonebook
- Support caller alert dashboard display
- Support for storing connection history of multiple mobile phones
- Display of the device name
- Call history: dialed number / received calls / missed calls
- Speech volume adjustment: adjustable for incoming and outgoing calls
- Microphone gain adjustable
- Display of GSM signal strength
- Display of the battery charge level
- USB specification: USB 2.0, support fast charging
- Audio playback (supported formats: APE/FLAC/M4A/MP3/WMA/WAV)
- Video playback (supported formats: MPEG-4/AVI/FLV/MPEG/MPG/DAT/VOB/MKV)
- Image browsing (supported formats: JPG/BMP/PNG/JPEG)
- Playback mode: Random play / Single track loop / All loops / Folder loop
- Image can be set as home screen
- Synchronize song album images
- Video playback speed x2/ x4
- Save playback progress
- Support for dashboard display of songs/composers
- Support steering wheel to control song/volume level up/down
- Search by file/folder name
- Supports up to 256GB USB storage device
Sound tuning
- Maximum output power: 4 x 100W Class D (built-in 4 x 60W RMS Class D DSP amplifier)
- Adjustable subwoofer level, high pass filter, low pass filter and phase
- Equalizer: Parametric 16 band equalizer
- Fader and Balance
- Digital time correction
- Adjustable crossover and gain on the front and rear channels
- Vehicle-specific sound file can be downloaded from flex.dynavin.combe downloaded
- Distortion (THD+N) < 1%
- DSP resolution: 24 bits
- Sampling rate 44.1 K
- FM frequency range: 87.5 - 108.0 MHz
- AM frequency range: 530 – 1710 KHZ
- FM utility sensitivity: 5-6 db
- FM stop sensitivity: 22 db
- AM stop sensitivity: 21 db
- With left and right stereo channels
- Signal-to-noise ratio: 56 db
- Manual station storage for 15 stations
- RDS functions: AF, TA, station text
- Automatic station search function
- High-cut high-frequency attenuation function
- Support changing FM/AM memory space images
- Optional switching the radio antenna on and off
- GPS antenna included
- GPS reception frequency 1,575.42 ± 1 MHz
- GPS reception sensitivity -165 dB max
- Positioning accuracy: 10 m, 2D RMS
- Data refresh rate: 1 HZ
- Reacquisition time: 0.1 s on average
- Sync BT music with mobile phone
- Display song title/lyrics/composer/singer
- Steering wheel can control song/volume up/down
- Song titles/lyrics can be displayed on the dashboard
Scope of delivery
- Display screen
- Main unit
- Connection cable
- GPS antenna
- DAB antenna
- USB extension cable
- Adpater for factory SUB connection
- Mkrofon
- Reversing camera cable
- Antenna adapter
- Steering wheel control cable
- Fuse tap
- Installation panel
- Connection cable
- Metal bracket (for 1DIN radio ex works)
- Metal bracket (for 2DIN radio ex works)
- BT WiFi ANT
- Tool for removing the cover and pulling the cable through
| quantity: | 1 piece |
| Cinch Output: | 3 pairs |
| Medien: | Android Auto, Apple Carplay, AUX-In, DAB+, USB hinten |
| Product group: | 2-DIN Radios |
| Radio Size: | Car Specific |
| Radio Features: | GPS Antenne (im Lieferumfang) , Zündlogik , DAB-Antenne (im Lieferumfang), Car specific, capacitive Touchscreen, HDMI, Car specific, Car specific |
| VW: | Touran |
