5% discount
If you buy 1 of the products of this action, you will receive a discount of 5% .
€109.00 *
Prices incl. VAT plus shipping costs
available,
Delivery time appr. 1-2 working days
- Order number: 02072KV-CADDY-2G
- EAN 4260052640418
Product information Ampire rear view camera for VW Caddy 2003-2015 (2K & 2K Facelift)... more
Product information "Ampire KV-CADDY-2G - Rear view camera for VW Caddy 2003-2015 (2K & 2K Facelift) MINI-DIN"
Product information Ampire rear view camera for VW Caddy 2003-2015 (2K & 2K Facelift) MINI-DIN

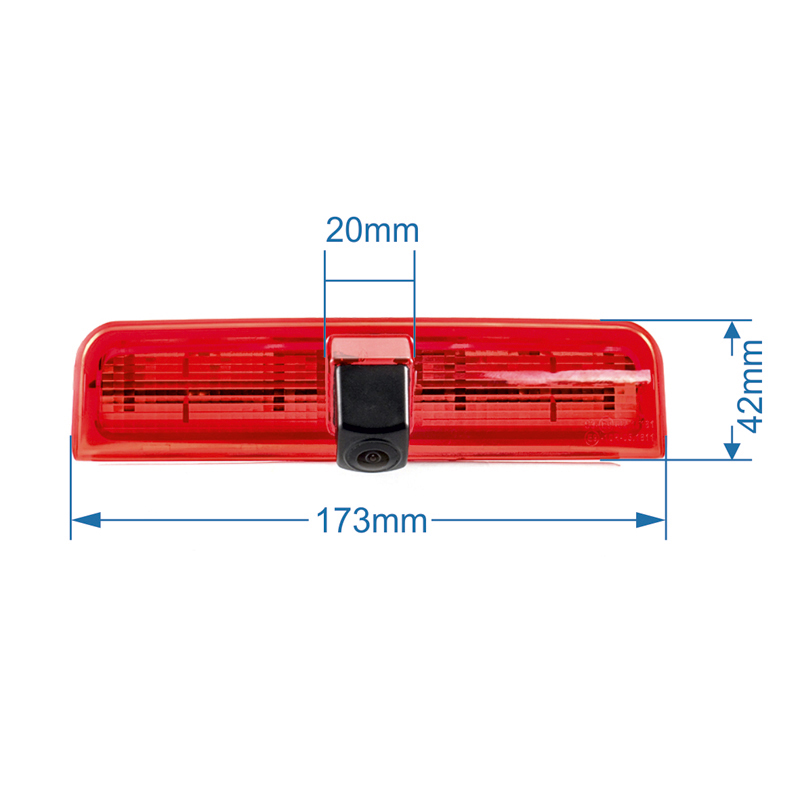

Vehicle-specific rear view camera for installation in the tailgate or the wing doors of the VW Caddy 2003-2015 (2K & 2K Facelift).

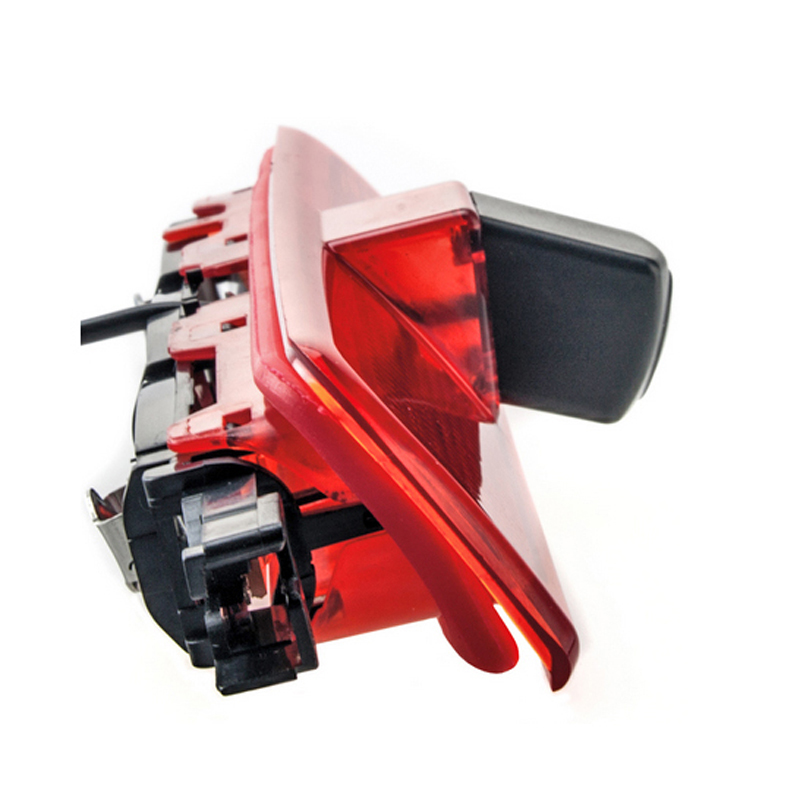

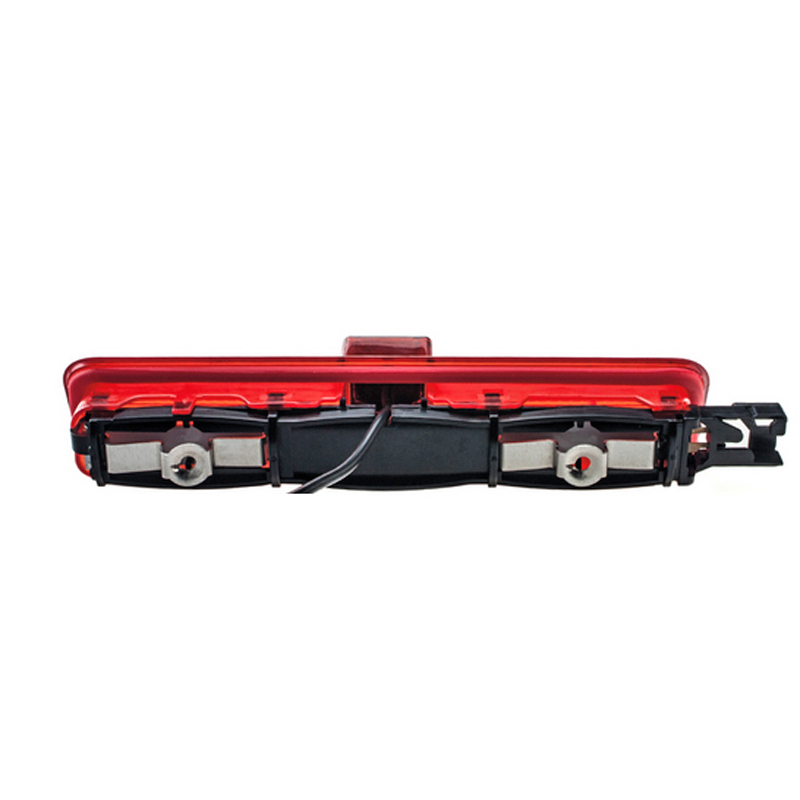

The KV-CADDY-2G is simply replaced with the factory brake light glass.
Technical data
- Image display mirrored
- Image sensor: 1/3" CMOS PC3089
- Resolution 756x504 Pixels

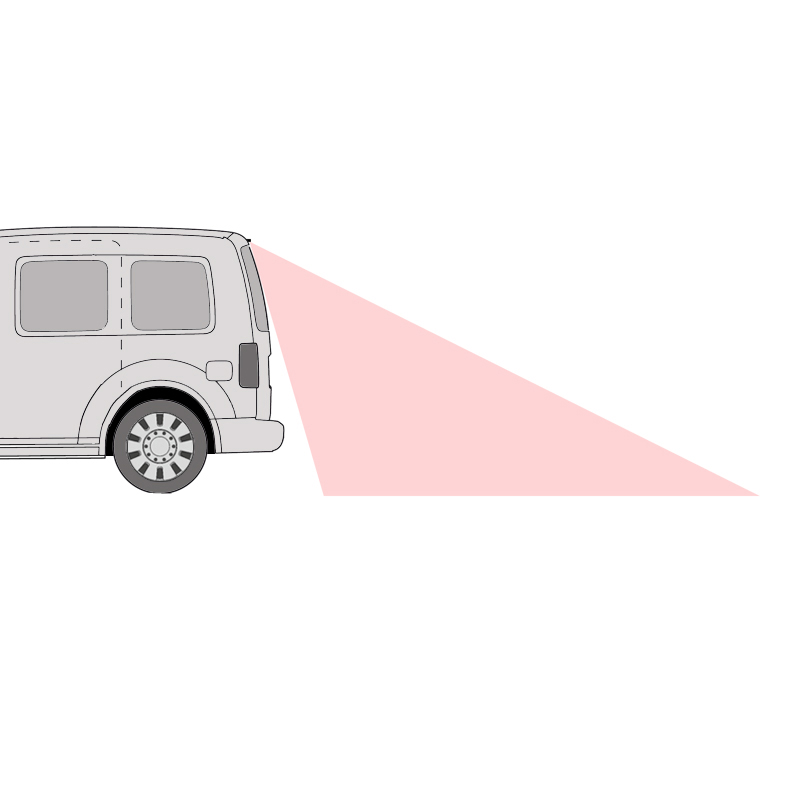

- Viewing angle 150° diagonal
- Viewing angle 120° horizontal
- Image format: NTSC
- 480 line resolution
- IP68 waterproof
- Operating voltage: 12 volts DC
- Power consumption: max. 200mA
- Operating temperature: -20° to 70°C
- Minimum illumination: 0.2 lux
- Color: black
- Cable length: 10 meters with 4-pin MINI-DIN connectors
- E approval E9*10R06/00*22328*00
- CE approval EN 55022: 2010; EN 61000-3-2:2006+A1:2009+A2:2009; EN61000-3-3:2008; EN 55024:2010
- FCC approval ANSI C63.4-2003
Scope of delivery
- Brake light rear view camera
- AK1001
- AK1014

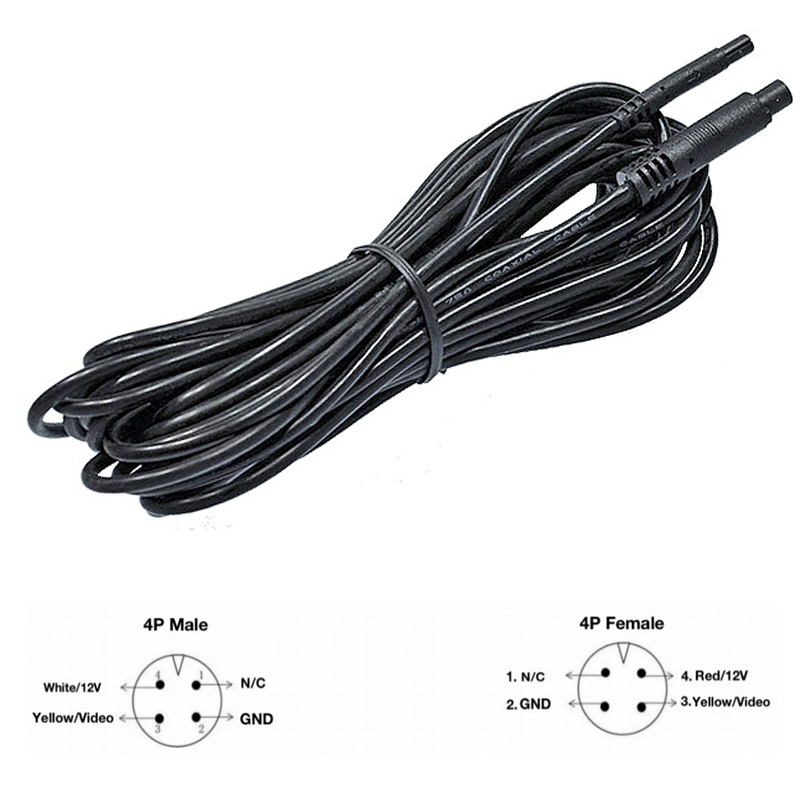

- AK1016 connection cable 4-pin. Mini-DIN, with 3.3V power supply, 10m
Important note
Depending on the roof structure and the trailer hitch installed on the vehicle, you may not be able to see the trailer hitch on the monitor.
quantity: | 1 piece |
Blickwinkel, diagonal: | 150° |
Perspective, horizontal: | 120° |
Type of Camera: | Rear view camera |
Product group: | Camera |
VW: | Caddy |
