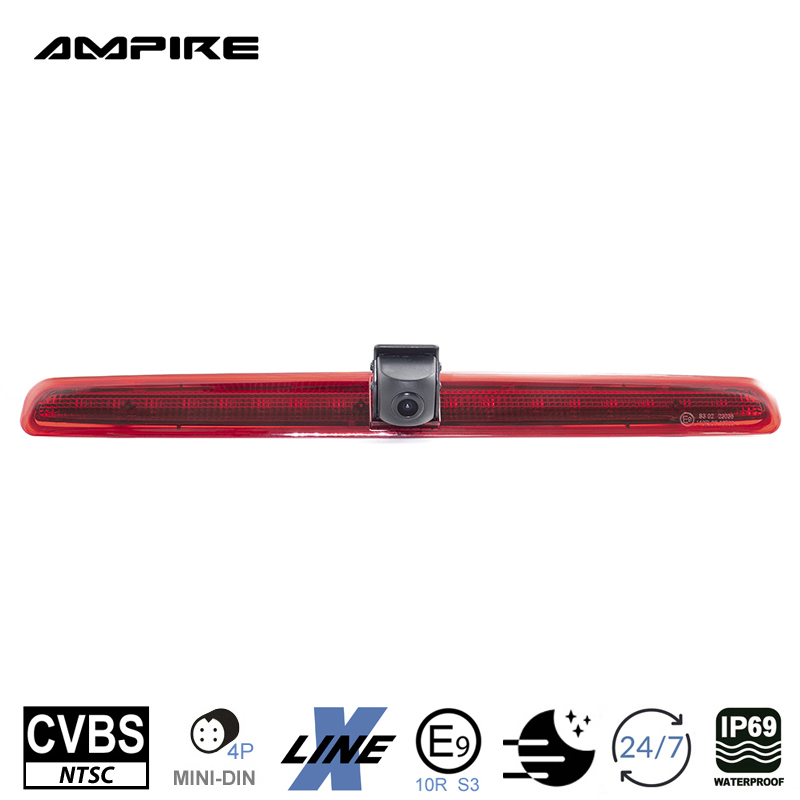

Ampire KVX-T5-H - Camera (CVBS), for VW T5 with tailgate (no high roof)

Vehicle-specific CVBS (NTSC) rear view camera for the VW Transporter T5 with tailgate.
The KVX-T5-H simply replaces the factory left brake light glass.

Compatibility

VW T5 with tailgate. Compatible with Transporter, Caravelle, Multivan, California and TransVan. (Not compatible with T5 with high roof)
VW T6/T6.1 with high roof

Technical data

•  Image display mirrored
•  Image sensor: 1/3" CMOS High performance Digital Super Clarity Image Sensor
•  Resolution 756x504 pixels
•  Viewing angle 150° diagonal
•  Image format: NTSC
•  480 line resolution
•  IP69 waterproof
•  Operating voltage: 12/24 Volt DC
•  Power consumption: max. 200mA
•  Operating temperature: -20° to 70°C
•  Minimum illumination: 0.2 lux
•  Color: black
•  Cable length: 10 meters with MINI-DIN connectors
•  E approval E9-10R-05.1652
•  CE approval EN 55022: 2010; EN 61000-3-2:2006+A1:2009+A2:2009; EN61000-3-3:2008; EN 55024:2010
•  FCC approval ANSI C63.4-2003

Scope of delivery

•  Rear view camera
•  AK1035 power supply
•  AK1034 mini-DIN extension cable 10m

Important note

Depending on the roof structure and the trailer hitch installed on the vehicle, the trailer hitch may not be visible on the monitor.
