ATBB 4486.01 - DAB+ Glasklebe-Innenantenne

5% discount

€70.29 * €73.99 * (5% Saved)
Content: 1 Stück

Prices incl. VAT plus shipping costs

Ready to ship,
Delivery time appr. 1-3 Workdays

Seen cheaper?
Quantity
Artikel günstiger gesehen?
  • 02053448601
  • 4045994005576
Glass-glued indoor antenna for adhesive attachment in the middle of the windshield (1) or on the... more
Product information "ATBB 4486.01 - DAB+ Glasklebe-Innenantenne"

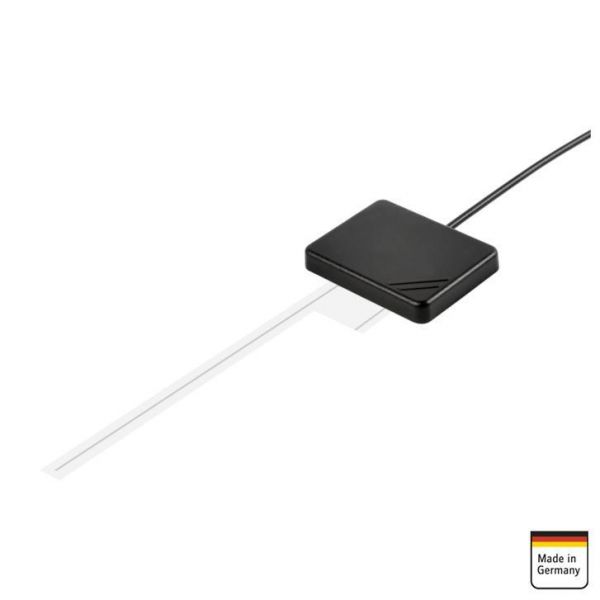

Glass-glued indoor antenna for adhesive attachment in the middle of the windshield (1) or on the side window (2) with the following properties
favorable reception properties
theft-proof and against wanton destruction
no wind noise
long lifetime
ideally suited for connection to retrofitted DAB + receivers

Hints
05 mm minimum distance between antenna and body
Coating, particle and heating wire-free pane in the assembly area

Technical specifications

  • Frequency range: B III / L band
  • Frequency: 174-240 MHz / 1452-1492 MHz
  • Output impedance: 50 Ù
  • Adjustment: 2.0: 1
  • Gain: 9 dB / 11 dB
  • Operating voltage: +12 volts DC
  • Current consumption: 23 mA
  • Cable: RG 174 3, 0 m
  • Connector: SMB (f), angle
Connectors: SMB
Antenna Features: Klebeantenne, aktiv
Signal: DAB+
Product group: Antenna
