ATBB 4726.04 - DAB/ FM Aktivsplitter - Frequenzweiche ISO/SMB

5% discount

€41.33 * €43.50 * (5% Saved)
Content: 1 Stück

Prices incl. VAT plus shipping costs

available,
Delivery time appr. 1-2 working days

Seen cheaper?
Quantity
Artikel günstiger gesehen?
  • 02053472604
  • 4045994050736
Generates an additional DAB / DAB + signal from a passive FM / FM antenna Amplification FM / FM... more

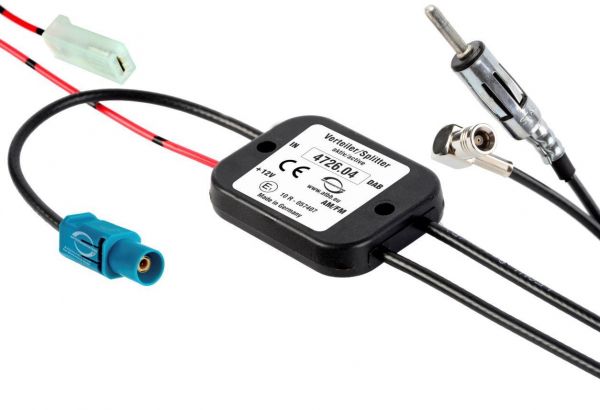

Product information "ATBB 4726.04 - DAB/ FM Aktivsplitter - Frequenzweiche ISO/SMB"

Generates an additional DAB / DAB + signal from a passive FM / FM antenna
Amplification FM / FM and DAB + 20dB each

Connections to the radio:

  • DIN plug
  • SMB socket
  • Connection to the antenna: FAKRA connector

Also works with active FM / FM antennas if the antenna itself does not filter the frequency band. In a phantom antenna, a phantom adapter must be inserted between the splitter and the antenna connector, e.g. 8551, as a possible phantom power of the radio is not passed.

For best results, combine the splitter with a passive FM / FM / DAB antenna:

  • 16 V antenna: ATBB_2116_01
  • Flex antenna with adjustable rod of 10-115 degrees: ATBB_3940_01
  • Shark / Shark Antenna: ATBB_3759_01

These antennas always have a piece of cable 40cm with a Fakra socket. You can then use any existing Fakrakabel or bring the signal into the dashboard with the extension cable Dietz: 8475 (Fakra plug - Fakra jack, length 5 meters). There you connect the splitter. If the radio has an ISO antenna connection for VHF, then you still need the adapter, Dietz 8300.

Connectors: DIN (150 Ohm), FAKRA, SMB
Signal: DAB+, FM/UKW
Product group: Antenna Splitter
