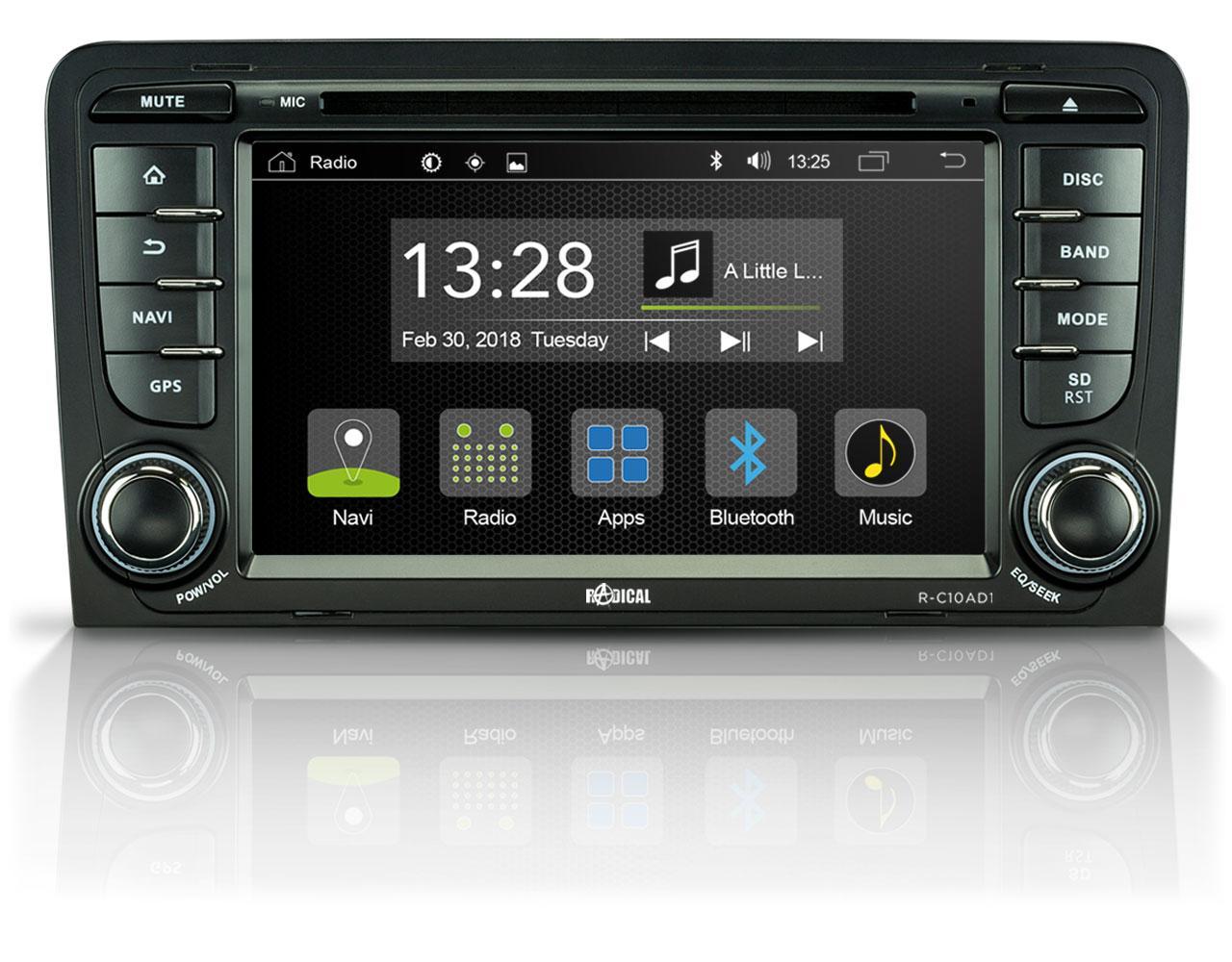

Radical Audio R-C10AD1 - 2-DIN Moniceiver

Vehicle-specific infotainer for Audi A3
Innovative, vehicle-specific Android OS infotainer with capacitive 17.8 cm / 7 "touchscreen display. The R-C10AD1 is designed for AUDI A3 vehicles and has 2GB of RAM and 32GB of flash memory. The RADICAL infotainer allows the installation of Android apps (Open System) and has a very powerful CPU equipped with the typical functional features of this device category: e.g. FM RDS radio with 36 station presets (FM1 and FM2 bands each with 18 station presets), Bluetooth hands-free module with A2DP music streaming, EasyConnect integration for Android and iOS smartphones. The DAB + tuner function can be retrofitted via an external module. Networked with the vehicle electronics via CAN bus, brand and model-dependent comfort functions such as multifunction steering wheel connection, OPS display or climate status display are supported. The operation is completely intuitive.

Innovative multimedia - the R-C10AD1 is a vehicle-specific infotainer for Audi A3 vehicles with 2GB RAM and 32GB flash memory as well as EasyConnect integration for Android smartphones.

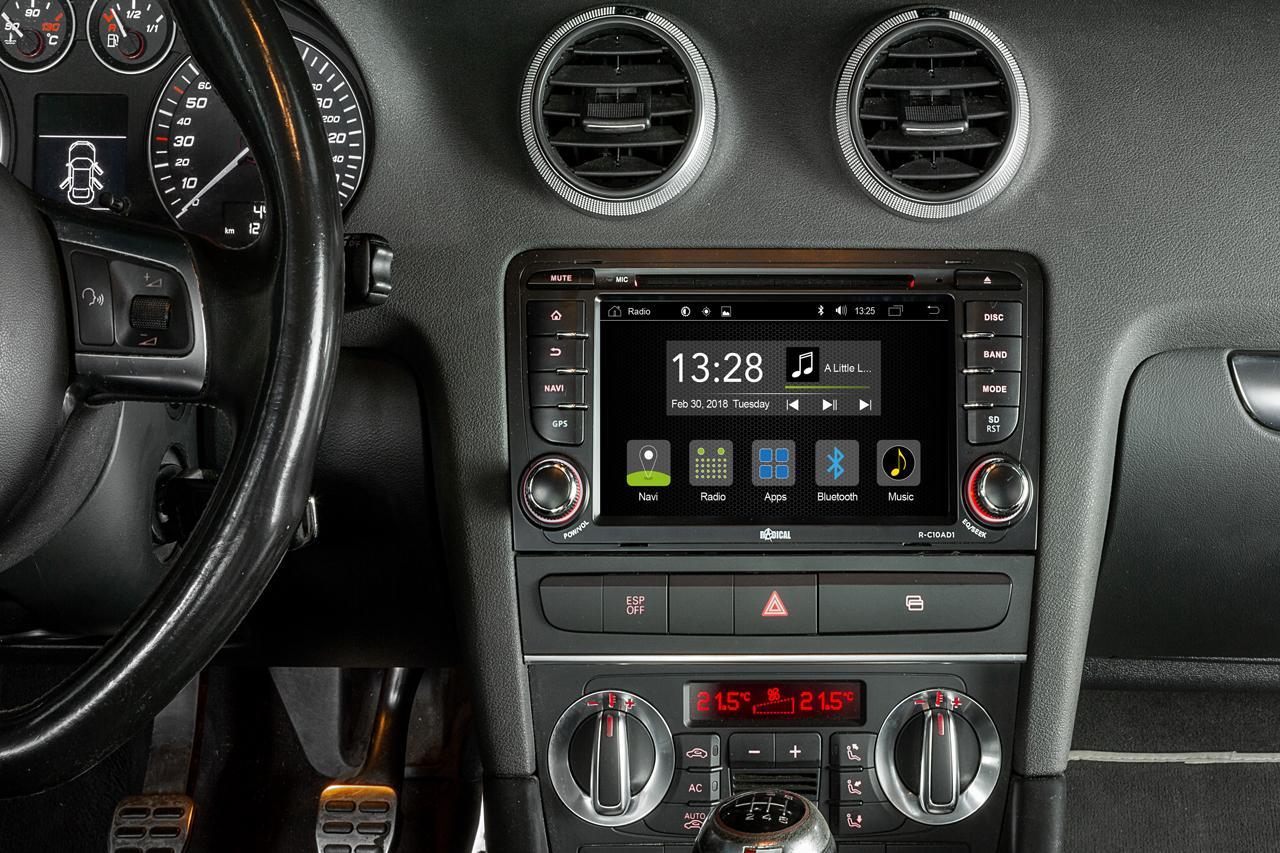

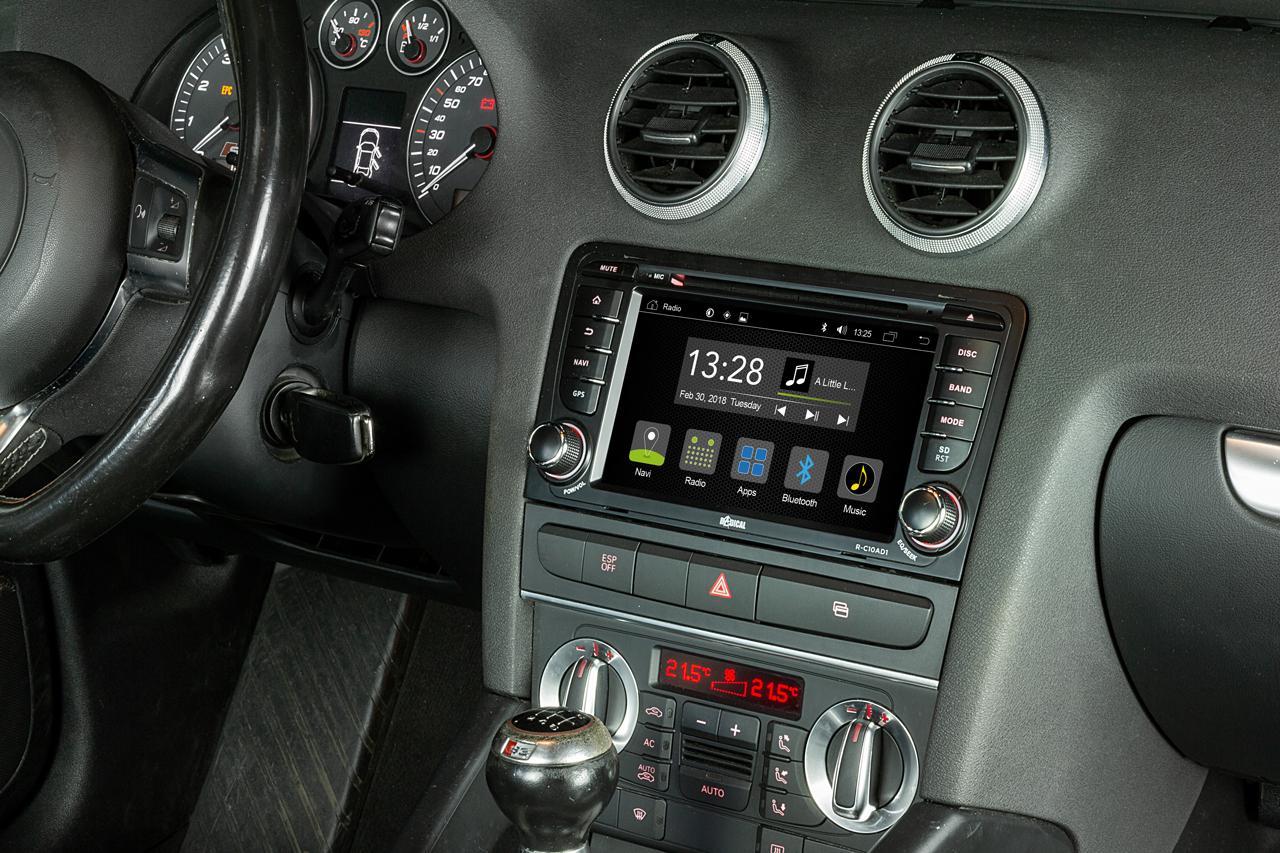

With its front, the R-C10AD1 integrates perfectly into the compatible Audi A3 models. Networked with the vehicle electronics via the CAN bus, comfort functions such as the multifunction steering wheel are supported. The R-C10AD1 convinces with its large capacitive, touch-sensitive 17.8 cm TFT screen, which is completely intuitive to use.

• Vehicle-specific infotainer for Audi A3
• Allwinner T8 CPU with 2GB RAM and 32GB flash memory
• Navigation function with NDrive Karta upgradeable * 1

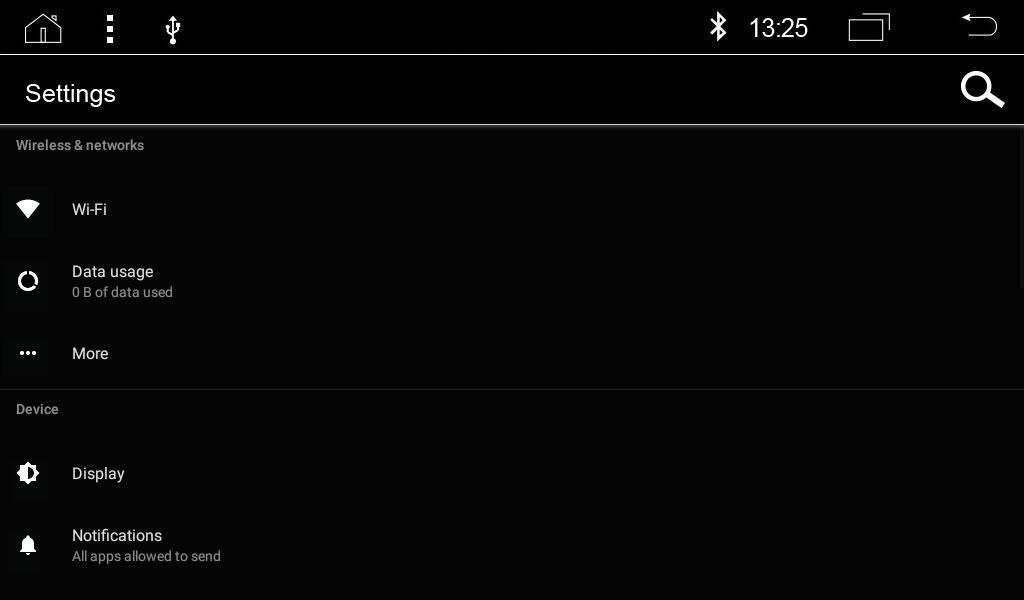

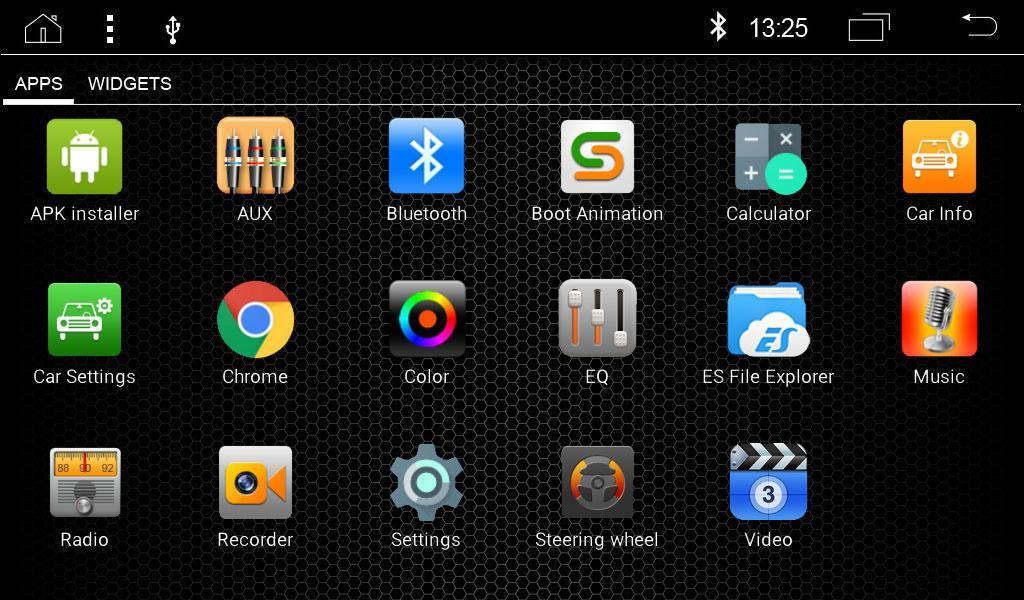

• Open Android 7.1 operating system. Offline installation of Android apps * 2
• Capacitive 17.8cm / 7in 16: 9 TFT touchscreen screen with 1024 x 600p resolution
• OSD menu in various EU languages ​​(German, English, Italian, French, Spanish etc.)
• DAB + tuner preparation - separately available DAB module R-C10-DAB

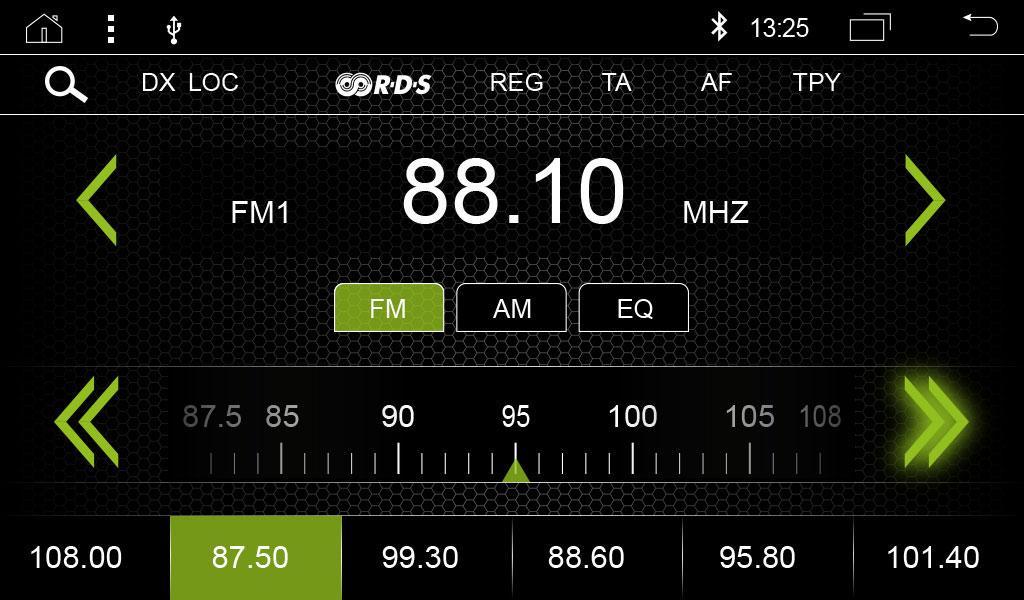

• FM RDS radio with 36 station presets (FM1 and FM2 bands with 18 station presets each)
• Bluetooth handsfree module with A2DP music streaming
• Connection and control of a reversing camera
• Connection to the multifunction steering wheel via CAN
• EasyConnect integration for Android and iOS smartphones
• Preparing to connect a DVR camera * 4
• RGB multicolor key illumination
• Integrated 4 x 45 Watt power amplifier
• Integrated Wifi module (WLAN IEEE 802.11 b / g / n)

* 1 The navigation bundle R-MAPC10 is not part of the scope of delivery
* 2 Google Playstore direct access is not supported for licensing reasons
* 3 The OBD2 dongle R-C10-OBD2 is not included in the scope of delivery of the device
* 4 interface for universal USB port based DVR cameras

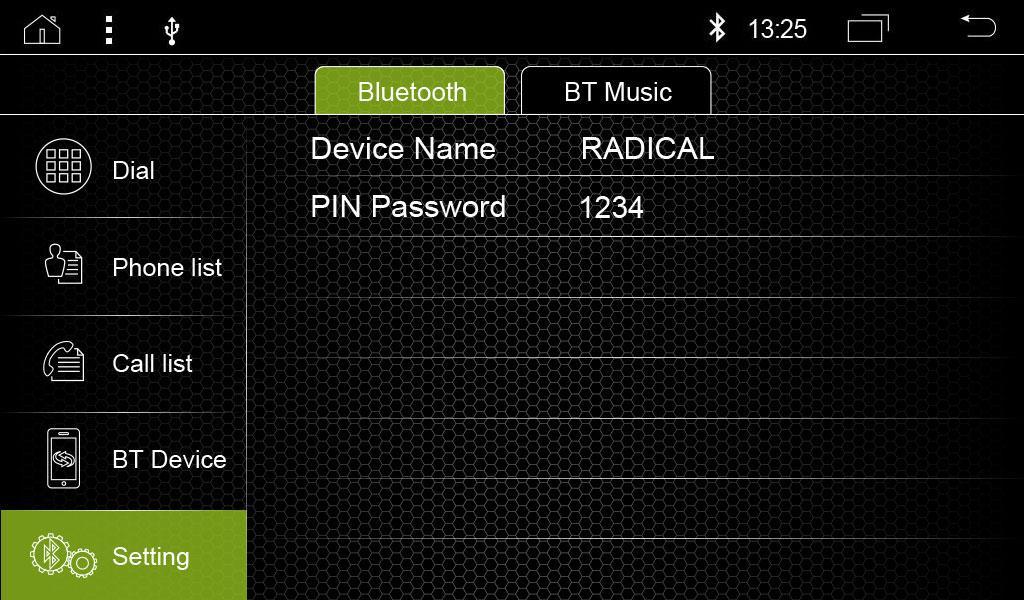

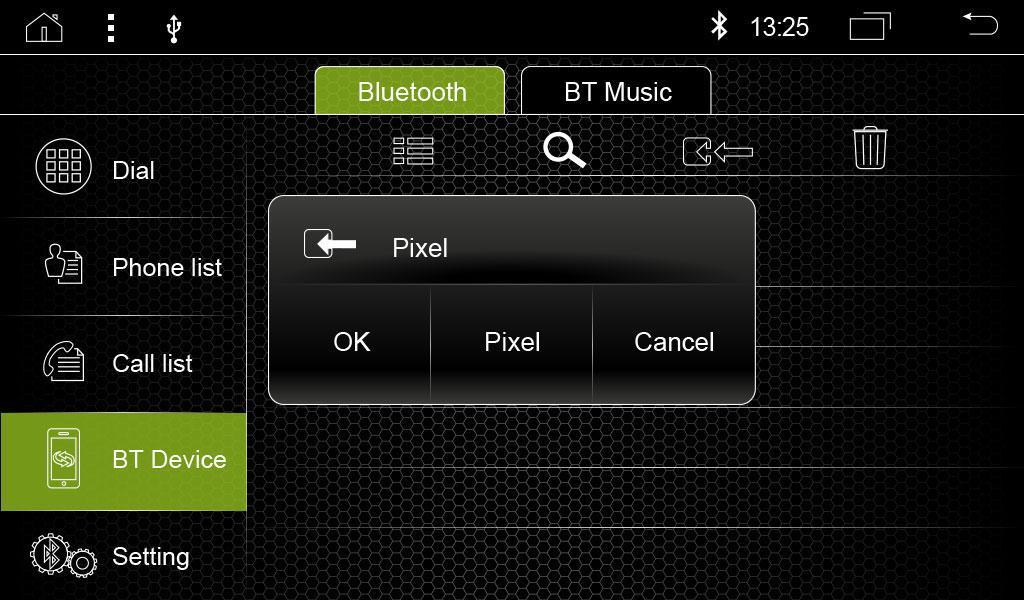

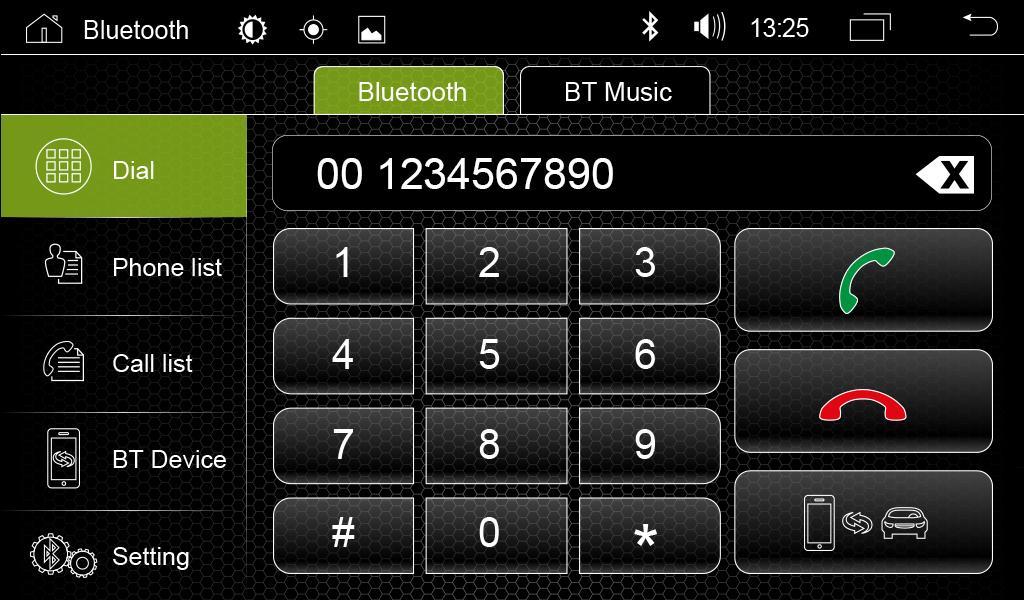

Bluetooth

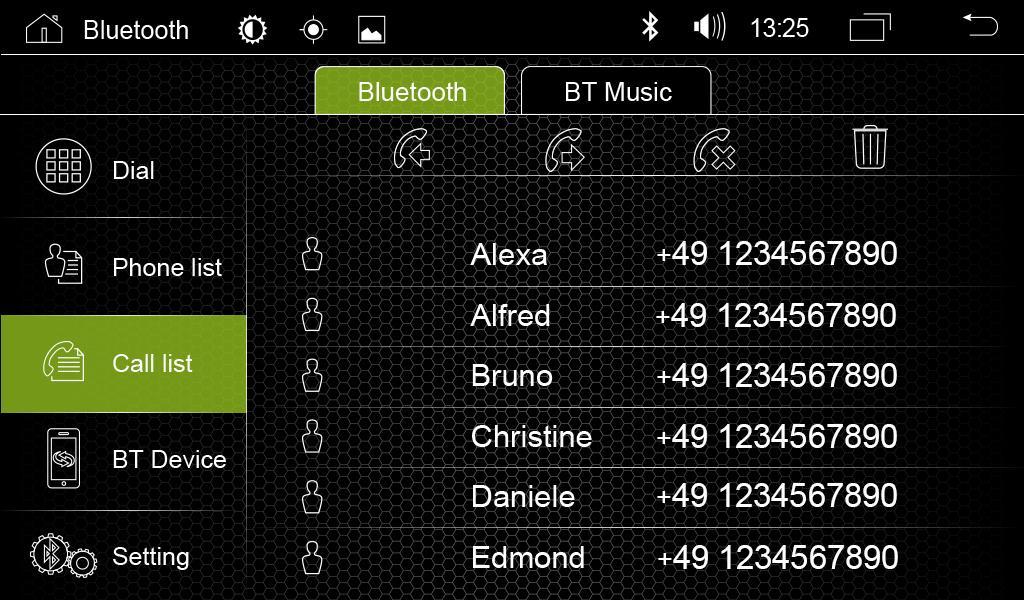

• iVT BC8 Bluetooth handsfree module
• Synchronization of 1000 telephone book contacts with 3 telephone numbers each
• Search function for phonebook contacts

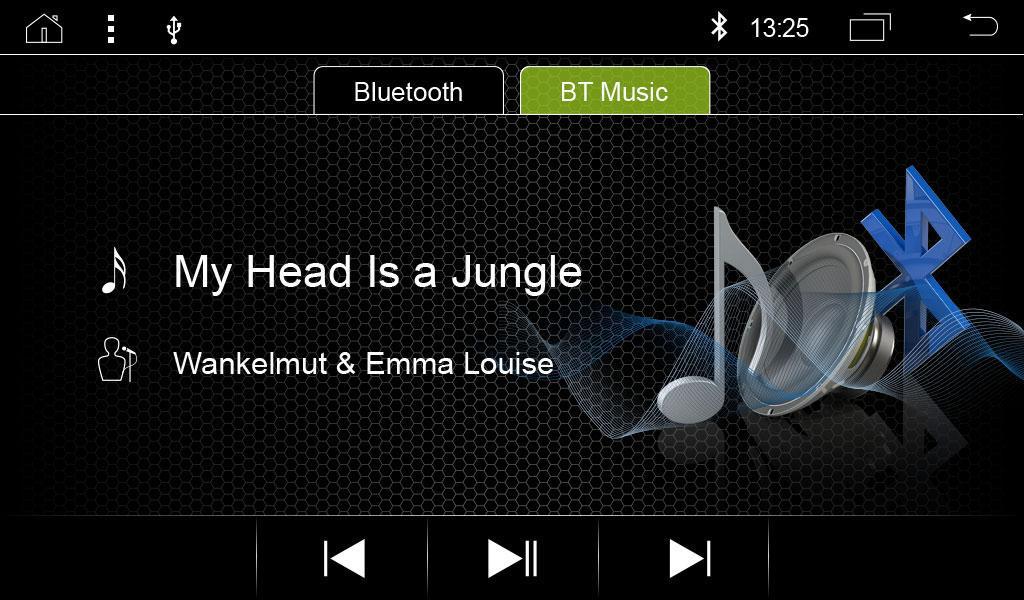

• A2DP BT-Music Streaming with display of iD3-Tag and AVRCP 1.3

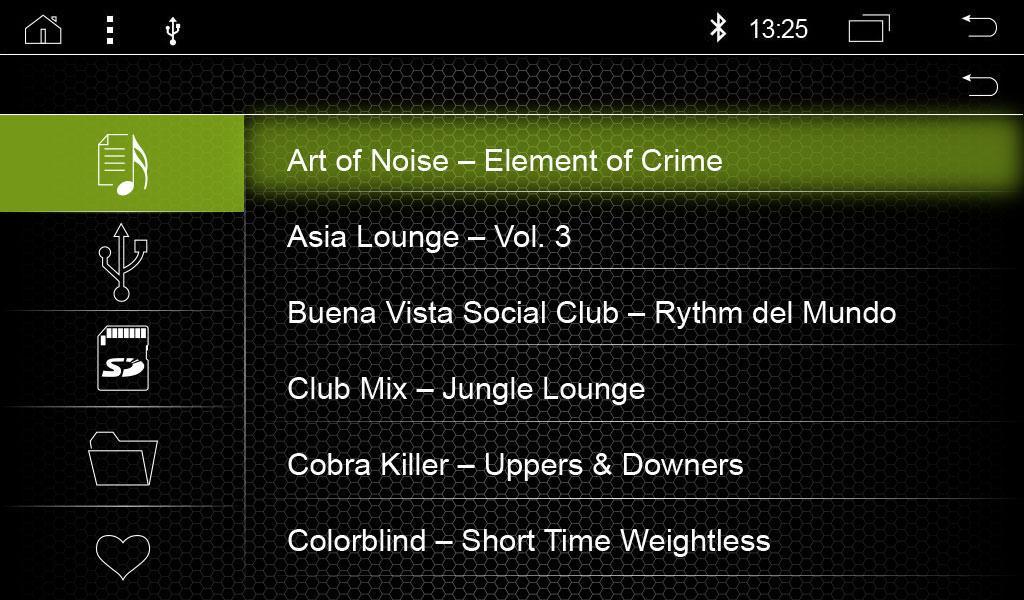

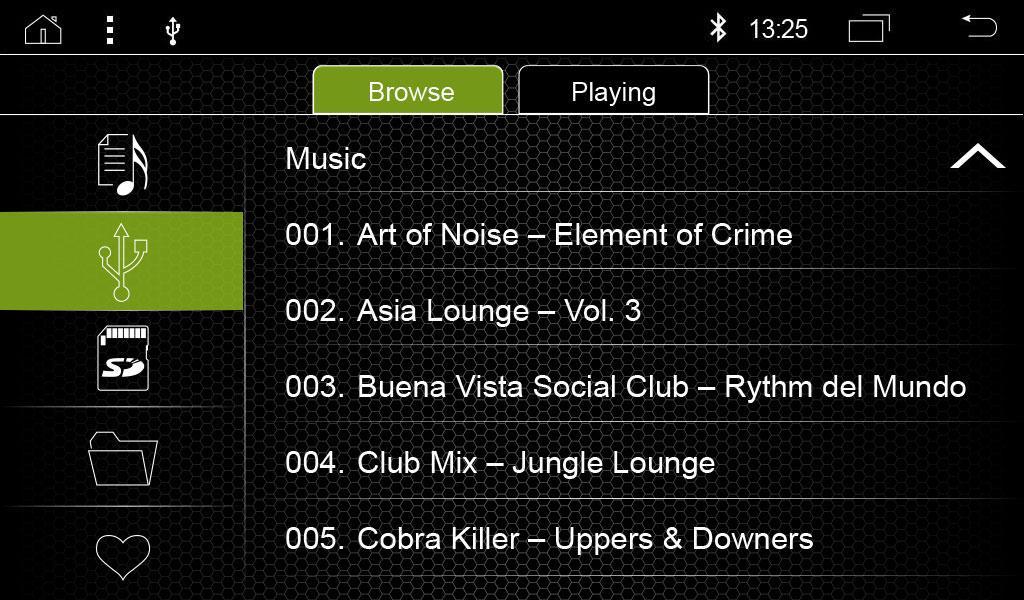

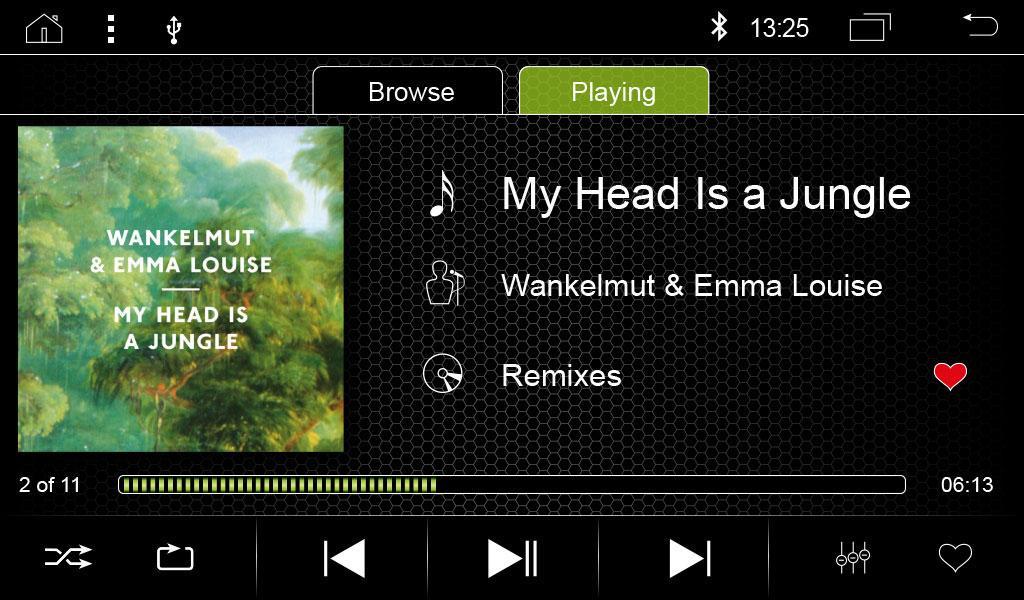

Multimedia + Audio

• DVD drive - compatible media / formats: CD, CD-R / RW, MP3, WMA, DVD, DVD ± R, DVD-MP3, AVI, Xvid

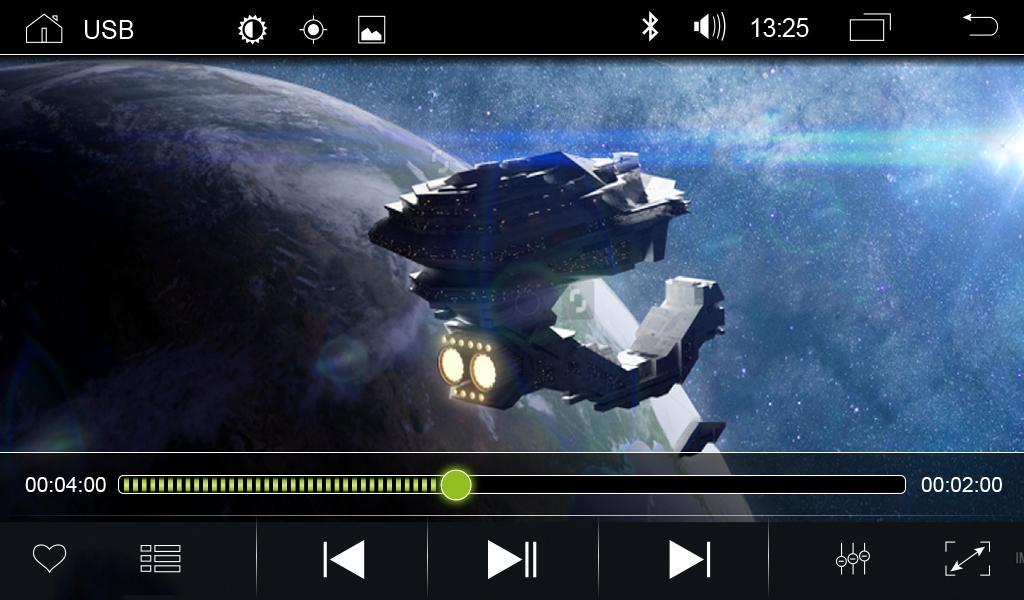

• 2x USB 2.0 port for playing A / V files and connecting Android smartphones
• A2DP BT music streaming with AVRCP 1.3

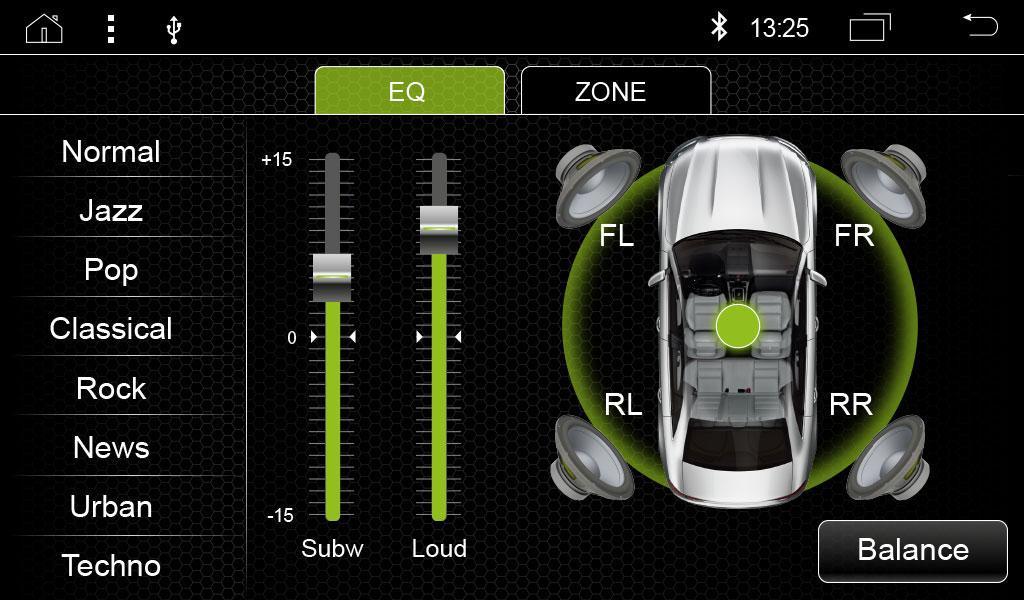

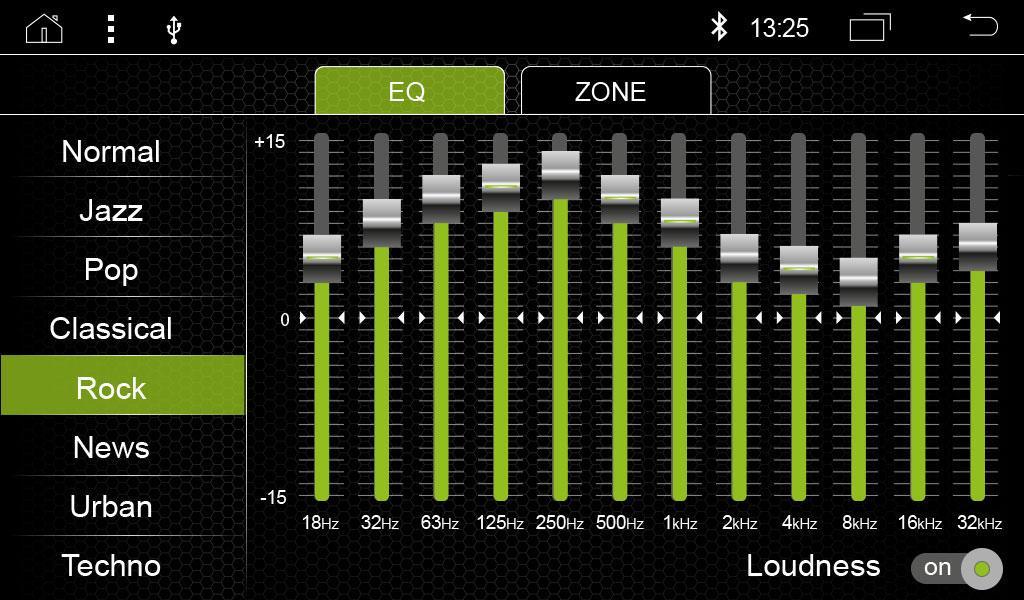

• 12-band graphic equalizer with 8 sound presets

vehicle integration

• Connection to the steering wheel remote control via CAN
• Connection to the multifunction display via CAN

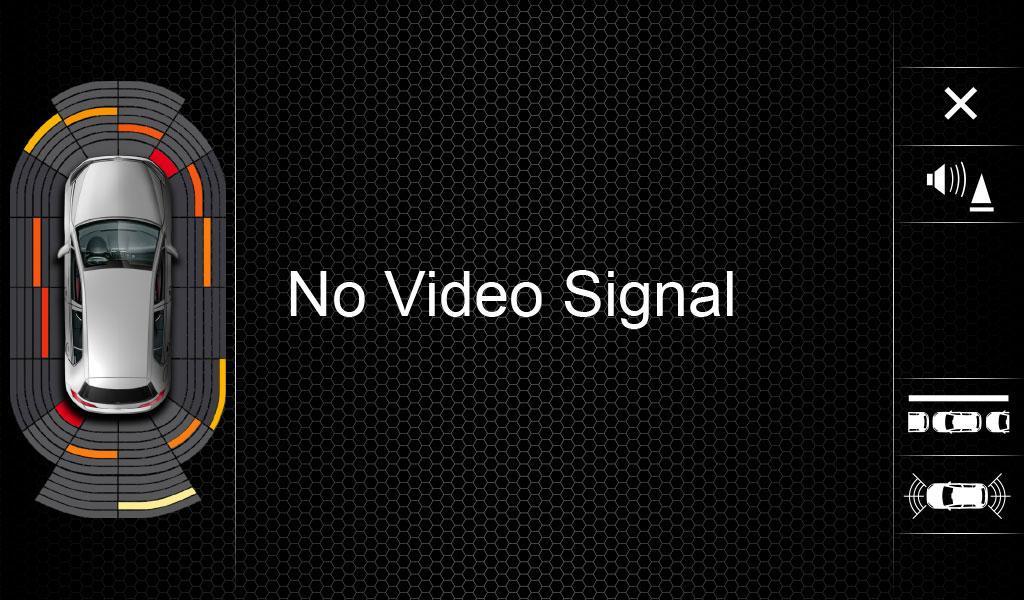

• Connection of the Optical Park System (OPS) via CAN

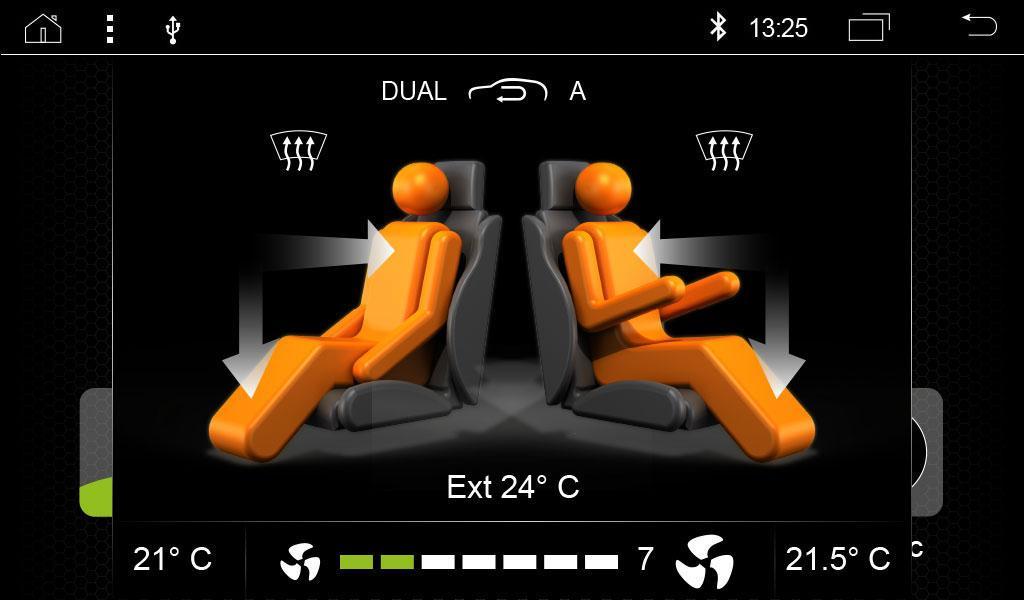

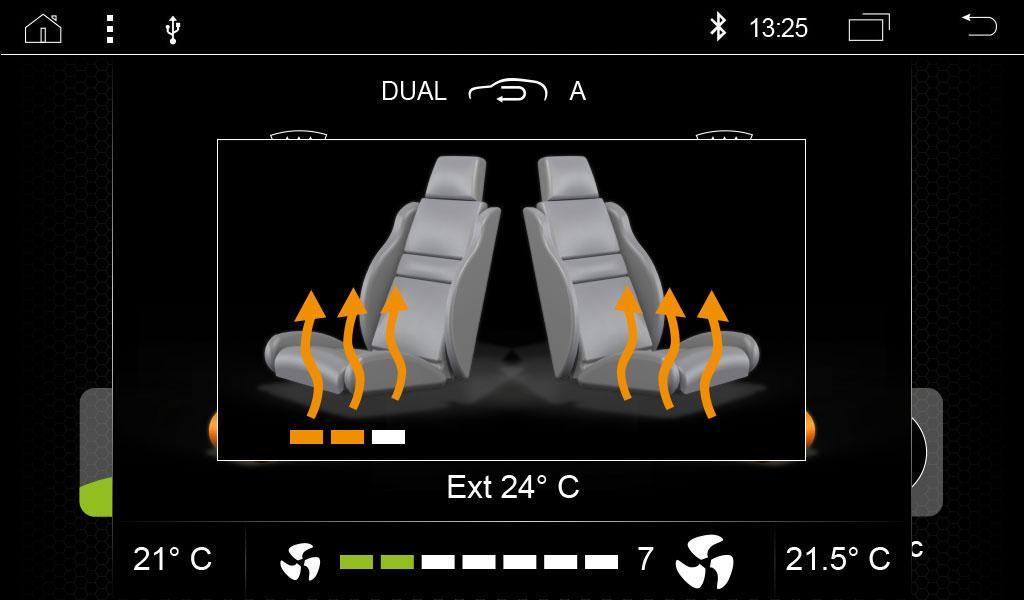

• Connection of automatic air conditioning Status display via CAN
• Active system integration

connections

• 4.2 RCA preamp outputs (2V)
• 1x RCA A / V input for audio and video signal (CVBS)

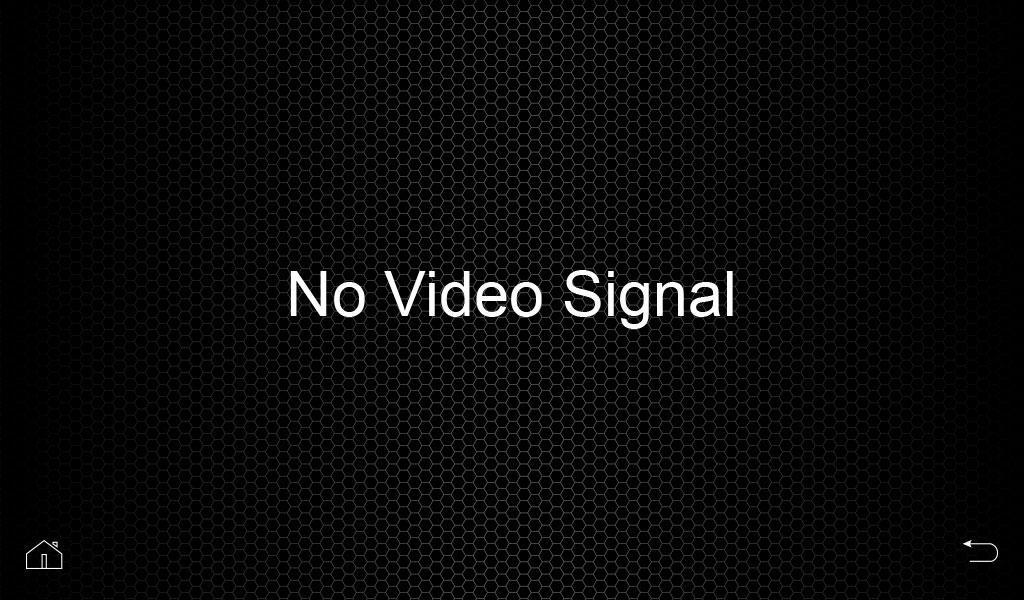

• 1x RCA input for reversing camera with automatic switching (CVBS)
• 2x USB 2.0 Port for Android Smartphones with 1A charging current

Accessories (optional)

• R-C10-DAB, DAB + Tuner Set with film antenna for windshield mounting
• R-MAPC10, GPS Navigation Software Package

Compatibility - Brand, Model, Type, Year of Construction:

AUDI A3 8P 2003> 2008
AUDI A3 (Facelift) 8P 2008> 2012
AUDI A3 Sportback 8PA 2004> 2008
AUDI A3 Sportback Facelift 8PA 2008> 2012
AUDI A3 Convertible 8P 2008> 2013
AUDI S3 8P 2006> 2008
AUDI RS3 8PA 2011> 2012
