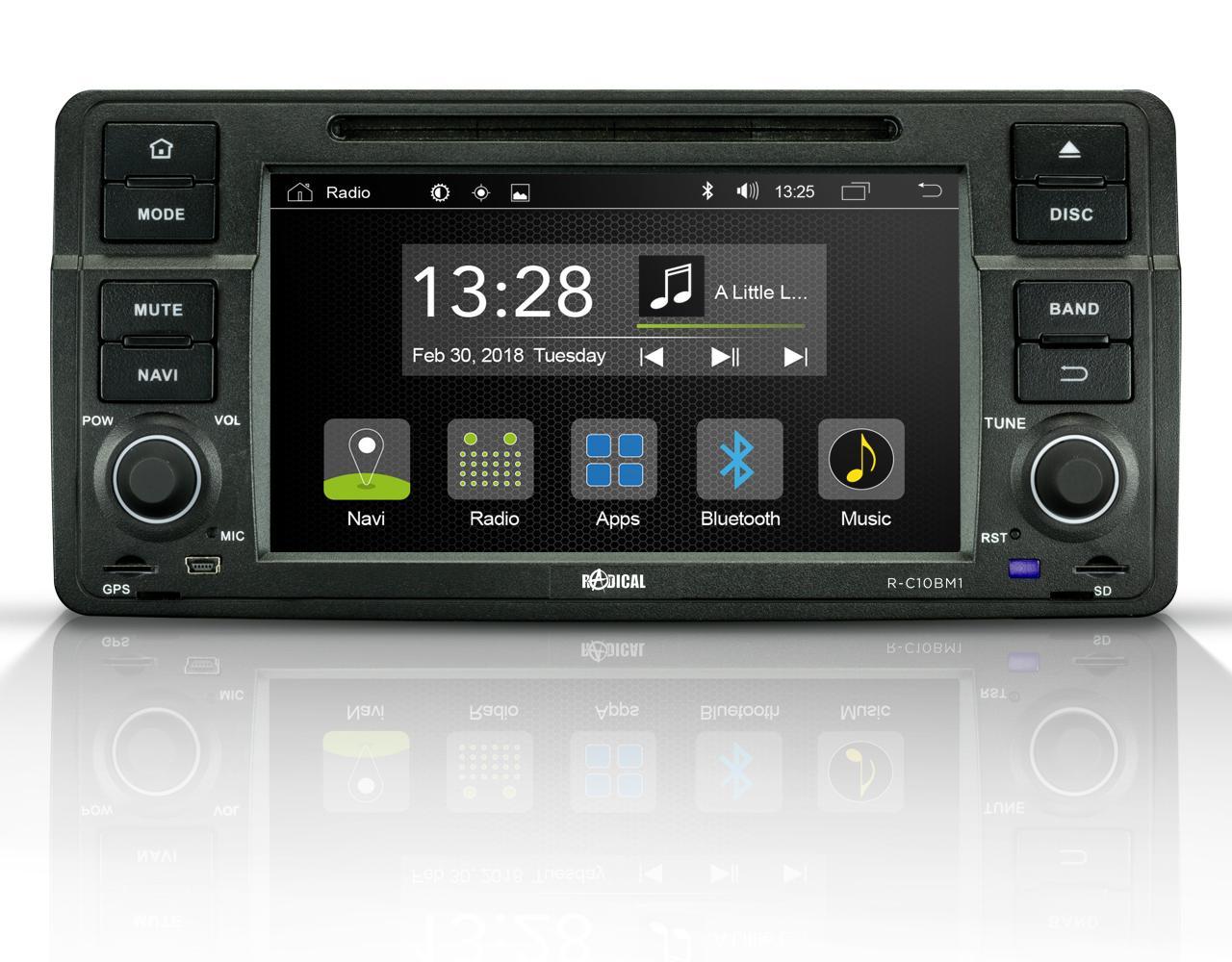

Radical Audio R-C10BM1 - 2-DIN Moniceiver

Vehicle-specific infotainer for BMW 3 Series

Innovative, vehicle-specific Android OS infotainer with capacitive 17.8 cm / 7 "touchscreen display. The R-C10BM1 is designed for BMW 3 Series vehicles and has 2GB of RAM and 32GB of flash memory. The RADICAL infotainer allows the installation of Android apps (Open System) and has a very powerful CPU equipped with the typical functional features of this device category: e.g. FM RDS radio with 36 station presets (FM1 and FM2 bands each with 18 station presets), Bluetooth hands-free module with A2DP music streaming, EasyConnect integration for Android and iOS smartphones. The DAB + tuner function can be retrofitted via an external module. Networked with the vehicle electronics via CAN bus, brand and model-dependent comfort functions such as multifunction steering wheel connection, OPS display or climate status display are supported. The operation is completely intuitive.

Innovative multimedia - the R-C10BM1 is a vehicle-specific infotainer for BMW 3 Series vehicles with 2GB RAM and 32GB flash memory as well as EasyConnect integration for Android smartphones.

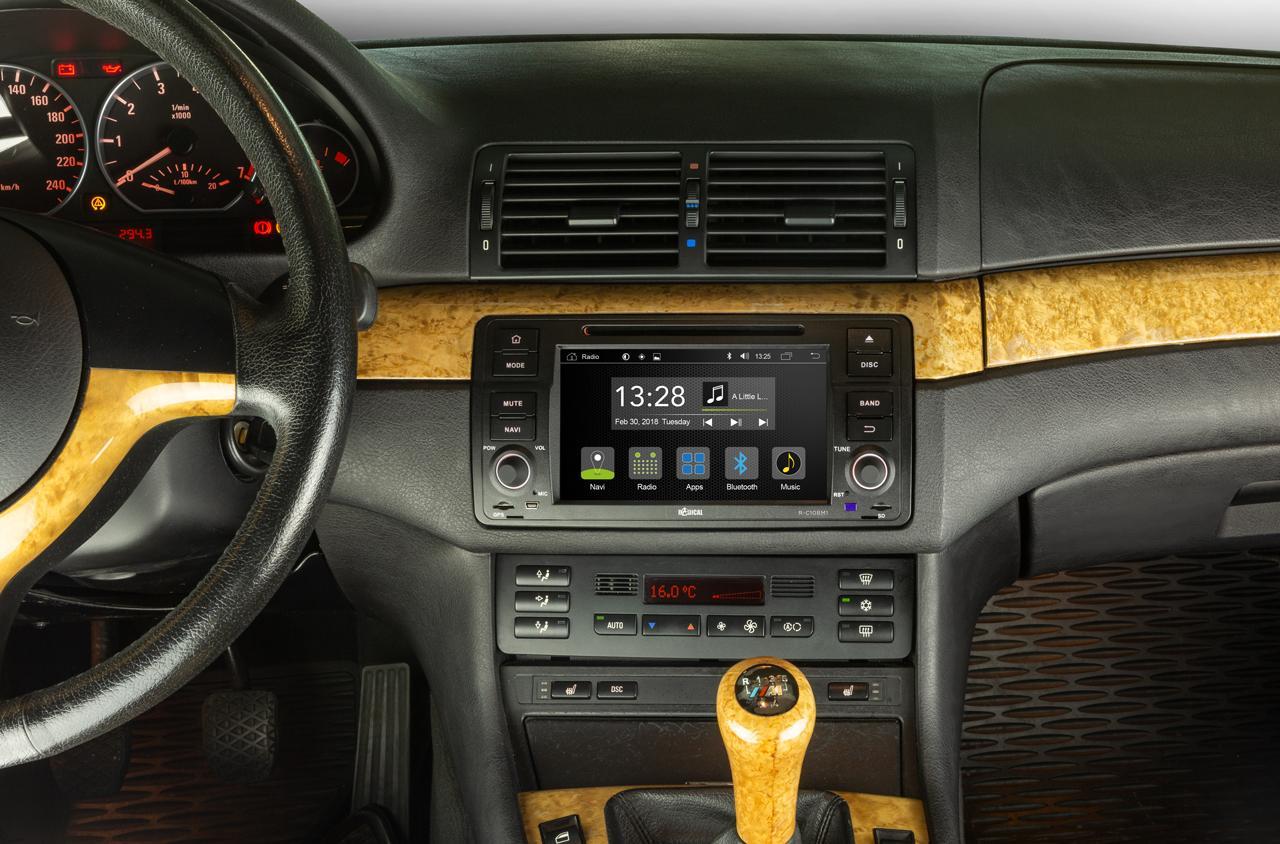

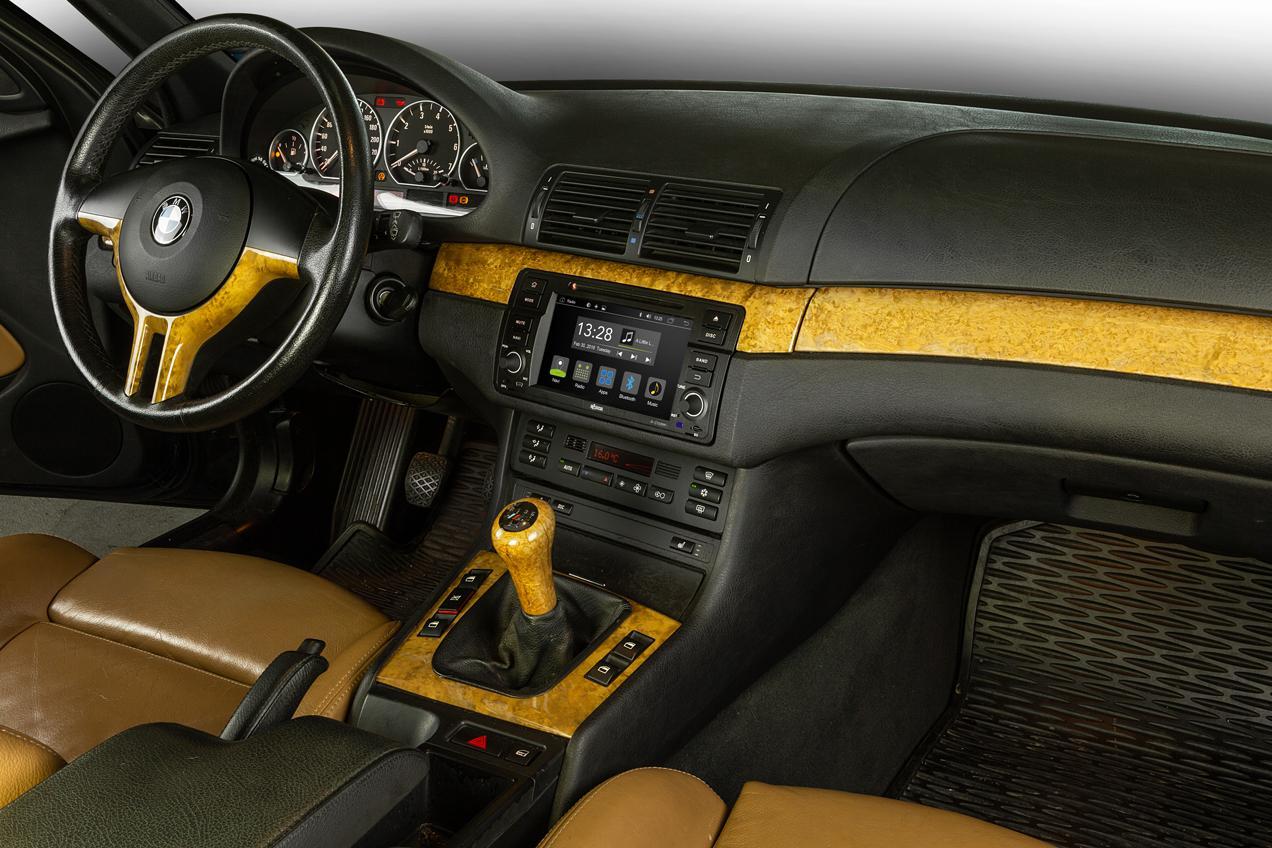

With its front, the R-C10BM1 integrates perfectly into the compatible BMW 3 Series models. Networked with the vehicle electronics via the CAN bus, comfort functions such as the multifunction steering wheel are supported. The R-C10BM1 convinces with its large capacitive, touch-sensitive 17.8 cm TFT screen, which can be operated completely intuitively.

Key Features

• Vehicle-specific infotainer for BMW 3 Series
• Allwinner T8 CPU with 2GB RAM and 32GB flash memory
• Navigation function with NDrive Karta upgradeable * 1

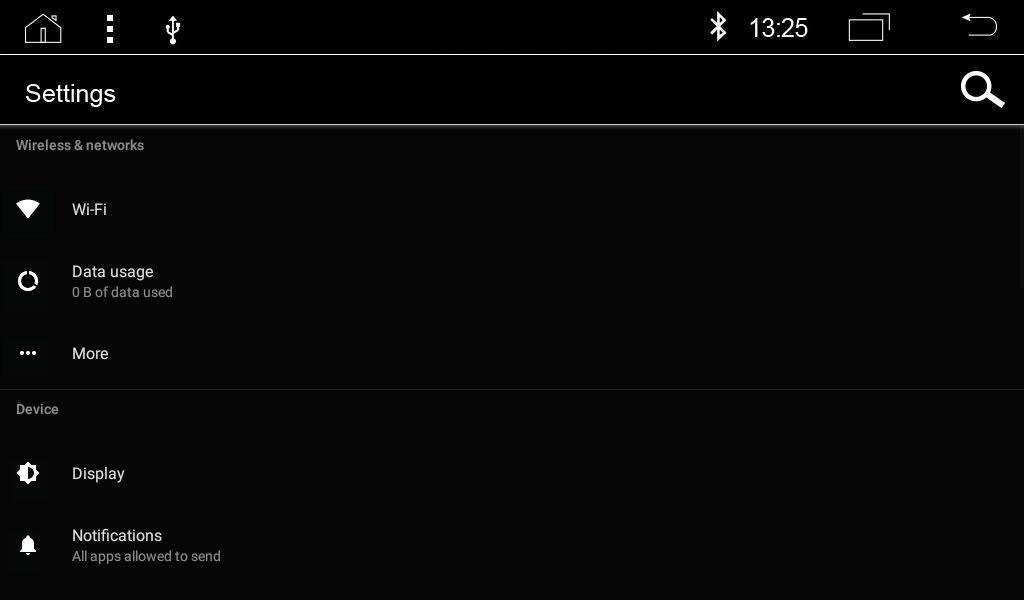

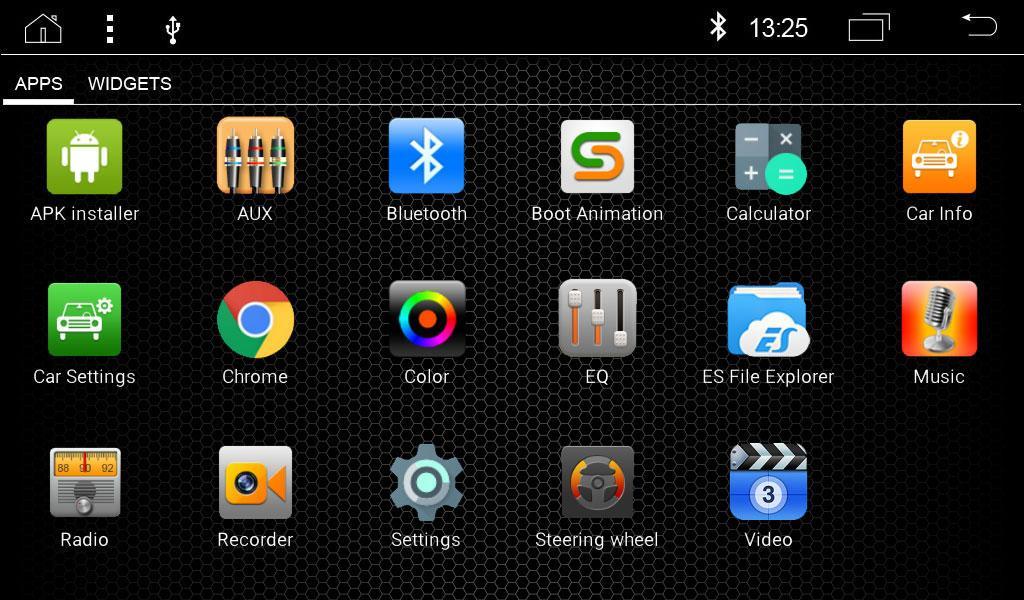

• Open Android 7.1 operating system. Offline installation of Android apps * 2
• Capacitive 17.8cm / 7in 16: 9 TFT touchscreen screen with 1024 x 600p resolution
• OSD menu in various EU languages ​​(German, English, Italian, French, Spanish etc.)
• DAB + tuner preparation - sold separately DAB + Module R-C10-DAB

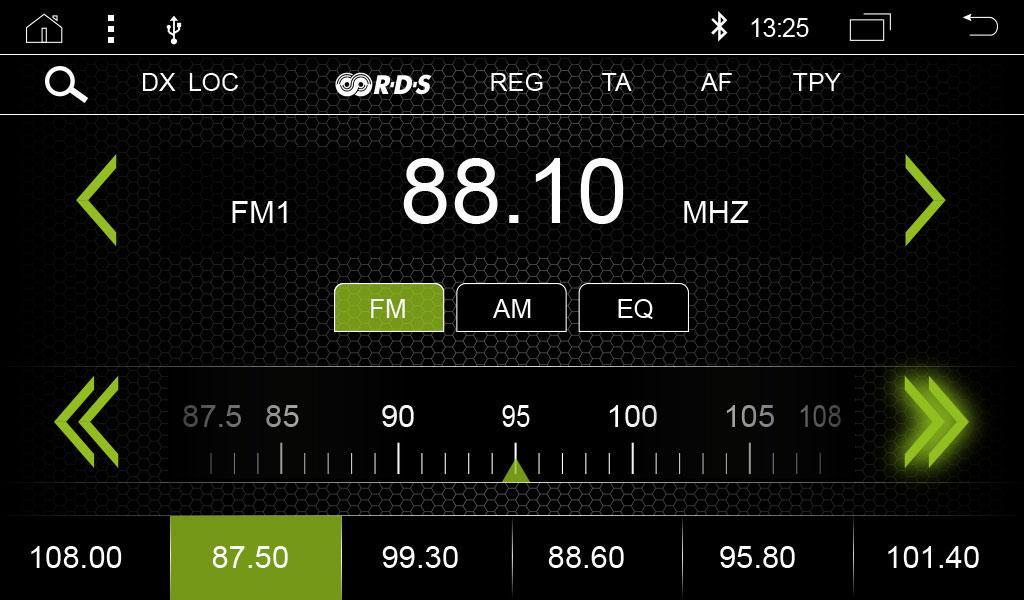

• FM RDS radio with 36 station presets (FM1 and FM2 bands with 18 station presets each)
• Bluetooth handsfree module with A2DP music streaming
• Connection and control of a reversing camera
• Connection to the multifunction steering wheel via CAN
• EasyConnect integration for Android and iOS smartphones
• Preparing to connect a DVR camera * 4
• RGB multicolor key illumination
• Integrated 4 x 45 Watt power amplifier
• Integrated Wifi module (WLAN IEEE 802.11 b / g / n)

* 1 The navigation bundle R-MAPC10 is not part of the scope of delivery
* 2 Google Playstore direct access is not supported for licensing reasons
* 3 The OBD2 dongle R-C10-OBD2 is not included in the scope of delivery of the device
* 4 interface for universal USB port based DVR cameras

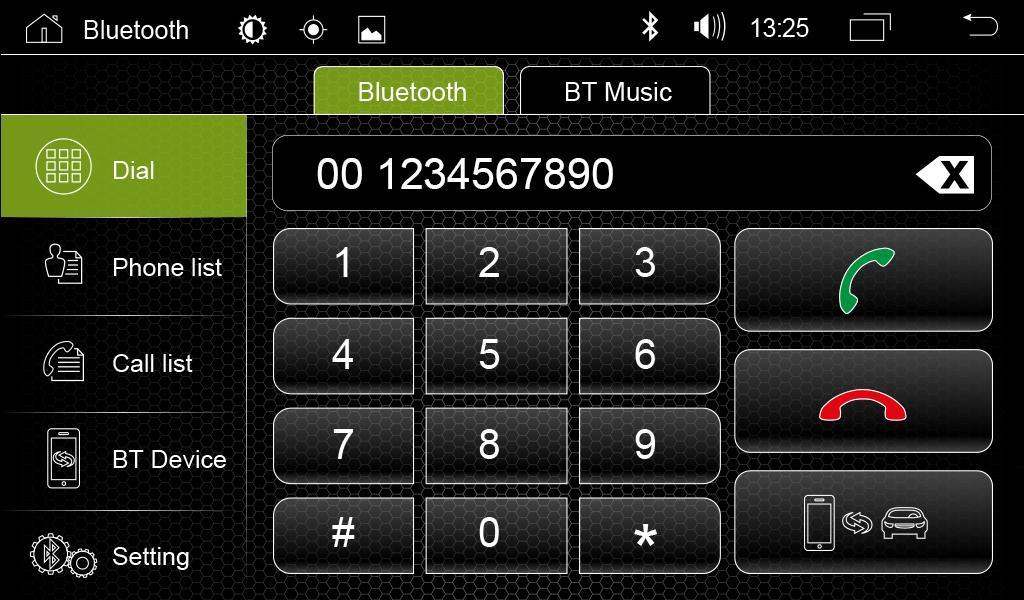

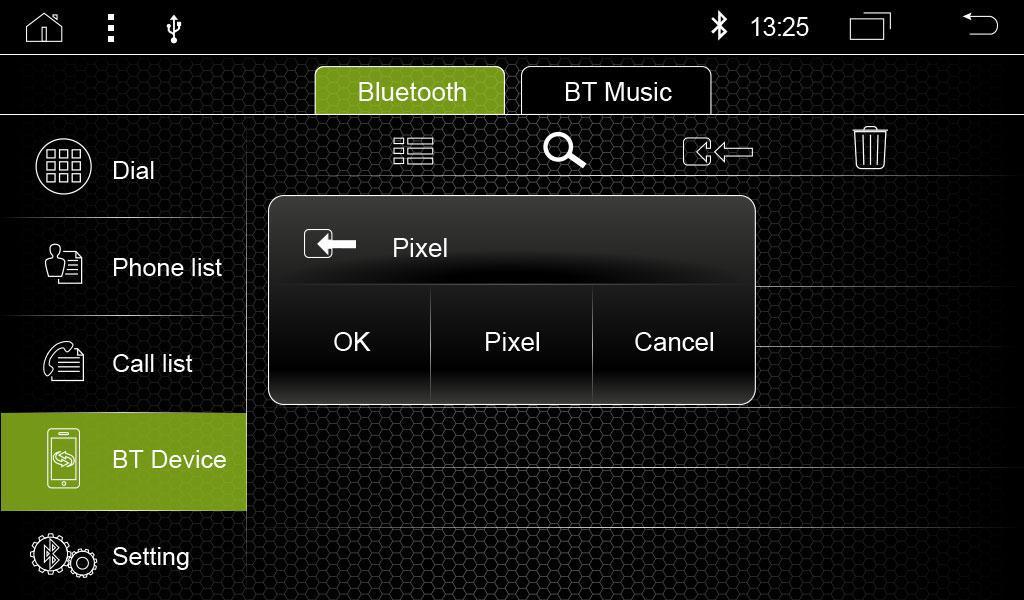

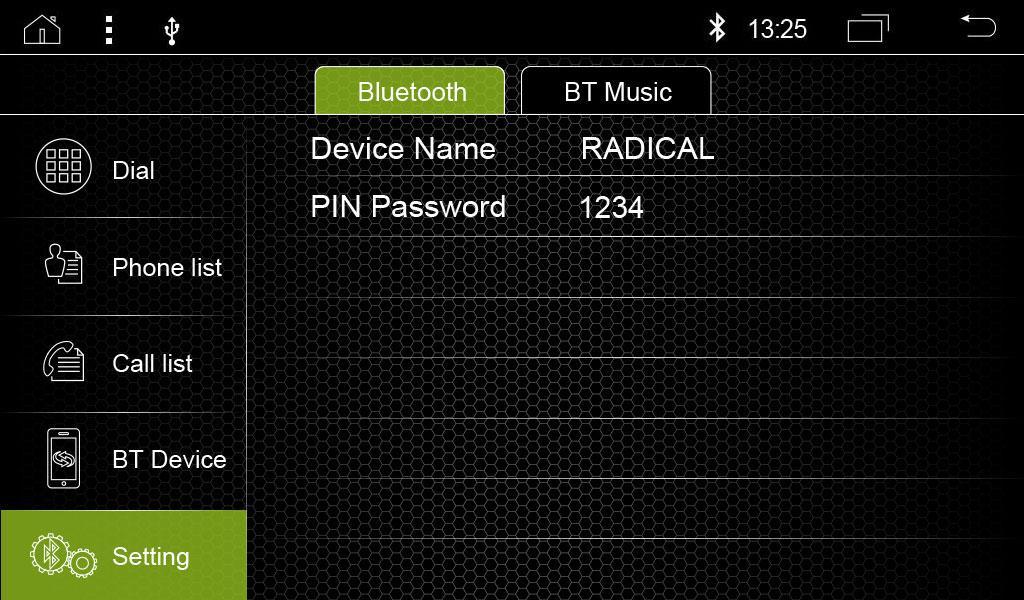

Bluetooth

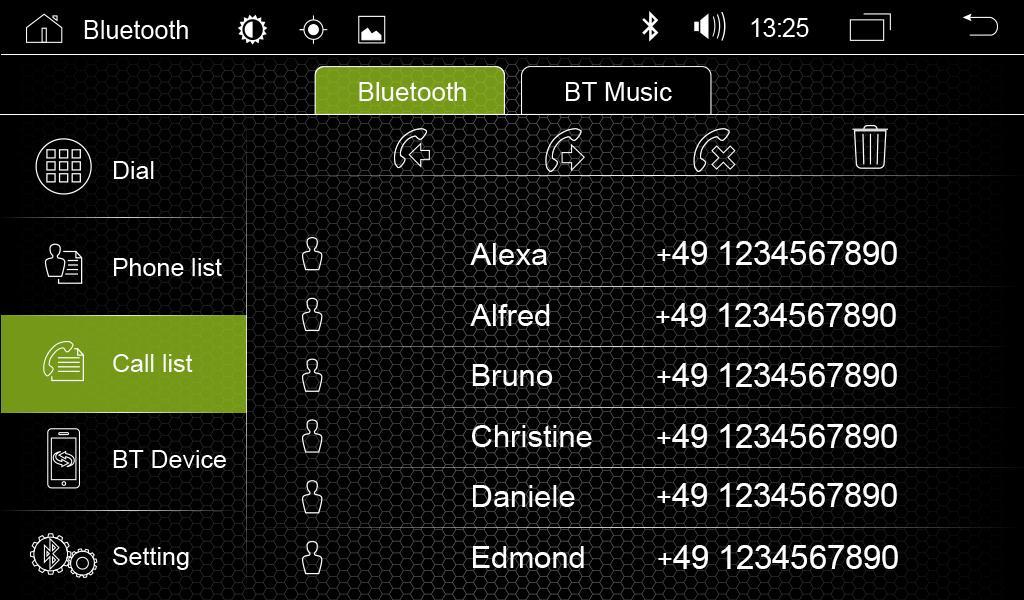

• iVT BC8 Bluetooth handsfree module
• Synchronization of 1000 telephone book contacts with 3 telephone numbers each
• Search function for phonebook contacts

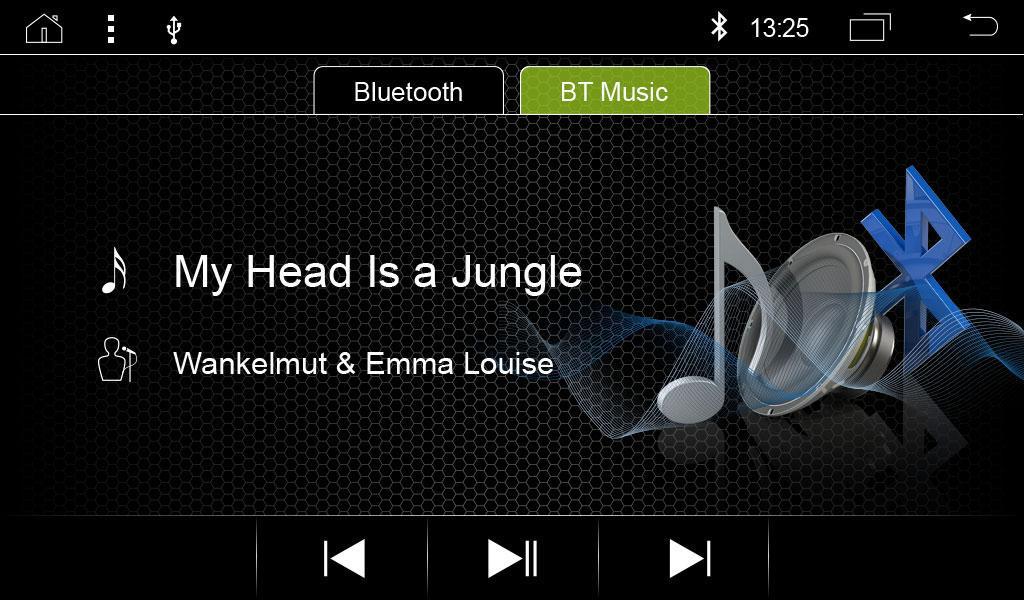

• A2DP BT-Music Streaming with display of iD3-Tag and AVRCP 1.3

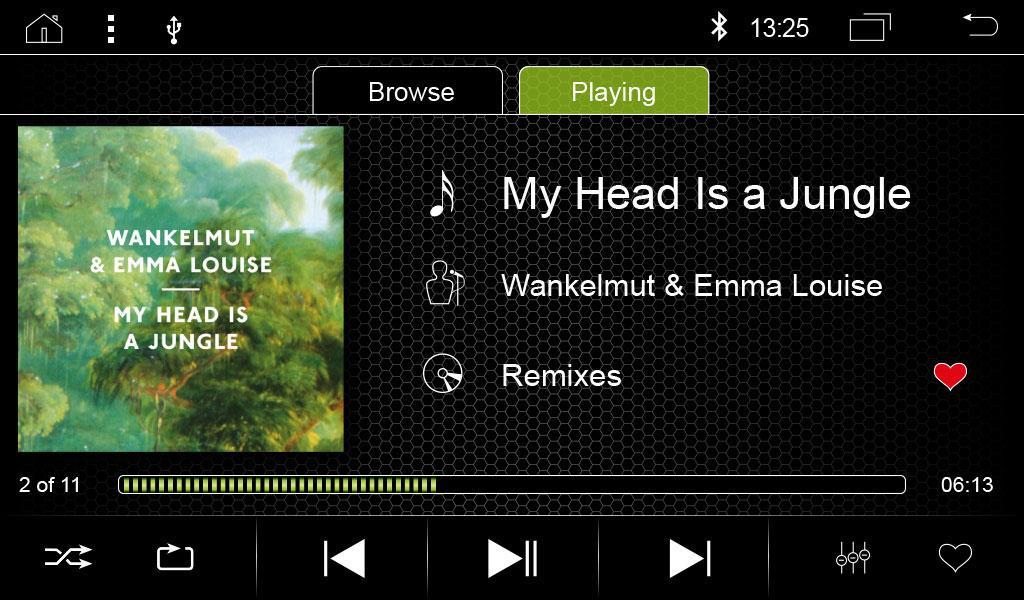

Multimedia + Audio

• DVD drive - compatible media / formats: CD, CD-R / RW, MP3, WMA, DVD, DVD ± R, DVD-MP3, AVI, Xvid

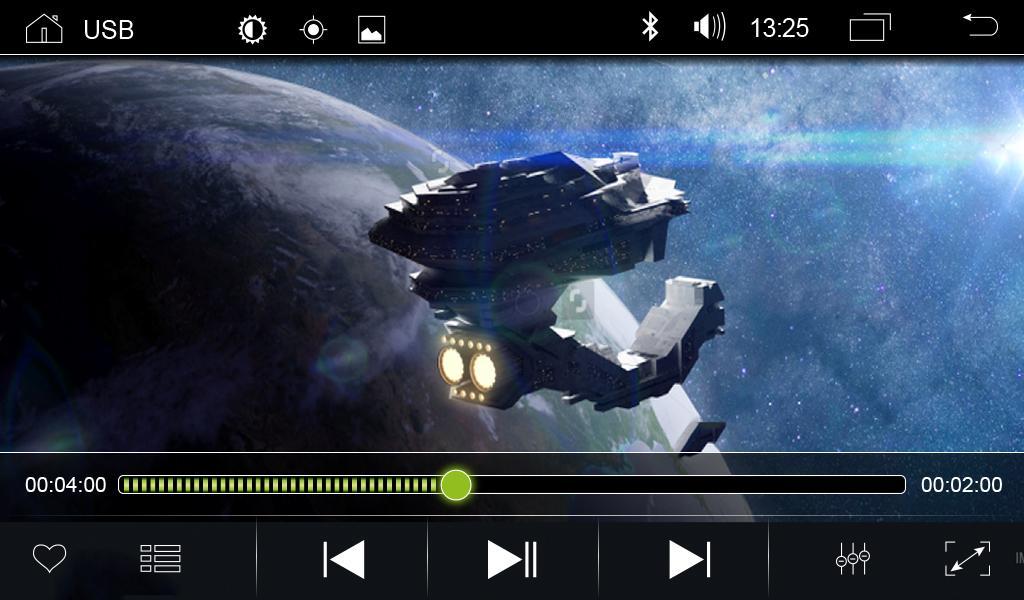

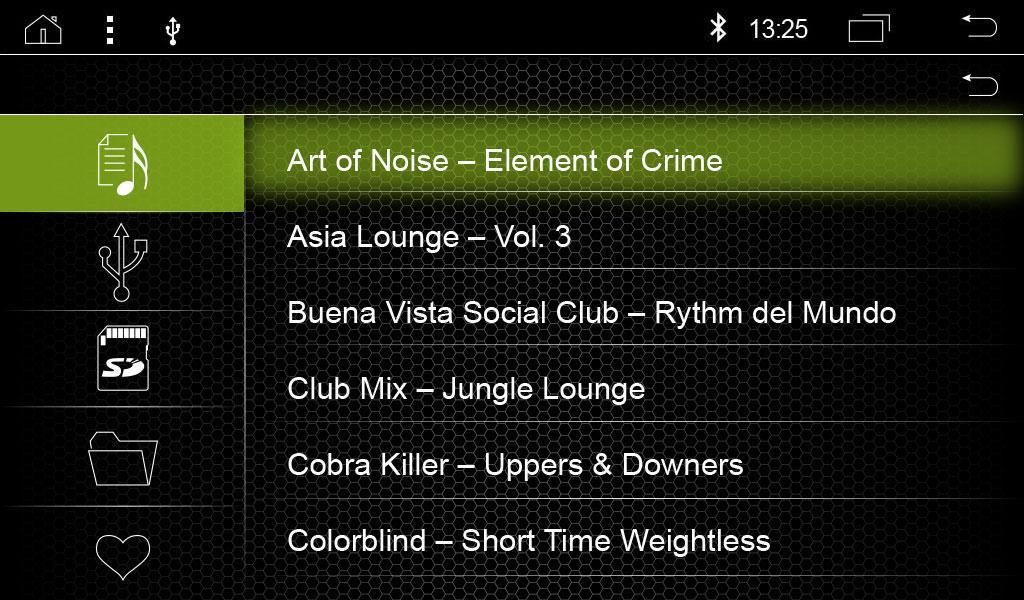

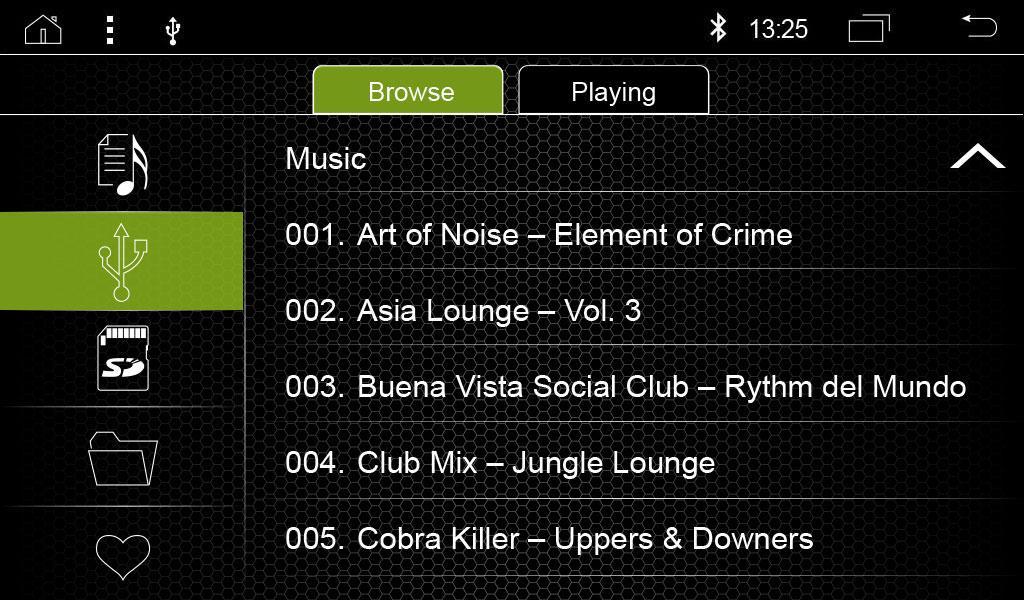

• 2x USB 2.0 port for playing A / V files and connecting Android smartphones
• A2DP BT music streaming with AVRCP 1.3

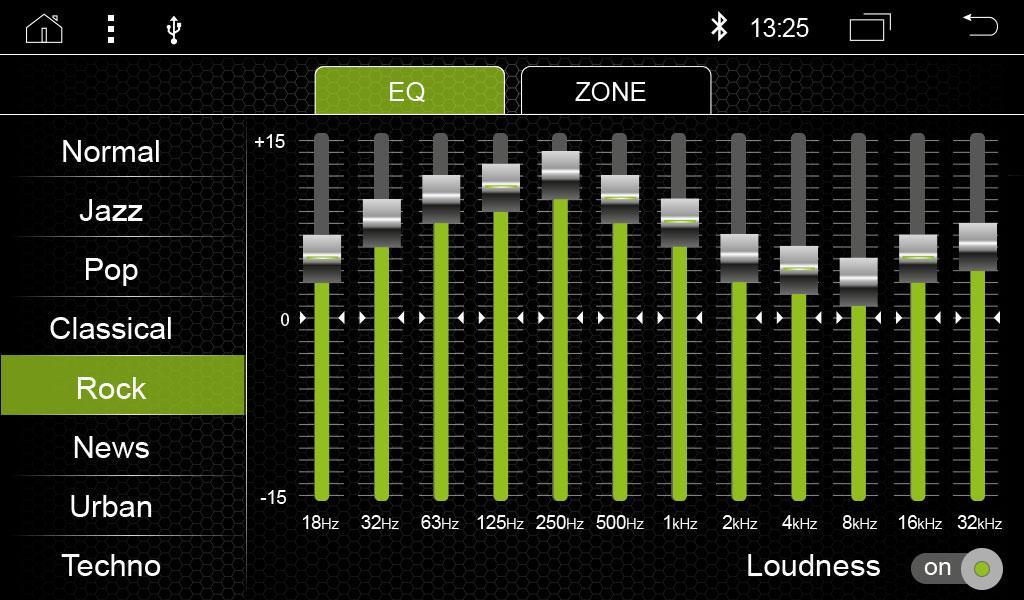

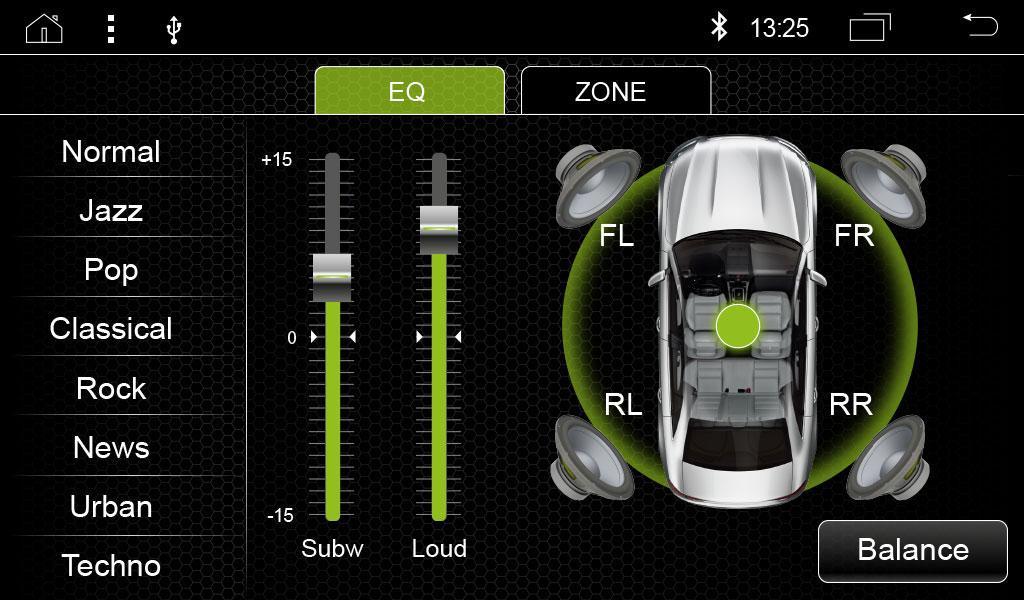

• 12-band graphic equalizer with 8 sound presets

vehicle integration

• Connection to the steering wheel remote control via CAN
• Connection to the multifunction display via CAN

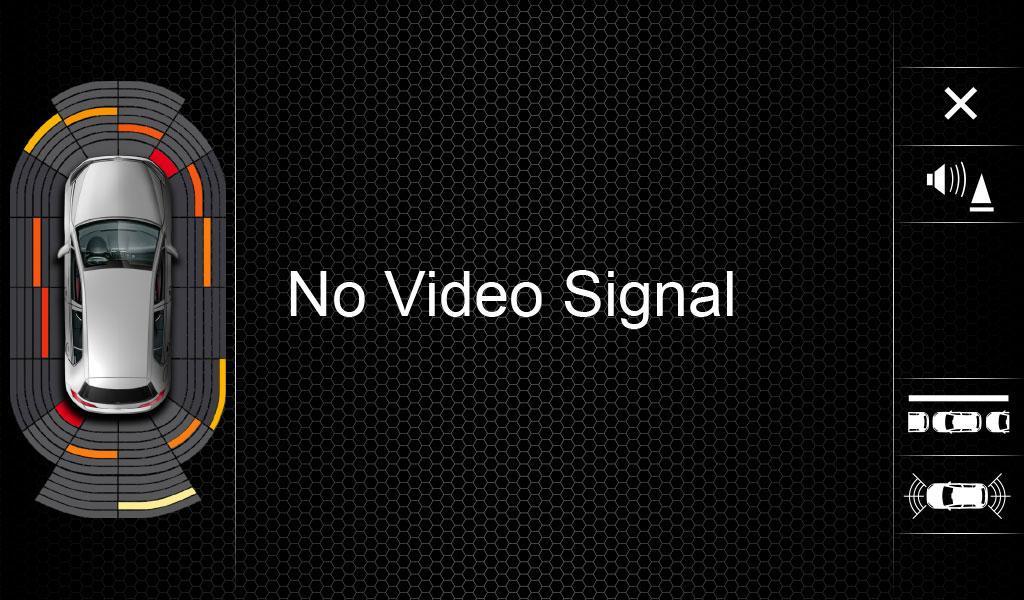

• Connection of the Optical Park System (OPS) via CAN

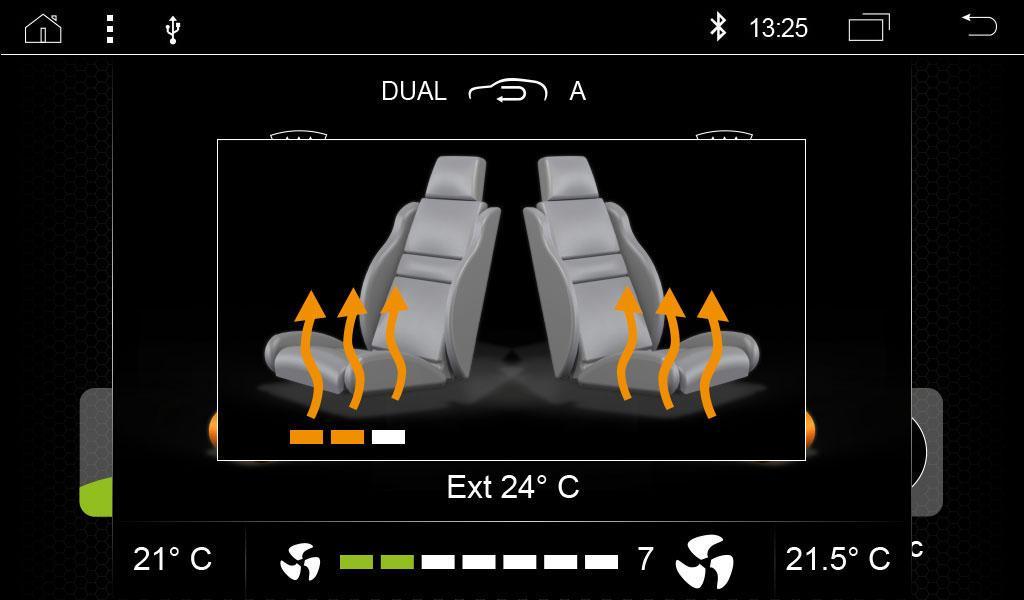

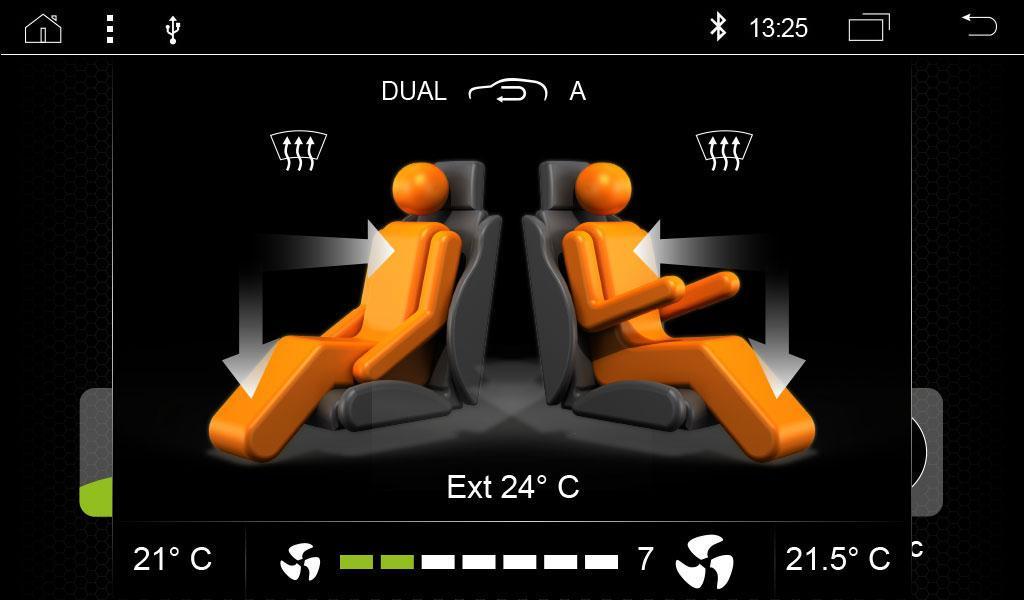

• Connection of automatic air conditioning Status display via CAN
• Active system integration

connections

• 4.2 RCA preamp outputs (2V)
• 1x RCA A / V input for audio and video signal (CVBS)

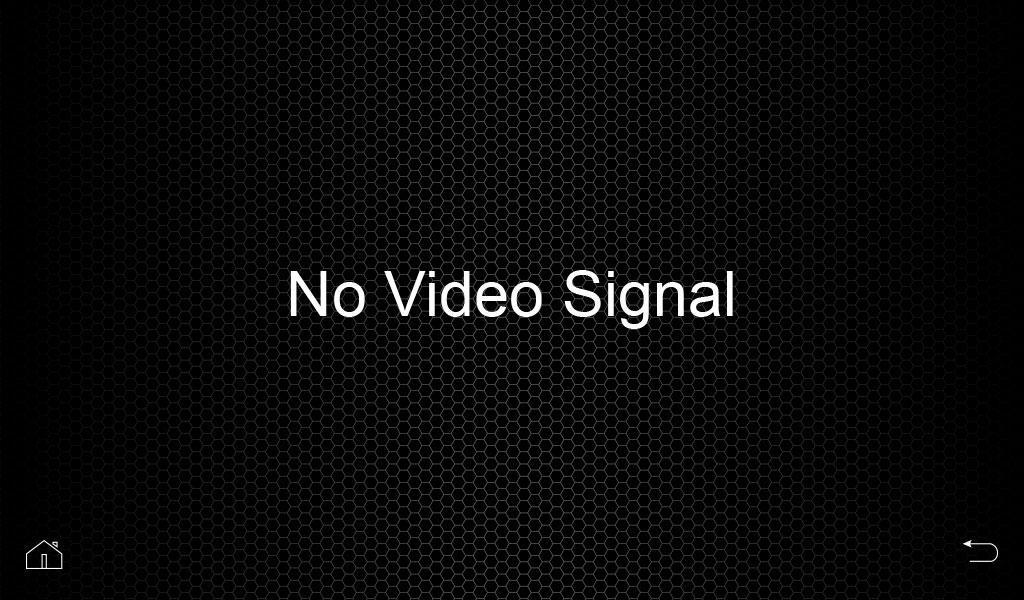

• 1x RCA input for reversing camera with automatic switching (CVBS)
• 2x USB 2.0 Port for Android Smartphones with 1A charging current

Accessories (optional)

• R-C10-DAB, DAB + Tuner Set with film antenna for windshield mounting
• R-MAPC10, GPS Navigation Software Package

Compatibility - Brand Model Type Year of construction:
BMW 3-series, sedan E46 / 4 1998> 2005
BMW 3-series, Coupé E46 / 2 1999> 2006
BMW 3-series, convertible E46 / 2C 1999> 2006
BMW 3-series, Touring E46 / 3 1999> 2005
BMW 3-series, M3 coupe E46 / 2S 2000> 2006
BMW 3-series, M3 convertible E46 / 2S 2001> 2006
