Alpine iLX-702S453B - 2DIN Navigation

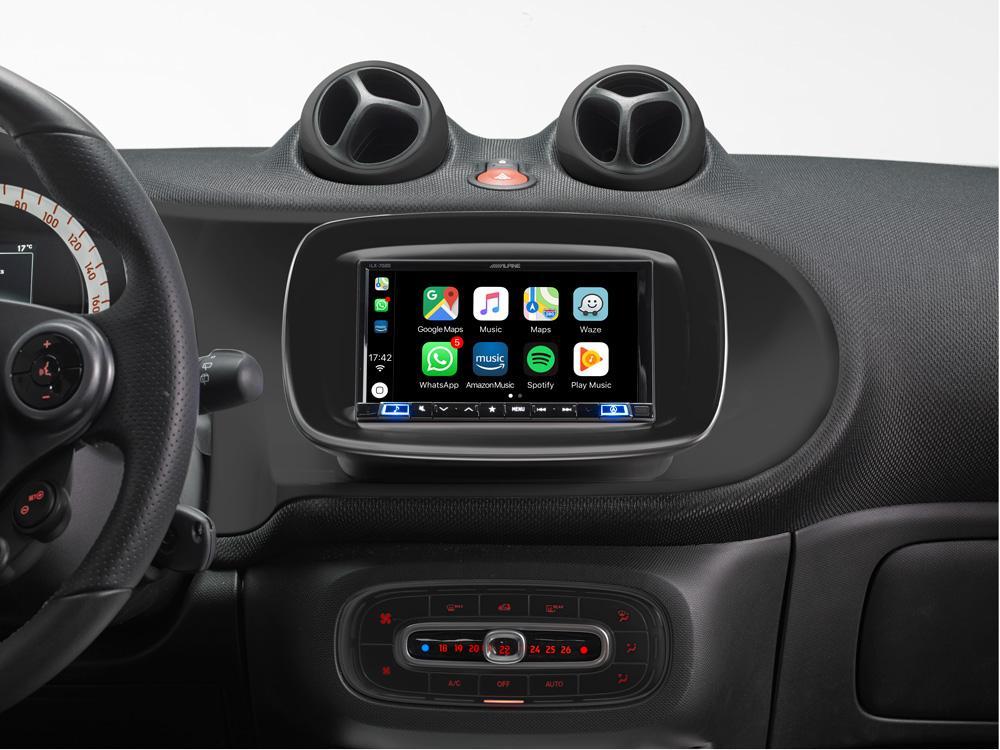

Smart Fortwo, Forfour (453) car radio with capacitive 7-inch display, Apple CarPlay and Android Auto
Alpine presents the second generation of Alpine Style Systems for the Seat Leon with Apple CarPlay and Android Auto compatibility. The iLX-702S453 brings DAB + digital radio, online navigation, USB audio and video playback, Bluetooth hands-free / audio streaming and more into your Smart 453 for you.

The 7-inch high-resolution, capacitive touchscreen fits perfectly into the cockpit environment in terms of shape and color. You get the best high-end sound quality and optimal sound tuning options with this fantastic system.

Perfect vehicle integration with premium components.
Performance without compromise!

Equipment Alpine ILX-702S453:
tuner

• Station memory:FM:24 / MW:6 / LW:6
• Station memory:Automatic station memory
• Search function:Manual / Local / DX selection
• RDS function:AF, TA, TP, PTY, PI, NEWS, RADIO TEXT

DAB + tuner

• Integrated DAB + tuner
• DAB + / DMB support
• SLS (Slideshow Service)
• DLS (Dynamic Label Service)
• DAB + to DAB + Service Following
• FM linking (automatic DAB + / FM switching (if signal available))
• Station memory:18 program memory slots
• Automatic ensemble / service storage
• Alphabetical station search function
• Service search function
• PTY search function
• Phantom power for DAB antenna selectable (on / off)

Bluetooth

• Integrated Bluetooth module
• Wide Band Speech Technology
• Handsfree: HFP (Hands Free Profile) compatible
• Music streaming: A2DP (Advanced Audio Distribution Profile) compatible
• Music Streaming Control:AVRCP (Audio / Video Remote Control Profile) Version 1.5 compatible
• Advanced Bluetooth technology
• Connection:SSP (Secure Simple Pairing) support
• Individual profile connection:handsfree and music streaming
• Phonebook: Automatic phonebook transfer
• Direct dial keys: 4 memory slots per telephone
• Registration of different phones:5 different phones can be registered
• Multiple numbers:up to 5 phone numbers per contact can be displayed
• Device name Display
• Automatic call acceptance
• Call list:dialed number / received calls / missed calls
• Redial function
• Voice volume setting:Adjustable for incoming and outgoing calls
• DTMF tone function
• Display of GSM signal strength
• Display of the battery charge state
• Menu Language selection:24 menu languages
• Firmware Updatbar

Made for iPod & iPhone

• Compatible with iPod / iPhone / iTouch:Made for iPod Touch 6th / 5th Gen, iPod nano 7th Gen, iPhone 6 and 6 Plus, iPhone SE, iPhone 5S, iPhone 5C, iPhone 5, iPhone 4s
• Connection:KCU-471i required (optional)
• Possible choices:Playlist, Artist, Album, Song, Podcast, Genre, Composer, Audiobook
• Alphabetical search
• Album cover ad
• Direct Up / Down:Playlist / Artist / Album / Genre / Composer
• M.I.X. (Shuffle) Play:Song, Album, All
• repeat
• charging

connectivity

• Works with Apple CarPlay (CarPlay enabled smartphone required)
• Works with Android Auto (Android Car enabled smartphone required)

USB port

• USB port on the back (2 m extension cable included)
• Music and video playback
• Formats:FLAC / MP3 / WMA / AAC / AVI / MP4 / MKV playback
• File / Folder name search
• Day info search
• Folder Up / Down
• M.I.X. Shuffle
• repeat

Sound tuning

• BASS ENGINE  Pro
• BASS ENGINE  SQ
• Subwoofer level adjustable
• Subwoofer phase selectable
• 4V preamp output
• Equalizer:Flat, Pop, Rock, News, Jazz, Electrical Dance, Hip Hop, Easy Listening, Country, Classical
• Dual HD EQ (9-Band Parametric Equalizer (Front / Rear Separated))
• 6-channel time correction
• Digital crossover
• Customizable sound settings by vehicle type
• MediaXpander HD
• Source volume customizable
• Download online sound settings
• Easy, step-by-step sound adjustment
• "Alpine TuneIt App" readout

General

• Output power:Max. Power 4x 50 W high power amplifier
• Integrated premium quality amplifier for excellent sound
• Display:18 cm (7-inch) capacitive WVGA High Resolution Display
• White LED backlight
• 50/50 split screen:left / right position changeable
• Touch screen with slide function / pull and scroll function
• Customizable favorites screen
• 2 user profiles can be created
• High quality audiophile design
• Preamp:3 PreOuts (4V, Front / Rear / Subwoofer)
• AUX-In:1x A / V input (3.5 mm jack connection)
• Suitable for steering wheel remote control
• Preparation for infrared remote control
• Navigation Mix Announcement
• Direct camera connection & built-in multi-view camera control
• Reversing camera with instant start function (immediate display of reversing camera at system start)
• Simple Mode & Info Mode Display
• Visual EQ
• Live contrast adjustment
• Menu language:24 languages ​​(for AV & Bluetooth), 29 languages ​​(navigation menu and voice prompts)
• time of day
• Automatic dimmer
• Anti-theft device with numeric code
• Firmware updatebar

Remote turn-on

• HDMI input and output (special Alpine HDMI connection cable required)
• HDMI extension box KCX-630HD Ready
• Start-Stop Ready
• CAN-BUS connection port (for UART - for SWRC, sub-display & comfort display)
• Compatible with optional DVD player:DVE-5300

installation

• Kit with frame
• CAN bus interface with support of the steering wheel remote control
• Antenna adapter included

specifications
screen

• Screen size:18 cm (7-inch) capacitive WVGA display
• LCD Type:Transparent Type TN LCD
• Workstation:TFT Active Matrix
• Number of pixels:1,152,000 pixels (800 x 3 x 480)
• Lighting system:White LED backlight
• Effective number of pixels:99.99% or more
• Color system:NTSC, PAL

Maximum output power

• Max. Power 4 x 50 W

FM tuner

• Frequency range:87.5 - 108.0 MHz
• Mono usage sensitivity:8.1 dBf (0.7 μV / 75 ohms)
• 50 dB sensitivity:12 dBf (1.1 μV / 75 ohms)
• Alternative channel selectivity:80 dB
• Signal-to-noise ratio (S / N):65 dB
• Stereo channel separation:35 dB
• Simultaneous wave fluctuation:2 dB

MW tuner

• Frequency range:531 - 1.602 kHz
• Sensitivity (IEC standard):25.1 μV / 28 dBf

LW Tuner

• Frequency range:153 - 281 kHz
• Sensitivity (IEC standard):31.6 μV / 30 dBf

USB

• USB requirements:USB 2.0
• Max. Current consumption:1,500 mA (CDP support)
• USB class:playback from device / mass storage
• File system:FAT 16/32
• MP3 decoding:MPEG-1/2 AUDIO Layer-3
• WMA decoding:Windows Media audio
• AAC decoding:ACC-LC format '' .m4a '' file
• Flac-decoding:Free Lossless Audio Codec flac / fla
• H.264 decoding:AVI / MP4 / MKV file with H.264 video codec and MP3 / AAC audio codec
• Number of channels:2-channel (stereo)
• Frequency response:5 - 20 kHz ± 1 dB * Depending on the encoding software and bit rate
• Total Harmonic Distortion - T.H.D. (at 1 kHz):0.008%
• Dynamic range (at 1 kHz):95 dB
• Signal-to-noise ratio:100 dB
• Channel separation (at 1 kHz):85 dB

GPS / Glonass

• GPS / Glonass compatible antenna included
• GPS reception frequency 1,575.42 ± 1 MHz
• GPS reception sensitivity -130 dB max.

Bluetooth

• Bluetooth version:Bluetooth V2.1 + EDR
• Output power:+4 dBm max. (Performance class 2)
• HFP (Hands Free Profile)
• OPP (Object Push Profile)
• PBAP (Phone Book Access Profile)
• A2DP:(Advanced Audio Distribution Profile)
• AVRCP:(Audio / Video Remote Control Profile)
• SPP (Serial Port Profile)

Sound tuning

• Subwoofer level adjustable:0 to +15
• Subwoofer phase:0 ° or 180 °
• BASS ENGINE SQ:5 modes, level 0 to +6
• High pass filter (frequency):20/25 / 31.5 / 40/50/63/80/100/125/160/200 Hz
• High Pass Filter (Slope):Off / -6 / -12 / -18 / -24 dB / Oct.
• High pass filter (gain):-12 to 0 dB
• Low Pass Filter (Frequency):20/25 / 31.5 / 40/50/63/80/100/125/160/200 Hz
• Low Pass Filter (Slope):Off / -6 / -12 / -18 / -24 dB / Oct.
• Low pass filter (gain):-12 to 0 dB
• Time Correction:0.0 to 336.6 cm (3.4 cm increments) or 0.0 - 9.9 ms (0.1 ms increments)
• Dual HD EQ - 9 Band Parametric Equalizer for Front + Rear
• Parametric equalizer (Band 1):20 - 100 Hz
• Parametric equalizer (Band 2):63 - 315 Hz
• Parametric equalizer (Band 3):125 - 500 Hz
• Parametric Equalizer (Band 4):250 - 1k Hz
• Parametric equalizer (Band 5):500 - 2k Hz
• Parametric Equalizer (Band 6):1k - 4k Hz
• Parametric Equalizer (Band 7):2k - 7.2k Hz
• Parametric equalizer (Band 8):5.8k - 12k Hz
• Parametric equalizer (Band 9):9k - 20k Hz
• Parametric equalizer (gain):± 14
• Parametric equalizer (bandwidth):1, 2, 3
• Source volume:± 14

HDMI

• Input format 720p / 480p / 480i / VGA
• Output format 480p

General

• Power supply:14.4 V.DC (11-16 V permitted)
• Pre-amp output (without clipping):4 V / 10 kOhm
• Maximum installation angle:30 ° to the horizontal

Compatible vehicles

• Manufacturer:Smart
• Model:Fortwo / Forfour (453)
