Zenec Z-N966 - 2-DIN DAB+ Infotainer

The Z-N966 from the ZENEC PRIME series is a top-equipped Dab + infotainer for vehicles with a 2-DIN device slot. The capacitive, touch sensitive
22.9 cm / 9 “tFt screen with glass surface ensures with its HD image display (1280 x 720 pixels) for crisp, sharp
fine and brilliant images.
The Z-N966 enables simple and particularly safe smartphone use in the car. You can directly connect your mobile phone via the USB (1) port
dock with the Infotainer - the Z-N966 is apple Carplay and google android autotm certified. Telephoning, navigating, receiving messages /
Send or listen to music - you can easily control all supported functions using Apple Siri, the Google voice assistant or the touchscreen
of the ZENEC Infotainer.
The Z-N966 has a Dab + twin tuner, which offers you the complete range of programs of the digital transmission standard, including
Various convenience functions, such as dynamic station list, MOT slideshow, DLS text and DAB <> FM / DAB <> DAB Service-Following. The modern
bluetooth 4.1 module offers convenient hands-free functions with optimized operation and the highest quality.
The Z-N966 controls up to three reversing cameras and also impresses with its sophisticated audio functions. It has a DSp
Chip with 5-channel runtime correction for individual adjustment of the channels for the optimization of the spatial image on the driver or
Passenger seat - the respective delay can be entered in centimeters or milliseconds. With the graphic 10-band equalizer
you can manually adjust the sound optimally to the characteristics of your vehicle or your personal preferences. An active switch with
High and low pass filters round off the audio features.
The Z-N966 supports the playback of the latest audio and video formats from USB data carriers via USB 2.0 port. The USB (1) port also charges
Batteries from connected Android and Apple smartphones with up to 1000 mA charging current.
The Z-N966 can transmit audio signals to external Bluetooth speakers via a2Dp - so you can also enjoy music outside the vehicle.

technical features

main features

• 9 “HD display infotainer, upgradeable with navigation function * 1
• Touch-sensitive, capacitive 9 “/ 22.9 cm LCD-TFT HD screen
(1280 x 720 pixels) with glass surface
• OSD menu in 15 different EU languages
• DAB + twin tuner with dynamic station list, DAB <> FM and DAB <> DAB service following, MOT slideshow and DLS text
• FM RDS radio with 18 station presets
• Google Android AutoTM

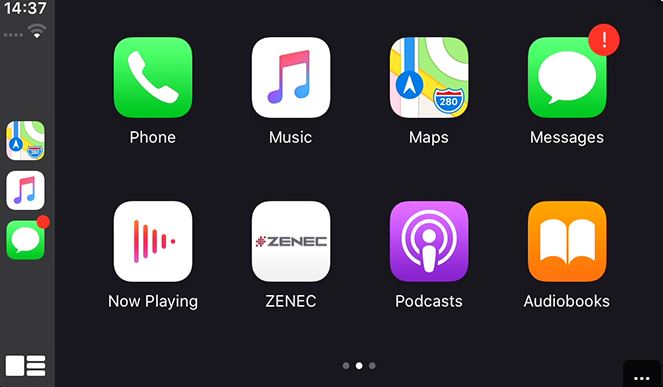

• Apple CarPlay
• Bluetooth 4.1 hands-free module with A2DP music streaming
• Control of up to three camera systems with automatic switchover function, adaptable auxiliary lines
• SP-REM remote control app for controlling audio functions with a smartphone (iOS / Android)
• RGB multicolor key lighting (default amber)
• 2 x IR remote control including Maxi-Remote
• 4 x 50 W power amplifier

Bluetooth

• Bluetooth 4.1 module with hands-free function

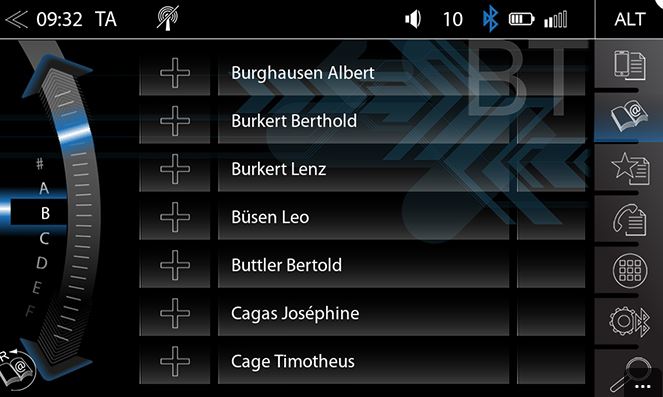

• Import of 1000 phone book contacts with 3 phone numbers each
• Resident phone book with instant access to synchronized contacts
• Quick dial function for favorite contacts
• Phone book contact search function by keyboard input by first and last name
• Source mode for wireless music streaming to external Bluetooth speakers and headphones
• iD3-Tag display in A2DP mode (artist, title, album)
• Internal Bluetooth microphone, additional input for external microphone *

Multimedia and audio

DAB + receiver with twin tuner
• FM RDS radio with 18 station presets and DSP noise reduction

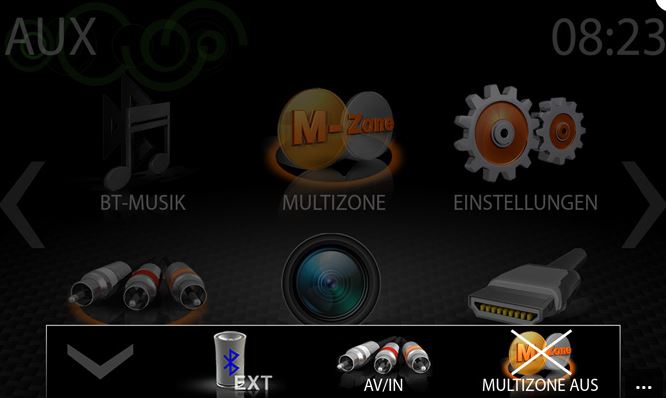

• Multi-zone function USB (1) 2.0 port on the back of the device for CarPlay and Android AutoTM

• USB (2) 2.0 port on the back of the device for A / V file playback * 3 from USB data carrier
• 5-CH runtime correction with audio DSP (0 - 10 mS delay)
• 10-band graphic equalizer with 7 predefined EQ presets
• Made for iPod / iPhone

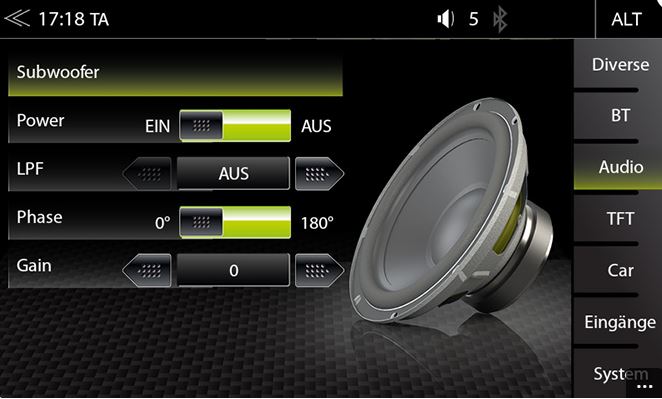

• High and low pass filters for front / rear / sub with 12 dB / oct. Slope
• HDMI input for accessories and compatible mobile devices
• 24 bit D / A converter

connections

• 4.2 RCA preamp output (3 V)
• 3 x cinch input for camera video signals (CVBS) with switched
Power supply and microphone input (Cam1)
• 1 x DIN FM antenna input
• 1 x SMB DAB antenna input with 12 V phantom power supply
• 1 x USB (1) 2.0 port with up to ~ 1000 mA charging current for Apple iOS
and Android devices
• 1 x USB (2) 2.0 port for A / V file playback (~ 1000 mA battery
Charging current)
• 1 x RCA A / V input for 2-CH audio and video signal (CVBS)
• 1 x Cinch A / V M-Zone output for 2-CH audio and video signal
(CVBS)
• 1 x input for external Bluetooth microphone
• 1 x input for connecting the teachable steering wheel button interface
• 1 x IR-In input for external CAN / SWC interface
• 1 x HDMI input
