Rockford Fosgate - PMX-HD9813 - Digital Media Receiver Harley Davidson

PMX-HD9813

Digital Media Receiver for 1998-2013 Harley-Davidson

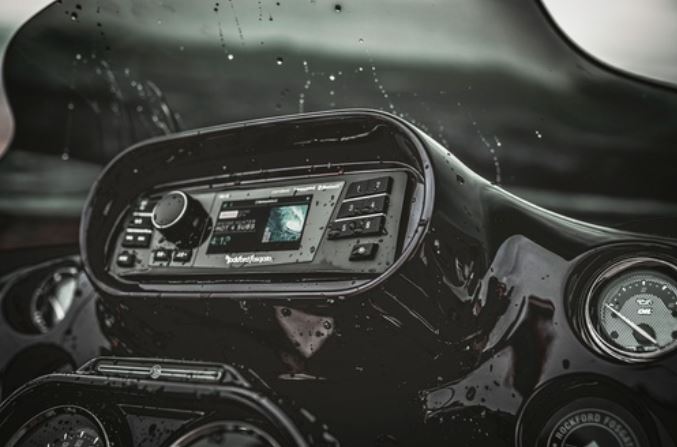

Direct replacement for digital media receivers for selected Harley-Davidson motorcycles from 1998 to 2013. Features a 3-inch full-color display with day and night as well as oversized buttons for easy control. Designed for ultimate performance and sound quality with 4 volt preamp outputs that won't be cut off! The plug-and-play installation with the OEM electrical system does not require any additional cabling or cutting off existing wiring harnesses or components. Retains the factory thumb controls.

Factory-installed wiring harnesses and connectors are required for plug-and-play installation to maintain functionality. Systems that require rear speaker outputs require an additional wire harness (sold separately).

PMX source unit not compatible with factory amplified systems, CB, Intercom, rear volume controls, rear speakers from 1998 thru 2005 Ultra, and factory-equipped satellite radio systems.

• 1998-2013 Harley-Davidson direct replacement media receiver
• A2DP and AVRCP Bluetooth wireless streaming
• Pandora Internet Radio Control
• SiriusXM Ready (requires SiriusXM SXV300 tuner)
• Digital AM / FM tuner
• USB input with 1.5 A USB charging
• AUX input
• 3 "full color TFT display with day / night mode
• Maintains the audio control of the factory handlebar
• Voltage display with low voltage warning
• 7-band graphic EQ + PEQ

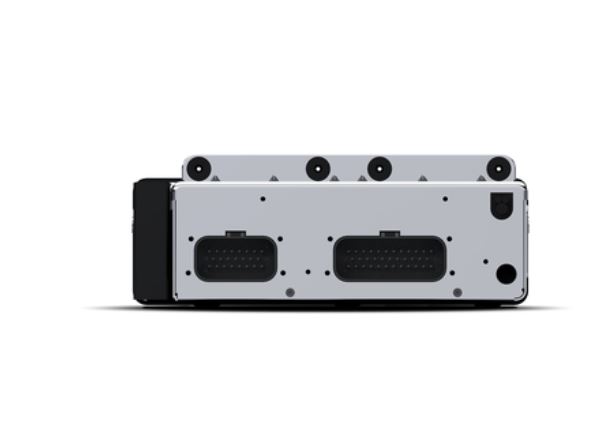

• Plug-and-play installation with electrical OEM connections
• Independent subwoofer volume control
• Compatible with PMX-BTUR remote control
• Radio frequencies for multiple regions
• Selectable HP / LP / AP crossover with selectable 12/24-dB / octave slope
• Software upgradeable via USB
• * Antenna not included

Compatibility:

• 2006-2013 Harley Davidson Street Glide *
• 1998-2013 Harley Davidson Road Glide *
• 1998-2013 Harley Davidson Electra Glide *

* Not compatible with factory amplified systems, CB, Intercom, rear volume controls, rear speakers from 1998 thru 2005 Ultra, and factory-equipped satellite radio systems.

Output power

• CEA-2006 rated power
• 25 W x 4 at 4 ohms RMS
• 50 W x 4 at 2 ohms MAX
• ≤ 1.0% THD + N.

Operating voltage

• 9.5 - 16 VDC

Idle current

• <2 amps

Output impedance

• <500 ohms

Frequency response

• Cinch: 20 Hz - 20 kHz
• High level: 20Hz - 20 kHz

THD + N4 ohms

• <1.0%

RCA output voltage

• Front: 4 V max
• Rear: 4 V max
• Sub: 4 V max

Channel separation

• Cinch:> 50 dB
• High level:> 50 dB

Signal-to-noise ratio

• Cinch 2V:> 85 dB
• High level (CEA-2006):> 75 dB
• Max Wrms:> 80 dB

AM tuner

• Range: 530 - 1710 kHz
• Sensitivity: 40 dB
• Frequency response: 45 to 2.4 kHz

FM tuner

• Range: 87.9 - 107.9 MHz
• Sensitivity: 8 dB
• Frequency response: 20 - 15 kHz

Bluetooth

• 3.0 + EDR
• A2DP 1.3

Supported media formats

• MP3
• WMA
• AAC
• DRM

USB version

• 2.0

USB output current

• 1.5A

USB capacity

• 32 GB max
• 255 folders max
• 999 songs max
• Format Win USB as FAT32
• Format Mac USB as MS-DOS (FAT)

Clock

• Yes

Screen size

• Nominal size: 3 "color TFT
• Resolution: 960 x 240
• Brightness: 380 nits
• Contrast: 400
• Pixels: 320 x 240
• Viewing angle: 120

Made for iPhone models

• iPhone XS max, iPhone XR, iPhone 8 Plus, iPhone 7 Plus, iPhone SE, iPhone 6s, iPhone 6, iPhone 5c, iPhone XS, iPhone X.
• iPhone 8, iPhone 7, iPhone 6s Plus, iPhone 6 Plus, iPhone 5s, iPhone 5

Made for iPod models

• iPod touch (5th generation), iPod touch (6th generation)

Delivery weight

• 2.15 kg

Dimensions (HxWxD)

• Front plate: 68.4 mm x 213 mm x 17.1 mm
• Chassis: 63.5mm x 209.3mm x 191mm
