JVC KD-X561DBT - 1-DIN DAB+ Autoradio

Digital media receiver in 1DIN format

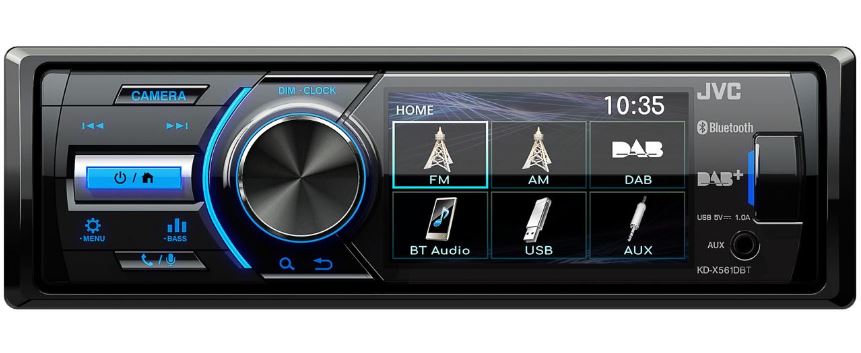

The KD-X561DBT combines a DAB + car radio in 1-DIN format with a 3-inch TFT color display. It takes up about half of the radio front and shows an overview of all audio sources, station lists and music titles as well as various setting menus. In addition to videos, the image from a reversing camera can also be displayed.

Furnishing

• Digital radio receiver for DAB + including automatic switchover between DAB and FM
• 3 inch QVGA TFT color display (7.6 cm screen diagonal)

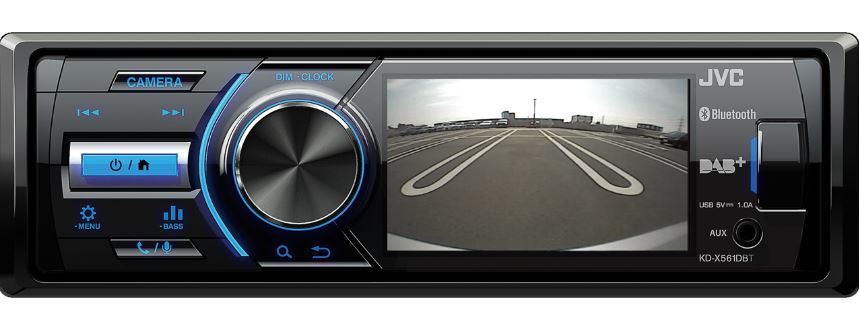

• Rear view camera input (cinch)
• Bluetooth hands-free function (HFP) & audio streaming (A2DP) including extended control & search functions (AVRCP 1.5)
• iPod / iPhone music playback
• Front USB input for storage with audio & video files
• Playable file formats: MP3 / WMA / m4a, AAC / WAV / FLAC / Ogg / JPEG, PNG, BMP
• Playable video formats (via USB): MPEG 1/2/4, H264, MKV
• Sound DSP with 13-band equalizer and time correction
• 9-Preset EQ (8 preset and one freely selectable sound modes)
• Housing with smaller installation depth (only 111 mm in total)
• 3 pre-amp outputs (2.0V) front, rear, subwoofer
• Front AUX input (3.5mm mini jack)
• Adapter for original steering wheel remote control optionally available
• 3-stage switchable dimmer for color display and key illumination
• Bluetooth hands-free function (HFP) & audio streaming (A2DP) including extended control and search functions (AVRCP 1.5)

Technical specifications

monitor

• Screen size 3 '' (7.6cm) QVGA 16: 9 format
• Key illumination blue
• Multilingual display

Supported media formats

• MP3 compatible with tag display
• WMA compatible with tag
• WAV playback with tag display (up to 96kHz / 24bit)
• AAC playback with tag display
• FLAC playback with tag display (up to 96kHz / 24bit)
• H.264 compatible
• MPEG-1/2 compatible
• MPEG 4 compatible
• AVI / MKV compatible
• Display JPEG image files
• Display PNG image files
• Display BMP image files

Bluetooth control

• Integrated Bluetooth (version 4.2; cable microphone included)
• Speakerphone (HFP1.5 Wideband Speech)
• Profiles for audio streaming & control (A2DP, AVRCP)
• Access to mobile phone directory (PBAP)

Android controls

• Android control • (via Bluetooth (R))

iPod / iPhone control

• iPod / iPhone music playback • (via USB or Bluetooth)

USB

• MP3 / WMA compatible with ID3 / WMA tag display
• WAV playback with tag display
• FLAC playback with tag display
• AVI / MKV compatible
• JPEG / MPEG-1 / -2 compatible
• MPEG-4 Compatible
• USB port x 1 (high speed)
• Position front
• Power supply via USB port (A1)

tuner

• Radio data system
• 30 station presets (including 15 FM and 15 MW)
• DAB integrated
• Frequency response band III: 174.928MHz to 239.200MHz
• FM frequency response 87.5-108.0 MHz
• AM frequency response (MW) 531 - 1.611kHz, (LW) 153 - 279kHz

Audio

• Maximum output power (front & rear) 45W x 4
• Nominal power with broadband measurement (front & rear) 16W x 4
• EQ • (13-band graphic equalizer)
• Equalizer (EQ) presets • (9 memory locations)
• High-pass filter / low-pass filter Yes, 2 x 6.35 mm input on the rear, adjustable
• Bass boost function

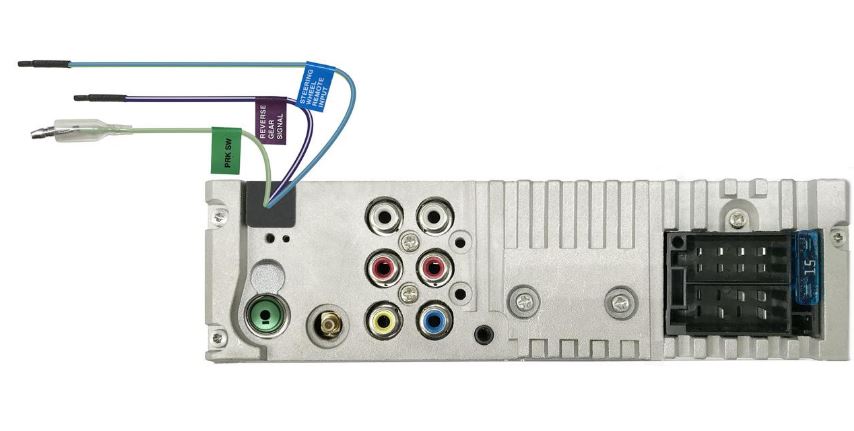

Entrances and exits

• Preamplifier output (Pre-Out) level / impedance 2.0 volts / 10 K ohms
• Front AUX input
• Rear view camera input
• Pre-amp outputs 3 pairs (front + rear + subwoofer)

General

• Short body
• IR remote control prepared (Requires RM-RK258)
• Connection for steering wheel remote control Yes
• ISO connector Yes

Dimensions (W x H x D)

• Installation dimensions 182 x 52 x 117 (mm)
• Weight including individual packaging 1.18 kg
• Weight 750 g including installation frame
