RETROSOUND RSD-GRANDPRIX-1DAB - DAB+ Complete Set "Grand Prix" with Accessories

RETROSOUND "MOTOR-1DAB" DAB+ complete set in "Grand Prix" design with lots of accessories

The "Model MOTOR-1DAB" is the entry-level model in "Grand Prix" design with DAB+ digital radio from RetroSound.

EQUIPMENT

• DAB+ digital radio
• FM radio with RDS capabilities
• AUX input (3.5mm) on the back of the device

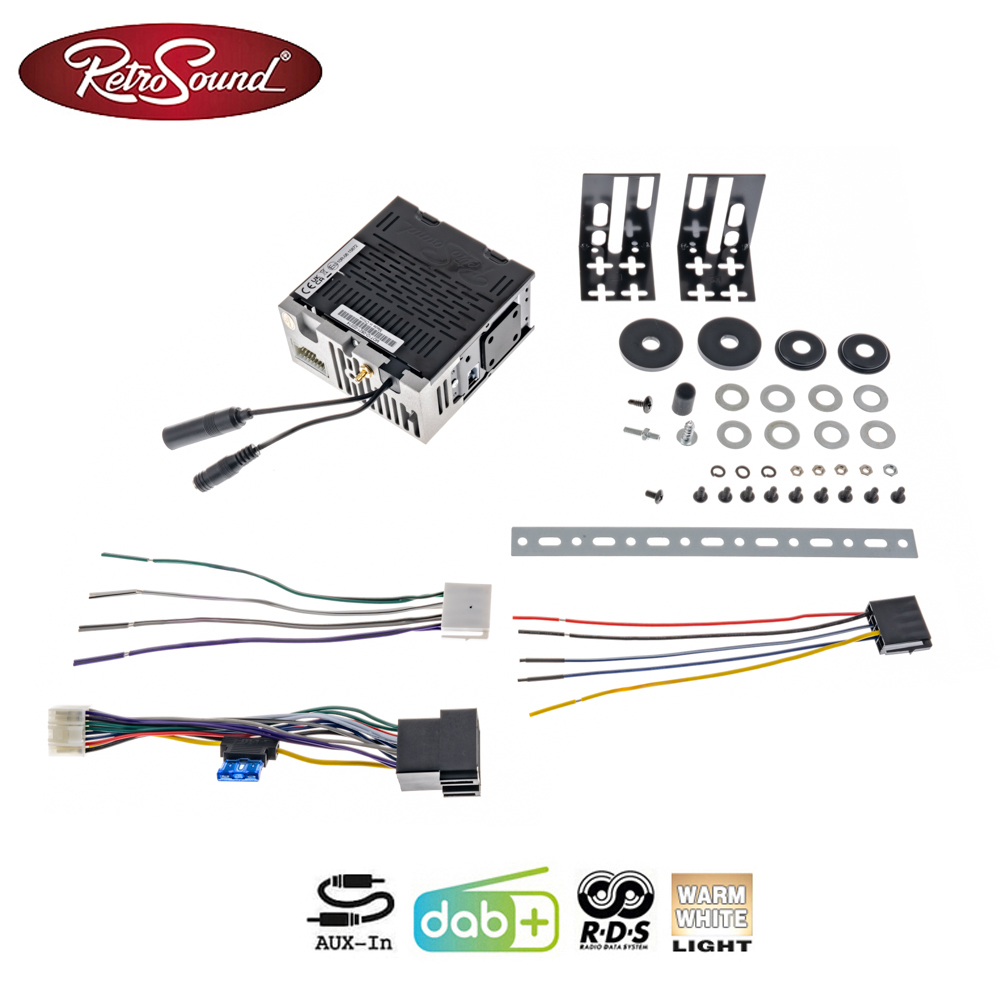

SCOPE OF DELIVERY

• RETROSOUND MOTOR-1DAB radio module with DAB+ and FM

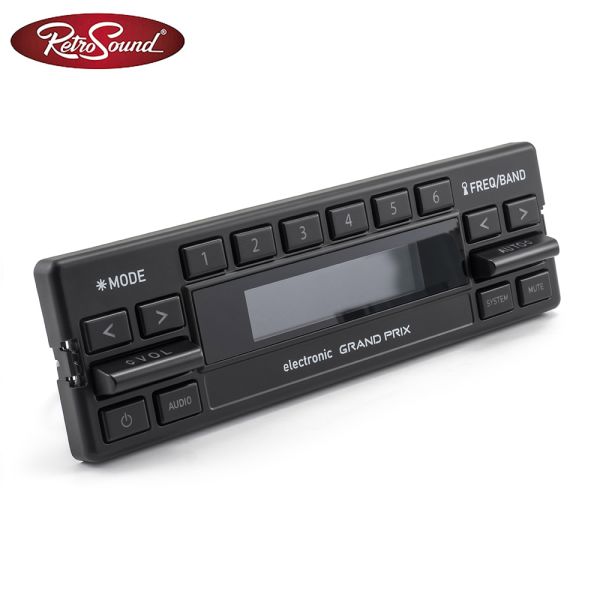

• RETROSOUND FACE-GRANDPRIX display unit
• RETROSOUND RSP-296 ISO installation kit for DIN slot
• DAB1 antenna splitter - H-MARK Confirmation from TÜV Süd

OPTIONAL ACCESSORIES

BTR200- AMPIRE Bluetooth receiver for the 3.5mm AUX input You need the BTR200 receiver so that you can also connect your smartphone to the car radio via Bluetooth. This is plugged into the AUX input on the back of the device. The music is then selected via the smartphone.

ANTENNA CONNECTION

In most classic vehicles, passive rod or telescopic antennas were installed. These are also suitable for DAB+ radio reception. The set includes a DAB1 antenna splitter. With glass antennas or electronically amplified roof antennas, you must install a separate DAB+ antenna and cannot use the DAB1.

H MARK

Any concerns that your H-license plate might be endangered by the installation of a RetroSound car radio are unfounded. In the download you will find a confirmation with the approval of the entire AKE working group (TÜV SÜD, TÜV Rheinland, TÜV Nord, Dekra, KÜS, GTÜ) stating that the RetroSound Model Zuma" and the RetroSound Model Two" including vehicle-specific panel and control buttons may be installed in classic cars with an H license plate or do not prevent the allocation of the H license plate!

EQUIPMENT

• warm white LCD lighting
• DAB+/FM/AM radio receiver with RDS and 30 preset stations
• Tuner with European odd and even radio frequencies
• Integrated 4-channel amplifier (4 x 24 watts RMS / 45 watts max.)
• 3 equalizer programs plus individual bass/treble/fader/balance setting
• XBAS loudness function

EXTENSION POSSIBILITIES

• AUX input (stereo)
• Separate switch-on line for motor antenna and amplifier

TECHNICAL DATA RADIO PART

• FM European broadcasting Frequency range 87.5-107.9 MHz. (0.05MHz. in steps)
• MW frequency range 530-1710 kHz (9 kHz. in steps)
• DAB+ reception via SMB antenna input for passive DAB+ antennas

GENERAL DATA

• Dimensions radio base unit 101x51x136mm
• Power supply 10.5 to 14.4 volts
• Maximum current draw 15 amps
• Quiescent current 3.5 mA
• Sinus output power 12V, 4 ohms, <1% distortion: 4x18 watts (RMS)
• Speaker impedance 4-8 ohms
• Input sensitivity AUX1 >300 mV / 6 kOhm

E-APPROVED

E-approved e13 03 10006 e13*72/245*2006/96*10006*00
