RETROSOUND "MOTOR-6DAB" DAB+ complete set "Europe" with lots of accessories

The "Model MOTOR-6DAB" is the absolute top model from RetroSound. It is visually identical to the cheaper models and, in addition to their features, has a certified Apple iPhone control via a USB cable or wirelessly via Bluetooth. There are also two USB inputs on the back of the device and a third preamplifier output for an external subwoofer.

EQUIPMENT

• DAB+ digital radio
• FM radio with RDS functions
• A2DP Bluetooth audio playback for wireless smartphone integration
• Two USB inputs on the back of the device
• Certified Apple iPhone control via USB cable
• AUX input (3.5mm) on the back of the device
• Bluetooth hands-free system with external microphone
• Three preamplifier outputs for external power amplifiers (front/rear/sub)

SCOPE OF DELIVERY

• MOTOR-6DAB RETROSOUND DAB+ radio module
• FACE-EUROPA display unit with bezel, control buttons and installation kit
• USB32G Mini USB stick 32GB (black)
• USB/AUX built-in socket with 60cm cable (black)
• SCP47 display protection glass (3 pieces)
• H-MARK CONFIRMATION FROM TÜV SÜD

OPTIONAL ACCESSORIES

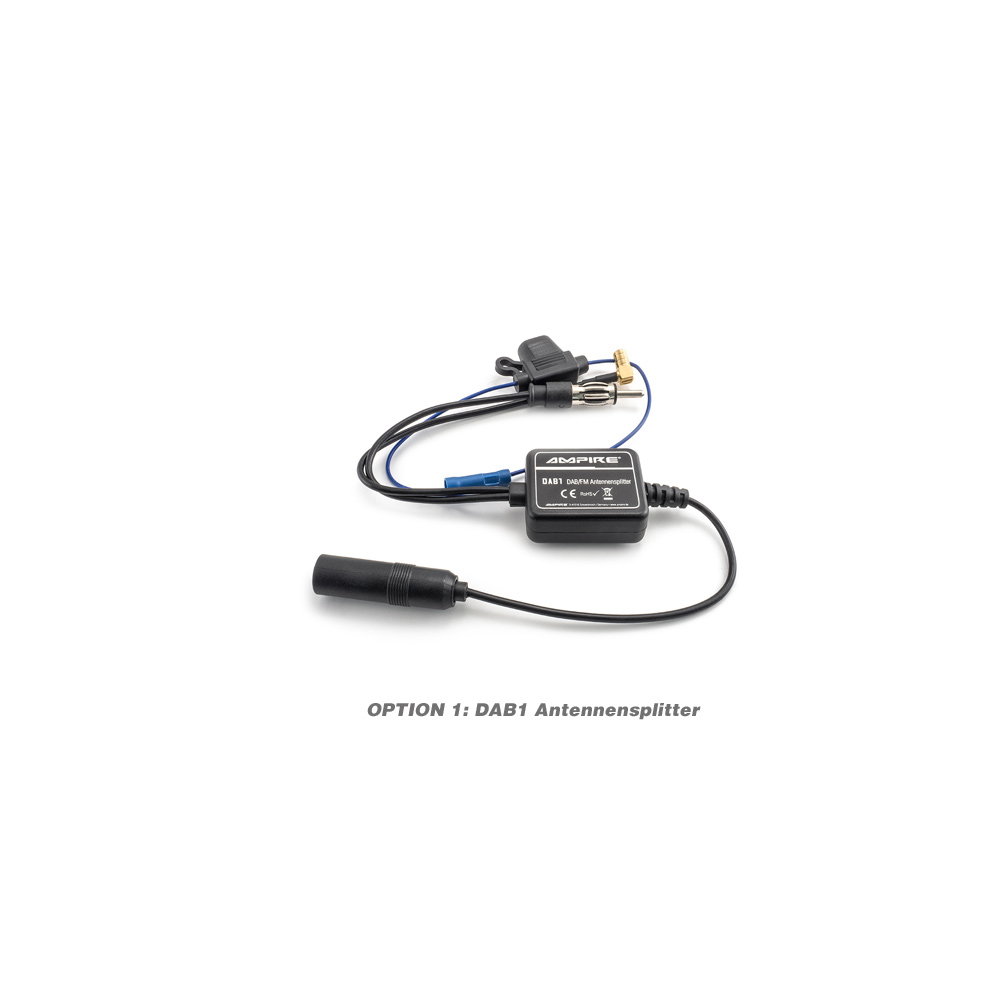

DAB1 - AMPIRE DAB+ antenna splitter
Passive rod or telescopic antennas were installed in most classic vehicles. These are also suitable for DAB+ radio reception. In this case, order the DAB1 antenna splitter at the same time. For window antennas or electronically amplified roof antennas, you will need to install a separate DAB+ antenna.

H-MARK
Any concerns that your H- The license plate could possibly be at risk due to the installation of a RetroSound car radio is unfounded. In the download you will find a confirmation with the approval of the entire AKE working group (TÜV SÜD, TÜV Rheinland, TÜV Nord, Dekra, KÜS, GTÜ) which states that the RetroSound Model Zuma" and the RetroSound Model Two" including vehicle-specific cover and control buttons may be installed in classic cars with H license plates or do not prevent the H license plate from being issued!

EQUIPMENT

• Playback of MP3 and WMA files via the rear USB input
• Apple iPhone control (touchscreen operation of the Apple iPhone is still active in parallel)
• Bluetooth hands-free system with A2DP audio streaming
• Adjustable LCD lighting with 32,000 different colors
• DAB+/FM/MW radio receiver with RDS and 30 station memories
• Tuner with European even and odd radio frequencies
• Integrated 4-channel amplifier (4 x 24 watts RMS / 45 watts max.)
• 3 stereo cinch outputs for external amplifiers (front/rear/subwoofer)
• 3 equalizer programs plus individual bass/treble/fader/balance settings
• XBAS loudness function
• Non-volatile memory

EXPANSION POSSIBILITIES

• 2 USB inputs (back of device) up to max. 32GB
• 1 AUX input (stereo)
• 3 RCA outputs (stereo) for external amplifiers (front/rear/subwoofer)
• Separate switch-on cable for motor antenna and amplifier

TECHNICAL DATA RADIO PART

• FM European radio frequency range 87.5-107.9 MHz. (0.05 MHz. in steps)
• MW frequency range 530-1710 kHz (9 kHz. in steps)
• DAB+ reception via SMB antenna input for passive DAB+ antennas

IPHONE COMPATIBILITY
You can of course operate an Apple iPhone wirelessly via Bluetooth with this car radio. If you want to control it via wire, you will also need a corresponding USB adapter cable.

GENERAL DATA

• Dimensions of the basic radio unit 101x51x136mm
• Voltage supply 10.5 to 14.4 volts
• Maximum current consumption 15 amps
• Quiet current 3.5 mA
• Output power 12V, 4 ohms, <1% THD: 4x15 watt sine
• Impedance speaker 4-8 ohms
• Cinch outputs 6 channels 2.85 volts for external amplifiers (front/rear/subwoofer)
• Input sensitivity AUX1 >300 mV / 6 kOhm

LEGAL NOTICE
iPhone are trademarks of APPLE Computer, registered in the United States and other countries. For optimal results, Apple has certain compatibility requirements for manufacturers of Accessories created. Products that are designed and certified as compatible will have the “Made for” label on the packaging. To ensure compatibility when purchasing third-party accessories for use with your device, look for accessories with the "Made for" label for your device (see below).
"Made for iPhone" means that an additional electronic device is specifically designed to connect to the iPhone and has been certified by the developer to meet Apple performance standards.

E- APPROVAL

• E approval e13 03 10006 e13*72/245*2006/96*10006*00
