FUSION Radio Apollo RA770

Description

Specifications

• Dimensions (H x W x D): 82 x 192 x 119.4 mm
• Weight: 750g
• Water resistance: IPX6 and IPX7 (front cover only and only if properly installed)
• Power supply: 10.8 to 16 VDC
• Operating temperature: 0°C to 50°C
• Current consumption: max.15 A
• NMEA 2000 LEN value: 1 (50mA)
• Bluetooth wireless range: Up to 10 meters
• ANT wireless range: Up to 3 meters
• Radio frequencies/protocols: WLAN, 2.4 GHz at +15 dBm (nominal)
• Bluetooth, 2.4 GHz at +10 dBm (nominal)
• ANT, 2.4 GHz at +4 dBm (nominal)
• Compass safe distance: 15 cm

Radio functions

• Display: 4.3-inch capacitive color glass LCD
• Integrated amplifier: Class D (2 ohm stable)
• Peak power: 280 W
• Rated power (2 ohms): 43 W (rms) x 4 at 14.4 V input voltage < 10%THD
• Rated power (4 ohms): 26 W (rms) x 4 at 14.4 V input voltage < 10%THD
• Integrated digital signal processing: Yes (with preconfigured DSP profiles)
• PartyBus network capabilities: Yes (wired or wireless)
• Fusion Link operation: Yes (with multifunction display, smartphone and Garmin watch)
• Multi-zone technology: 4 zones
• Integrated WiFi: Yes
• Bluetooth wireless technology: Yes
• ANT wireless technology: Yes
• DAB+ support: Yes (DAB100A antenna module required)
• Optical Audio In: Yes
• NRX Remote Compatible: Yes
• Multiple language interface: Bulgarian / Chinese (Traditional) / Chinese (Simplified) / Danish / German / English / Finnish / French / Greek / Italian / Japanese / Korean / Croatian / Dutch / Norwegian / Polish / Portuguese (Brazil) / Portuguese (Portugal) / Swedish / Slovenian / Spanish / Thai / Czech / Turkish
• Software updates: OTA software updates via Fusion Link app, USB
• Warranty: 3 years

Sources

• SourcesAM / FM / Bluetooth / Apple AirPlay 2 / Digital Optical In / USB Audio / iPhone / iPod / AUX x2 / UPnP / MTP / SiriusXM-Ready (US only, optional SiriusXM Connect Vehicle Tuner required) / DAB+ support (only available in Europe and Australia)

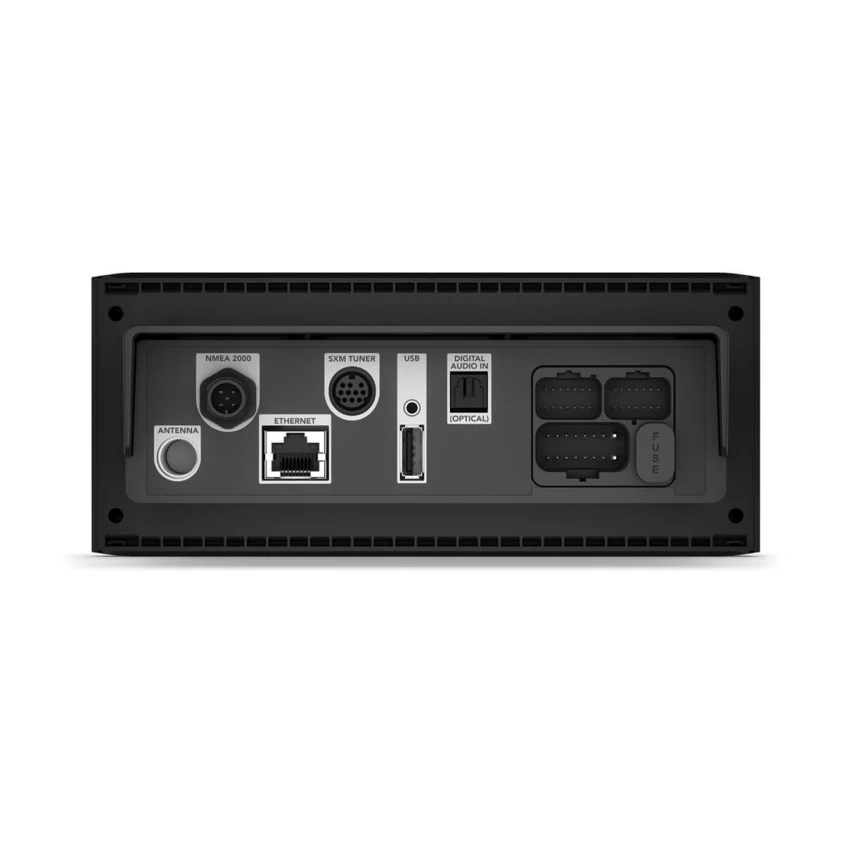

Connectivity

• AUX input: Two RCA inputs (AUX1, AUX2)
• Optical audio input: One digital optical input (SPDIF)
• Ethernet: An Ethernet port
• NMEA 2000: One NMEA 2000 port
• USB 2.0: One USB 2.0 port
• AM/FM radio: One Motorola antenna connector
• Speakers: 4 speaker connections (2 zones amplified)
• RCA pre-out (left, right and subwoofer): 4 zones (requires external amplification)
• Line Out: 4 (1 x left and right per zone, external amplification required)
• Subwoofer output: 1 mono output (requires external amplification)

Scope of delivery

• Installation seal
• Four 4.2 mm (size 8) self-tapping screws
• Two screw covers
• Power and speaker wiring harness
• Auxiliary-in, line-out, and subwoofer-out wiring harnesses
• 2 meter NMEA 2000®drop line
• Dust cover
• Documentation
