Kenwood KMM-BT408DAB - 1-DIN Car Radio

KMM-BT408DAB - Digital Media Receiver with Digital Radio DAB+ & Bluetooth technology

Enjoy the convenient operation, crystal-clear DAB+ digital radio, the latest Bluetooth technology for phone calls and music streaming and the option of operating the car radio using the remote control app via the control smartphone. The digital sound processor, time correction and 13-band EQ ensure optimal sound.

Main features

• Integrated DAB+ receiver and high-performance tuner for FM/MW/LW
• Uninterrupted switching between DAB and FM (seamless blending)
• Bluetooth Hands-free & A2DP audio playback including AVRCP 1.6 profile
• 2 phones can be connected in parallel
• 5 audio streaming devices can be connected simultaneously (Kenwood Music Mix)
• Kenwood Remote App for Android smartphones
• USB port with 1.5 A "Quick Charge" function
• White LC display with 13-digit display segments and VA technology for better readability
• Digital Runtime correction (DTA), 3-way active crossover and 13-band EQ
• Bass boost and loudness function, sound tuning technology "Sound Reconstruction"
• Preamp output with 2.5 V output level
• Max. Output power: 4 x 50 watts
• Removable control panel with red button illumination
• Cable microphone included
• Active DAB glass antenna included
• Particularly low power consumption (less than 1 mA) when the ignition is switched off (ACC OFF)
• Over 30% less installation depth (no CD drive): 100 mm in total
• Prepared for factory-installed steering wheel remote control

General features

• DIN Size 1 DIN
• Removable bezel
• Key Illumination Red
• Knobs & Control Knob
• Dual Direct Access Button: Handsfree & Audio Streaming
• Back-up: Storage Menu Settings
• Beep tone
• Digital time (24H)
• Clock display when switched off:Default off
• Switch off after (20/40/60 minutes)
• Mitsumi integrated connector, 16 pin
• ISO connector: Mitsumi to ISO cable
• Integrated Bluetooth module
• < span style="color: #212121;">USB host connection
• Update option
• Device without CD drive
• Low case depth

Equipment mark male  Display

• Display type: Liquid Crystal Display (LCD)
• Ad segment: 1 line, 13 digits
• "VA" technology LCD< /span>
• Display lighting:  white (LED)
• Brightness controller (dimmer): manual / timer
• Brightness: 0-31 steps
• Demo mode
• Selectable menu language: English (default) / Spanish / French / Russian
• TAG display language: English, Spanish, Russian & Greek

Design Features

• Front bezel/frame:  black injection molded plastic
• Decoration bezel: black injection molded plastic span>
• Key design: black injection molded plastic
• Cover frame: black, injection-moulded plastic
• Triangle lighting: red
• Dust cover for front connectors
• Key illumination: Red
• Lighted front USB: Red
• Display lighting: White LED
• Brightness control (keys): 0 - 31 steps
• Brightness setting (display): 0 - 31 steps
• Dimmer (buttons): manual / timer
• Dimmer setting (display): Manual / Timer

Tuner features

• Channel selection manual / preset
• Tuner save button
• FM reception Yes
< li>

AM (MW/LW) reception Yes

• Station memory (FM/MW ) 24 memories (18FM / 6MW)
• Permanent preset memory Yes
• FM & MW 6 memory
• Tuning (Auto 1 / Auto 2 / Manual)
• Up/Down station search Yes
• Automatic station storage (AME) Yes
• FM stereo/mono switching Yes
• Radio data system Yes
• Radio Text Plus Yes
• Traffic Information Yes
• Local Search Yes
• AR Regional Selectable: AF/AF Reg/OFF
• Automatic traffic information station search Yes
• Enhanced Other Networks Yes
• Program Type Detection (PTY) Yes

Features DA B

• Integrated DAB+ tuner
• Digital Radio Certification Mark
• Automatic channel search Yes, (Service, Ensemble & Component)
• Channel search Auto1 / Auto2 / Manual
• Number of station storage locations: 6 bands * 3 storage locations
• Station list in alphabetical order
• Station memory list
• Alphabetic station search
• Related service
•  Audio interruption on PTY standby < /span>
•  Audio interruption during announcements
• DAB-RDS incl. TI
• Traffic information
• DAB Priority
• PTY (Program Type) Search
• PTY (Program Type) Monitoring
• Soft linking
•  On/off switch for external antenna power supply
< /ul>

Playable audio files

• Playback of MP3 files USB

• Play WMA files USB
• Playback of WAV files USB
• Playback of FLAC files USB
< /ul>

USB features

• USB connection Yes , USB input with protective cover
• USB Standard USB 1.1/USB 2.0 Full Speed
• < span style="color: #212121;">Drive Change
  < /span>
• WMA (Windows Media Audio) file playback Yes
• WAV (waveform audio format) playback

• FLAC format (lossless audio codec)< br />
• Repeat / Shuffle Yes

• Resume Play Yes
• Playtime indicator Yes
• 1.5 A charging function Yes

Audio features < /span>

• Max. Output Power 50W x 4
• Power MOSFET IC Yes
• AUX input Yes, front mini jack
• Preamplifier output: Cinch
  < /li>
• Output level of the preamp output 2.5V
• Switchable preamp output REAR /SUBWOOFER
• Subwoofer reference level setting
• < span style="color: #212121;">2-way crossover
• 3-way crossover (bi-amp connection) Yes
• Balance/Fader Yes

• < span style="color: #212121;">Loudness Control: Off / LV1/ LV2
• Bass boost circuit Aus/+1/+2/+3/+4/+5
• Equalizer + Preset 13-Bands Graphic Equalizer with 8 Presets.
• Digital Sound Processor (DSP) integrated
• Runtime correction
• High and low pass filters
• Speaker size setting
• Kenwood Sound Reconstruction Yes
• Sound Reconstruction (Sound Tuning System)
• Space Enhancer
• Realizer
• Stage EQ
• Drive EQ (Equalizer)< /li>
• Increase tone


Features of Bluetooth in general

• Hands Free Profile with high sound quality HFP V1.7.1
• Max. Number of cell phones to be registered 5 cell phones
• 2 phones can be connected at the same time
• Audio streaming with high sound quality SBC
• Maximum number of devices that can be registered for A2DP playback 5 units< /li>
• Serial data transmission (SPP - Serial Port Profile)
• Access to phone book (PBAP)
• "Easy Pairing" function
• Remote control via KENWOOD Remote App
• KENWOOD Music Mix function
• Private mode
• Alphabetic search (phone book )
• Voice Control
• < span style="color: #212121;">Mobile phone function status indicator
• Audio function status indicator
• Signal strength
• Battery level
• < span style="color: #212121;">Bluetooth pairing indicator
• High quality noise canceling microphone  Includes Wired Back
• Firmware Update Yes, in conjunction with system updates
• * depending on mobile phone model or manufacturer & Kenwood component

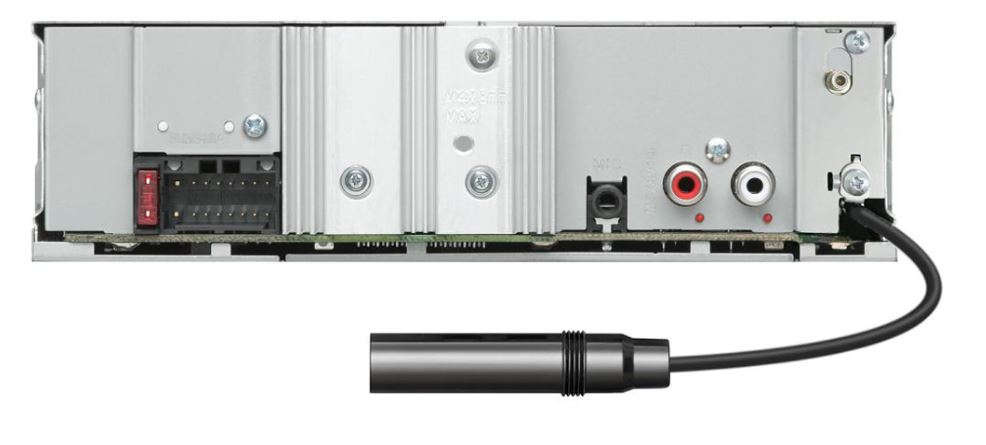

Connection option

• Front USB & AUX input Yes
• Connection for OEM steering wheel remote control Yes, Optional interface is required
< li>

Power connector Mitsumi on ISO

• Switching voltage connector (P. CON.) Yes
• DAB antenna connector SMB connector

• Connection for hands-free microphone 3.5mm mini-jack

Technical data tuner < /span>

• FM range: 87.5 MHz - 108 MHz (in 50 kHz steps)
• FM input sensitivity 0.56μV/75 Ohm (S/N 30 dB)
• Input sensitivity (signal/noise ratio) 1.58 μV/75 ohms (S/N 46 dB)
• FM transmission range 30 Hz ~ 15 kHz (± 3 dB)
• FM signal-to-noise ratio (mono) 68 dB
• FM channel separation (1 kHz) 40 dB
• MW range: 531 kHz - 1611 kHz (in 9 kHz steps) Yes
• MW input sensitivity 28.5 μV
• LW range: 153 kHz - 279 kHz (in 9 kHz steps) Yes
• LW input sensitivity 45 μV

Technical data DAB

• Band III - frequency range 174.928 MHz - 239.2 MHz
• DAB modes: I, II, III, IV
• Sensitivity: - 100 dBm
• Signal/noise ratio 90 dB
• DAB antenna connection type: SMB
• Output voltage: 12V (11V to 16V allowable)
• Maximum current < 100 mA

Technical data USB

• USB version compatibility USB 1.1 / 2.0 full speed
• File system FAT 32 / 16 / 12< /span>
• Max. Current consumption 1500 mA
• MP3 decoding conforming to MPEG-1/2 Audio Layer-3
• WMA decoding consistent with Windows Media Audio
• WAV decoding linear - PCM files
• FLAC decoding FLAC files up to 96kHz/24bit

Audio specifications

• Maximum power 50 W x 4
• Output power (DIN45324, +B=14.4V) 22W x 4
• Output level 2500 mV / 10 kOhm
• Impedance of the preamplifier output 600 Ohm
• Speaker impedance 4 ohms ~ 8 ohms
• Transmission range Aux input 20 Hz ~ 20 kHz (±1dB)
• Max. Input level AUX 1000 mV
• Impedance AUX input 30 kOhm
• 13-band graphic equalizer
• G. equalizer Frequency 62.5/100/160/250/400/630/1k/1k6/2k5/4k/6k3/10k/16k
• G equalizer Gain (dB) -7 / ... / +7
• Subwoofer Level (dB) -50 dB to +10 dB

Bluetooth specifications

• Standard Bluetooth V4.2
• Transmission frequencies 2.402 - 2.48 GHz
• Output power + 4 dBm(max), 0 dBm (AVE) power class 2
• Max. Range around 10 meters
• HFP (Hands Free Profile) Yes, V1.7.1
• < span style="color: #212121;">Serial data transmission (SPP - Serial Port Profile) Yes
• Audio data transmission A2DP (Advanced Audio Distribution Profile) Yes
• Audio Formats SBC
• AVRCP (Audio Video Remote Control Profile) Yes
• PBAP (Phonebook Access Profile) Yes

Accessories

• Removal tool 2 pieces
• Cover frame Yes
• Mounting frame yes
• DC cable (Mitsumi to ISO) 20 cm
• Hands-free microphone with 3 m long end cable
• Multilingual user manual included: quick help
• Downloadable operating instructions


General technical data

• Operating voltage 14.4 V (10.5 ~ 16 V allowable)
• Max. current consumption 10A
• Dimensions (W x H x D) 182 x 53 x 100 mm
• Weight 700 gr
