Ampire RVA051 - Ampire TFT monitor 12.7cm (5''), 2 video inputs (AHD/CVBS) adhesive/suction cup holder

Ampire TFT monitor 12.7cm (5''), 2 video inputs (AHD/CVBS) adhesive/suction cup holder

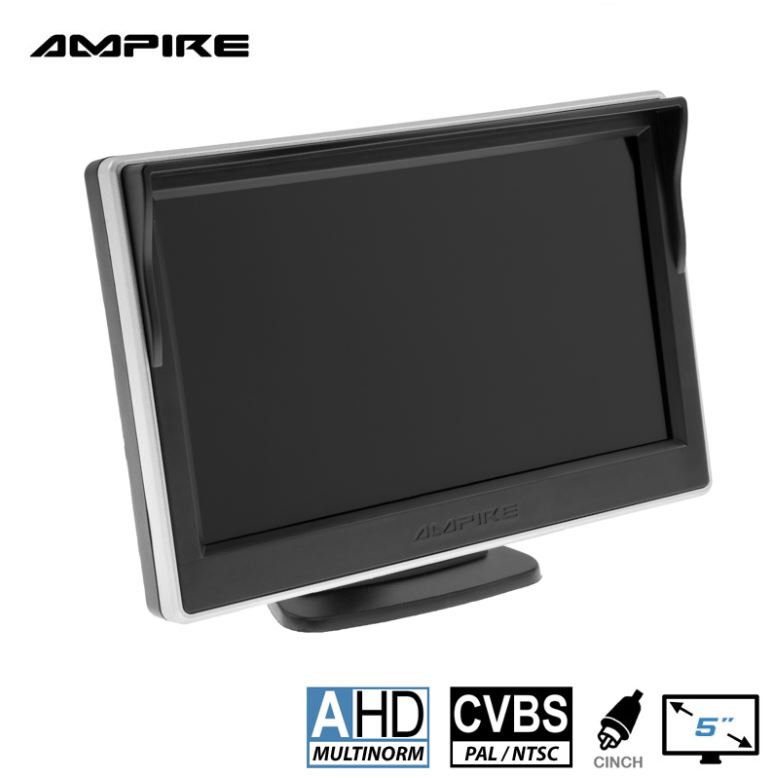

This high-resolution 12.7cm (5'') digital LCD surface-mounted monitor is a compact monitor for up to two AHD or CVBS rear-view cameras. You can connect almost any rear-view camera to this multi-standard monitor. Regardless of whether it is AHD cameras with 720N, 720P, 960N, 960P, 1080N or 1080P resolution or 25 or 30 frames/second. Of course also conventional CVBS (FBAS) cameras in PAL or NTSC.
If you do not have space for larger monitors in the vehicle or want to install a monitor instead of the interior mirror, the RVA051 is the first choice. You will always find a place to install the universal RVA051. In addition, the wide range of digital image display settings makes it ideal for rear view cameras.

Technical data

• 12.7cm (5'') HD digital TFT LCD display (color) with 16:9 screen format
• 2x video inputs
• AHD 720N, 720P, 960N, 960P, 1080N 1080P (25/30 fps) compatible
• CVBS (FBAS) PAL/NTSC compatible (25/30 fps)
• Brightness 600 cd/m²
• Contrast 500:1
• Viewing angle 85°/85°/85°/85° (L/R/O/U)
• LED backlight
• High resolution 800x480 pixels (HD)
• Image display normal/mirrored
• Image display normal/rotated 180°
• Guide lines adjustable/deactivatable
• Automatic switch-on (2 sec.)
• Operating voltage 9-32 volts DC
• Power consumption at 12 volts: 250mA (operation) 150mA (ignition an)
• Operating temperature -20° to 70°C
• Storage temperature -30° to 80°C
• Monitor dimensions 126x83x33mm
• Our monitors are subject to ISO 9241-307, pixel error class II
• 10 different menu languages

Delivery

• 5" (12.7cm) AHD monitor

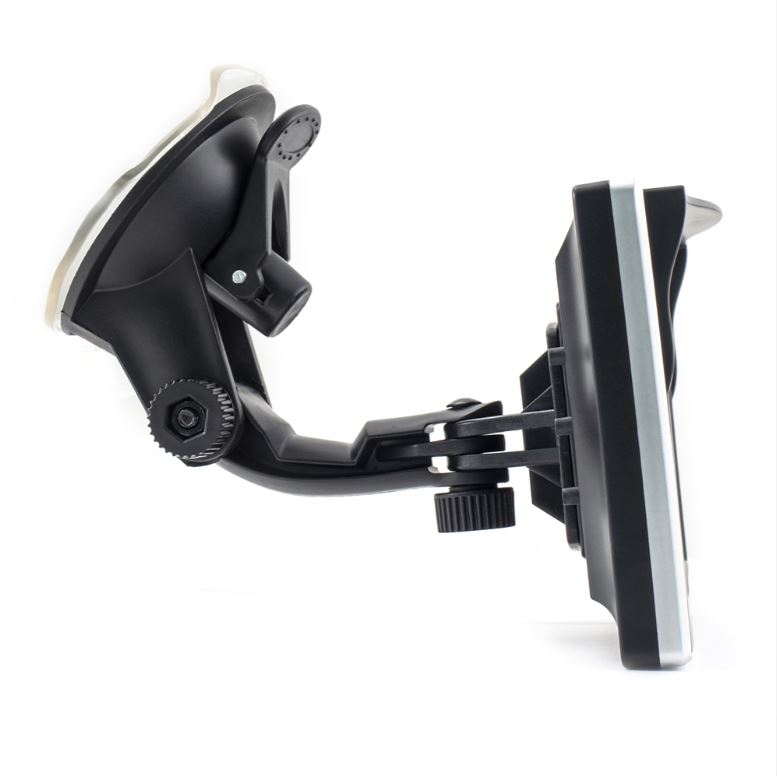

• Suction cup mount
• Adhesive foot mount
• Connection cable

Certification

• CE
• E13 10R-02 2332
• WEEE No. DE54949565
• Protection class IP51
