Ampire RVA071 - Ampire TFT monitor 17.8cm (7''), 2 video inputs (AHD/CVBS)

Ampire TFT monitor 17.8cm (7''), 2 video inputs (AHD/CVBS)

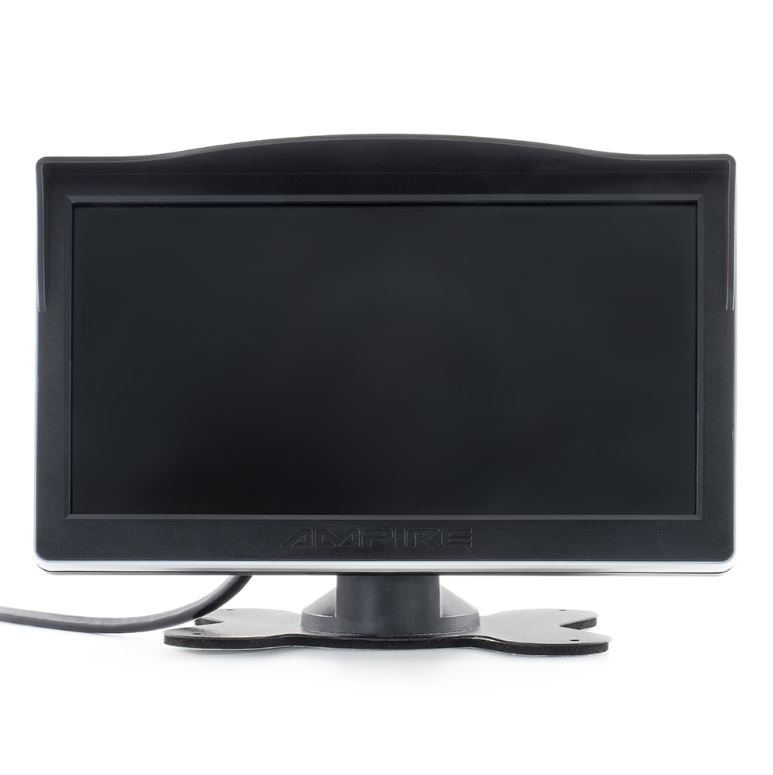

High-resolution 17.8cm (7'') TFT surface-mounted monitor for up to two AHD or CVBS cameras. You can connect almost any rear view camera to this multi-standard monitor. Regardless of whether it is AHD cameras with 720N, 720P, 960N, 960P, 1080N or 1080P resolution or 25 or 30 frames/second. Of course, conventional CVBS (FBAS) cameras in PAL or NTSC are also supported.

Technical data

• 17.8cm (7'') HD digital TFT LCD display (color) with 16:9 screen format
• 2x video inputs
• AHD 720N, 720P, 960N, 960P, 1080N 1080P (25/30 fps) compatible
• CVBS (FBAS) PAL/NTSC compatible (25/30 fps)
• Brightness 1000 cd/m²
• Contrast 500:1
• Viewing angle 85°/85°/85°/85° (L/R/O/U)
• LED backlight
• Extremely high resolution of 1024 x 600 pixels
• ON/OFF timer
• Image display can be set to normal/mirrored
• Image display can be set to normal/rotated
• Guide lines can be set/deactivated
• 10 menu languages
• Automatic switch-on when the operating voltage is applied
• Self-adhesive mounting base included
• Operating voltage 9-32 Volt DC
• Power consumption (on) <250mA@12VDC
• Standby power consumption (ignition on) <180mA@12VDC
• Operating temperature -20° to 70°C
• Storage temperature -30° to 80°C
• Dimensions 180 x 115 x 20mm
• Weight 304g
• Monitors are subject to ISO 9241-307, pixel error class II
• Protection class IP51

Wiring

• RED: Ignition 12-24 Volt DC (no permanent plus)
• BLACK: Ground

Scope of delivery

• 7" (17.8cm) TFT monitor
• Adhesive foot holder
• Connection cable
