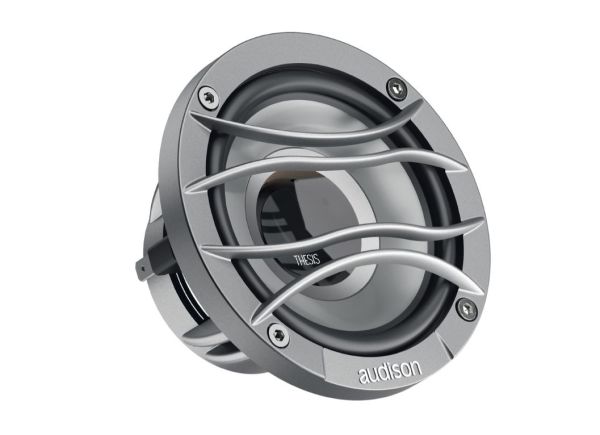

Audison TH 3.0 voce

The TH 3.0 voce midrange was born aiming at the optimization of three-way systems. The X-pulp cone, produced using cellulose pulp and a glass fibre mesh, provides the highest rigidity along with the warm and detailed sound typical of cellulose.
The high precision mechanical parts were created by machining solid one piece material, including a REN (Rare Earth Neodymium) magnet.
The single layer, flat wire, edge wound voice coil enhances the compact size and light weight of the mobile group, while still maintaining unmatched thermal dissipation.
The zinc alloy grille protects without altering the acoustic performance.

Size: 80mm (3? )
Power Handling: 100W Max / 50W@1.8Hz-12dB Oct. RMS
Impedance: 8?
Frequency response: 200Hz - 8kHz
Sensitivity:86dB/SPL
Outer diameter:  84mm
Mounting hole diameter: 73mm
Magnet size: 45mm
Total depth: 44,4mm
Mounting depth:36mm
Weight of one component: 0,265kg
Voice coil diameter: 25mm
Magnet Neodymium REN®
Dome Tetolon Fiber®
Grille Included
Magnet Neodymium REN®
Cone X-pulp® + Polycrystal®
Surround TWR®
