5% Warenkorbrabatt
If you buy 1 of the products of this action, you will receive a discount of 5% .
€258.99 *
Content: 1 Paar
Prices incl. VAT plus shipping costs
available,
Delivery time appr. 1-2 working days
- Order number: 02009APK163
- EAN 8018823111713
APK 163 - 3-way composystem AP 1 tweeter, AP 4 MidBass and AP 6.5 Woofer. APK 163... more
Product information "Audison Prima APK 163 - 16,5cm 3-Wege Compo"

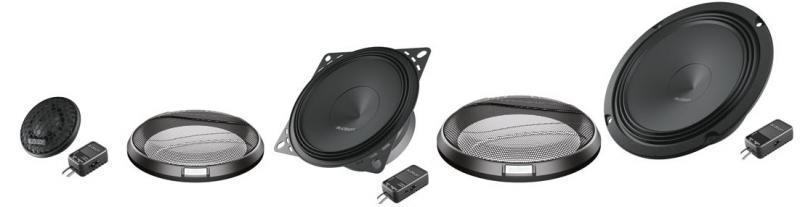

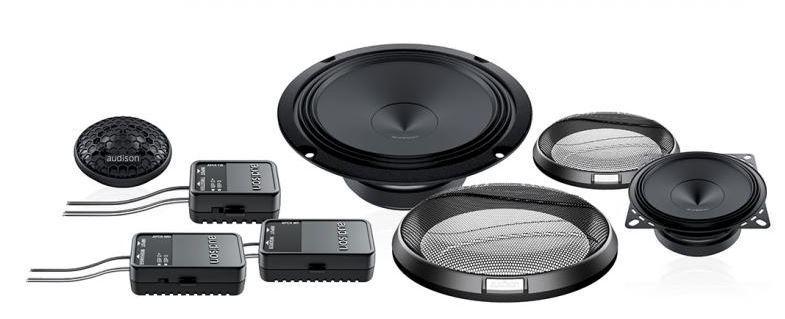

APK 163 - 3-way composystem
AP 1 tweeter, AP 4 MidBass and AP 6.5 Woofer.
APK 163 system deserves special attention; the Audison designers developed a separate crossover dedicated to each speaker, simplifying OEM speaker replacement operation, negating the routing of additional cables through the door, which could void the car warranty. To ease the installation in OEM placements the woofers are equipped with high current fast-on terminals with double contact on positive and negative poles for high flexibility and quick connection.
Technical Data
- Component: 3-way compo
- Size: Woofer 165 mm (6.5''), Midbass 100 mm (4''), Tweeter 26 mm (1'')
- Power Handling: 375 W peak, 125 W continuos
- Impedance:4 ohms
- Frequency Response: 50 ÷ 20k Hz
- Crossover type: LP at 600 Hz - 6 dB Oct
HP at 600/3,5 kHz - 6/6 dB Oct
HP at 3,5 kHz - 6 dB Oct - Componet adjustment: +2; 0 dB
- Magnet size: 85 x 40 x 15 mm
- Weight of one speaker: Woofer 0,65 kg, Midbass 0,4 kg, Tweeter 0,04 kg
- Voice Coil diameter: Woofer 32 mm (1,26''), Midbass 25 mm (1''), Tweeter 20 mm (0.8'')
| quantity: | 1 pair |
| Diameter (in cm): | 16,5 |
| Housing color: | black |
| Impedance (in Ohm): | 4,0 |
| Speaker Type: | Compo-System |
| Speaker Features: | 3 ways |
| Peak Power (in Watt): | 375 |
| Power RMS (in Watt): | 125 |
| Product group: | Speaker |
