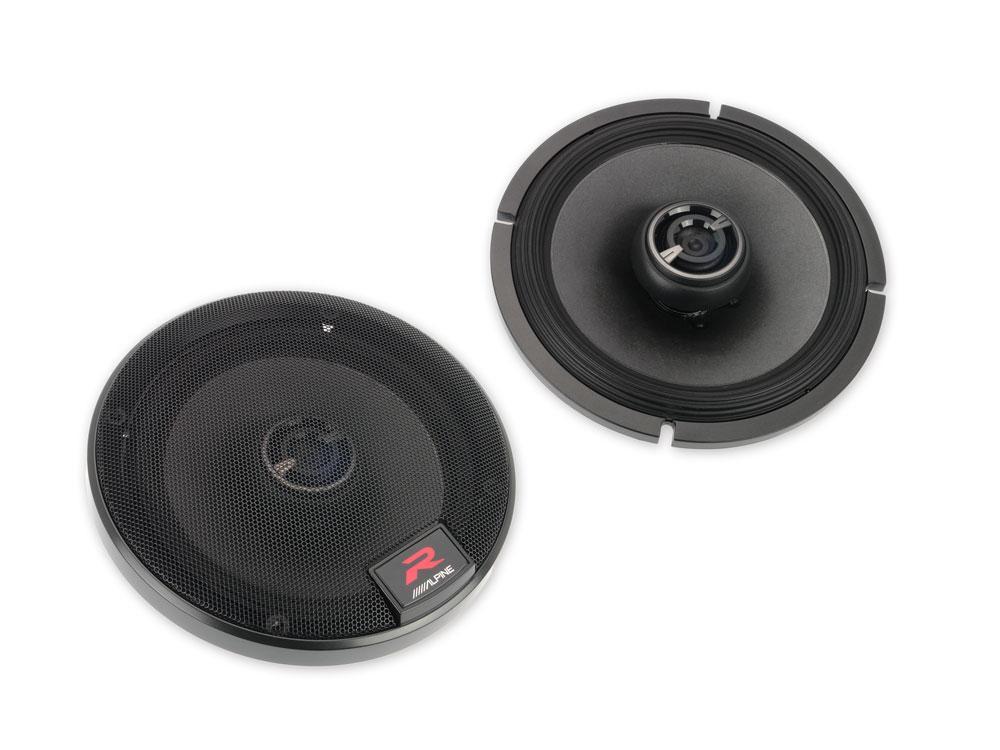

Alpine R-S65 - 16,5cm Coaxsystem

16.5 cm (6.5 in.) 2-way coaxial speaker - R-S65

Experience the latest speaker generation of the Type R series:developed for amazing levels and unbelievable variety of sounds. The new type R series speakers include both component and coaxial models. Both systems are highly efficient and offer a wide range of applications for many vehicles due to the variety of installation options.

• 300 watts peak power (peak)
• 100 watts rated load capacity (RMS)
• Frequency response:65 Hz - 29 kHz

H.A.M.R. - Multi-roll surround
The H.A.M.R. Multi-Roll (High Amplitude Multi-Roll) beading allows maximum linear deflection for maximum sound pressure levels while stabilizing diaphragm movement throughout the stroke for maximum bass response.

Highest stability
Alpine uses high performance neodymium magnets and a very sturdy basket for the new R series speakers. This means that the magnet can be much smaller compared to conventional speakers. This requires a much smaller installation depth and very little space inside the vehicle door.

Excellent sound properties
The all-new voice coil is made of aluminum unlike traditional speakers. The advantage is a much better reproduction of the finest details, especially in the middle frequency range.

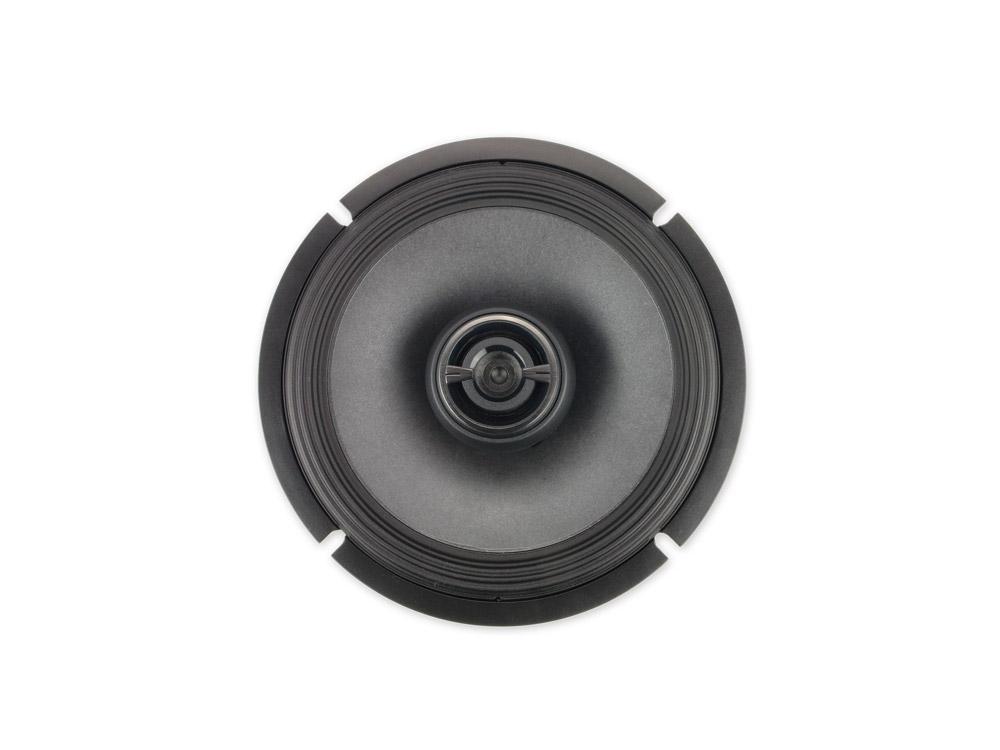

Swiveling tweeter
Both component and coaxial models include a pivoting ring dome tweeter that reduces phase problems at non-optimal mounting locations. It is manually adjustable for the best sound positioning at the listening position. The tweeter of the R-S65C can also be installed or built separately. All installation materials are included in the delivery.

Shapely and stable cover
To all speakers we deliver very stable and attractive speaker covers, including a high-quality incorporated logo.

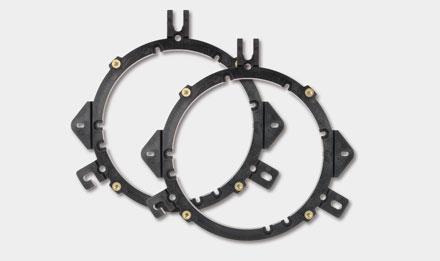

Versatile mounting shots
For optimal and easy installation in many vehicles, universal mounting fixtures are included, including an adapter for hole cutouts with the special dimension of 15 x 20 cm (6 x 8 inches).

domestic equipments
tweeter

• Tweeter Type:2.5 cm (1-inch) ring radiator tweeter
• Large aluminum voice coil
• Neodymium magnet
• Swiveling tweeter

woofer

• Hybrid multi-layer membrane
• Linear Drive Technology
• H.A.M.R.- membrane suspension
• Large aluminum voice coil
• Square aluminum voice coil wire for high amplifier performance
• Ultra High Density Neodymium Magnet
• DX-ring
• low installation depth
• Mounting rings included

specifications
load-bearing capacity

• Peak Power (Peak):300 watts
• Rated load capacity (RMS):100 watts

Dimensions

• Woofer installation diameter:136 mm
• Woofer installation depth:59 mm

General

• Frequency response:65 Hz - 29 kHz
• Impedance:4 ohms
• Efficiency:88 dB / W (1m)
