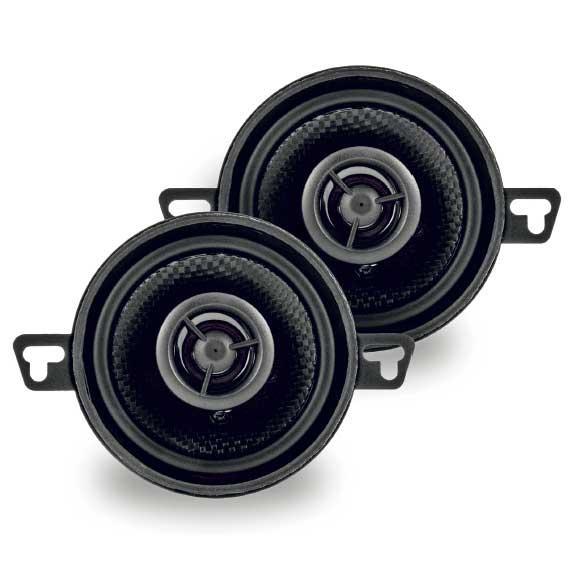

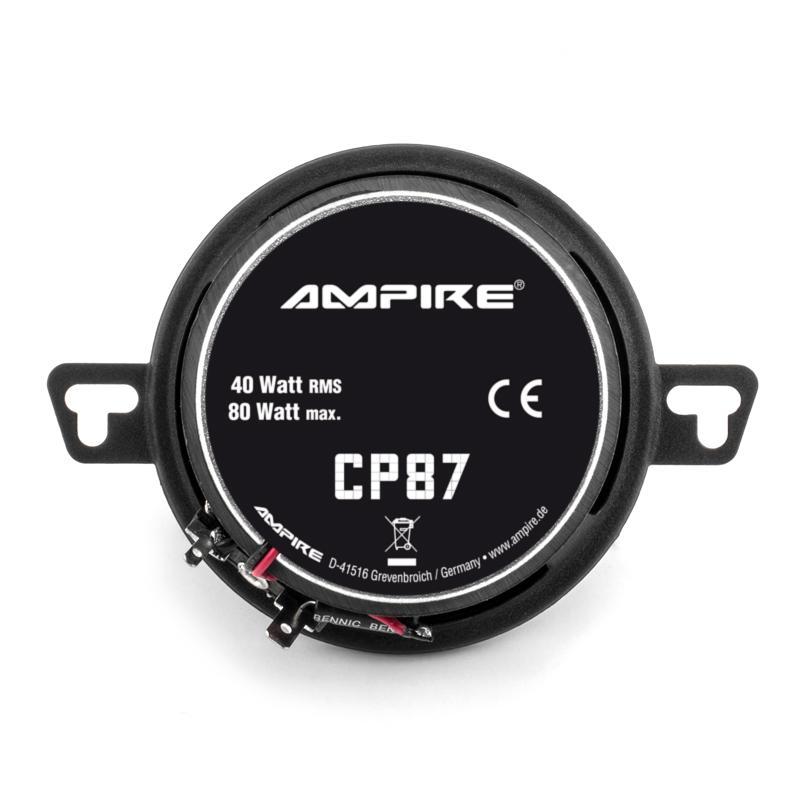

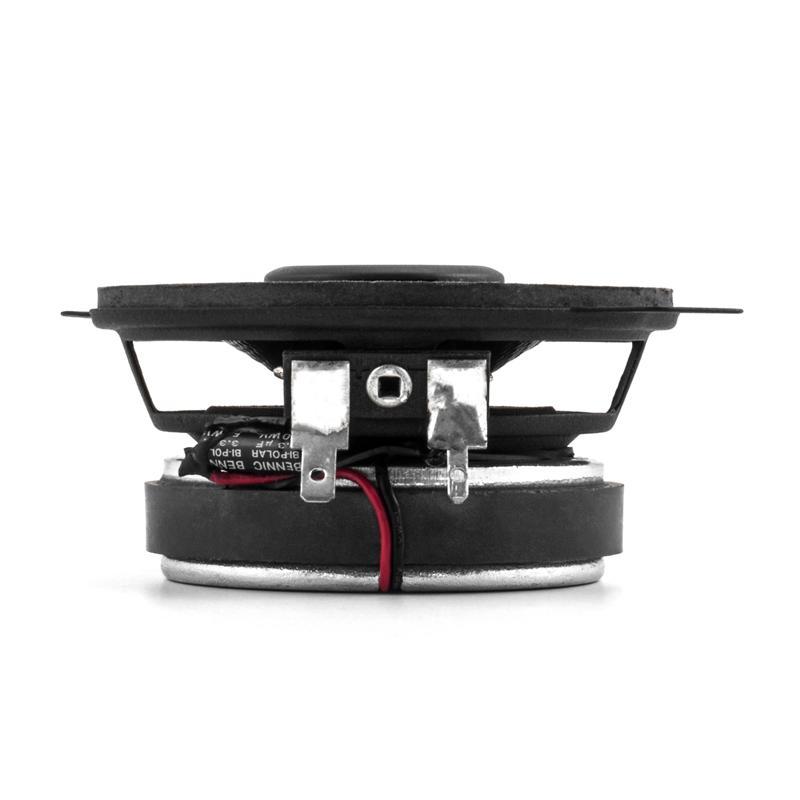

Ampire CP87 - 8,7cm 2-Wege Coax

Ampire
Preview: Amp_CP87_01.jpg Preview: Amp_CP87_02.jpg Preview: Amp_CP87_03.jpg Preview: Amp_CP87_04.jpg Preview: Amp_CP87_05.jpg


5% discount

If you buy 1 of the products of this action, you will receive a discount of 5% .
€38.98 *
Content: 1 Paar

Prices incl. VAT plus shipping costs

available,
Delivery time appr. 1-2 working days

Seen cheaper?
Quantity
Artikel günstiger gesehen?
  • Order number: 02072CP87
  • EAN 4260052637821
Description Evaluations 0
Description
With the new Ampire 87mm 2-way loudspeaker CP87, sound-spoiling partial vibrations can almost be... more
Close menu
Product information "Ampire CP87 - 8,7cm 2-Wege Coax"

With the new Ampire 87mm 2-way loudspeaker CP87, sound-spoiling partial vibrations can almost be excluded by its patented CIPP membrane. In addition, an audibly lower bass reproduction could be achieved by using the ISD technology, the high-pitch reproduction of the 13mm P.E.I. Tweeter is brilliant.

Technical specifications

  • Nominal diameter: 87mm / 3.5 "
  • Membrane material: polypropylene
  • Beading material: rubber
  • 13mm P.E.I. tweeter
  • Pe: 35/70 watts RMS
  • Installation depth: 38mm
  • Weight: 433g (piece)
  • Magnet: 70x32x10mm
  • Overhang of the tweeter: 4mm
  • Frequency response: 100Hz. up to 22000Hz.
  • Voice coil 2-ply
  • Voice coil diameter 20.4mm
  • Fs: 147Hz
  • VAS: 0.96 liters
  • Qts: 0.727
  • Qes: 1.028
  • Qms: 2,475
  • Re: 3.7 ohms
  • Z: 4 ohms
  • Le: 0.55mH
  • SPL: 87dB
  • Mms: 2.5g
  • Xmax: 2mm
  • Sd: 37,6cm²
  • Vd: 7,5cm³
  • D: 70.5mm
quantity: 1 pair
Diameter (in cm): 8,7
Impedance (in Ohm): 4,0
Speaker Type: Coax-System
Speaker Features: 2 ways
Peak Power (in Watt): 70
Power RMS (in Watt): 35
Product group: Speaker
