JL Audio C1-075ct - 19mm Hochtöner

C1-075ct
0.75-inch (19 mm) Aluminum Dome Tweeters

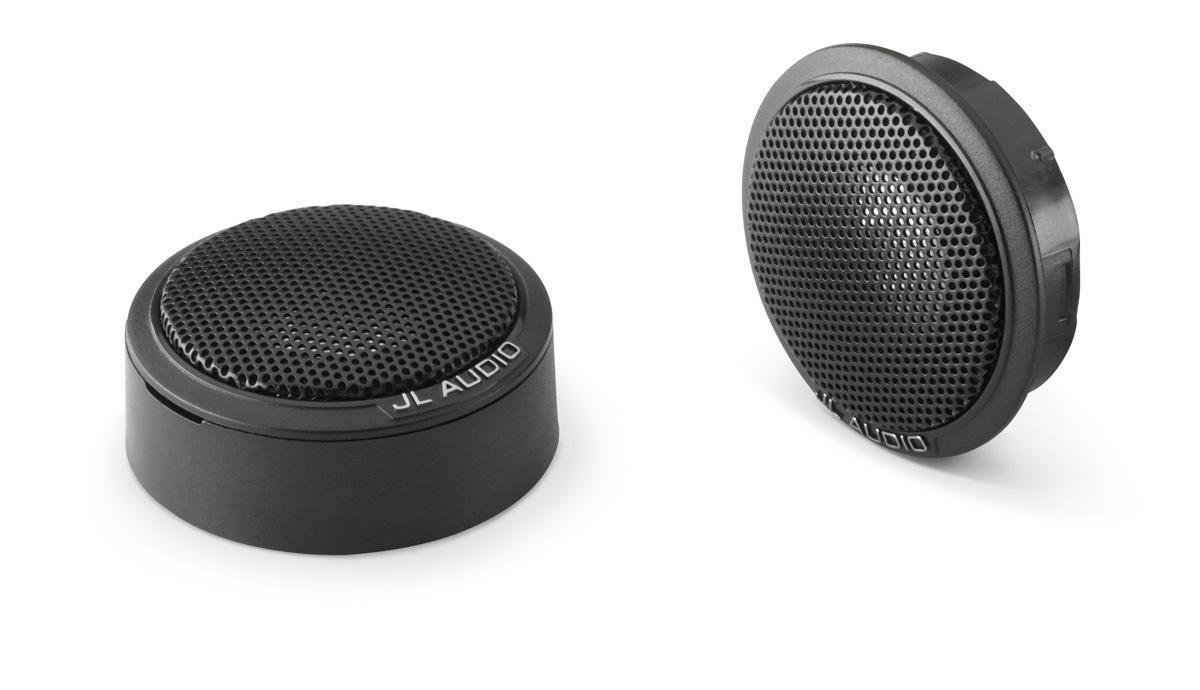

• C1 component tweeters are engineered to deliver refined performance, with excellent off-axis response and high-frequency extension. Utilizing true, edge driven 0.75-inch aluminum domes with silk suspensions, the C1-075ct component tweeters provide smooth, detailed reproduction of treble frequencies from 4 – 24 kHz.

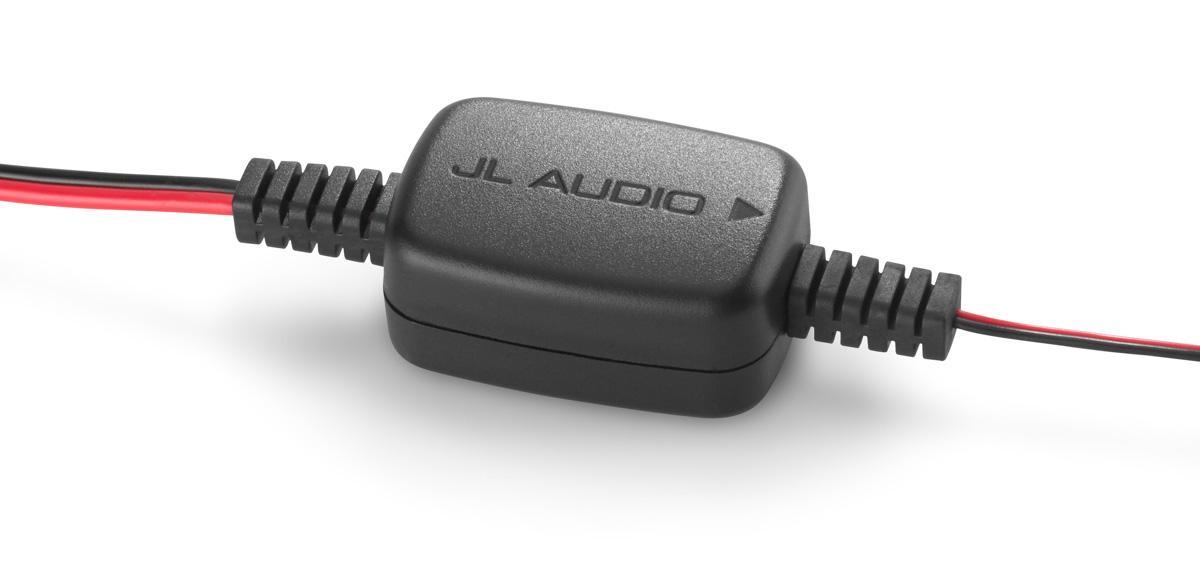

• The tweeters can be flush-mounted or surface-mounted with the supplied fixtures to fit a wide variety of installation needs. Inline, outboard, 12 dB / octave, high-pass filters are included to ensure smooth response and reliability. These fliters also are equipped with Advanced Tweeter Protection Circuitry to improve power handling and reliability.
• When it comes to value, C1 is the real deal!
• Sold as a pair. Surface-mount and flush-mount fixtures and grilles are included.

General Specifications

• Continuous Power Handling (RMS): 50 W
• Peak Music Power* :150 W
• Recommended Amplifier Power (RMS): 20 - 50 W / Ch.
• System Efficiency: 91.0 dB at 1 W / 1 m
• System Nominal Impedance: 6 ohms
• System Frequency Response: 4 kHz - 24 KHz ± 3 dB

*With supplied crossover

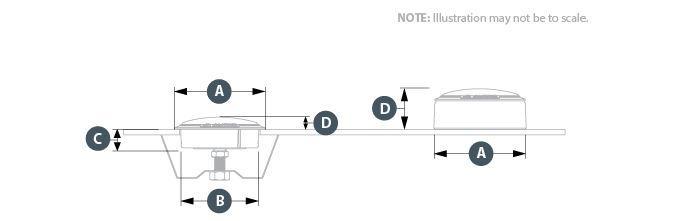

Tweeter Physical Specifications (Pict.3)

• Flush Mount Fixture Diameter (A1): 1.67 in / 42 mm
• Surface Mount Fixture Diameter (A2): 1.71 in / 43 mm
• Flush Mount Mounting Hole Diameter (B): 1.46 in / 37 mm
• Flush Mount Mounting Depth (C): 0.40 in / 10 mm
• Flush Mount Tweeter Frontal Protrusion (D1): 0.23 in / 6 mm
• Surface Mount Tweeter Frontal Protrusion (D2): 0.76 in / 19 mm

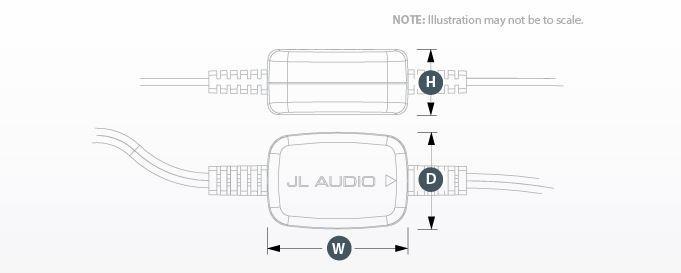

Crossover Physical Specifications (Pict.4)

• Width (W): 1.96 in / 50 mm
• Depth (D): 1.34 in / 34 mm
• Height (H): 0.90 in / 23 mm
