€141.55 * €149.00 * (5% Saved)
Content: 1 Paar
Prices incl. VAT plus shipping costs
available,
Delivery time appr. 1-2 working days
- Order number: 02010C1570X
- EAN 699440990448
C1-570x Coaxial Speaker System: 5 x 7 / 6 x 8-inch (125 x 180 mm) Woofer, 0.75-inch (19 mm)... more

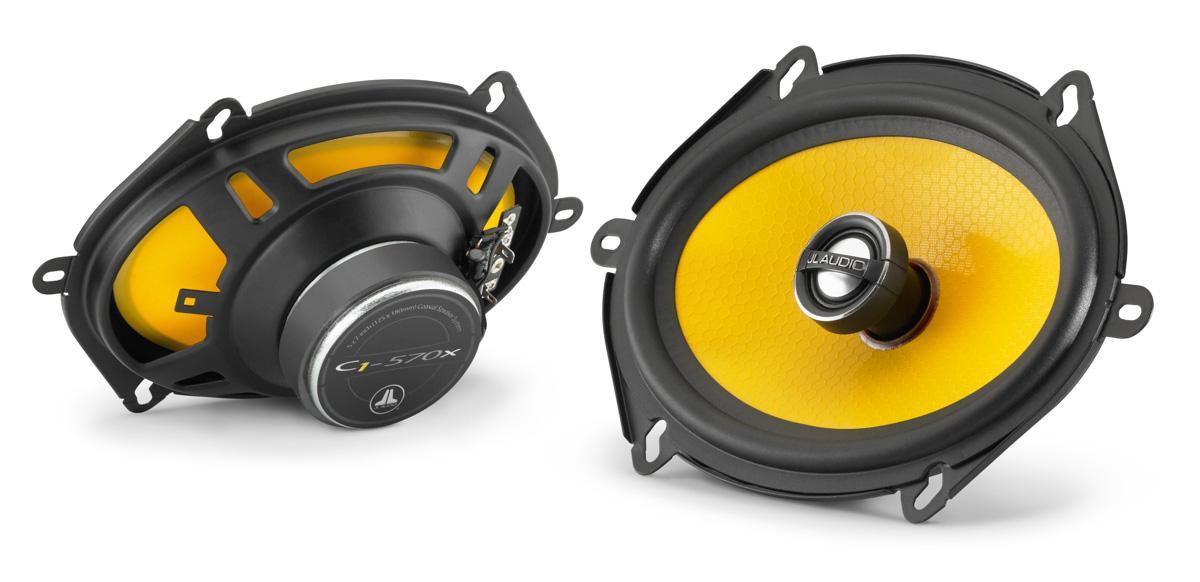

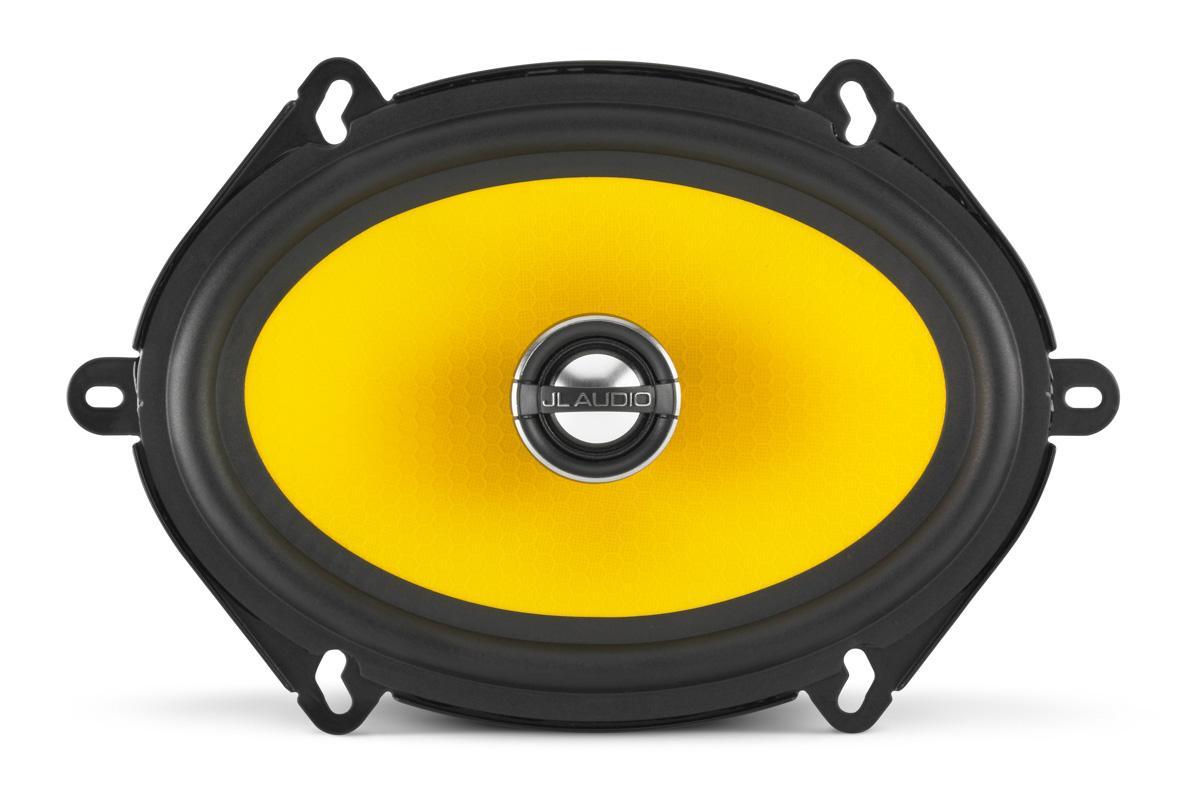

Product information "JL Audio C1-570x - Coax-System 5x7""
C1-570x
Coaxial Speaker System: 5 x 7 / 6 x 8-inch (125 x 180 mm) Woofer, 0.75-inch (19 mm) Aluminum Dome Tweeter
- C1 speakers deliver real substance and great audio performance in a format designed for easy fit behind factory grilles.
- To facilitate fit, spacer/adaptor rings are included, allowing the C1-570x to be installed in bottom-mount applications. The speaker baskets are also equipped with slotted mounting holes to fit into 6 x 8-inch factory speaker locations.
- C1 woofer drivers benefit from proprietary FEA modeling and JL Audio's expertise in low-frequency driver design. This knowledge is used to create speakers that can play loudly, while maintaining a smooth, dynamic, low distortion sound. At the core of the C1-570x is a proprietary, stamped, steel 5 x 7-inch (125 x 180 mm) oval frame and a DMA-optimized motor system. A mineral-filled, injection-molded polypropylene cone is suspended with a rubber surround on the front, and a carefully engineered flat Conex® spider at the top of the voice coil, to precisely control motion and prevent impact between the voice coil and the back plate. Tinsel leads are carefully routed and attached to the spider to prevent fatigue and buzzing. These are the same kinds of features and materials normally found on much more expensive loudspeakers.
- Equipped with a true, edge-driven, aluminum dome tweeter, C1 speakers stand further apart from others in its category with superior high-frequency clarity and definition. The tweeter’s design has inherently excellent off-axis response and high-frequency extension. It also benefits from the damping of a silk surround suspension and Ferrofluid in the voice coil gap, along with the superior strength of a neodymium magnet circuit. A true, 2nd order high-pass filter is employed to further enhance smoothness and improve power handling.
- When it comes to value, C1 is the real deal!
- Sold as a pair. Grilles not available.
General Specifications
- Continuous Power Handling (RMS): 50 W
- Peak Music Power: 225 W
- Recommended Amplifier Power (RMS): 10 - 75 W / Ch.
- System Efficiency: 90.5 dB at 1 W / 1 m
- System Nominal Impedance: 4 ohms
- System Frequency Response: 40 Hz - 24 KHz ± 3 dB

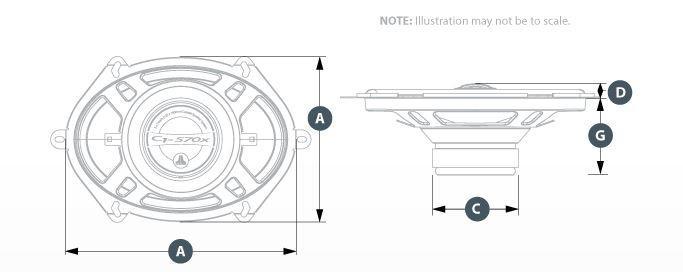

Coaxial Physical Specifications (Pict.3)
- Frame Outer Diameter* (A) 5.50 x 7.63 in / 140 x 194 mm
- Grille Tray Outer Diameter (B) N/A
- Motor Outer Diameter (C) 2.76 in / 70 mm
- Frontal Coaxial Tweeter Protrusion** (D) 0.46 in / 12 mm
- Frontal Grille Protrusion (E) N/A
- Mounting Hole Diameter (F) N/A
- Mounting Depth (G) 2.46 in / 63 mm
*Does not take into account mounting tabs
**Frontal coaxial tweeter protrusion measured from mounting surface
quantity: | 1 pair |
Abmessungen (in Zoll): | 5 x 7" |
Impedance (in Ohm): | 4,0 |
Speaker Type: | Coax-System |
Speaker Features: | 2 ways |
Peak Power (in Watt): | 225 |
Power RMS (in Watt): | 50 |
Product group: | Speaker |
