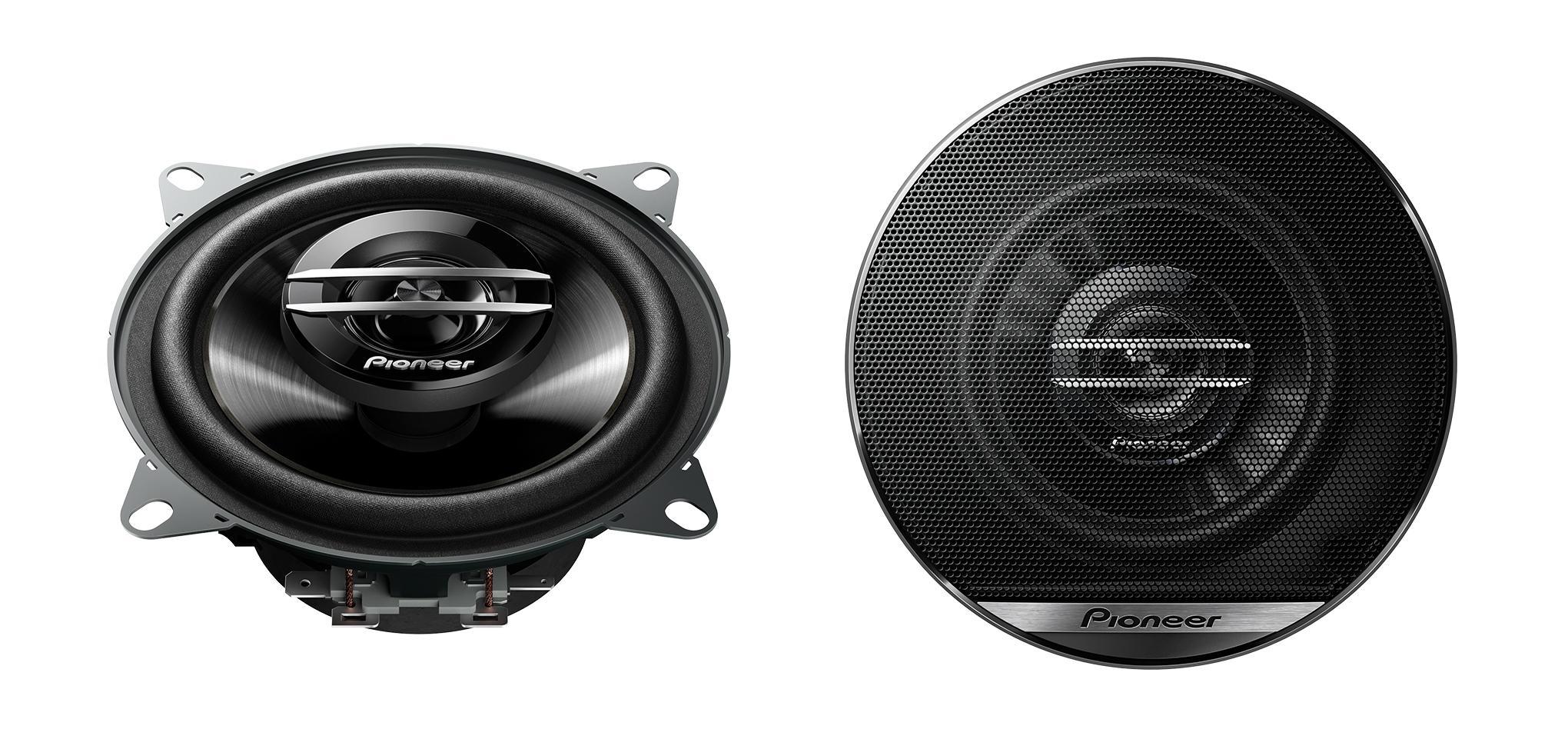

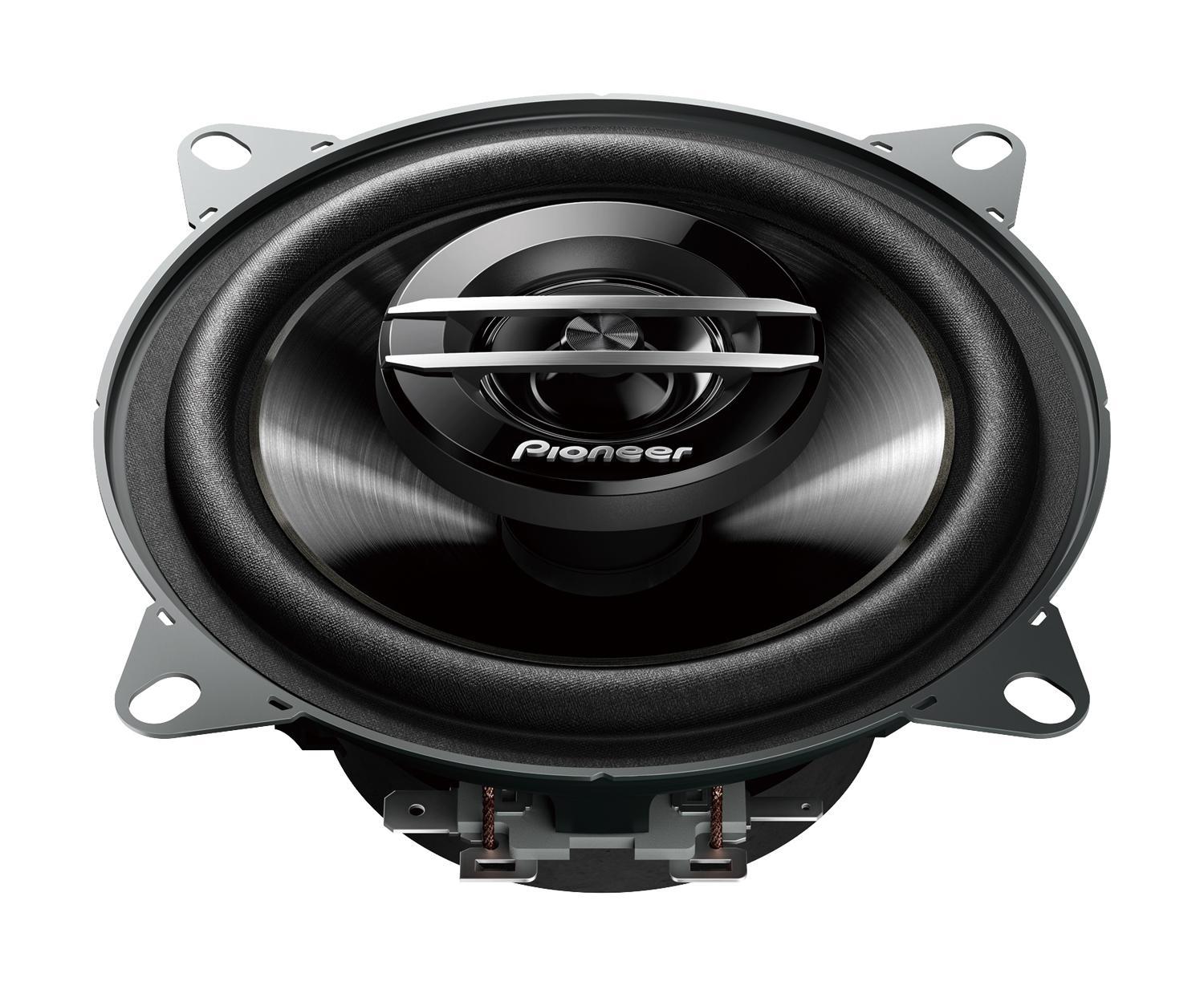

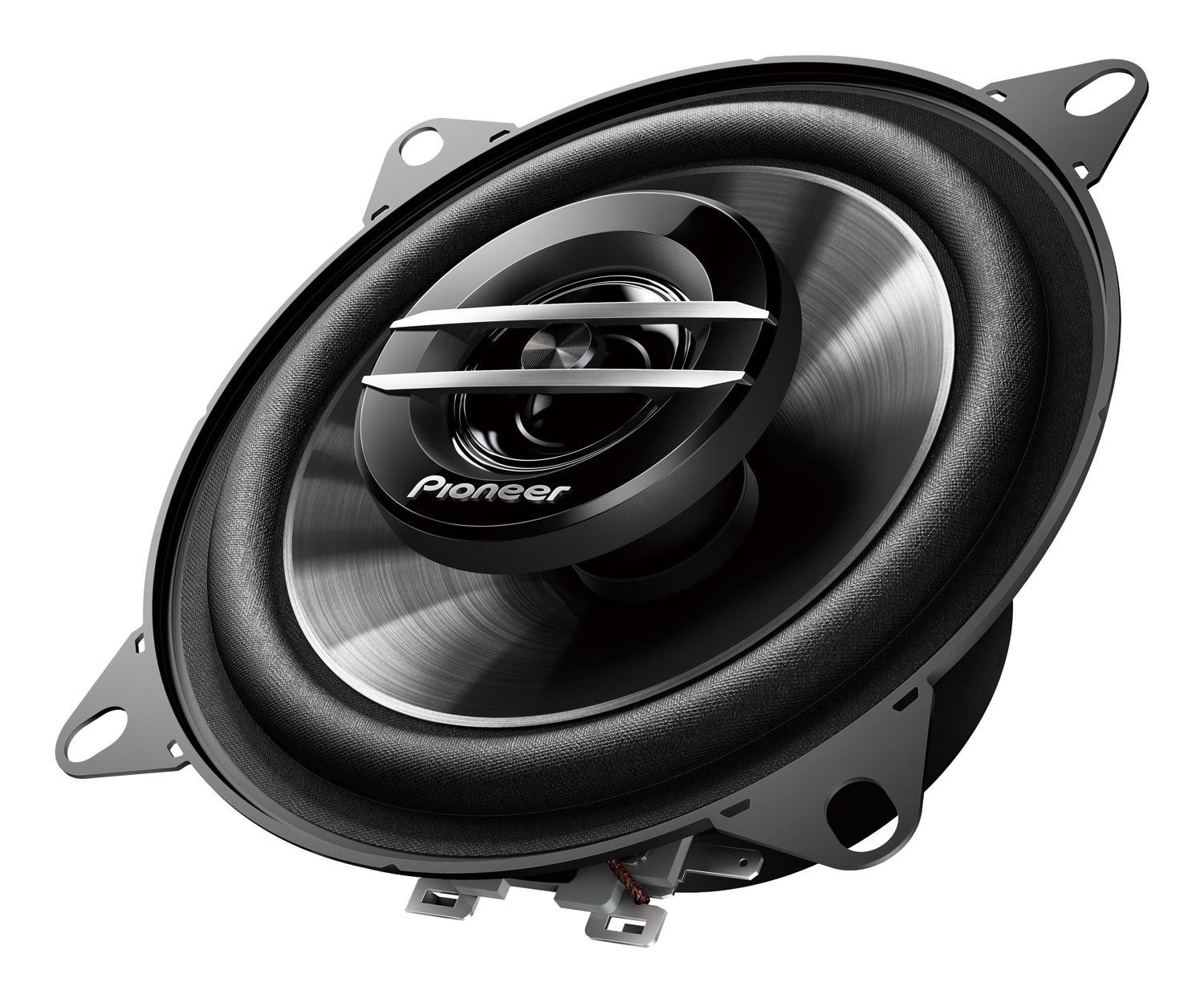

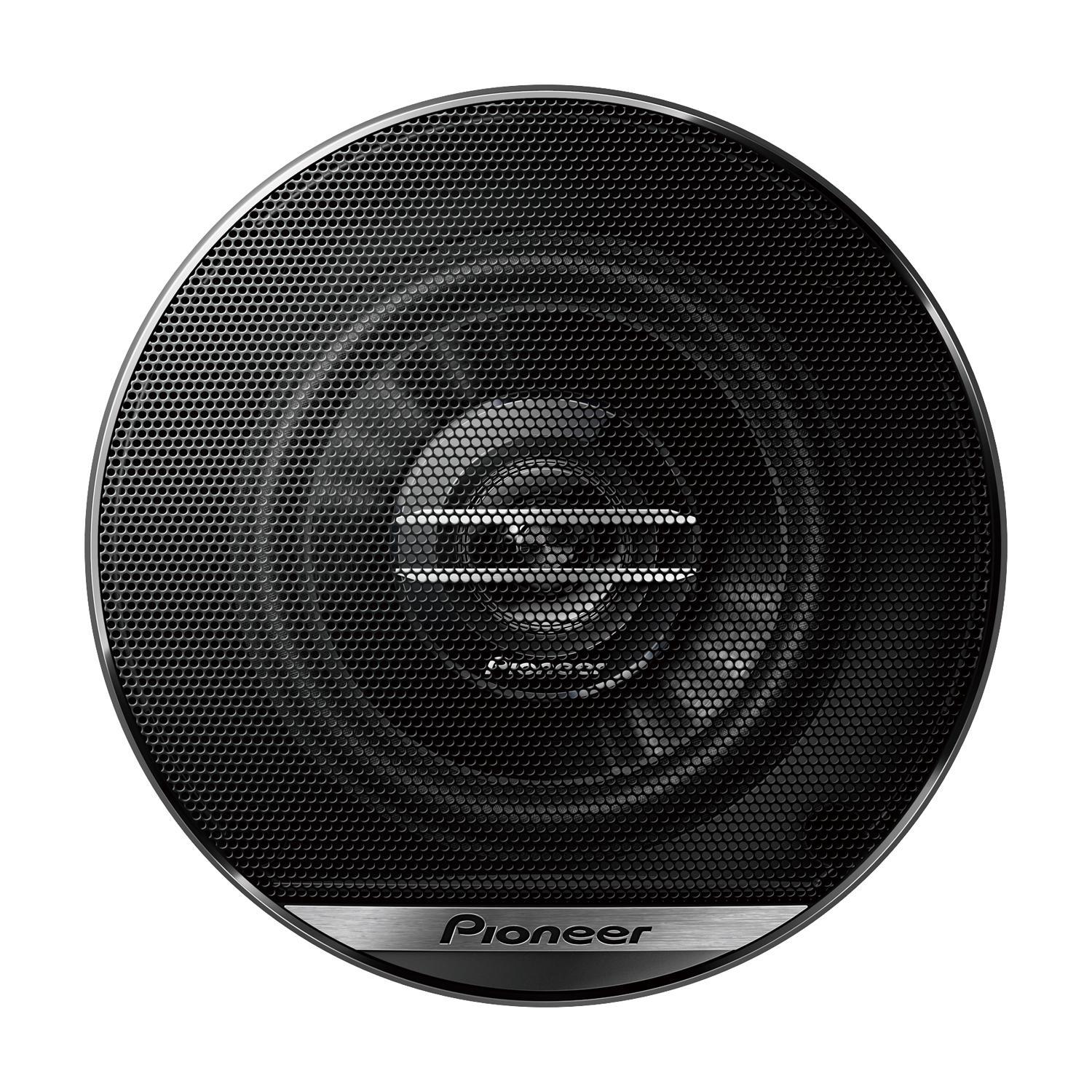

Pioneer TS-G1020F - 10cm 2-Wege Koaxlautsprecher

TS-G1020F
10cm 2-Way Coaxial Speakers (210W)

For better-sounding drives.
Discover the renewed G-series

• The improved G-series speaker range is specifically developed for premium and powerful audio, with excellent value for money. Their rigid design has been optimised with multi-bolt patterns, making it very easy to install any G-series speaker in your car. Thanks to their increased power handling and high sensitivity performance, these speakers reproduce deep, impactful bass and natural highs – even at high volumes.

TS-G1020F

• Upgrade your in-car sound in a smart and affordable way with the TS-G1020F. This 10cm 2-way coaxial speaker delivers up to 30 Watts of nominal power and has a maximum power output of 210 Watts. It also features:

Full specifications
Main Features

• Coaxial Speakers
• Size 10 cm
• Impedance 4 Ω
• Frequency response 35 - 27,000
• Sensitivity 87 dB
• Lowest resonance frequency 113 Hz
• Maximum power 210 W
• Nominal input power 30 W
• Woofer material IMPP Composite Cone
• Tweeter size 30 mm
• Tweeter material PET
• Voice Coil type Copper
• Voice Coil bobbin type KAPTON
• Magnets Y35
• Weight 0.35 kg
• Cut-out Hole 106 mm
• Mounting Depth 43 mm
• 2 Way Coaxialsystem
