Audison APK 165P - 2-Wege Compo

APK 165P

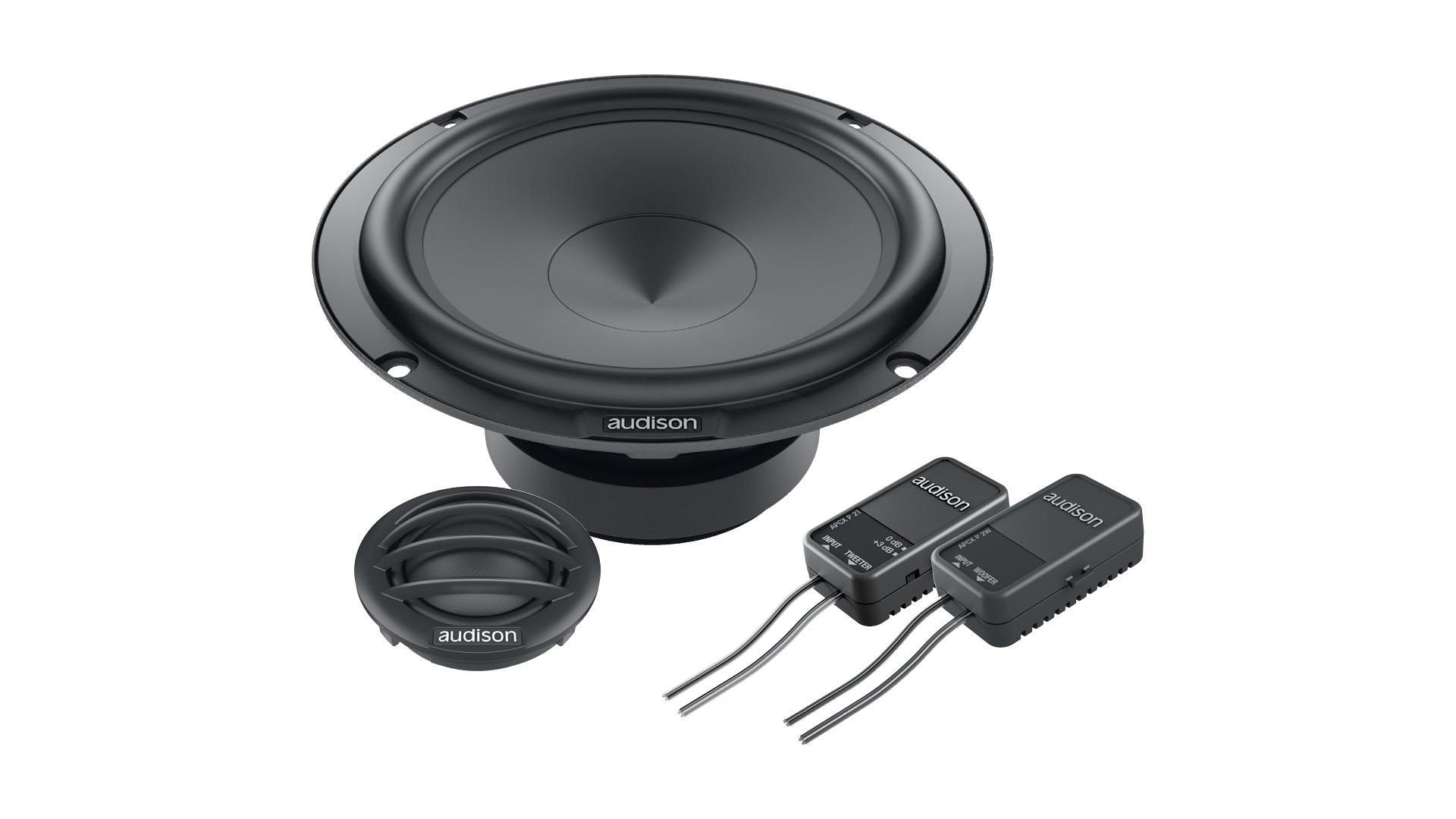

The new Prima APK 165P two-way loudspeaker system, with a power of up to 240 W, is the ideal combination to fully exploit the power of the AP F8.9 bit or any other Prima amplifier used in high power configurations.

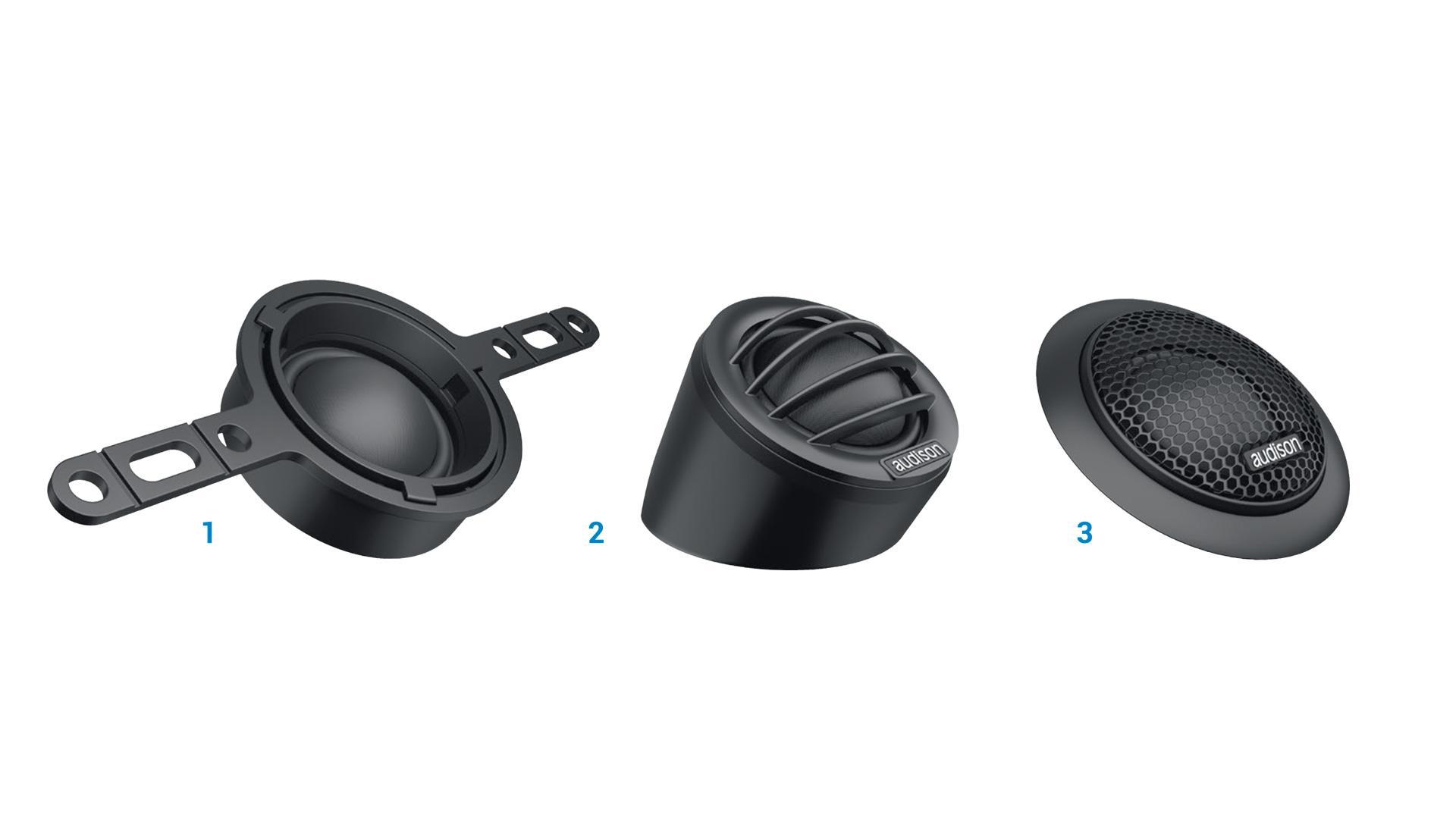

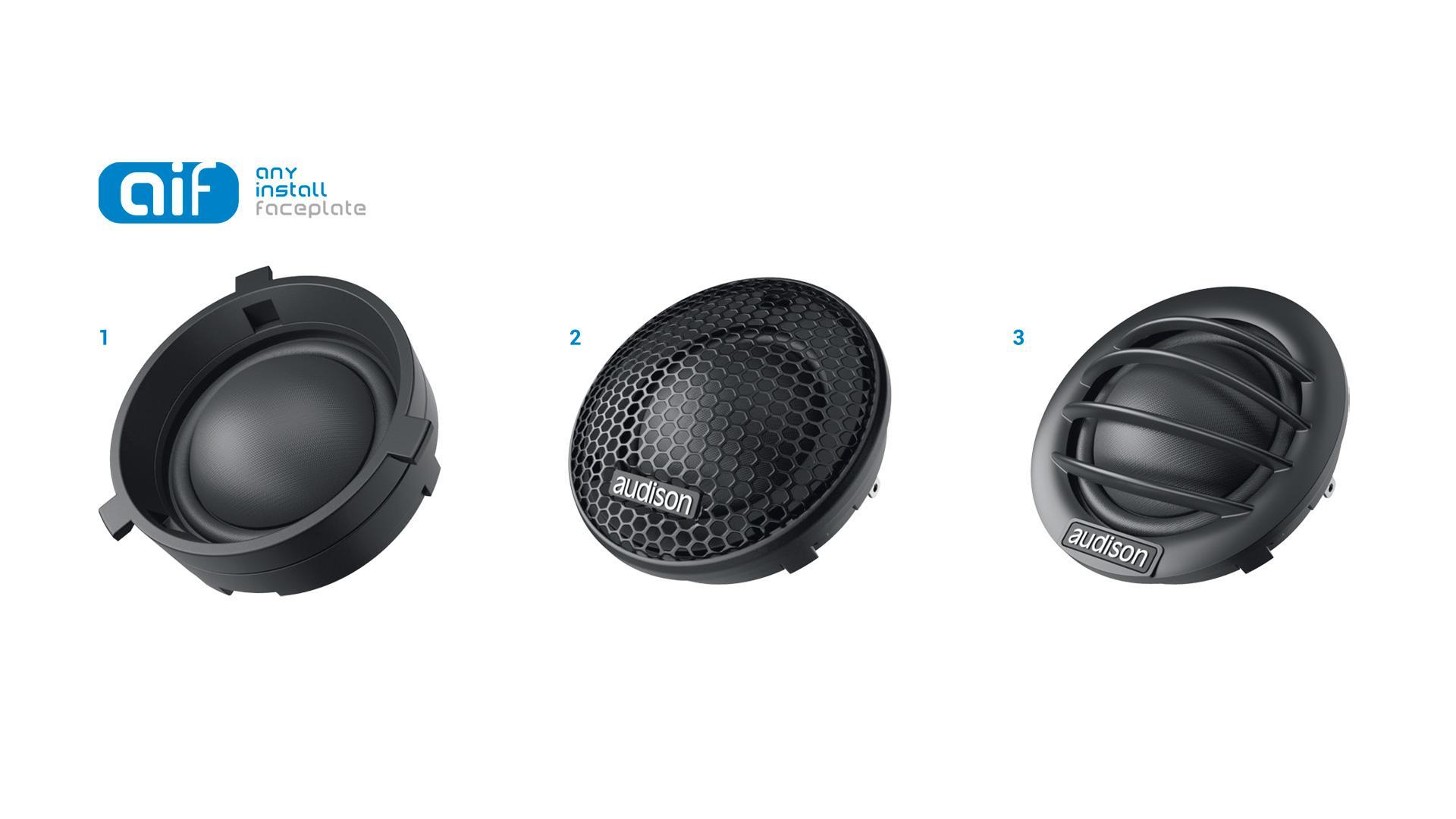

The AP 1P Tweeter's exclusive AIF (Any Install Faceplate) technology gives the installer 3 different OEM grids for multiple installations and a significant reduction in installation time. The woofer is designed to perform best in OEM system applications, combining power and efficiency.

Technical Specifications

• System type 2 way
• Component tweeter AP 1P
• Component woofer AP 6.5P
• Tweeter crossover APCX P 2T
• Tweeter crossover type 4kHz High-Pass @ 12 dB/Oct
• Woofer crossover APCX P 2W
• Woofer crossover type 4kHz Low-Pass @ 6 dB/Oct
• Size 165 mm (6.5″) Woofer
• 29 mm (1.14″) Tweeter
• Power Handling 115 W Continuous Power
• 345 W Peak Power
• Impedance 4 ohms
• Frequency Response 50 – 24k Hz
• Sensitivity at 2.83 Vrms / 1m 92,5 dB/Spl
