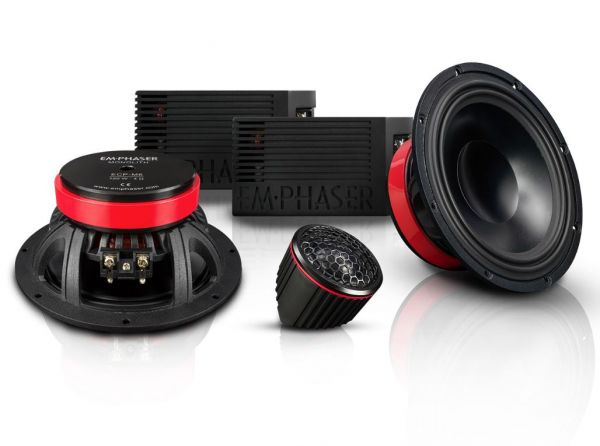

Emphaser ECP-M6 - 16,5cm 2-Wege Compo

The new Monolith Compo series consists of three models: ECPM6 (16.5 cm), ECP-M5 (13 cm) and ECP-M4 (10 cm). The one at this
The materials used in the series have been carefully selected and precisely matched to one another: due to their hardness and high natural resonance frequency, the aluminum membrane of the woofers is ideally suited for detailed and extremely low-distortion reproduction.
The 25 mm tweeter with fabric dome convinces with its warm sound and the ability to produce even the smallest musical details.
The heart of the systems are the elaborately designed crossovers: The components are in intensive test series in the laboratory and in the
Vehicle has been defined in order to achieve the best possible phase position of tweeters and woofers in the takeover area. The result: authentic voices and instruments and theirs
precise positioning on the imaginary stage with impressive depth.
For increased installation convenience, the crossovers have been divided into separate housings for the high and low frequencies. This enables easy installation at the original installation location without the need to lay new cables across the vehicle. The switch components are of high quality in order to influence the music signal as little as possible. In the direct signal path in particular, only air coils, film capacitors and MOX resistors are used. The treble level adjustment in three stages is done via a massive jumper.
The scope of delivery includes stable cover grilles and a body for the tweeter. This housing can be mounted at two different angles in order to align the beam axis perfectly.

MAIN FEATURES: Woofer

• Die-cast aluminum basket with optimized temperature management
• Strontium ferrite magnet
• Aluminum membrane with inverse aluminum dust cap
• Butyl rubber surround, low distortion even with high deflections
• 2-layer copper wire voice coil, wound on temperature-resistant, electrically neutral polyimide voice coil former
• Durable Connex centering spider with a woven voice coil feed

MAIN FEATURES TWEETER

• 25 mm dome
• Neodymium magnet
• CNC machined aluminum housing with a small installation depth
• Protective grille with a very large opening area for high sound permeability and low reflections
• Surface-mounted housing for mounting in 2 different beam angles

MAIN CHARACTERISTICS OF THE FREQUENCY SWITCH

• Separate crossover housing for high and low tones for the best possible ease of installation, no mutual interference between the two signal paths due to chokes that are too close together
• Use of high quality air coils, foil capacitors and MOX resistors in the direct signal path
• 12 dB woofer / 12 dB tweeter filter
• 3-stage level adjustment for the tweeter

Technical specifications

• 16.5 cm component system
• Power rating: 120 W RMS
• Nominal impedance: 4 ohms
• Frequency response: 60 Hz - 22 kHz
• Sensitivity 1W / 1m: 91 dB
• Installation diameter: 145 mm
• Installation depth: 64 mm
