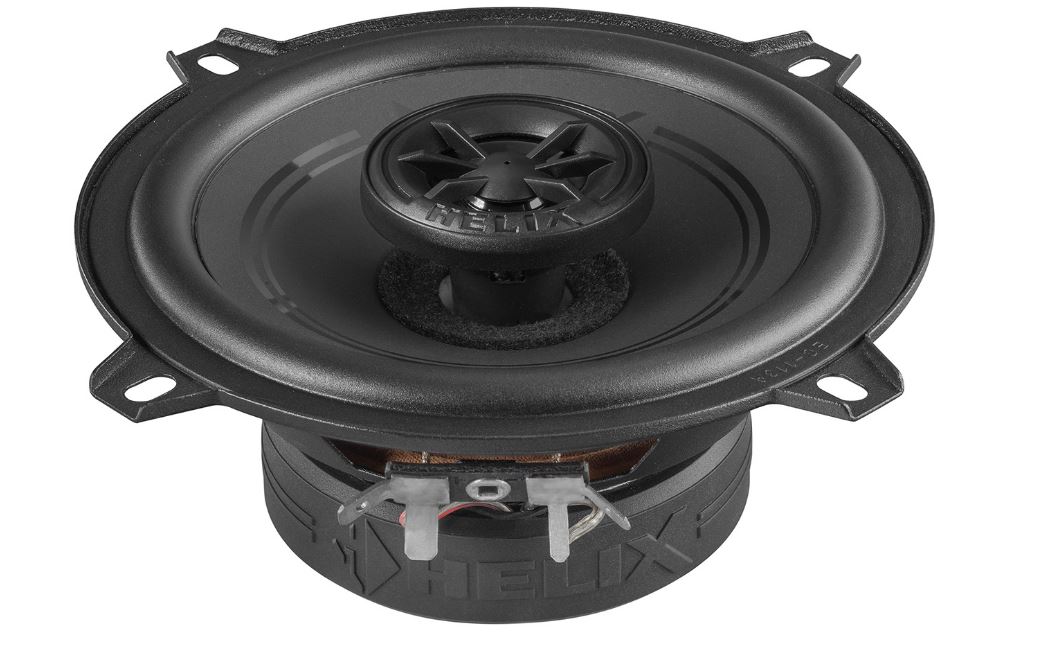

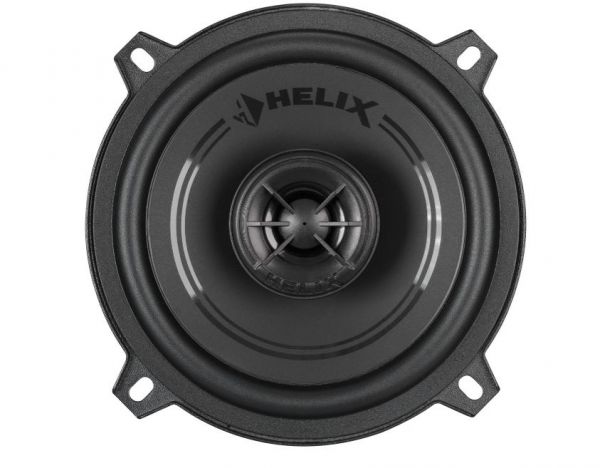

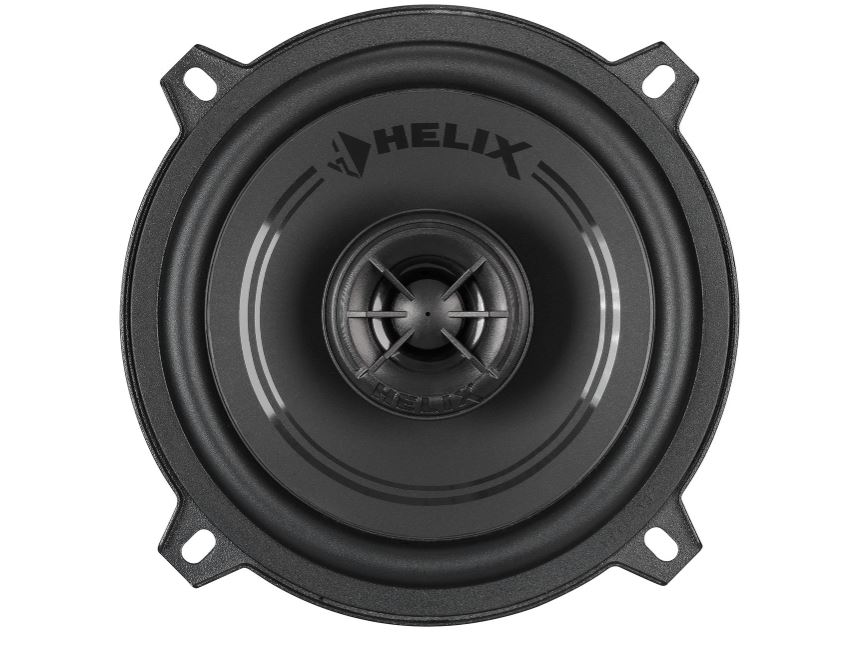

Helix F 5X - 13cm 2-Wege Coax

Immerse yourself in the world of HELIX sound with the new F speaker series. The combination of tried and tested components and the most modern materials guarantees a unique sound experience with a rich bass, precise mids and detailed highs.
During the development, special attention was paid to easy integration into the vehicle due to the low installation depth.
The noble design underlines the qualities at first sight. The woofers in this series have a stylish, elegant design with a matt black HELIX membrane and a glossy black HELIX logo.

Features

• Stylish, elegant design with matt black HELIX membrane and glossy black HELIX logo
• 130 mm woofer with a new, low-resonance membrane made of injected polypropylene with embedded carbon fibers
• 13 mm Mylar tweeter with neodymium magnet for lively, differentiated high frequency reproduction
• Basket in individual HELIX design with additional ventilation openings for optimized cooling of the voice coil for high load capacity
• Solid rubber protection with HELIX logo for the magnet systems
• Integrated crossover with 6 dB slope

Technical specifications

• Power RMS  50 watts
• Power max. 100 watts
• Frequency range  70 Hz - 22,000 Hz
• Impedance  3 ohms
• Efficiency 1 W / 1 m: 90 dB
• Membrane material
• HT: Mylar
• MT: -
• TT: Injection-molded polypropylene with embedded carbon fibers
• Crossover
• Integrated
• 6 dB slope
• outer diameter  129 mm
• Mounting diameter  112 mm
• Installation depth  50 mm

scope of delivery

• 2 x coaxial loudspeakers HELIX F 5X
• 1 x mounting material
• 1 x instruction manual
• 1 x installation template
