Audison Prima AP 1P - 2.9 cm tweeter

AP 1P - 2.9cm tweeter

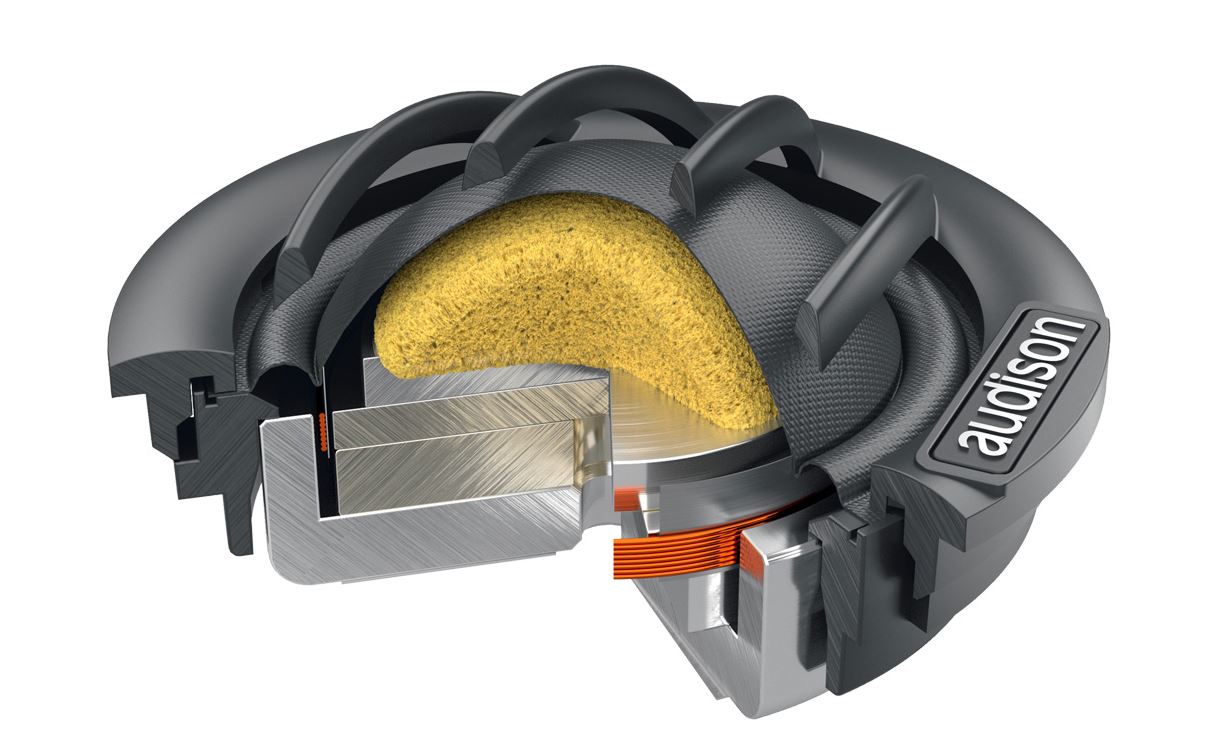

The exclusive AIF (Any Install Faceplate) technology of the AP 1P tweeters offers the installer 3 different faceplates for comprehensive variety and a significant reduction in installation time. The dual neodymium magnet used in the motor provides excellent extension at high frequencies and together with the 1" CCAW voice coil, provides excellent dynamics.

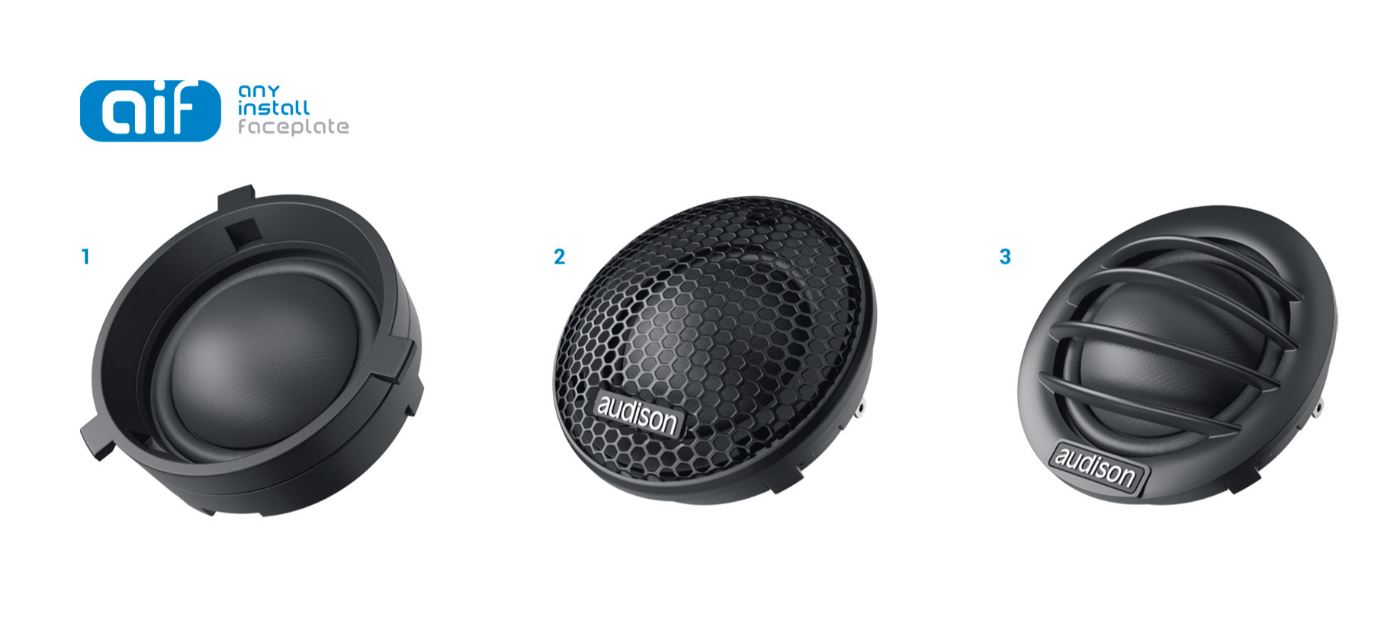

• The AIF technology to support OEM integration offers the specialist three different faceplates:
• OEM, for quick installation close to the factory
• Grilling: for the best compromise between protection and performance in A-pillar installations
• Spoke grille: for maximum acoustic performance in A-pillar installations

Thanks to the AIF, the potential of the AP 1P tweeter is fully exploited in every installation. The supplied mounting accessories make installing the AP 1P child's play:

• Fastening strap
• Built-in cup with two angles
• Washer
• Metal mounting spring

Specifications

• Component: Tweeter
• Size: Woofer 29 mm (1.14'')
• Power Handling: Hi-pass filtered 2.5 kHz at 12 dB Oct. 150W peak power
• Impedance: 8 ohms
• Frequency Response: 2k ÷ 20k Hz
• Crossover: APCX P 2T
• Tweeter Level: 0 / +3 dB
• Sensitivity: 92 dB/spl
• Magnet: Neodymium
• Dome: Tetolon fibre
