Alpine SPC-R100-DU Stage 1 - 12cm 2-way coax for Fiat Ducato

Alpine SPC-R100-DU

Alpine "Adventure Audio" sound systems offer excellent sound quality and meet the special requirements of motorhomes and camper vans.
These systems feature new innovative sound technologies so that the desired sound quality can be achieved in your motorhome or camper van.
The Adventure Audio program offers a three-stage sound upgrade for the Fiat Ducato 3 and identical vehicles.
The newly developed 12 cm radial on-dash broadband speakers SPC-R100-DU on the cockpit play for you across the entire frequency spectrum. Due to their special design and positioning, these speakers develop an excellent surround sound in the cockpit.
In particular, the playback of news channels, audio books or podcasts is raised to a new level.

These speakers are ideal for the Fiat Ducato 3, Citroën Jumper 2 and Peugeot Boxer 2 .

Alpine Adventure Audio - the sound experience

For an all-round optimal sound experience in your Fiat Ducato, the Concert Ensemble is the first choice. It consists of the 12 cm Radial broadband loudspeaker system SPC-R100-DU, the subwoofer system SWC-D84S and the amplifier SWA-150KIT with remote control. This will give you the best sound experience in your motorhome or camper van.

Liberating sound reproduction with the Companion Ensemble

The SPC-R100-DU of the Companion Ensemble  was developed to enable liberating sound reproduction in the vehicle cockpit.
Originally, tweeters and woofers are far apart in the vehicle. The doors do not provide sufficient sound protection due to a lack of insulation and cause strong vibration noises that are quickly perceived as disturbing by neighboring motorhomes on a campsite. Last but not least, the door speakers are covered by the legs of the driver and passenger. This inevitably leads to an unbalanced sound image and the voice reproduction suffers considerably.
The solution: the basic concept of the SPC-R100-DU is to mount the full-range speakers on the dashboard and thus avoid the problems mentioned above from the ground up.

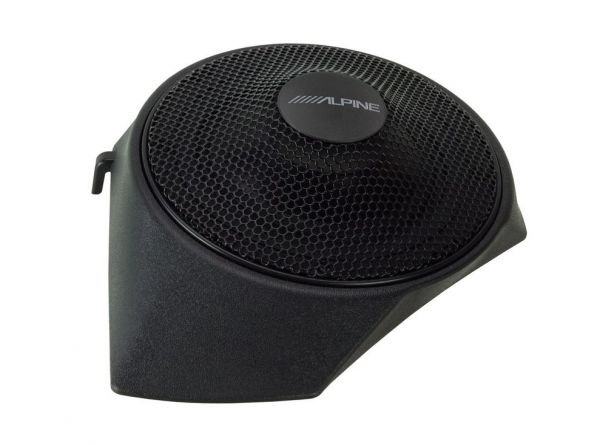

On-Dash Radial Full-range Speakers

The 12 cm radial full-range speakers are installed on the dashboard and replace the original tweeters. These speakers have a convex cone design, which results in excellent 360-degree sound radiation. They deliver excellent sound detail, especially for voice reproduction. This significantly improves listening to news, podcasts or audio books, but regular music tracks also sound more detailed and balanced.

Easy installation

Mounting the SPC-R100-DU Radial full-range speakers on your dashboard is very easy. The supplied speaker mounts fit the shape of the dashboard perfectly and are attached using the screws provided. Due to the unique speaker design with an outwardly curved membrane, we can make the entire speaker very flat and avoid unnecessary changes to the cockpit. The necessary connection adapters are also included in the delivery. This enables simple plug-and-play installation and connection to the tweeter's original wiring harness.

Vehicle compatibility

The SPC-R100-DU is designed to be compatible with motorhomes, camper vans and delivery vans based on the Fiat Ducato 3, Citroën Jumper 2 and Peugeot Boxer 2 with the original cockpit. Existing or retrofitted blackout systems (e.g. REMIfront) are not restricted by the loudspeaker system and can continue to be used as usual.

Equipment

Loudspeakers

• 12 cm radial broadband loudspeaker
• Convex membrane for a flat loudspeaker design
• Excellent 360 degree Radiation behavior

Installation

• Mounting bracket on the dashboard included
• Cable adapter for tapping the original tweeter included
• All necessary installation materials included

Specifications

Resilience

• Max. power: 180 watts
• RMS power: 45 watts

Dimensions

• Radial broadband speaker installation diameter: 120 mm
• Radial broadband speaker installation depth: 12 mm
• Radial broadband speaker height: 45 mm

General

• Frequency range: 100 Hz - 20 kHz
• Impedance: 4 ohms

Kompatible Fahrzeuge

• Fiat Ducato III (250) 06/2006 →
• Fiat Ducato III Facelift (250) 2011 - 2014
• Fiat Ducato III (290) 2014 →
• Citroën Jumper II (250) 06/2006 →
• Peugeot Boxer II (250) 06/2006 →

Compatible with original Fiat and aftermarket car radios and navigation systems.

For fully integrated vehicles, please check compatibility before purchasing!
