Superior sound performance

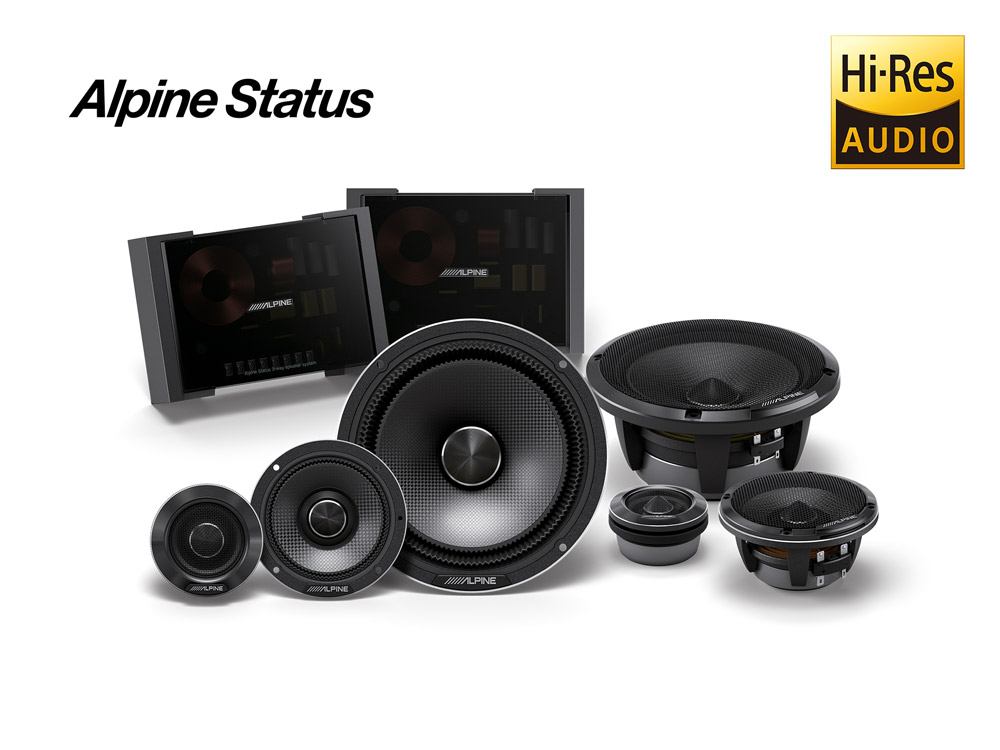

Alpine presents “Alpine Status”: using the same technical concepts and design elements as the 3rd generation of our “AlpineF#1Status” system, with extremely high resolution, Alpine has developed the “Alpine Status” system.
The experience and goal of offering high-resolution sound in the vehicle at an attractive price is thus fulfilled. "Alpine Status" is also extremely flexible: All components can also be purchased and used as a "stand-alone" solution.
For lovers of audiophile music who want to create an optimal sound system, "Alpine Status" offers a wide range of Hi-Res Audio-capable speakers.
The HDZ-653 3-way component speakers with a high-resolution bandwidth of 55 Hz - 40 kHz have a 170 mm door woofer, 96 mm midrange and a 70 mm ring radiator tweeter with a 25 mm voice coil. In addition, high-end speaker crossovers are also included in the set.
All speaker membranes are made of the same carbon composite to create a uniform sound identity during playback.
They are very close to the look and feel of the AlpineF#1Status speakers and use a very similar construction and motor arrangement as well as the same materials for the highest sound quality.
Features
- Hi-Res Audio certified §-way speaker system
- Based on AlpineF#1Status speaker technology
- Maximum load capacity Peak: 300 watts
- Maximum power consumption RMS: 100 Watt

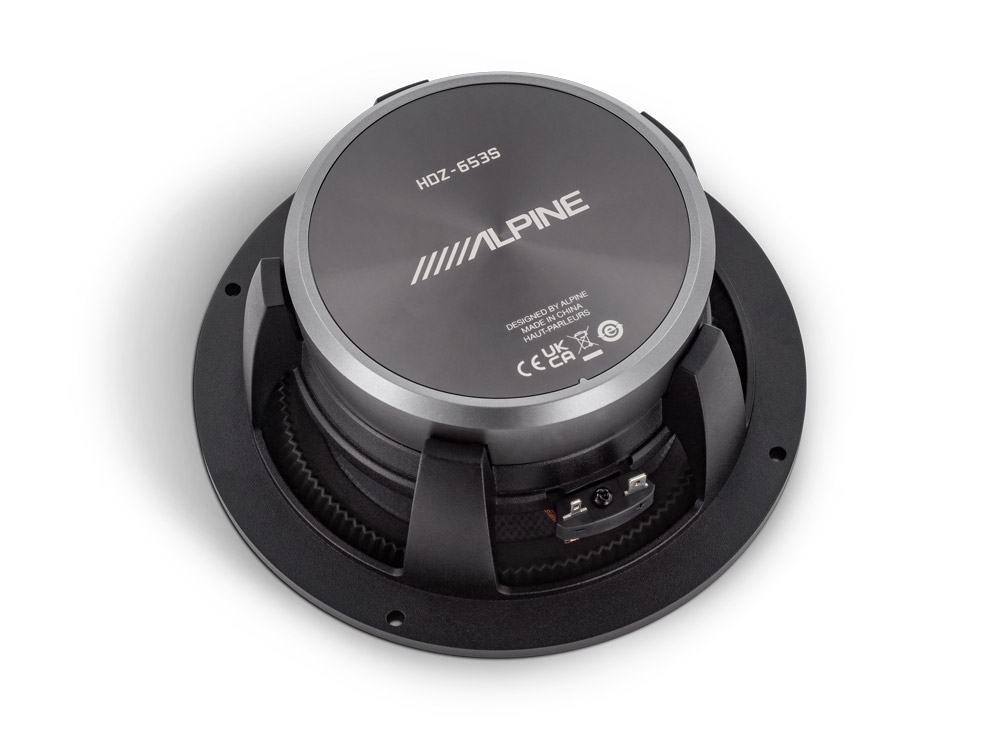

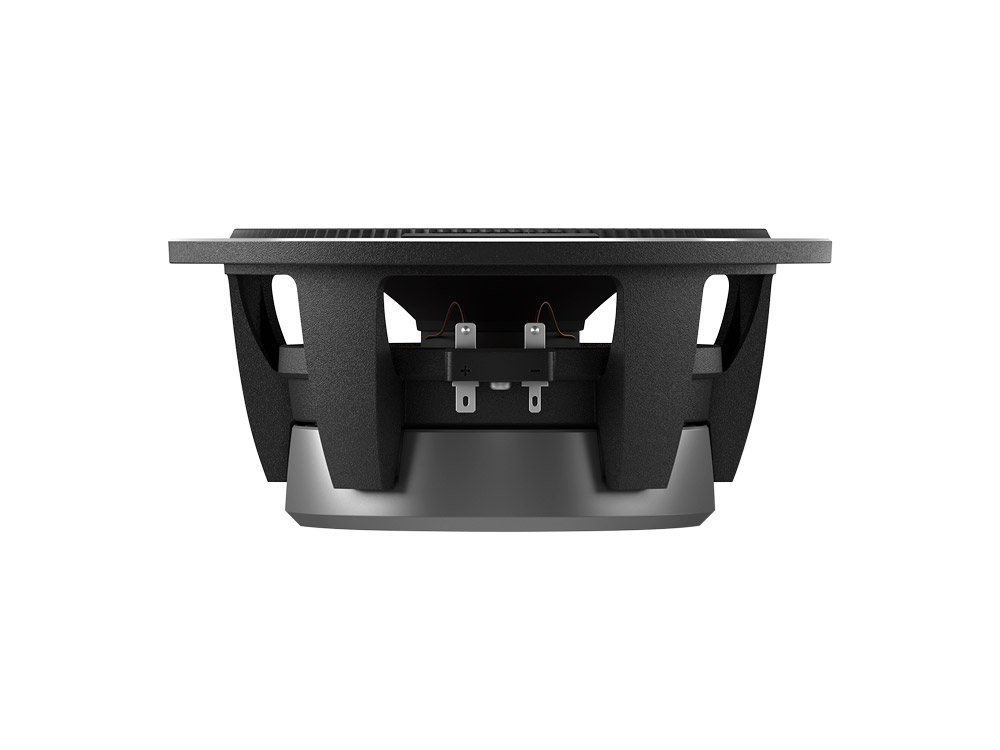

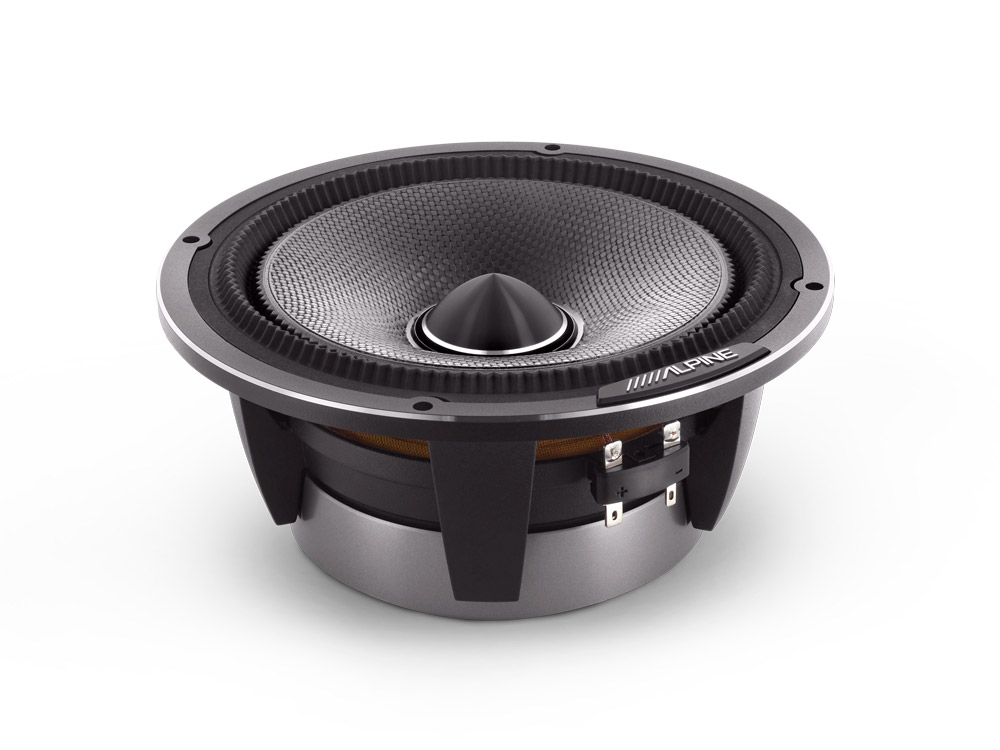

- Woofer diameter: 170 mm (177 mm with cover grille)

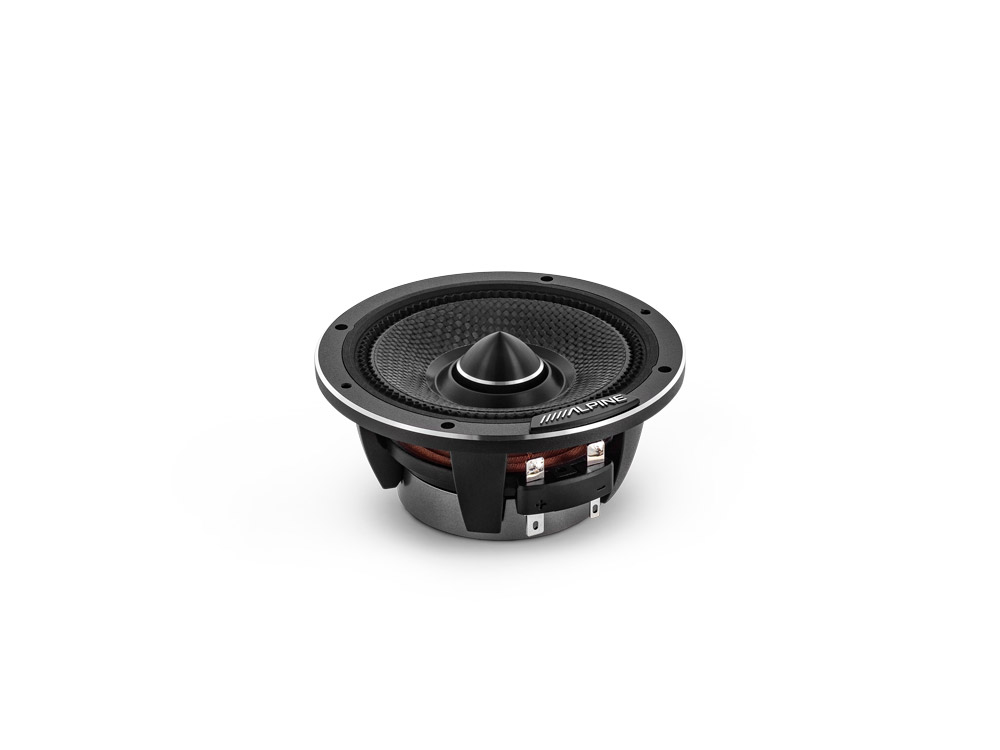

- Midrange speaker diameter: 96 mm
- Tweeter diameter: 70 mm (25 mm Scl)
- Die-cast aluminum basket

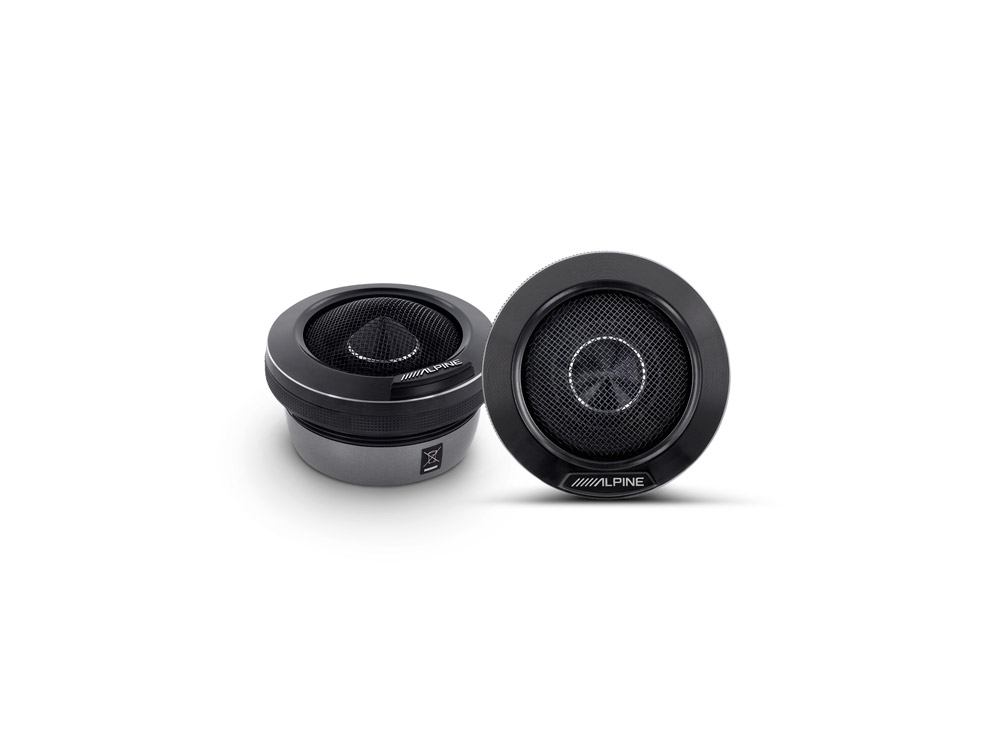

- Tweeter as ring radiator
- Membran made of carbon composite material
- Double surround

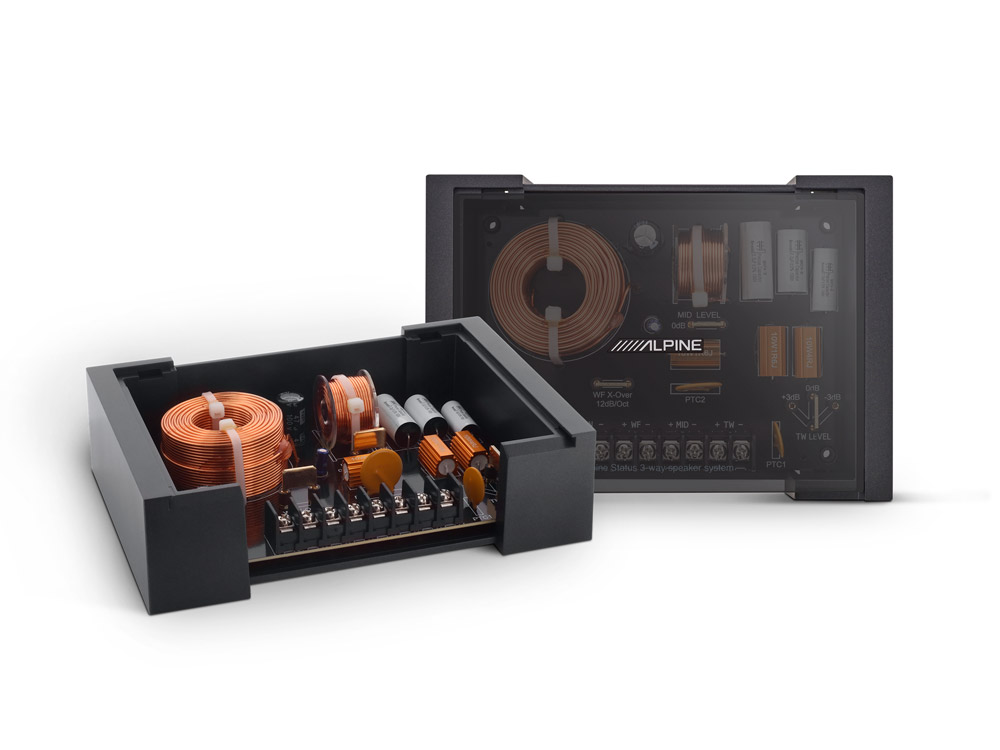

- High-end crossovers
- Including speaker cover grille
- Integrated wave guide on all speakers
Specifications
- Impedance 4 Ω
- Efficiency 88 dB SPL (2.83 V @ 1 m)
- Frequency range: 55 Hz – 40 kHz
- Installation depth: woofer 67mm / midrange 39 mm
- Hole cutout: woofer 142 mm / midrange 79 mm
- Recommended amplifier power: up to 100 W/RMS per channel
- Ferrite magnet (woofer)
- Neodymium magnet (midrange and tweeter)
Thiele & Small Parameters Midrange Speaker
- Re: 3.67 Ohm
- fs: 165 Hz
- Mms: 4,140 g
- Rms: 1,228 kg/s
- Cms: 0.225 mm/N
- BI: 4,110 N/A
- Sqm s: 3.495
- Qes: 0.932
- Qts: 0.736
- Vas: 0.4711 l
- Sd: 38.48 cm2
Thiele & Small Parameters Door Woofer
- Re: 3.58 Ohm
- fs: 62 Hz
- Mms: 18,341 g
- Rms: 1,436 kg/s
- Cms: 0.359 mm/N
- BI: 6,407 N/A
- Qms: 4.979
- Qes: 0.624
- Qts: 0.554
- Vas: 8.9526 l
- Sd: 132.73 cm2
| quantity: | 1 pair |
| Diameter (in cm): | 16,5 |
| Housing color: | black |
| Impedance (in Ohm): | 4,0 |
| Speaker Type: | Compo-System |
| Speaker Features: | 3 ways |
| Peak Power (in Watt): | 300 |
| Power RMS (in Watt): | 100 |
| Product group: | Speaker |
