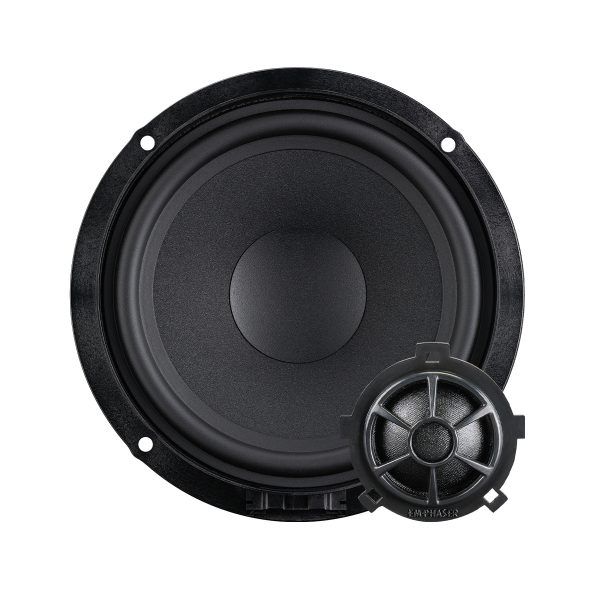

Emphaser EM-VWFX155 - 15.5cm 2-way Compo for VW, Seat and Skoda

EM-VWFX155 & EM-VWFX180 are probably the most versatile 2-way speaker systems from EMPHASER from the UNIVERSE series.
The two compos consist of precisely fitting components for the majority of current Volkswagen, Seat and Skoda vehicles and deliver a fantastic sound.
Pure musical enjoyment with room-filling bass and detailed sound.

Key features

• 15.5 cm 2-way component system
• Suitable for Volkswagen, Seat and Skoda models
• Vehicle-specific connections
• Optimized frequency response for real Hi-Fi sound
• Woofer with “CRYSTALGRAIN” compound membrane for detailed sound performance
• long-lasting Connex centering spider and rubber surround, powerful magnet
• 25 mm voice coil on temperature-resistant aluminum voice coil carrier
• 25 mm tweeter with fabric dome and without ferrofluid cooling for maximum brilliance and the greatest possible dynamic range
• Separate high-quality crossovers for the high-frequency and low-frequency branches
• Crossovers with 6 dB/6 dB filtering at 3,000 Hz

The mid-bass driver

Thanks to the EMPHASER “CRYSTALGRAIN” compound membrane, the bass-midrange speaker plays very detailed and naturally.
The increased rigidity, the low resonances, the improved damping properties and the wide frequency reproduction lead to precise and detailed sound reproduction.

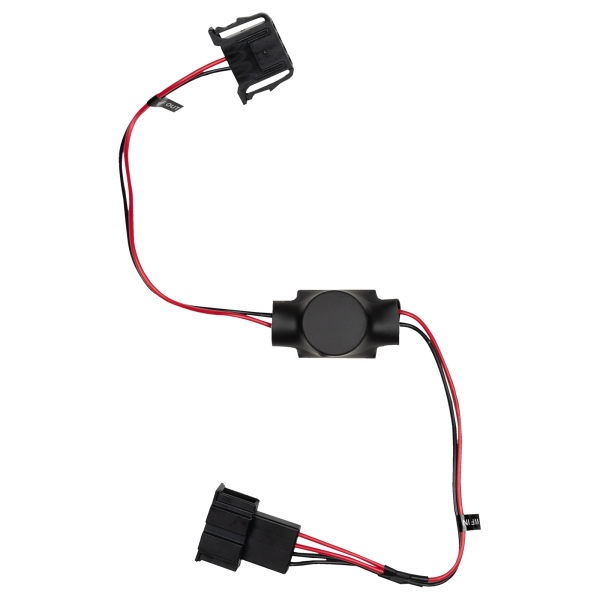

The crossover with its precisely fitting plugs not only simplifies installation, but also ensures that the sound is optimally tuned and no valuable detail of the music is lost.
The woofer crossover in this FX series is not mounted on the basket, but rather via a cable crossover with precisely fitting plugs. Depending on the concept, it can therefore be easily added or removed.

The tweeter

The tweeter's fabric dome offers a variety of benefits, including low distortion, even dispersion and a natural, warm sound character. These properties help ensure that the music is reproduced in all its clarity and brilliance. Like the woofer, the crossover integrated in the cable ensures optimal sound. The connection is made via the original plug of the vehicle.

Technical specifications:

• 2-way 15.5 cm component system
• Frequency response: 70 Hz – 22 kHz
• Nominal impedance: 2 ohms
• Sensitivity 1W/1m: 90 dB
• Rated load capacity: 80 W RMS

Scope of delivery:

• 2 tweeters
• 2 pieces woofers
• 4 pieces of crossovers

Compatible with the following vehicles:

• Seat Altea 2004 – 2015 Front Door
• Seat Altea XL 2006 – 2015 Front Door
• Seat Arona 2018 – 2022 Front Door
• Seat Arosa 1997 – 2004 front door
• Seat Cordoba II 2002 – 2009 Front Door
• Seat Ibiza 6L 2001 – 2008 Front Door
• Seat Ibiza 6F 2018 – 2021 Front Door
• Seat Leon 1M 2000 – 2005 Front Door
• Seat Leon 1P 2006 – 2012 Front Door
• Seat Mii 2012 – 2021 Front Door
• Seat Toledo III 2004 – 2009 Front Door
• Seat Toledo IV 2012 – 2019 Front Door

• Skoda Fabia II 2007 – 2014 Rear door
• Skoda Fabia III 2014 – 2021 Front Door
• Skoda Fabia III 2014 – 2021 Rear door
• Skoda Kamiq 2019 – 2021 Front Door
• Skoda Octavia I 1996 – 2004 Front Door
• Skoda Octavia III 2013 – 2020 Front Door
• Skoda Octavia IV 2020 - today front door
• Skoda Rapid 2012 – 2020 Front Door
• Skoda Roomster 2006 – 2015 Front Door
• Skoda Roomster 2006 – 2015 Rear Door
• Skoda Scala 2019 - today front door
• Skoda Yeti 2009 – 2017 Front Door

• Volkswagen Amarok 2010 – 2021 Front Door
• Volkswagen Amarok 2010 – 2021 Rear Door*
• Volkswagen Arteon 2017 – today rear door
• Volkswagen Atlas 2020 - today rear door
• Volkswagen Beetle 2012 – 2019 Rear Door*
• Volkswagen Caddy V 2020 - today front door
• Volkswagen Crafter 2017 - today front door
• Volkswagen Golf VI 2008 – 2012 Front Door
• Volkswagen Golf VI 2008 – 2012 Rear door*
• Volkswagen Golf VII 2012 – 2021 Front Door
• Volkswagen Golf VII 2012 – 2021 Rear door*
• Volkswagen Golf VIII 2021 - today front door
• Volkswagen Golf VIII 2021 - today rear door
• Volkswagen ID 3 2019 – today front door
• Volkswagen ID 3 2019 – today rear door*
• Volkswagen ID 4 2020 – today front door
• Volkswagen ID 4 2020 – today rear door*
• Volkswagen Passat B8 2014 – today rear door
• Volkswagen Polo IV 2005 – 2009 Front Door*
• Volkswagen Polo IV 2005 – 2009 rear door*
• Volkswagen Polo V 2009 – 2017 Front Door
• Volkswagen Polo V 2009 – 2017 Rear Door
• Volkswagen Polo VI 2017 – today front door
• Volkswagen Polo VI 2017 – today rear door*
• Volkswagen Scirocco III 2008 – 2017 Front Door
• Volkswagen Scirocco III 2008 – 2017 Rear door*
• Volkswagen Taigo 2021 - today front door*
• Volkswagen Taigo 2021 - today rear door*
• Volkswagen T-Cross 2018 – today front door
• Volkswagen Tiguan 2007 – 2018 Rear Door
• Volkswagen Tiguan II 2016 – today rear door
• Volkswagen Touran 2015 – today rear door
• Volkswagen T-Roc 2018 - today front door
• Volkswagen T-Roc 2018 – today rear door*
• Volkswagen Up! 2012 – today Front Door*
