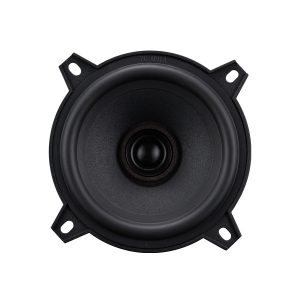

Emphaser GRAVITY ECX-G4 - 10cm 2-way coax

Emphaser ECX-G4 - 10cm 2-way coax

GRAVITY stands for accentuated and warm sound - without major installation effort

A coaxial speaker system is always the best solution for precise spatial music reproduction.
The GRAVITY Coaxials go one step further by mounting the tweeter at the height of the woofer membrane.
This design principle counteracts the time difference between the two individual membranes and improves the phase of the entire music signal.
The new CRYSTALGRAIN compound membrane is responsible for the warmth of the GRAVITY sound.
It combines the high rigidity and damping effect of paper with the direct step response of the quartz crystals attached to the top.
The 13 mm tweeter with its delicate fabric dome also impresses with its extraordinary brilliance.
The carefully selected components are supported by the minimalist-designed Emphaser FlowMax die-cast aluminum basket.
The very open construction with the delicate struts gives the sound emitted to the rear a maximum of space and a minimum of unwanted reflection surfaces that affect the sound.
And despite its delicate design, the construction offers maximum stability.
Another innovation is the new EMPHASER screw terminal: although it is very solid, it takes up very little space and ensures secure signal transmission with the force-locking connection through solid hexagon screws and gold-plated contact surfaces.

GRAVITY is the latest embodiment of our pursuit of perfection –  experience a great sound experience with the Emphaser ECX-G4 2-way coaxial loudspeaker.

Main features

• 10 cm coaxial loudspeaker
• Midrange speaker with Emphaser CRYSTALGRAIN compound membrane
• Emphaser FlowMax aluminum die-cast basket with optimized temperature management
• Strontium ferrite magnet
• Butyl rubber surround
• Two-layer Copper wire voice coil, wound on a temperature-resistant aluminum voice coil carrier
• Durable Connex centering spider with woven voice coil lead
• 13 mm tweeter with fabric dome
• Emphaser screw terminal with gold-plated contact surfaces

Technical specifications

• Nominal power handling: 60 W RMS
• Nominal impedance: 4 Ohm
• Frequency response: 95 Hz – 22 kHz
• Sensitivity 1W/1m: 84 dB
• Installation diameter: 93 mm
• Installation depth: 45 mm

Scope of delivery:

• 2 coaxial speakers
• Speaker cover optional: ESP-GR4
