Axton ATC130S - 13cm 2-way Compo System

Axton ATC130S - 13cm  2-way Compo System

The new AXTON 13 cm component system ATC130S replaces the successful predecessor model - with a significant increase in terms of efficiency and performance.
The ATC130S impresses with its impulsive sound and enormous spatiality, but also with its ease of installation: The innovative speaker baskets made of high-strength, low-vibration composite material enable an installation depth of a minimum of 39 mm - a real problem solver for tight installation spaces!

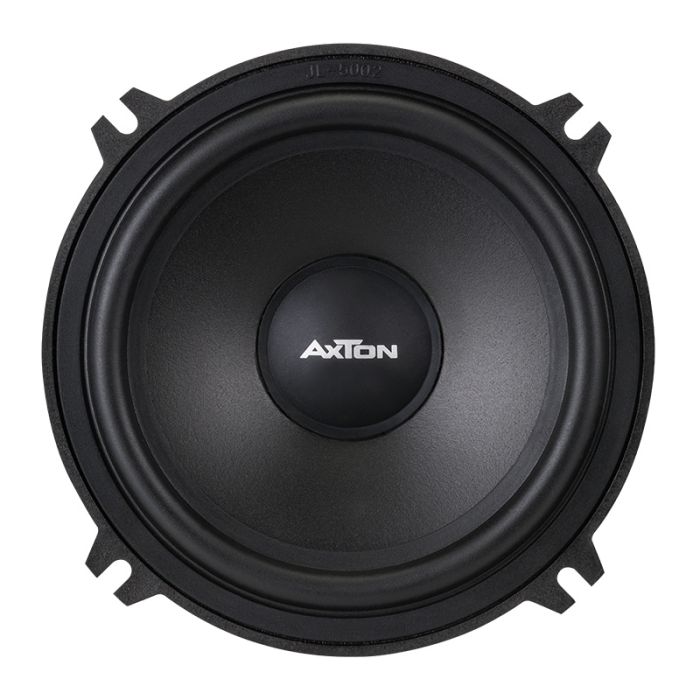

The bass / midrange speakers use a specially shaped basket that offers the necessary stability and contributes to optimal voice coil ventilation through the rear openings.
In addition, there is the proven AXTON PP membrane with its excellent damping and a massive ferrite magnet that increases efficiency.
The progressive suspension with Nomex spider and durable rubber surround is a light, durable enclosure that ensures high linearity and accuracy.
Thanks to the 25 mm fabric tweeter, extensive listening sessions are a pleasure even at high listening volumes.
The special diffuser enables targeted radiation and optimizes the stage image. Low resonance and faithful to detail in reproduction, the tweeter also scores with its small installation dimensions.
For flexible installation - even far away from the original installation opening - the set includes a surface-mounted housing that enables two different radiation angles.
The ATC130S can easily replace the factory-installed components: The woofers can be swapped 1:1, and there is no need to install a common crossover for the mid / woofer and tweeter. A crossover is located directly on the woofer, the compact 6 dB/oct. tweeter crossover (with 0 / -3 dB level reduction) included in the scope of delivery can be conveniently placed behind the panel.

Main features

•  Woofer/midrange speaker with strontium ferrite magnet, polypropylene injection-molded membrane, NBR nitrile rubber surround, Nomex centering spider, polyimide voice coil former
•  Tweeter with 25 mm fabric dome, ferrofluid-cooled neodymium drive, polyimide voice coil former, including mounting adapters
•  Compact 6 dB/oct. Inline crossover, high frequency level adjustable in two stages (0/- 3 dB) on the crossover

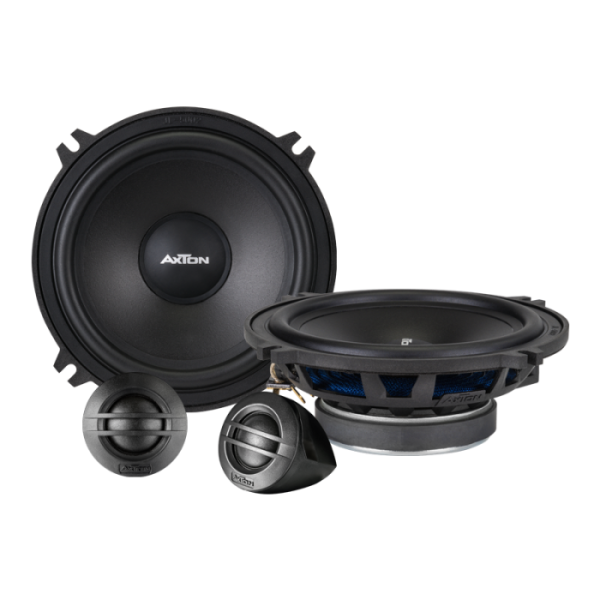

•  Scope of delivery: 2 x woofer/midrange speaker, 2 x speaker cover woofer/midrange speaker, 2 x tweeter, 2 x inline tweeter crossover, 2 x tweeter installation housing each, mounting accessories

Technical data

•  Nominal load capacity: 70 watts RMS
•  Frequency response: 80 Hz - 25 kHz
•  Impedance: 4 ohms
•  Sensitivity: 88 dB
•  Installation diameter: 116 mm, installation depth: 43 mm
