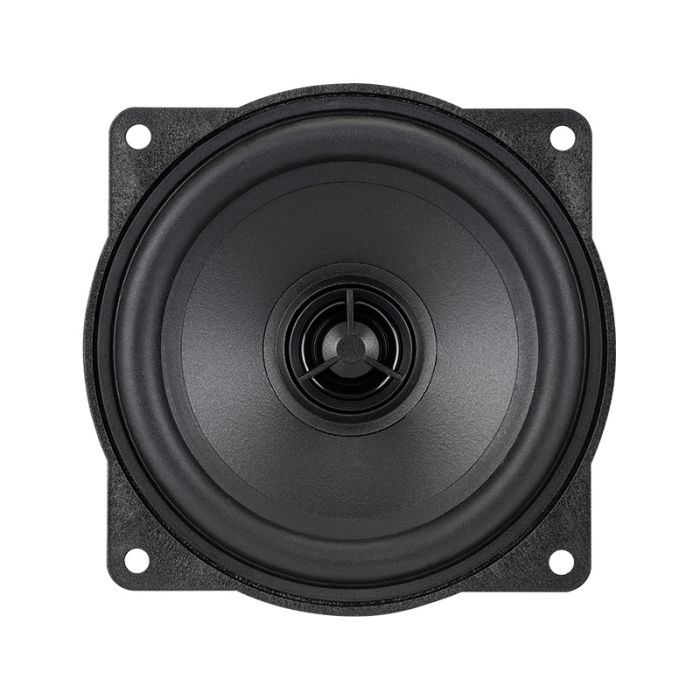

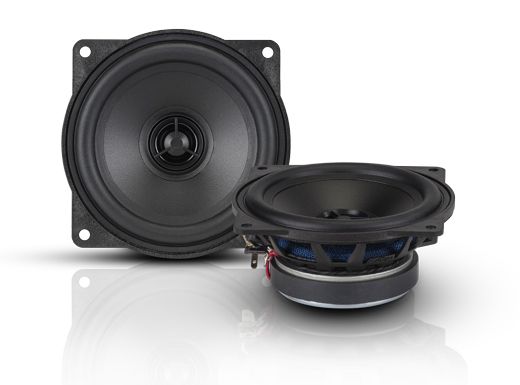

Axton ATX100S - 10cm 2-way coaxial system
The new AXTON 10 cm coaxial system ATX100S replaces the successful predecessor model, which was awarded "Best Product" - with a significant increase in terms of efficiency and performance.
The ATX100S impresses with its impulsive sound and enormous spatiality, but also with its ease of installation: The innovative speaker baskets made of high-strength, low-vibration composite material enable an installation depth of a minimum of 39 mm - a real problem solver for tight installation spaces!

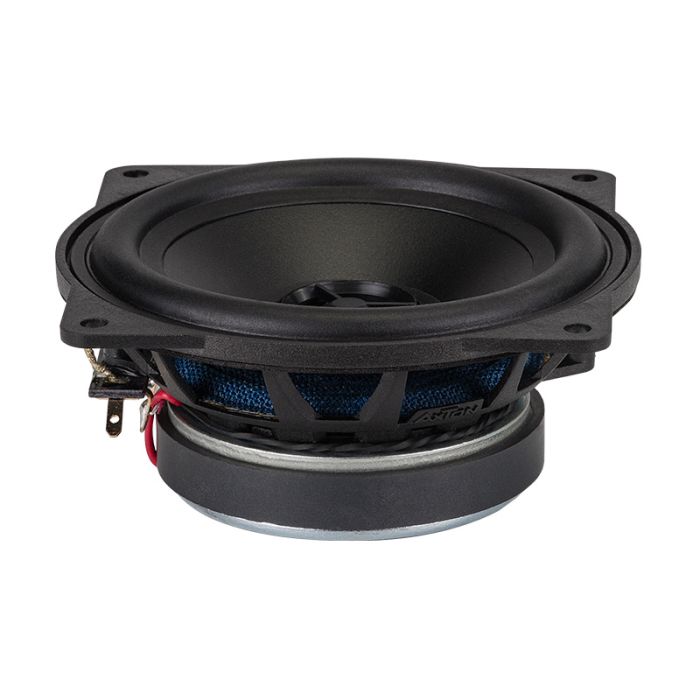

The bass / midrange speakers use a specially shaped basket that offers the necessary stability and contributes to optimal voice coil ventilation through the rear openings.
In addition, there is the proven AXTON PP membrane with its excellent damping and a massive ferrite magnet that increases efficiency.
The progressive suspension with Nomex spider and durable rubber surround is a lightweight, durable enclosure that ensures high linearity and accuracy.
The new 10 cm 2-way sound system is designed as a point sound source.
The 13 mm tweeter with ferrofluid-cooled neodymium drive is on the same level as the woofer membrane, allowing the respective frequency components to be emitted in phase.
Phase shifts in the transition area of the frequency components that occur with conventional protruding tweeters are therefore a thing of the past.
The result is transparent, clear music reproduction with high dynamics.
Main features
Bass/midrange speaker with strontium ferrite magnet, polypropylene injection-molded membrane, NBR nitrile rubber surround, Nomex centering spider, polyimide voice coil carrier
Tweeter with 13 mm Dome, ferrofluid-cooled neodymium drive, voice coil carrier made of polyimide
Gold-plated quick-connect terminals
Scope of delivery: 2 x speakers, 2 x speaker grilles, 1 x mounting accessories
Technical data
Nominal load capacity: 60 watts RMS
Frequency response: 85 Hz - 22 kHz
Impedance: 4 ohms
Sensitivity: 84 dB
Installation diameter: 93 mm, installation depth: 39 mm
quantity: | 1 pair |
Diameter (in cm): | 10cm |
Impedance (in Ohm): | 4,0 |
Speaker Type: | Coax-System |
Speaker Features: | 2 ways |
Peak Power (in Watt): | 120 |
Power RMS (in Watt): | 60 |
Product group: | Speaker |
