Helix PR T25-S - 25cm tweeter

5% discount

If you buy 1 of the products of this action, you will receive a discount of 5% .
€159.00 *

Prices incl. VAT plus shipping costs

in stock. Delivery time 1-3 working days

Seen cheaper?
Quantity
Artikel günstiger gesehen?
  • SW14161
  • 4057204324384
HELIX PR T25-S HELIX PURE R-SERIES: Pure sound, pure excellence HELIX PURE goes beyond... more
Product information "Helix PR T25-S - 25cm tweeter"

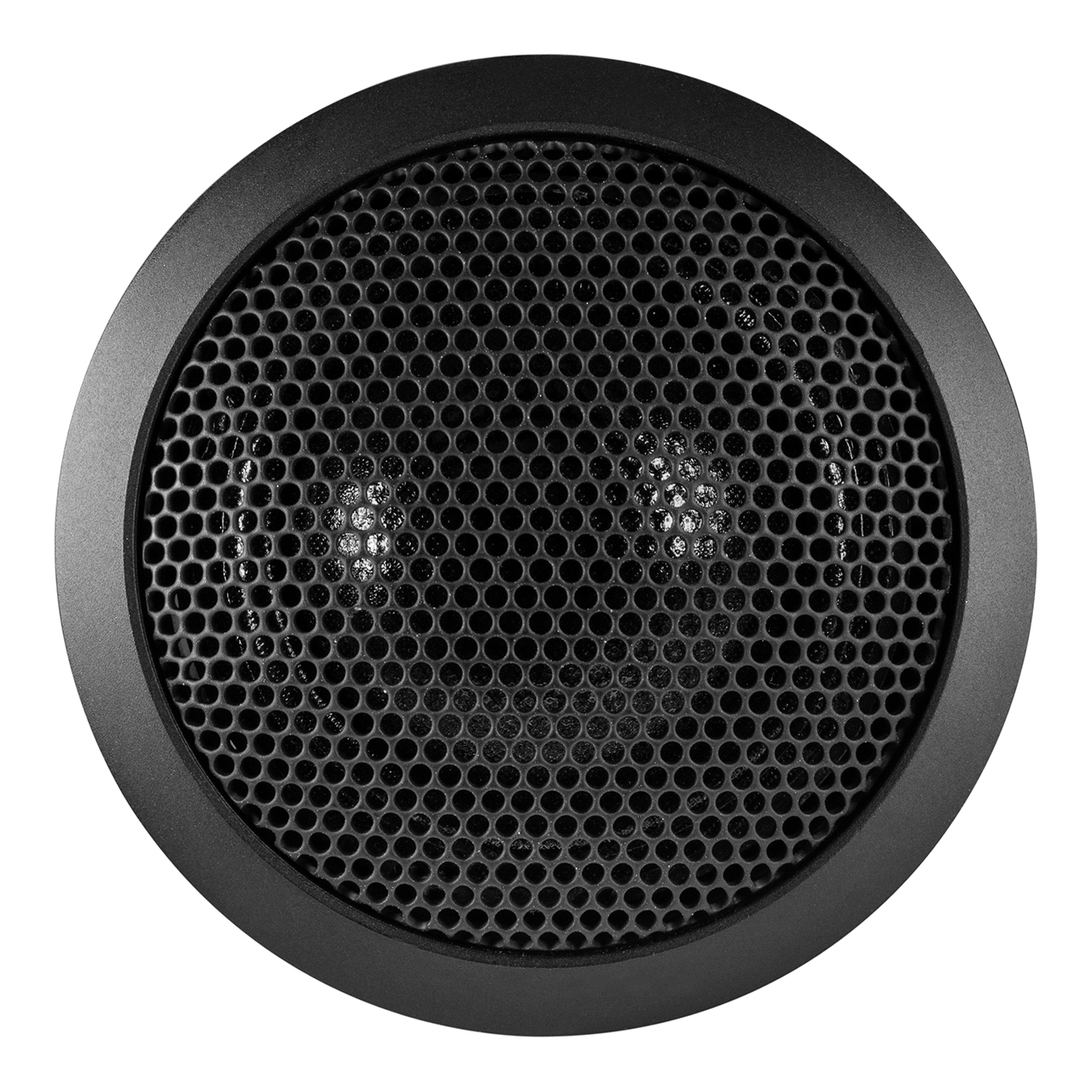

HELIX PR T25-S

HELIX PURE R-SERIES: Pure sound, pure excellence

HELIX PURE goes beyond music. This is an audiovisual experience with a focus on the highest sound quality and uniqueness - created for demanding audiophiles and individualists who make no compromises in their daily lives. The PURER series represents the pinnacle of our PURE loudspeakers and combines their essential features to perfection: uncompromising sound quality, high-quality materials and incomparable aesthetics.

Absolute high-frequency brilliance

The HELIX PR T25-S premium tweeter is one of the absolute excellences of PURE loudspeakers. It is characterized by the smallest manufacturing tolerances and the exclusive use of the highest quality materials, such as the coated silk dome. This means that even the finest details are reproduced precisely and ensures natural sound reproduction, which guarantees an incomparable high-frequency experience. Thanks to the highly efficient neodymium magnet, there is always an optimal, linear magnetic flow. In addition, the well-thought-out and at the same time compact design opens up a wide range of mounting options for universal installation. The anodized aluminum mounting pot with solid mounting ring enables concealed mounting, while the grilles supplied in two exclusive designs offer both protection and aesthetic design options. Furthermore, high-quality aluminum surface-mounted housings (PR ATP25) are optionally available to perfect your sound setup.

Features

  • 25 mm premium tweeter with coated silk dome for precise reproduction of the highs with the finest details and accurate, natural sound reproduction
  • Compact design with a wide range of mounting options for universal installation
  • Anodized aluminum mounting pot with robust mounting ring for discreet attachment
  • Includes cover grilles in two exclusive, interchangeable designs
  • Minimal manufacturing tolerances and exclusive use of first-class materials
  • Highly efficient neodymium magnet for optimal linearity Magnetic flux
  • High-quality aluminum surface-mounted housing (PR ATP25) optionally available

Technical data

Impedance  Z 4 Ω
DC resistance  Re 3.4 Ω
Frequency range   2,500 Hz - 25,000 Hz
Resonance frequency  Fs 1400 Hz
Efficiency SPL 92 dB @ 2.83V / 1m
89 dB @ 1W / 1m
Voice coil diameter ø 25 mm
Diaphragm area Sd 4.9 cm²
Moving mass Mms 0.3 g
Membrane material   Coated silk dome
Outer diameter
(for further information see data sheet)
ø 37.7 mm
Installation diameter
(for further information see data sheet)
ø 37.7 mm
Installation depth
(for further information see data sheet)
  10.6 mm

Recommended crossover frequencies for the high pass
Slope    Minimum crossover frequency
6 dB/octave      4,000 Hz
12 dB/octave   > 3,000 Hz
24 dB/octave   > 2,500 Hz

Scope of delivery

2 x tweeter PR T25-S
2 x aluminum mounting pot
2 x OEM mounting spacer
2 x extension cable
2 x standard protective grille
2 x exclusive HELIX grille
1 x mounting material

quantity: 1 pair
Diameter (in cm): 2,5
Impedance (in Ohm): 4,0
Product group: Speaker
