Product information Eton UG BMW 10NU - 10cm 2-way component system

High-end plug & play 2-way component system for various BMW models in the "N-basket".
The finest and perfectly coordinated materials, design know-how from over 40 years of loudspeaker construction, German industrial design and manufacturing quality Made in Germany - that's what the UG BMW ULTIMATE series stands for.
Perfection in every detail: Innovative aluminum die-cast basket through to the specially developed carbon fiber fleece sandwich membrane, polished and anodized pole and base plates with a large core hole for the best possible ventilation, strong neodymium magnet, precisely fitting connection plugs with decoupled plastic terminals and a precisely fitting sealing flange.
The set includes 28 mm (1 1/8") hand-coated fabric tweeters with coupling volume and ventilation with strong neodymium magnets in the smart installation dimensions of the original tweeters!
Optimized omnidirectional properties and increased throughput thanks to the new dome geometry and new, optimized contact protection.
Ultimate 100 mm (4") 2-way plug & play BMW component system in the N-basket. Die-cast aluminum basket with specially developed and decoupled, vehicle-specific plastic connection terminal.
Precisely fitting EPDM sealing flange for screwing from the front.
Strong neodymium magnet with flat installation dimensions.
Brightly turned and anodized pole & base plates with large core bore.
Carbon fiber fleece sandwich membrane with specially coated aluminum dust cap.

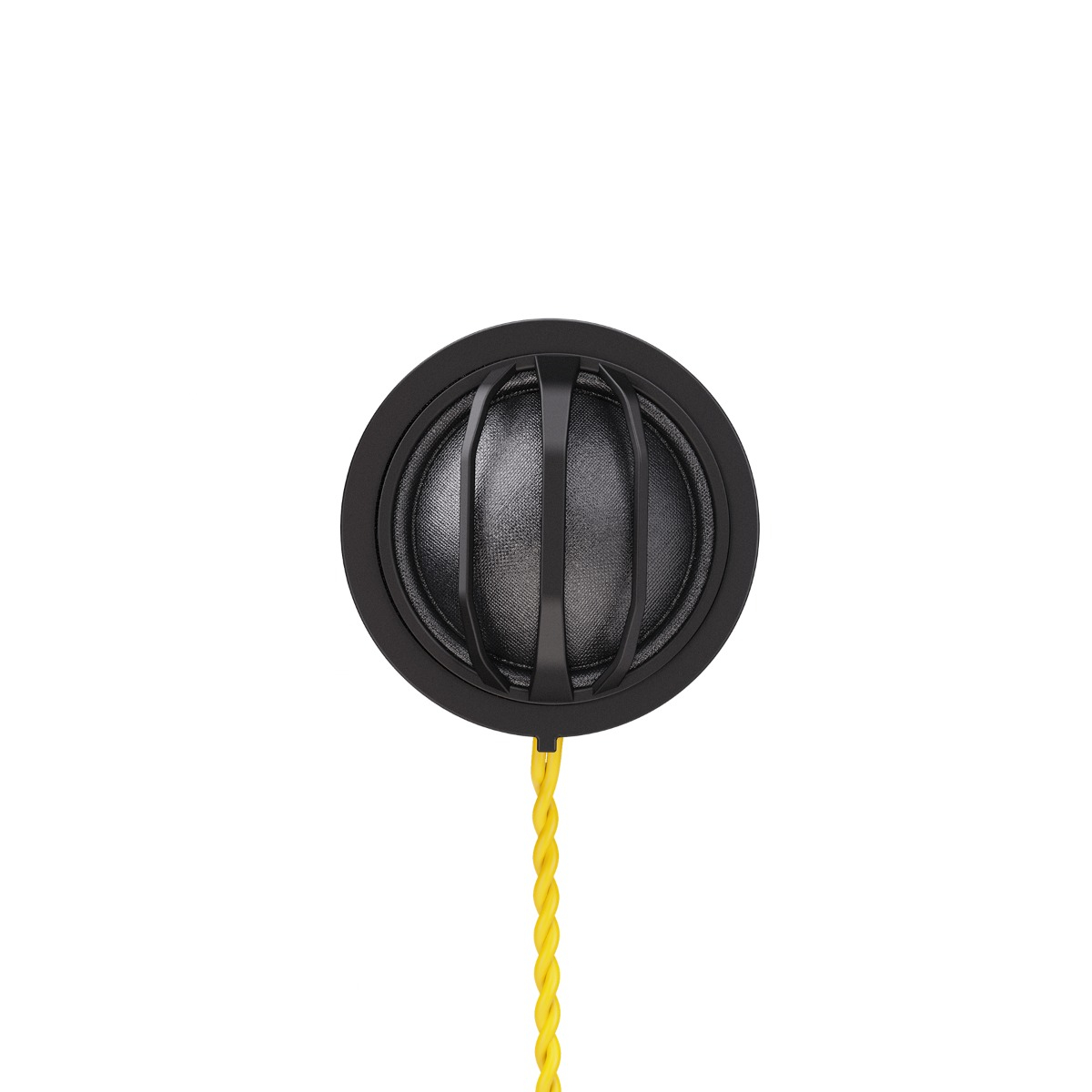

28 mm (1 1/8") hand-coated fabric tweeter with ventilated coupling volume and strong neodymium magnet.
Precisely fitting connection plug with newly developed plastic flange and contact protection.
4 Ohm impedance, nominal / music power handling: 30 W RMS / 60 W.
86 dB characteristic sound pressure.
Development and production Made in Germany.

Description:

• 10 cm (4") Plug & Play high-end 2-way upgrade system for various BMW and MINI models
• with hand-coated 2.8 cm (1 1/8") fabric tweeter with coupling volume in small installation dimensions
• newly developed, extremely torsion-resistant die-cast aluminum basket in the N-basket
• screw connection from the front with sealing flange
• newly developed glass fiber carbon fleece membrane
• easy-to-install and extremely strong neodymium magnet
• specially developed, precisely fitting BMW connection terminals, the new top class in terms of upgrades
• Manufacture and development Made in Germany

Technical data:

• Woofer/midrange: 10 cm (4")
• Tweeter: 2.8 cm (1 1/8")
• Impedance: 4 Ohm
• Nominal/music power handling: 70 / 120 watts
• Nominal sound pressure: 89 dB
• Mounting: front mount
• Type: N-basket
