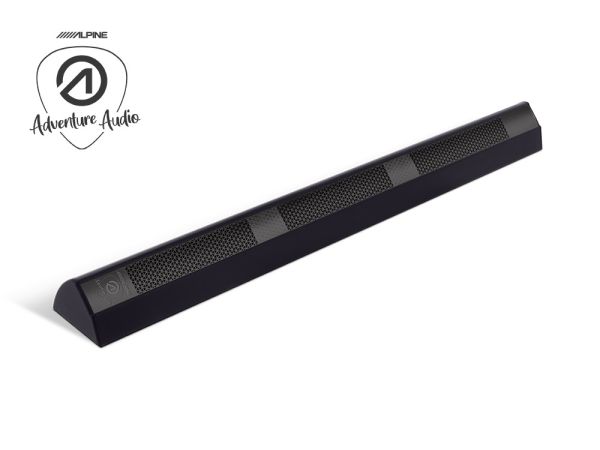

Alpine SPC-L500SB - In-Carbin speaker, long, black

Alpine SPC-L500SB - In-Carbin speaker, long, black

The new series of Adventure Audio In-Cabin speakers is characterized by high-quality workmanship, modern design and excellent sound reproduction in a new design.
This exceptionally compact design and the option of horizontal or vertical mounting enable symmetrical installations that were not possible with conventional car audio speakers.
The customer has the choice between two high-quality surface-mounted or built-in speaker variants, as well as with silver or dark anodized aluminum housings in various lengths.
The flush-mounted versions with the attractively designed aluminum grille blend seamlessly into the wall surface.
The SPC-L500SB surface-mounted speaker has three carbon fiber reinforced drivers and offers a power handling of 50 watts RMS for excellent sound reproduction.
The grille can be rotated depending on the installation position so that the Alpine logo is correctly displayed in a horizontal or vertical orientation.

ALPINE ADVENTURE AUDIO IN-CABIN SPEAKERS

For many years, motorhomes and vans have used regular car speakers as a sound system.
However, this is not ideal when you consider the space required for installation. Often the speakers are installed in ceiling cabinets that face downwards.
The result is a poor sound image, a loss of space in the built-in cabinet and an overall poor sound quality.
The Alpine Adventure Audio In-Cabin speakers are extremely slim and can be installed in many different locations without losing space to achieve excellent sound quality and reproduction.
Especially in conjunction with a powerful DSP amplifier (e.g. the Alpine OPTIM8 PXE-C80-88), the system unfolds its full potential for an unrivalled sounding motorhome.

EXCELLENT SOUND QUALITY

Professionally tuned with 3 drivers, the SPC-L500SB offers a smooth, lifelike sound that goes hand in hand with a sleek design and a clear, minimalist aesthetic.
The speaker can be loaded with up to 50 watts RMS power and 100 watts peak power.
For best sound results, use in pairs in combination with the SPC-D84L subwoofer system is highly recommended.

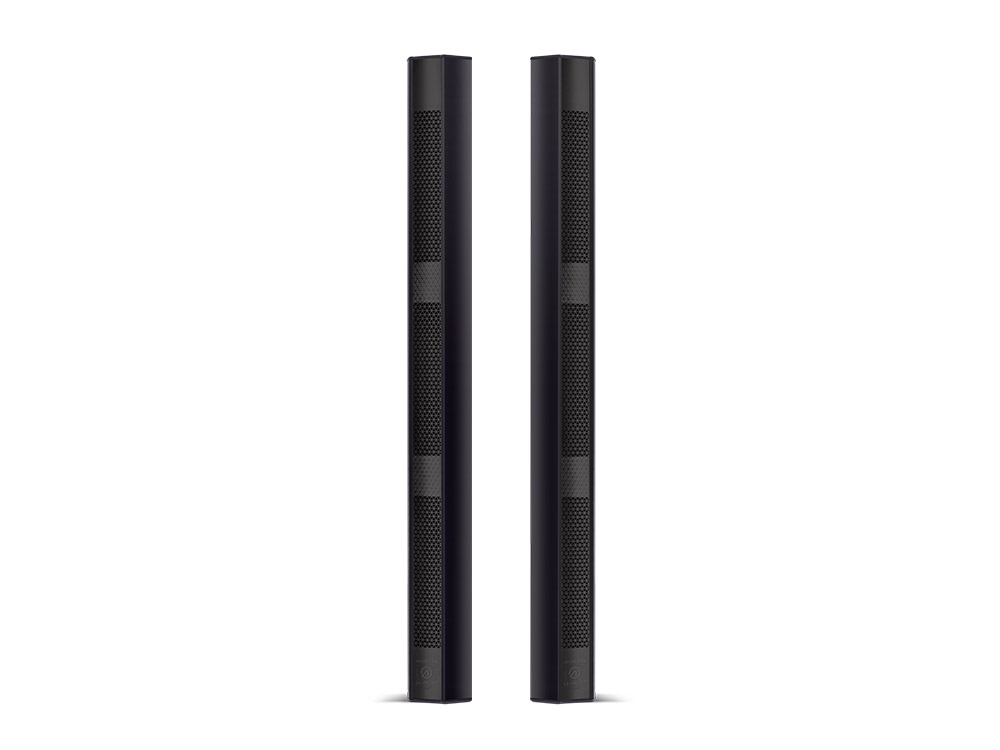

HORIZONTAL AND VERTICAL INSTALLATION

The Alpine Adventure Audio In-Cabin speakers can be installed in horizontal or vertical orientation to suit individual mounting requirements.
You can rotate the stainless steel cover to display the Alpine logo in the correct orientation and achieve a perfect look.

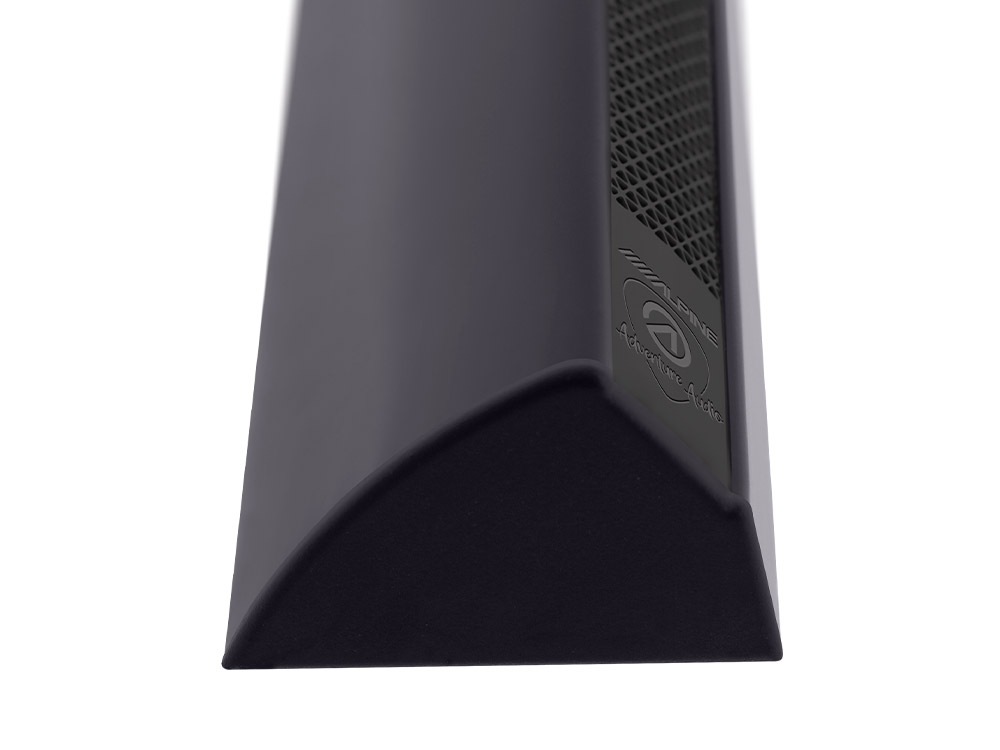

HIGH QUALITY MATERIALS

The modern design and high quality workmanship make this In-Cabin speaker a real upgrade to the interior of your RV.
The silver anodized aluminum housing is fitted with painted plastic end caps so that the stainless steel cover can be removed and positioned in the desired direction.

BUILT-IN AND MOUNTED OPTIONS

You can choose between surface-mounted and built-in speaker variants to meet your installation requirements.
The installation of the in-cabin speaker (SPC-L500F) makes it appear very slim and unobtrusive, so that it fits perfectly into the interior of your motorhome.
The surface-mounted variant (SPC-L500SB) can be mounted on any cabinet, corner or edge in the interior of the motorhome and aimed directly at the listener.

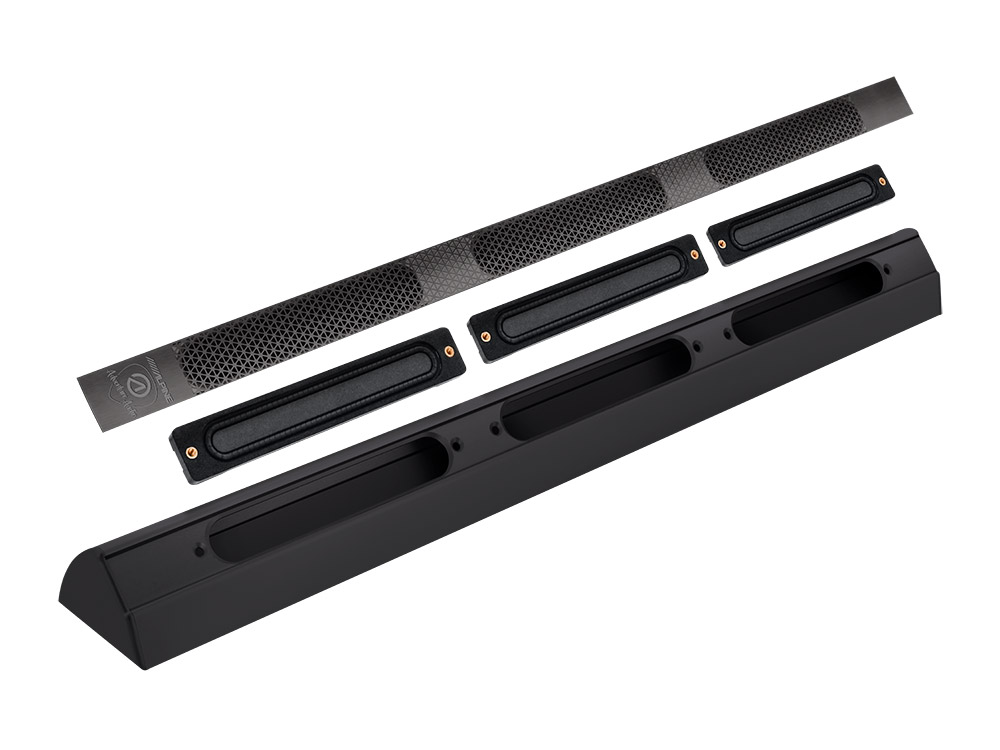

ULTRA SLIM DRIVERS

The ultra slim, carbon fiber reinforced drivers have a frequency response of up to 20 kHz and offer a wide dispersion angle for excellent sound quality throughout the motorhome interior.

IN-CABIN SUBWOOFER EXTENSION

Expand your Alpine Adventure Audio in-cabin speaker system with the matching SPC-D84L subwoofer.
The subwoofer is required to achieve full-range sound with excellent dynamics, and is perfectly matched to the sound characteristics of the speakers.

AVAILABLE IN MANY CONFIGURATIONS

The Alpine Adventure Audio In-Cabin speaker series includes various speaker lengths, colors and configurations for you to choose from.
You can also combine these speakers together to create the sound system that best suits your installation needs.

Features

General

• 506mm In-Cabin Speaker (1 piece)
• Silver aluminum housing
• 3 Ultra-slim carbon reinforced drivers
• The orientation of the cover can be changed horizontally or vertically.
• Wide dispersion angle
• Compatible with the integrated amplifier in the radio

Specification

General

• Max. Power: 100 watts
• RMS power: 50 watts
• Impedance: 4 ohms
• Frequency range: 120 Hz - 20 kHz
• Efficiency: 88.2 dB/W/m
• Dimensions: 506 mm (L) x 44 mm (H) x 70 mm (D)

Vertical installation

• Beam angle (horizontal): 160°
• Beam angle (vertical): 40°

Horizontal installation

• Beam angle (horizontal): 40°
• Beam angle (vertical): 160°
