Eton sound system package 5-piece - For Fiat Ducato UG FIAT FD16 Newly... more

Product information "Eton sound system package 5-piece - For Fiat Ducato"

Eton sound system package 5-piece - For Fiat Ducato

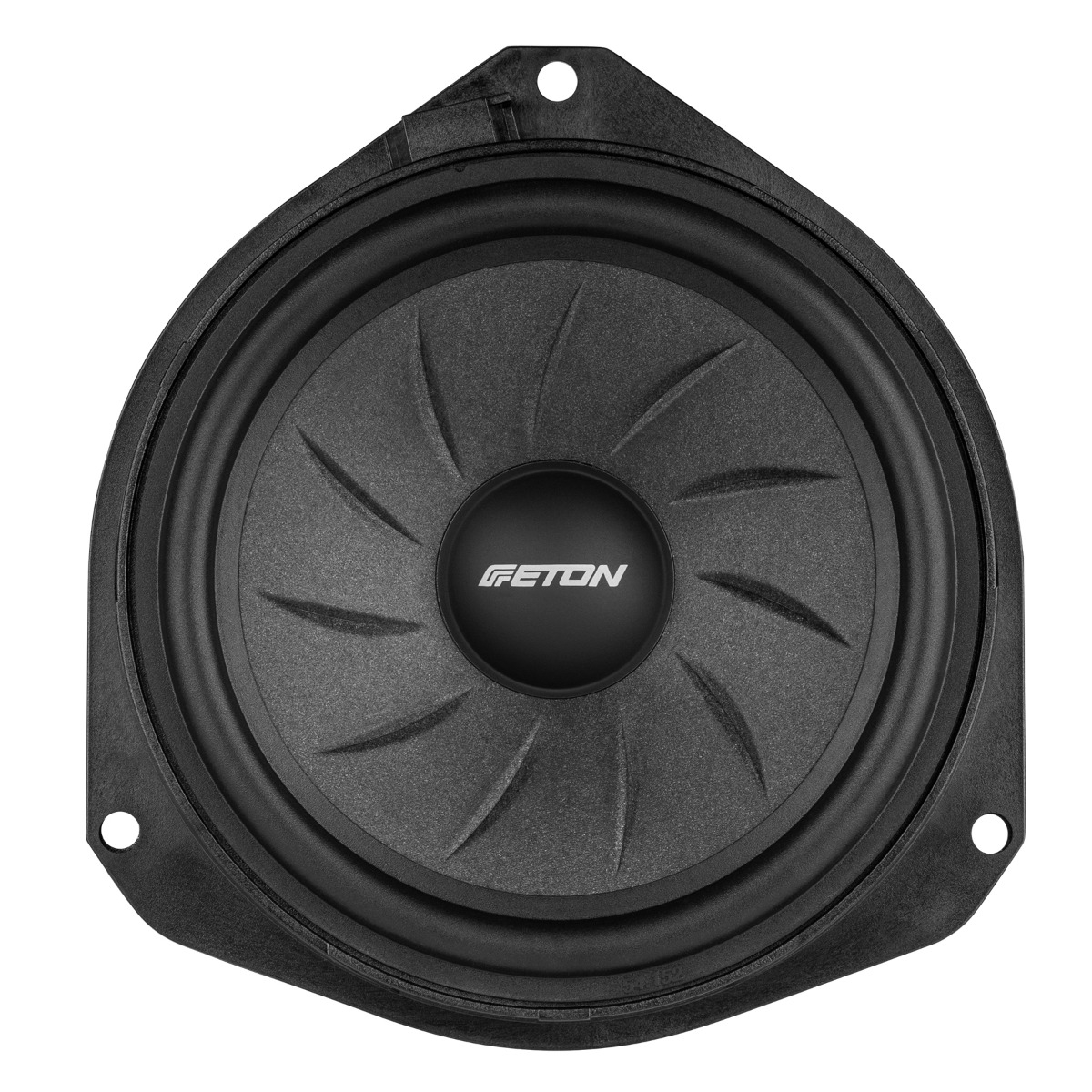

Newly developed rib-stiffened paper-fiberglass membrane
Fiberglass reinforced plug & Play polyamide plastic basket, new double-strut basket design for maximum rigidity and cooling effect
Powerful ferrite magnet with large core bore for the best possible cooling
Precisely fitting connection terminals and precisely fitting mounting points as well as integrated sealing flange
3 ohm impedance for maximum efficiency - even without an additional amplifier!

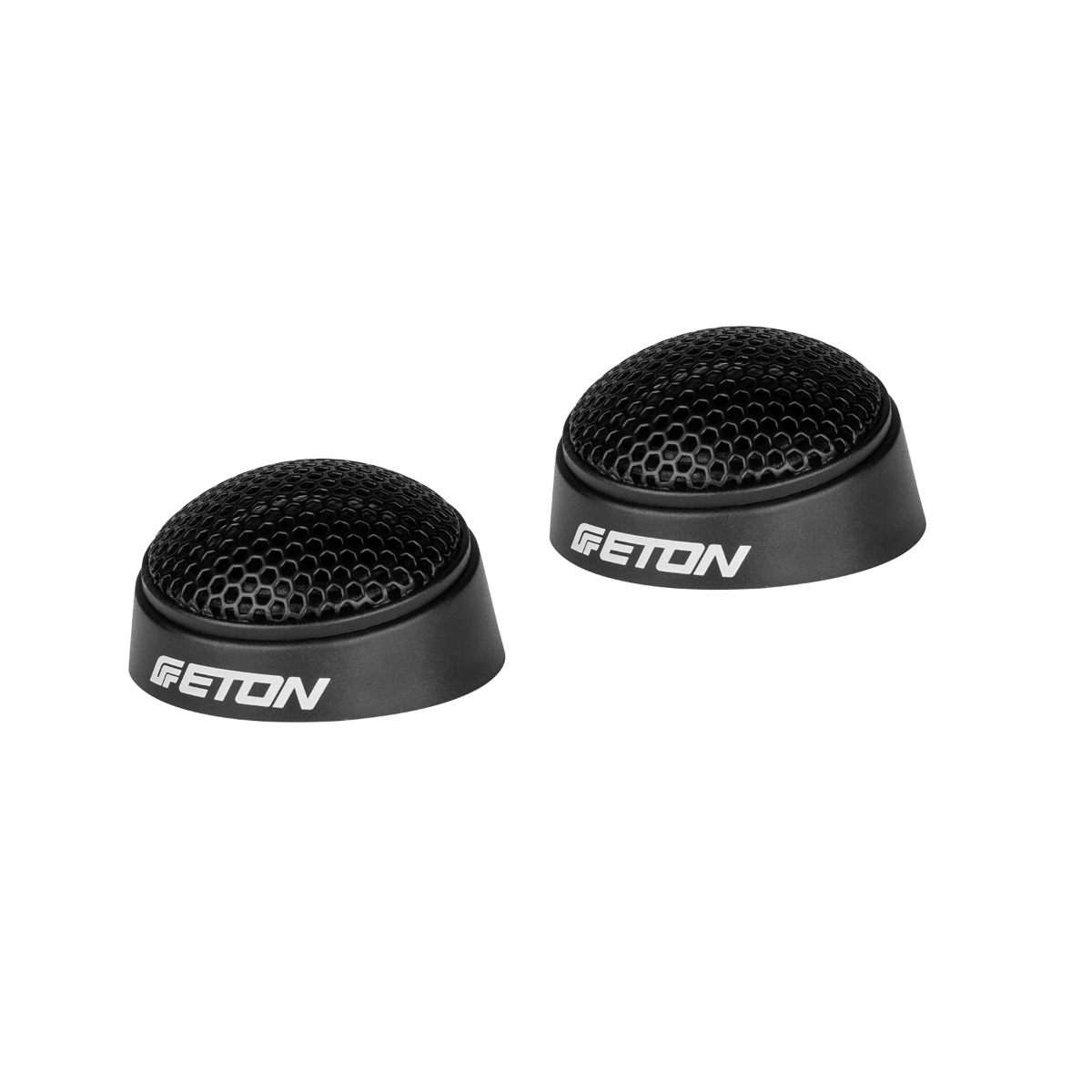

25 mm (1") coated fabric tweeter for silky soft and detailed high-frequency reproduction, matched to the woofer/midrange speaker for long distances

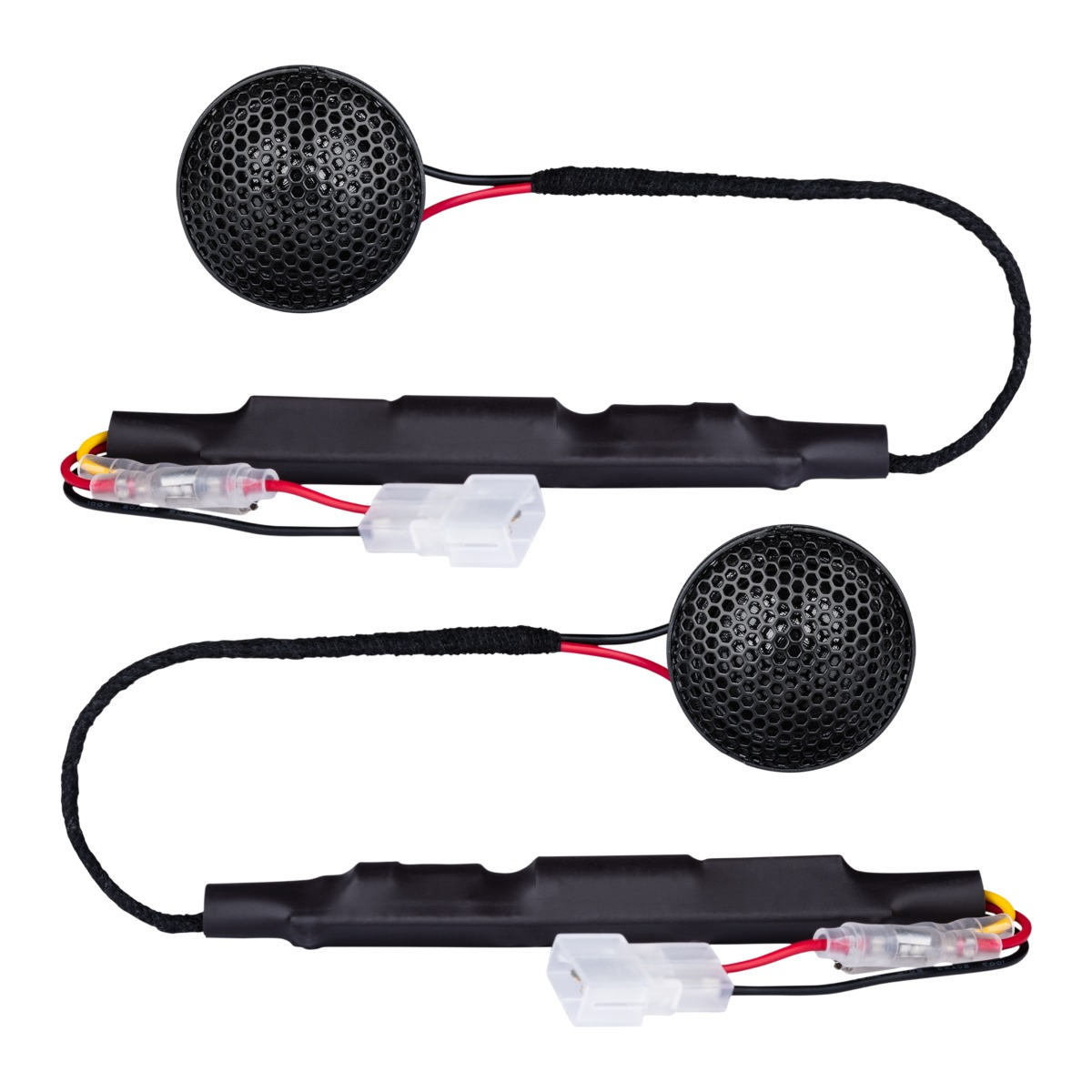

Tweeter with high-quality cable crossover with level adjustment
Slanted housing for the tweeter and plastic lever tool included in delivery
Engineered in Germany

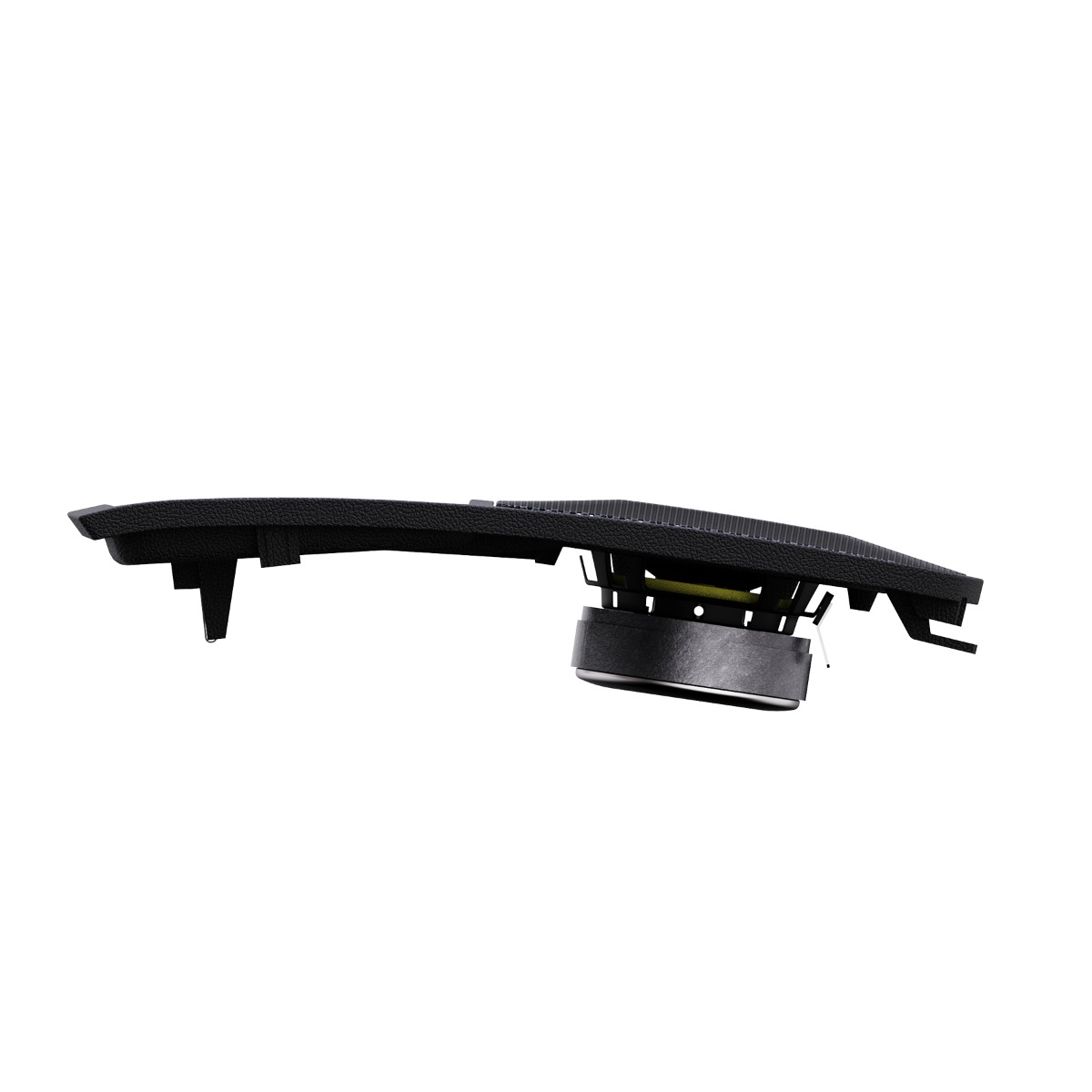

High-quality plug & play Center console for easy replacement of the clipboard or storage compartment in the upper part of the dashboard, suitable for vehicles based on the FIAT Ducato III (with radio preparation).
Form-fitting design
permeable metal cover grille and WaveGuide shape
original surface structure and color
Equipped with an 80 mm (3") paper-fiberglass membrane broadband speaker in a powder-coated metal basket
Strong ferrite magnet with polished base plate with large core hole for the best possible ventilation
4 ohm impedance, nominal / music load capacity: 20 W RMS / 30 W, 86 dB sound pressure level. Incl. anti-slip insert mat in ETON pattern design and metal clips
Attachment to the original points with the original screws. The perfect sound upgrade for your camper or commercial vehicle - finally understand navigation announcements better and enjoy audio books in unprecedented quality.
For easy connection, an extra generated center audio signal (sum signal 50/50 L/R) is required, this can be generated using our UG FIAT FDCW cable kit and a MICRO 250.4 / PA 4 power amplifier or using DSP.

4-channel Smart Class-A/B amplifier with pre-installed sound set-up for use with ETON UG FIAT FD16, UG FIAT FD7C and UG FIAT SUB6A
Bluetooth audio streaming with automatic source switching
Plug & Play installation with optional connection cable ATS-ISOETON
Output power ® 4 g: 4 x 25 W RMS, dimensions (L x W x H): 177 x 114 x 40 mm

Connection cable for the A544DSP or A594DSP in the Fiat Ducato III (with standard ISO wiring harness in the radio slot)
The cable has precisely fitting connections for the subwoofer ETON Upgrade SUB 6A and the center speaker ETON Upgrade FIAT FD7C
The length of the respective cables is matched to the intended Installation locations

quantity:	1 Set
Diameter (in cm):	15,0, 8,0, 16,5
Housing color:	black
Impedance (in Ohm):	3, 4,0, 2 x 2,0
Channels:	4
Speaker Type:	Compo-System
Speaker Features:	2 ways
Peak Power (in Watt):	90, 100, 200
Power RMS (in Watt):	20, 50, 60
Product group:	Lautsprechersystem, Anschlusskabel, Speaker, Spare Wheel Hollow
Subwoofer Features:	active (Amplifier integrated), Car specific, Subwooferbox
Amplifier Features:	Class AB, integrated DSP
Fiat:	Ducato
