Description:
You didn't find the type of enclosure sub you are looking for? – If none of the MATCH Plug & Play enclosure subs fits in your car with respect to shape and / or size, then you have the chance to build your “personalized” version by yourself. Therefore, we offer the single woofers of our Plug & Play series, which are 100 % identical to the drivers that are used in the pre-loaded variants. As long as you choose the net volume and port tuning frequency according to the installation instructions, we guarantee the same acoustical performance as our “standard” subwoofers.
Features:

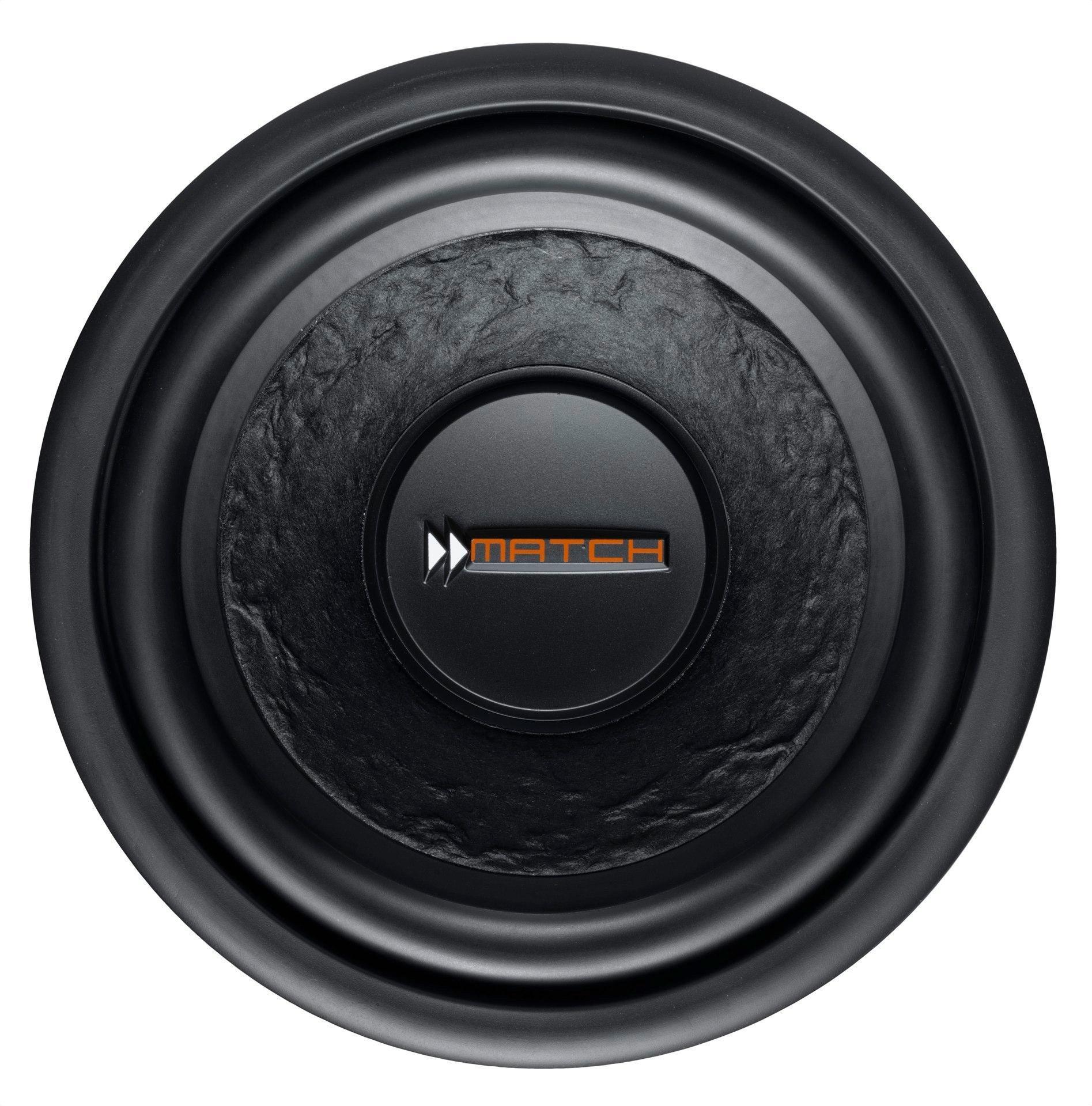

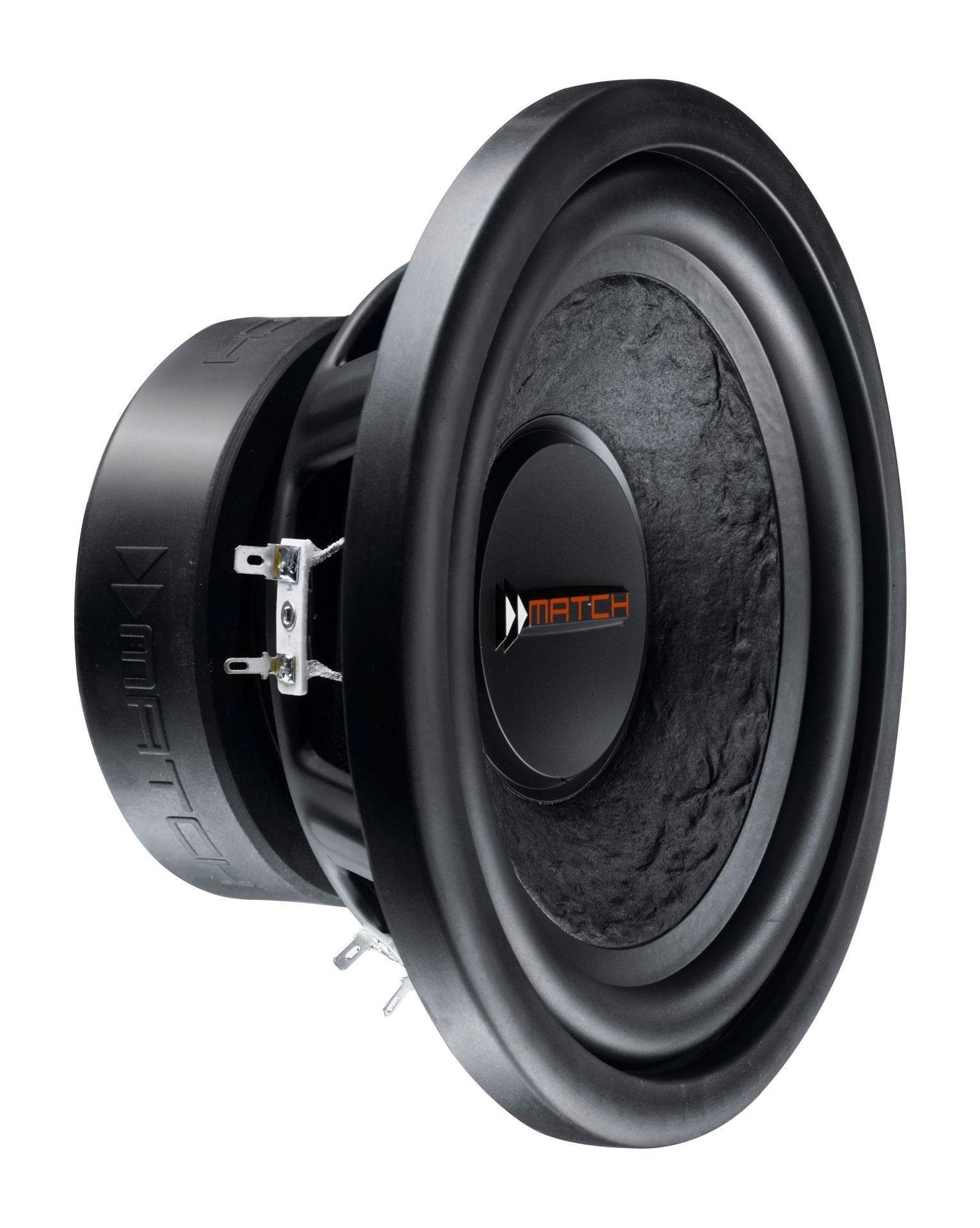

- 8” / 200 mm Plug & Play subwoofer with quad voice coil for compact vented enclosures
- Extremely stiff hand-scooped paper cone for maximum sound pressure
- Double ventilated voice-coil for minimum compression effects
- Powerful magnet for compact-sized vented enclosures
- Connection terminal for MATCH subwoofer cable (PP-SC) included in delivery
- Optimized for the perfect interaction with MATCH Plug & Play amplifiers
Specifications:
- Power RMS / max. P 200 / 400 Watts
- Impedance: 4 x 3 ohms
- DC resistance: Re 4 x 2.7 ohms
- Frequency response
- Resonance frequency: Fs 37 Hz
- Mechanical Q factor: Qms 5.40
- Electrical Q factor: Qes 0.57
- Total Q factor: Qts 0.51
- Compliance: Cms 341 µm/N
- Equivalent air volume: Vas 23 L
- Force factor B*I: 7.5 Tm
- Efficiency 1 W / 1 m: SPL 87 dB
- Cone area: Sd 222 cm²
- Moving mass: Mms 53 g
- Cone material: Hand-scooped paper cone
- Mechanical resistance: Rms 3.3 kg/s
- Voice coil diameter: ø 50.8 mm
- Voice coil winding height: 21 mm
- Max. linear excursion: Xmax +/- 6.5 mm
- Outer diameter: ø 212 mm / 8.35"
- Installation diameter: ø 183 mm / 7.2"
- Installation depth: 105 mm / 4.1"
Recommended enclosure volumes
- Sealed box Not recommended
- Net volume -
- Lower limiting frequency (-3dB)
- DSP settings
Vented box
- Net volume: 10 L
- Port diameter: ø 60 mm / 2.36"
- Port area: 28 cm²
- Port length: 25 cm / 9.84"
- Port tuning frequency: Fb 47 Hz
- Lower limiting frequency: (-3dB) 45 Hz
Delivery contents:
1 x Subwoofer MATCH PP 10W-Q
1 x Connection terminal
| quantity: | 1 piece |
| Diameter (in cm): | 20,0 |
| Housing color: | black |
| Impedance (in Ohm): | 4 x 3,0 |
| Peak Power (in Watt): | 400 |
| Power RMS (in Watt): | 200 |
| Product group: | Spare Wheel Hollow |
| Subwoofer Features: | Bass reflex, Subwooferbox |
