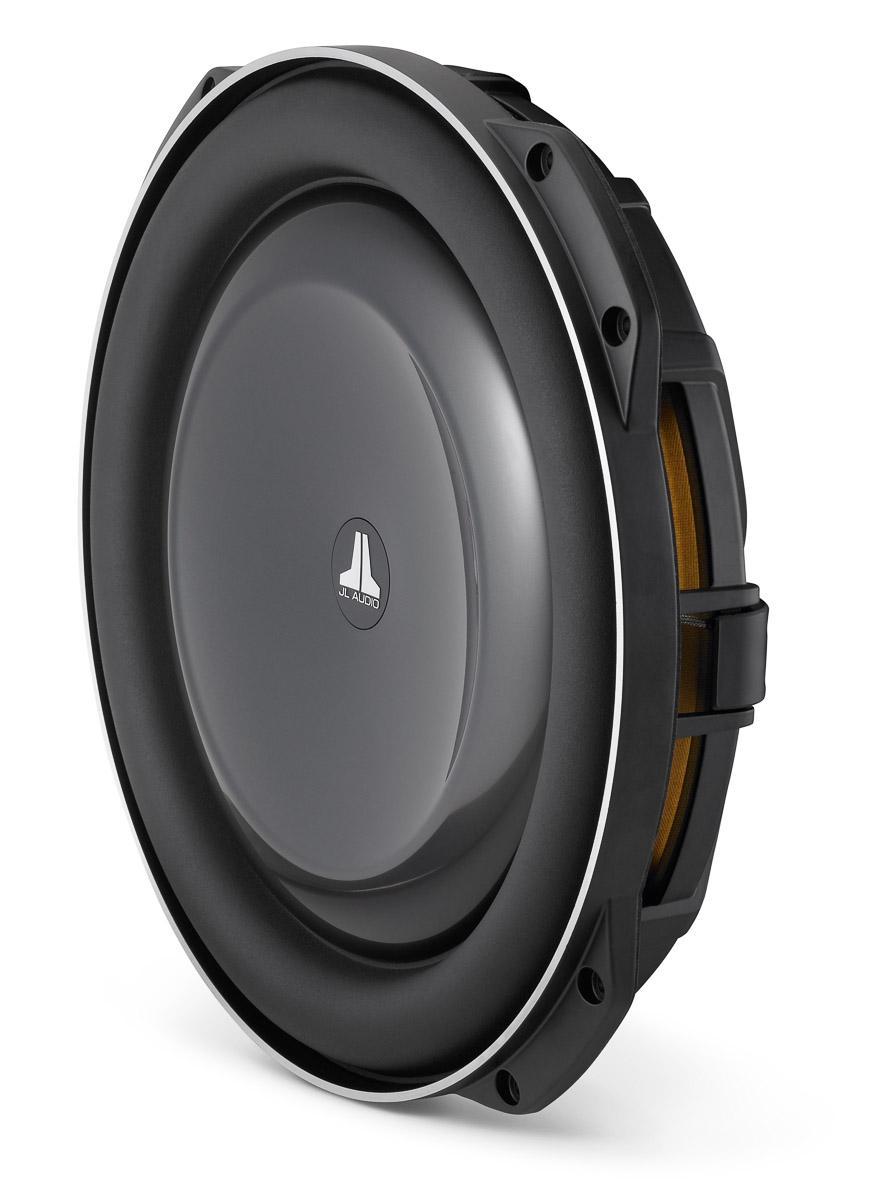

TW5v2 13.5-inch Subwoofer Driver (600 W, 4 ohms)

• We couldn’t leave the ultimate thin woofer alone... we had to make it even better.

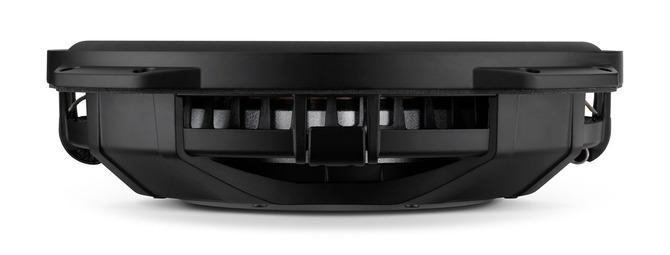

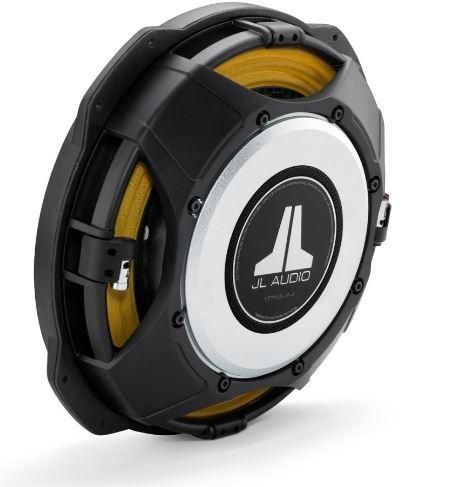

• Our patented thin-line woofer technology compresses the architecture of the 13TW5v2 using a “concentric tube” structure that supports the 7-inch diameter voice coil and the suspension attachments. This permits placement of the large motor structure much further forward in the speaker than with conventional designs, while allowing excellent linear excursion capability and mechanical stability.
• To unleash even more performance from this technology, the v2 improves upon the original 13TW5 with 13% greater linear excursion capability. The cast alloy chassis has also been modified for greater strength and the redesigned motor now features an annular vent. The v2 is also available in single 2 ohm and single 4 ohm voice coil versions to fit a wide range of applications.
• In keeping with its “tight-spaces” mission, the 13TW5v2 is optimized for enclosures that are far smaller than most 12-inch woofers require and only a bit larger than the air space needs of a typical, small-box 10-inch woofer. The mounting system is designed to fit in about the same footprint as a typical 12-inch woofer.
• The 13TW5v2 is best used with amplifier power in the 250W - 600W range and is optimized to operate in a 0.80 cu. ft. (22.7 l) sealed enclosure.
• Never has such high-quality sub-bass been possible in the most challenging installation applications.

General Specifications

• Continuous Power Handling (RMS): 600 W
• Recommended Amplifier Power (RMS): 250 - 600 W
• Nominal Impedance (Znom): 4 ohms

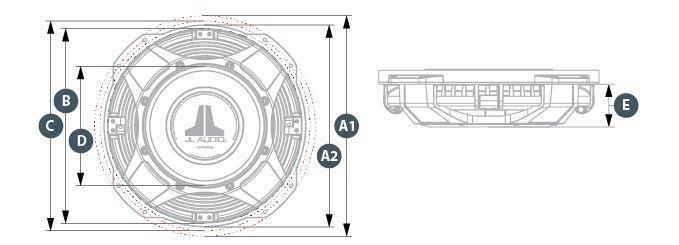

Physical Specifications (Pict.4)

• Nominal Diameter: 13.5 in / 345 mm
• Overall Diameter (A) A1: 14.2 in / 361 mm A2: 13.0 in / 330 mm
• Mounting Hole Diameter (B): 12.5 in / 318 mm
• Bolt Hole Circle Diameter (C): 13.5 in / 343 mm
• Motor Outer Diameter (D): 6.75 in / 171 mm
• Mounting Depth (E): 2.625 in / 67 mm
• Driver Displacement: 0.052 cu ft / 1.47 L
• Net Weight: 20.5 lb / 9.3 kg

Parameters

• Free Air Resonance (Fs): 27.61 Hz
• Electrical “Q” (Qes): 0.553
• Mechanical “Q” (Qms): 10.692
• Total Speaker “Q” (Qts): 0.526
• Equivalent Compliance (Vas): 2.13 cu ft / 60.31 L
• One-Way Linear Excursion (Xmax)*: 0.433 in / 11 mm
• Reference Efficiency (no): 0.23%
• Efficiency (1 W / 1 m)**: 85.63 dB SPL
• Effective Piston Area (Sd): 98.26 sq in / 0.0634 sq m
• DC Resistance (Re): 3.513 ohms

* Xmax specifications are derived via one-way voice coil overhang method with no correction factors applied.
** Efficiency (1 W / 1 m) is not an accurate indicator of a subwoofer’s output capability and should not be used as a comparison to other subwoofers to determine which one is “louder”.

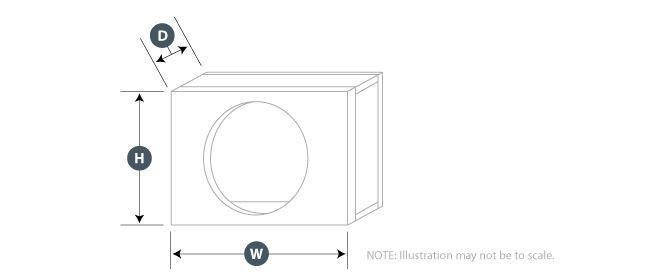

Sealed Enclosure Specifications (Pict. 5)

• Wall Thickness: 0.75 in / 19 mm
• Front Baffle Thickness: 0.75 in / 19 mm
• Volume (net int.): 0.80 cu ft / 22.6 L
• External Width (W): 19 in / 483 mm
• External Height (H): 15 in / 381 mm
• External Depth (D): 7.75 in / 197 mm
• F3: 41.42 Hz
• Fc: 52.84 Hz
• Qtc: 1.007

Enclosure Notes
* The enclosure recommendations listed above are external dimensions which assume the use of 0.75 in (19 mm) thick material. If you are using 0.625 in (16 mm) thick material, subtract 0.25 in (6) from each dimension. Do not use any material with a thickness of less than 0.625 in (16 mm) as this may compromise the rigidity of the enclosure.
* All enclosure volumes listed above are net internal volumes! Driver displacement, port displacement and brace displacement must be added to obtain the final gross internal volume. All enclosure dimensions above have already taken this into account.
* When using multiple subwoofers in a common enclosure you will need to recalculate the enclosure and port dimensions. For assistance please contact your authorized JL Audio dealer or JL Audio Technical Support.
* We recommend the use of this speaker in a bi-amplified system using high-quality satellite speakers and a high-quality amplifier. We do not recommend the use of this subwoofer with a passive crossover (coil), as this type of device will adversely affect performance.
* All specifications are subject to change without notice.

Safety Notice
Prolonged exposure to sound pressure levels in excess of 100dB can cause permanent hearing loss. This high-performance speaker can exceed this level. Please exercise restraint in its operation in order to preserve your ability to enjoy its fidelity.

When installing a subwoofer in your vehicle, it is extremely important to secure the enclosure firmly. We recommend bolting the enclosure through the metal of the floorpan or the frame of the vehicle with large diameter washers for reinforcement. If an enclosure is not firmly attached, it can become a projectile in a collision. This is particularly important in a hatchback, station wagon, sports utility vehicle, or van.
